For cleanroom project managers, HVAC design engineers, and industrial air filtration distributors, specifying the correct terminal High-Efficiency Particulate Air (HEPA) grade is a critical compliance milestone. While both H13 and H14 mini-pleat filters provide exceptional particulate retention, their performance thresholds under the rigorous EN 1822 / ISO 29463 standards differ significantly. Choosing between them involves balancing regulatory compliance, maximum permissible particle leakage, and long-term HVAC energy consumption.
This engineering guide breaks down the technical nuances of H13 and H14 mini-pleat filters, analyzing their filtration mechanics, aerosol testing criteria, and optimal deployment environments.
Note: This technical guide is part of our comprehensive engineering series on terminal filtration. Return to our central Ultimate Engineering Guide to Mini-Pleat HEPA Filters or review our structural comparison on Mini-Pleat vs. Deep-Pleat Separator HEPA Filters.

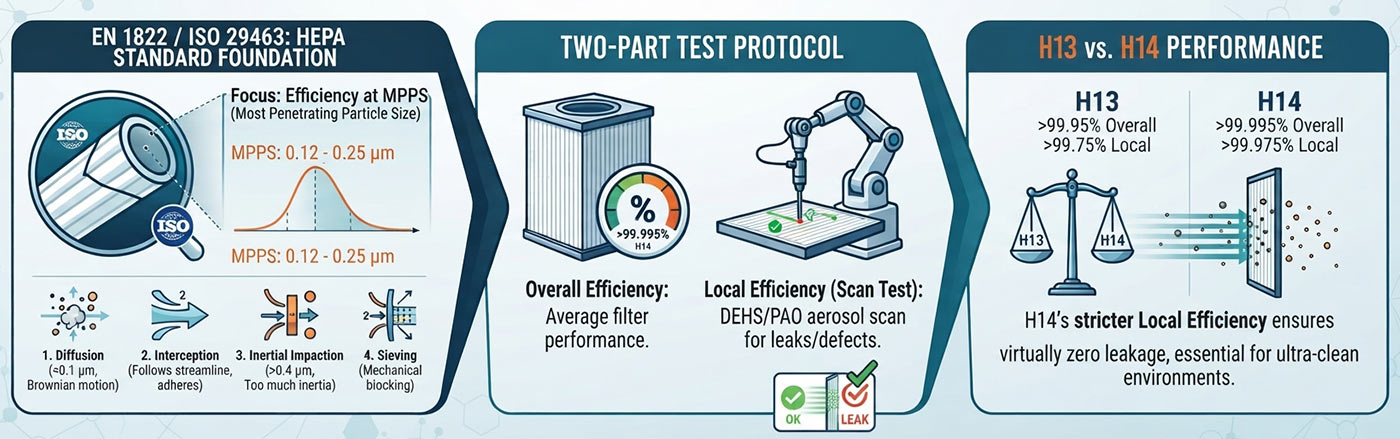

EN 1822 / ISO 29463 Standards: The Foundation of HEPA Grading
To understand the operational gap between H13 and H14 filters, one must examine how European standard EN 1822 evaluates performance. Unlike older low-efficiency arrestance tests, EN 1822 classifies HEPA filters based on their efficiency at capturing the Most Penetrating Particle Size (MPPS)—typically falling between 0.12 to 0.25 microns, where mechanical and diffusion filtration mechanisms intersect at their lowest efficiency point.
The scientific foundation of HEPA performance relies on four synergistic filtration mechanisms:
Diffusion: Brownian motion causes ultra-fine particles (< 0.1 µm) to zig-zag and collide with glass fibers.
Interception: Particles following the fluid streamline brush against the fiber and adhere if they pass within one particle radius.
Inertial Impaction: Larger particles (> 0.4 µm) possess too much inertia to follow curving streamlines around fibers and impact directly.
Sieving: Mechanical blocking of particles larger than the inter-fiber spacing.
Furthermore, EN 1822 compliance requires a strict dual-metric evaluation that distinguishes overall performance from localized integrity:
Overall Efficiency: The average efficiency of the entire filter element against the MPPS challenge aerosol.
Local Efficiency (Scan Test): Ensuring there are no microscopic manufacturing defects, media tears, or sealing bypasses across the entire surface by performing a 100% individual aerosol scan test (using DEHS or PAO challenge aerosols) combined with a discrete particle counter or photometer.
H13 Mini-Pleat Filters (Specifications & Applications)
H13 mini-pleat filters represent the baseline benchmark for high-efficiency terminal filtration in cleanrooms and critical commercial environments where absolute particle elimination is required, but marginal penetration tolerances are permissible.
Technical Performance Parameters:
MPPS Overall Efficiency: >= 99.95%
MPPS Local Efficiency: >= 99.75%
Typical Clean-State Resistance: 80 Pa to 120 Pa (at standard 0.45 m/s face velocity)
Media Configuration: Ultra-fine wet-laid micro-glass fiber paper configured in uniform mini-pleats maintained by extruded hot-melt thermoplastic beads.
Core Industrial Applications:
Controlled Environments: ISO Class 5 to ISO Class 8 cleanrooms (such as electronics assembly, precision machining, and general pharmaceutical suites).
Commercial HVAC & Healthcare: Terminal diffusers in hospital operating rooms (non-critical zones), commercial isolation areas, and high-end office HVAC systems.
Engineering Advantage: H13 mini-pleat configurations offer an optimal balance between particulate capture and airflow resistance, helping facility managers keep initial fan static pressure manageable (learn how this impacts your financial budget in our Pressure Drop & TCO Optimization Guide).
H14 Mini-Pleat Filters (High-Specification & Critical Cleanrooms)
H14 mini-pleat filters provide an order-of-magnitude higher filtration threshold, designed for environments where a single sub-micron contaminant can cause catastrophic yield loss, contamination spikes, or severe biological health risks.
Technical Performance Parameters:
MPPS Overall Efficiency: >= 99.995%
MPPS Local Efficiency: >= 99.995% (meaning local leakage must not exceed 0.005%, providing a tenfold reduction in allowable particle penetration compared to H13).
Typical Clean-State Resistance: 100 Pa to 140 Pa (reflecting a marginally denser glass fiber media matrix and tighter pleat pitch).
Structural Integrity: Utilizes specialized polyurethane potting or gel-seal framing to eliminate bypass leakage between the filter pack and the ceiling grid housing.
Core Industrial Applications:
Advanced Semiconductor Manufacturing: Class 1 to Class 4 cleanrooms, photolithography bays, and wafer processing stations requiring absolute particulate control.
Critical Life Sciences: Sterile pharmaceutical filling lines (RABS and isolators), active pharmaceutical ingredient (API) synthesis, and P3/P4 high-containment biological research laboratories.
Equipment Integration: Because of their superior retention rates and reliable hot-melt bead spacing, H14 mini-pleat units are the mandatory specification for seamless integration into Fan Filter Units (FFUs) and laminar flow hoods.
Technical Comparison Matrix: H13 vs. H14 Mini-Pleat
| Engineering Parameter | H13 Mini-Pleat HEPA | H14 Mini-Pleat HEPA |
| EN 1822 / ISO 29463 Group | EPA / HEPA (Class H13) | HEPA (Class H14) |
| MPPS Overall Efficiency | >= 99.95% | >= 99.995% |
| MPPS Local Efficiency (Scan Test) | >= 99.75% | >= 99.995% |
| Initial Pressure Drop (@ 0.45 m/s) | Moderate (80 Pa – 120 Pa) | Slightly Higher (100 Pa – 140 Pa) |
| Media Separation Technology | Extruded Hot-Melt Thermoplastic Beads | Extruded Hot-Melt Thermoplastic Beads |
| Aerosol Testing Compliance | 100% Individual Serialized Scan Test | 100% Individual Serialized Scan Test |
| Allowable Penetration Factor | 0.05% | 0.005% |
| Primary Target Industries | Commercial Cleanrooms, Healthcare, Food | Semiconductor, Sterile Pharma, Biosafety Labs |

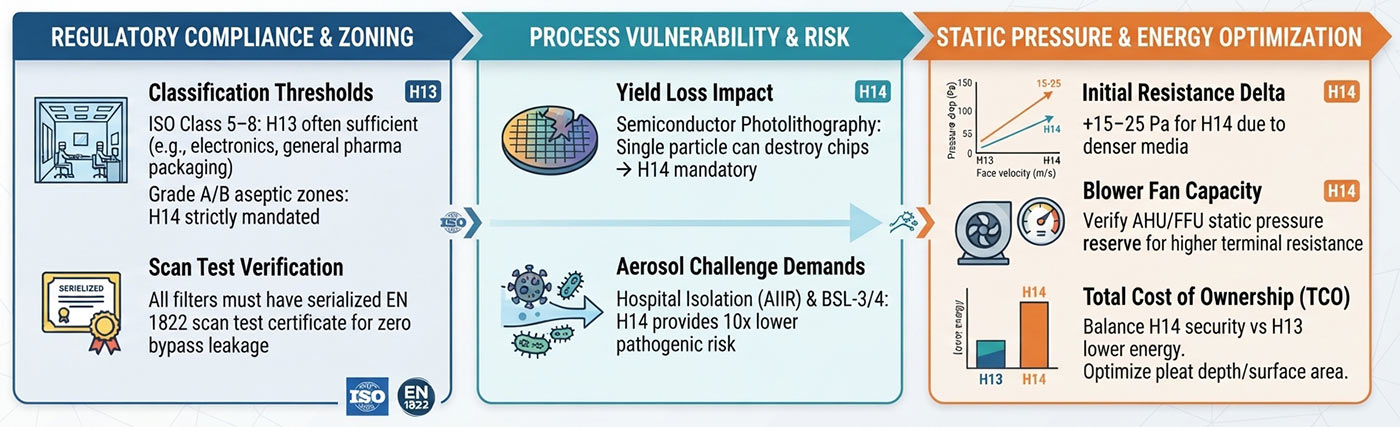

Engineering Decision Framework: H13 vs. H14 Specification Criteria
Selecting between H13 and H14 mini-pleat filters for critical HVAC and cleanroom installations requires moving beyond basic compliance checklists to evaluate three interconnected engineering variables:
1. Regulatory Framework & Cleanroom Zoning Compliance
Classification Thresholds: Review international and regional standards—such as ISO 14644-1 and EU GMP Annex 1—which dictate terminal filtration mandates. While ISO Class 5 to 8 environments (such as electronics assembly or general pharmaceutical packaging) frequently permit H13 terminal units, Grade A and critical B zones in aseptic pharmaceutical manufacturing or specialized biotechnology suites strictly mandate verified H14 performance to guarantee maximum allowable particle concentration limits.
Scan Test Verification: Regardless of the nominal classification, ensure that any specified filter is accompanied by an individual serialized scan test certificate proving zero bypass leakage under EN 1822 protocols.
2. Downstream Process Vulnerability & Contaminant Risk
Yield Loss Impact: Quantify the economic or biological cost of particulate penetration. In sub-micron semiconductor photolithography or wafer fabrication, a single fugitive particle can destroy multiple microchips, making the absolute retention threshold of H14 mandatory.
Aerosol Challenge Demands: In hospital isolation containment (e.g., Airborne Infection Isolation Rooms) or high-containment biosafety labs (BSL-3/BSL-4), H14 provides an essential order-of-magnitude reduction in penetration risk for pathogenic aerosols.
3. HVAC Static Pressure Budgets & Energy Optimization
Initial Resistance Delta: H14 filters typically incorporate a denser micro-glass fiber matrix and a tighter pleat pitch, resulting in an initial pressure drop 15 Pa to 25 Pa higher than equivalent H13 configurations at standard face velocities (0.45 m/s).
Blower Fan Capacity: Project engineers must verify that existing Air Handling Unit (AHU) or Fan Filter Unit (FFU) blowers possess adequate static pressure reserve to handle the higher terminal resistance over the filter’s operational lifespan.
Total Cost of Ownership (TCO): Because HVAC fan energy consumption accounts for the vast majority of a filter’s lifecycle cost, balancing the absolute security of H14 against the lower baseline energy consumption of H13 requires evaluating optimized pleat depth and surface area configurations to minimize long-term static pressure build-up.
Technical Summary & Engineering Resources
Selecting between H13 and H14 requires balancing process vulnerability, air change needs, and fan static pressure. While H14 offers higher security for critical sectors like semiconductor lithography, H13 provides an optimal energy-to-efficiency baseline for standard cleanrooms.
Long-term integrity depends on housing seals, face velocity control, and EN 1822 testing. To review specific performance curves, explore our Mini-Pleat HEPA Filter Product Series, or connect with our engineering team for custom parameter alignment.
