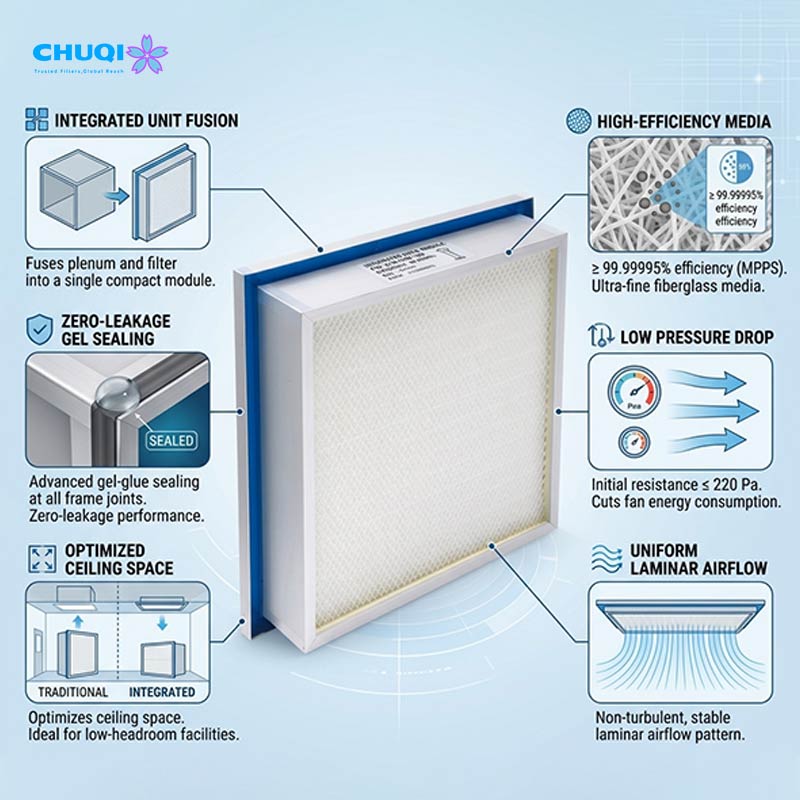

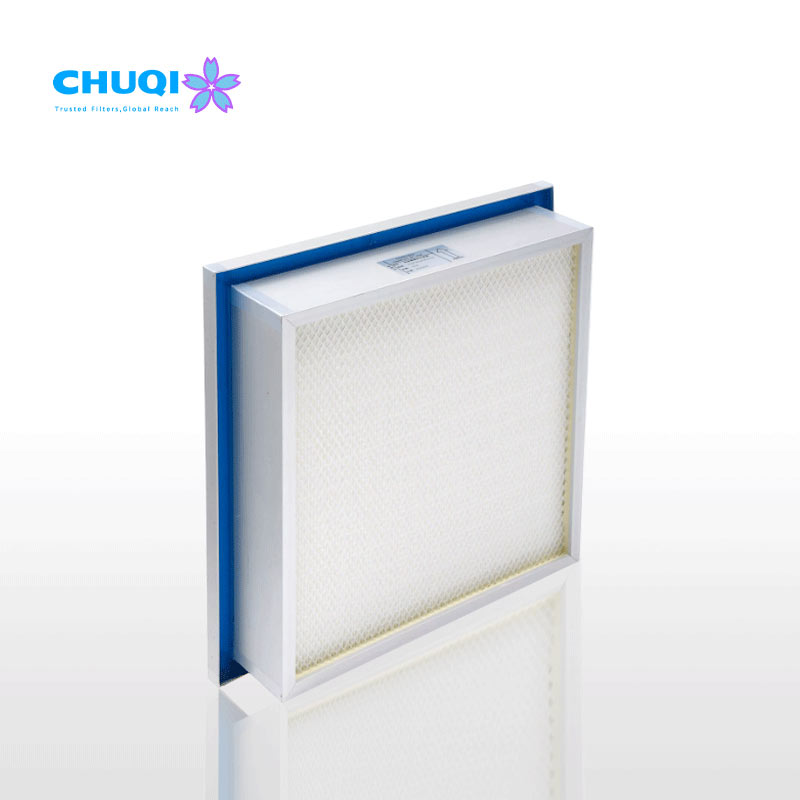

Gel Seal HEPA Filter Structural Features & Performance Stability
Advanced Leak-Free Gel Sealant Mechanism: Engineered as a premium gel seal cleanroom filter, this system features a specialized liquid gel pocket that forms an absolute physical barrier. It effortlessly absorbs structural vibrations or pressure fluctuations, completely eliminating the devastating bypass leakage common in traditional compression gaskets and ensuring strict compliance with GMP/ISO standards.
Ultra-Precise Hot-Melt Separation: Utilizing advanced hot-melt separators to maintain precise, uniform pleat spacing, the geometric stability of this industrial gel seal HEPA is fully secured. This optimized structure prevents pleat collapse even under high airflow velocities, eliminating the risk of structural deformation in heavy-duty ventilation systems.
Premium High-Capacity Fiberglass Media: Built with high-density imported fiberglass, this high capacity gel seal filter delivers a stable and exceptional filtration efficiency. The uniform fiber network maximizes dust holding capacity and significantly extends service life, lowering overall maintenance and filter replacement costs.
Optimized Airflow Velocity & Laminar Distribution: Thanks to the perfectly uniform pleat alignment, this Gel Seal HEPA filter ensures an exceptionally even face velocity and steady airflow distribution. It effectively prevents local turbulence and wind blind spots, providing a continuous supply of ultra-clean air for high-tier industrial environments.
Reliable Gel Seal HEPA Filters: Superior Airtight Protection for Critical Environments
Versatile Heavy-Duty Engineering Profiles: Our industrial gel seal HEPA lineup is built with lightweight 70mm, 80mm, or 93mm anodized aluminum alloy frames, reducing overhead load on structural ceilings while ensuring zero frame deformation.
Precision Integration for Standard Ceiling Systems: Specially designed as a gel seal HEPA for ceiling grid systems, these filters offer seamless drop-in alignment, solving the common installation delays caused by mismatching hardware dimensions.

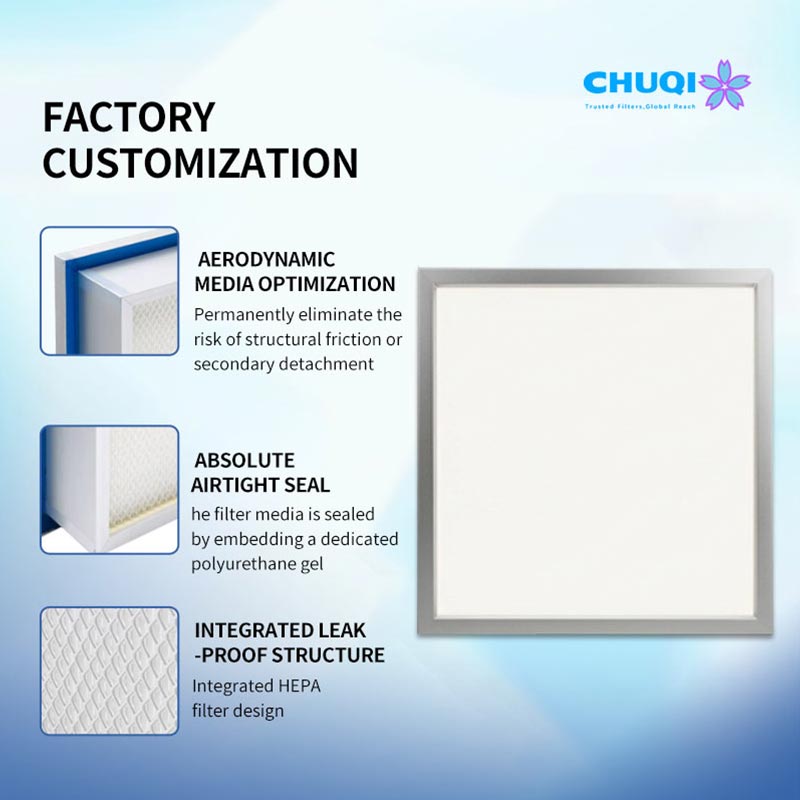

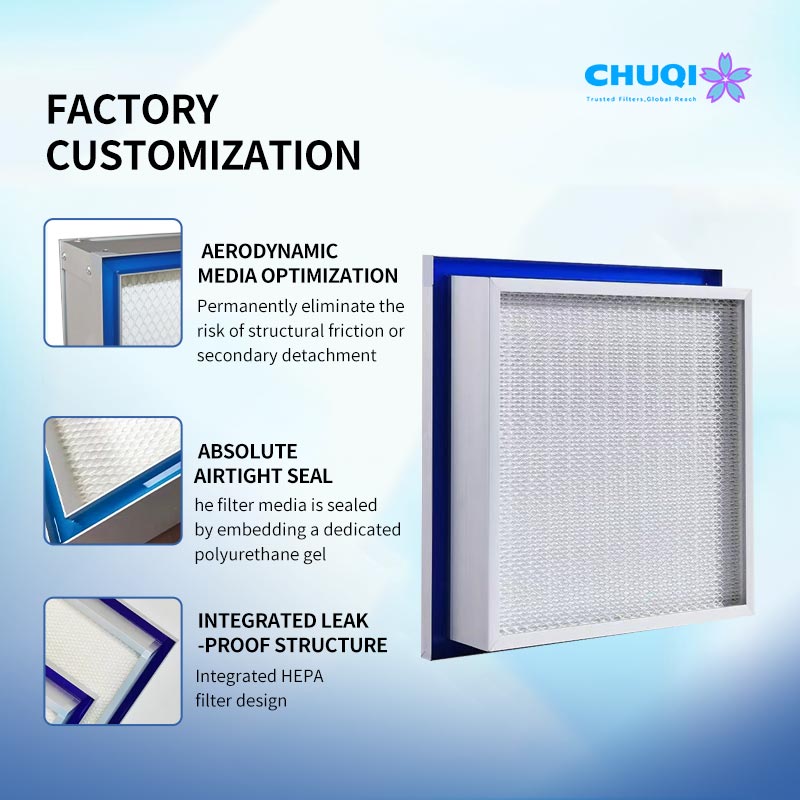

Comprehensive Non-Standard Customization: We offer extensive flexibility for tailored cleanroom setups, including standard dimensions like the 610x610x70 gel seal filter as well as complete technical variations in custom sizes, thicknesses, media layers, frame types, and OEM/ODM production.
Specialized Metallurgy & Anti-Corrosive Configurations: For highly corrosive or sterile environments, we provide upgrade options such as a stainless frame gel seal filter along with specific liquid-seal channel depths to guarantee perfect, leak-free alignment for any system architecture.
Industrial Applications for Gel Seal HEPA & ULPA Filters
- Pharmaceutical Sterile Rooms & Aseptic Filling Lines: Engineered to meet strict GMP regulations, our premium gel seal cleanroom filter systems deliver reliable end-point micro-particle isolation. They protect critical drug filling lines, sterile packaging cells, and aseptic handling zones from cross-contamination, ensuring flawless cleanroom validation audits.
- Hospital Surgery Departments & Medical Isolation Zones: Delivering consistent, uniform laminar airflow across high-tier clinical zones, our specialized H14 gel seal air filter configurations maintain sterile environments in operating theaters, intensive care units (ICUs), and biological safety wards, protecting vulnerable patients and medical personnel alike.
- Precision Labs & High-Grade Microbiological Research Facilities: Specially configured to prevent microscopic bypass leakage, the industrial gel seal HEPA modules offer uncompromising aerosol and containment control. These setups are ideal for bio-safety containment laboratories, cell culture facilities, and advanced genetic research hubs.
- Advanced Food Processing & Sterile Preservation Areas: For strict food safety and prolonged shelf-life requirements, our U15 gel seal HEPA filter arrays provide a sterile air supply for high-value food canning, automated beverage filling lines, and clean preservation processing zones, effectively removing airborne fungi, bacteria, and yeast.
Why Choose Our Gel Seal HEPA & ULPA Filters: Competitive Advantage
| Performance Dimension | Our Factory-Direct Gel Seal HEPA Filter | Standard Trade Sourcing / Alternative Products |
|---|---|---|
| Compliance Certification | Full batch compliance with strict international testing standards, supporting cleanroom audits. | Inconsistent certification documentation with higher risk of regulatory non-compliance. |
| Filtration Stability | Zero-leakage liquid gel seal guarantees stable filtration efficiency from H13 up to U16. | Traditional gaskets degrade over time, leading to bypass leakage and drop in cleanroom class. |
| Volume Lead Time | Massive production capacity from our dedicated factory ensures on-time, bulk order fulfillment. | Prone to supply chain interruptions and extended delivery delays via middlemen. |
| Structural Integrity | Anodized aluminum alloy frame with robotic hot-melt pleating ensures no media fiber shedding. | Manual pleating or weak framing can cause pleat collapse and fiber leakage under high pressure. |
| Air Resistance Performance | Optimized pleat geometry delivers low initial resistance, significantly lowering system energy costs. | Irregular spacing creates high localized resistance, straining HVAC fans and increasing power bills. |
| Flexible Customization | Full engineering capability for custom sizes, frame depths (70/80/93mm), and specific gel positions. | Limited to standard stock dimensions with no flexible OEM engineering support. |
Gel Seal HEPA & ULPA Filter Specifications
| Dimension | Rated Air Flow | Initial resistance | Efficiency (class) | Dust Holding capacity |
|---|---|---|---|---|
| 305 × 305 × 70mm | 200m³/h | ≤220Pa | ≥99.99% | 120g |
| 610 × 305 × 70mm | 400m³/h | ≤220Pa | ≥99.99% | 240g |
| 610 × 610 × 70mm | 900m³/h | ≤220Pa | ≥99.99% | 510g |
| 915 × 610 × 70mm | 1400m³/h | ≤220Pa | ≥99.99% | 810g |
| 305 × 305 × 80mm | 250m³/h | ≤220Pa | ≥99.99% | 150g |
| 610 × 305 × 80mm | 500m³/h | ≤220Pa | ≥99.99% | 300g |
| 915 × 305 × 80mm | 750m³/h | ≤220Pa | ≥99.99% | 450g |
| 610 × 610 × 80mm | 1000m³/h | ≤220Pa | ≥99.99% | 600g |
| 915 × 610 × 80mm | 1500m³/h | ≤220Pa | ≥99.99% | 900g |
| 305 × 305 × 93mm | 300m³/h | ≤220Pa | ≥99.99% | 180g |
| 610 × 305 × 93mm | 600m³/h | ≤220Pa | ≥99.99% | 360g |
| 915 × 305 × 93mm | 900m³/h | ≤220Pa | ≥99.99% | 540g |
| 610 × 610 × 93mm | 1200m³/h | ≤220Pa | ≥99.99% | 720g |
| 915 × 610 × 93mm | 1800m³/h | ≤220Pa | ≥99.99% | 1080g |
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Factory-Direct Gel Seal HEPA Filters: Precision Manufacturing for Global Cleanroom Projects

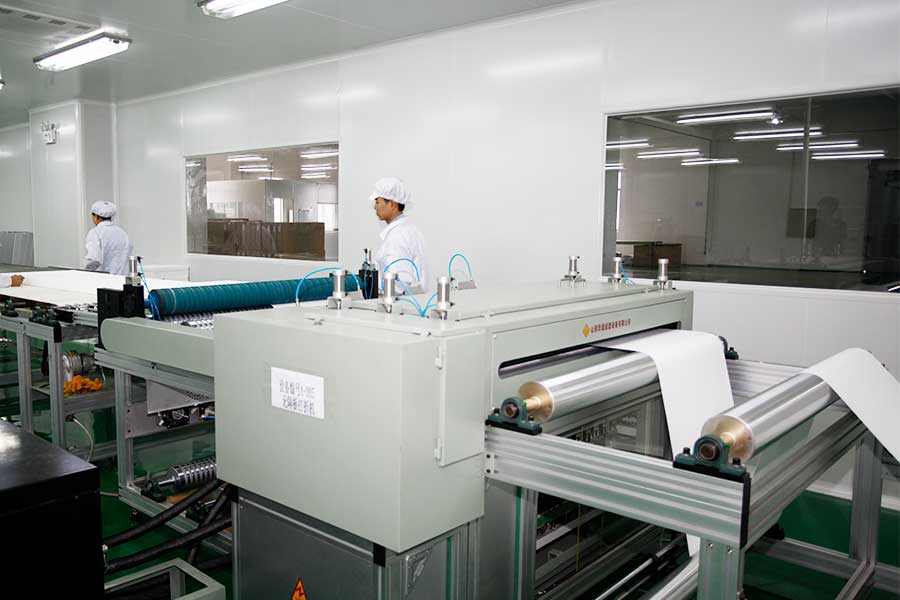

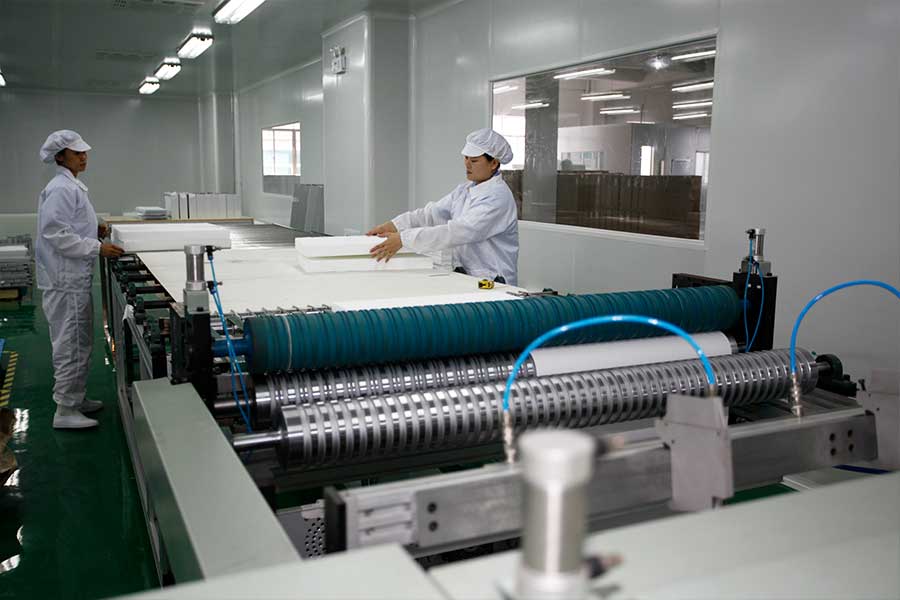

Operating as a direct gel seal HEPA manufacturer, our independent facility cuts out middlemen to offer direct technical accountability and factory-direct pricing for global B2B procurement. Our facility is equipped with advanced automated production lines and standardized testing bays, ensuring that every single Gel Seal HEPA filter leaves our factory only after passing rigorous oil aerosol scan-testing and initial resistance verification.
This strict internal quality control guarantees 100% leak-free, zero-defect terminal performance for critical applications, including those requiring H14 gel seal air filter specifications. We provide international engineering contractors, B2B procurement managers, and specialized distributors with a comprehensive cleanroom portfolio—backed by complete technical documentation for GMP/ISO audits and responsive custom gel seal filter factory support. Whether you are outfitting a pharmaceutical cleanroom filter installation or a high-standard operating room HEPA filter project, sourcing directly from us ensures your ventilation systems are executed on time, within budget, and with absolute operational reliability.
Frequently Asked Questions For Gel Seal HEPA filter
Q: What makes a Gel Seal HEPA filter better than a traditional neoprene gasket filter?
A: Traditional neoprene or EPDM gaskets rely on mechanical compression, which can degrade, harden, or lose elasticity over time, leading to dangerous air bypass leakage. In contrast, our Gel Seal HEPA & ULPA Filters (H13-U16) feature a specialized polyurethane liquid gel channel that forms a continuous, self-healing physical barrier within the housing grid frame. This liquid gel seal completely eliminates bypass leakage—even under severe structural vibrations or thermal expansion—making it mandatory for strict pharmaceutical cleanroom validation, hospital operating theater air filtration, and high-spec cleanroom filter installations.
Q: Can you manufacture custom size Gel Seal HEPA & ULPA filters, and what frame depth options are available?
A: Yes. As a direct OEM/ODM Gel Seal HEPA filter manufacturer and custom gel seal filter factory, we provide full engineering customization:
Dimensions & Depths: Standard sizes like 610x610mm, 1220x610mm, as well as non-standard frame depths (e.g., 70mm, 80mm, 93mm, 104mm).
Frame Materials: Anodized extruded aluminum alloy, 304/316 stainless frame gel seal filter options, or galvanized steel.
Gel Tank Positions: Top-tank gel seal and side-tank gel seal configurations to fit any ceiling grid system or fan filter unit (FFU) housing.
Q: How do you test and verify the filtration efficiency for cleanroom compliance?
A: Every single gel seal cleanroom filter undergoes 100% individual factory testing before packaging to ensure zero leakage and full compliance:
Testing Standards: Strictly tested per EN 1822 and ISO 29463 standards.
Efficiency Range: Covers H13 gel seal air filter, H14 gel seal air filter, up to U15 gel seal HEPA filter and U16 ULPA filter grades (from 99.95% to 99.999995% efficiency at MPPS).
Documentation: Each filter is supplied with an individual PAO/DOP leak scan test report and certificate of conformance to simplify your microbial control HEPA filter and sterile production audit approvals.
Q: Will the gel sealant outgas, dry out, or lose its viscosity during continuous operation?
A: No. Our fluid gel sealant is formulated with advanced silicone/polyurethane compounds designed specifically for high-spec cleanroom environments:
Zero Outgassing: Chemical-neutral, non-toxic, and non-volatile formula prevents chemical contamination in microelectronics or pharmaceutical zones.
Long-Term Stability: Retains permanent elasticity, non-flow viscosity, and self-healing properties within standard operating temperature ranges (-20°C to 70°C).
Maintenance-Friendly: Allows easy filter removal and re-installation without damaging the housing channel or leaving sticky residue in your industrial gel seal HEPA system.

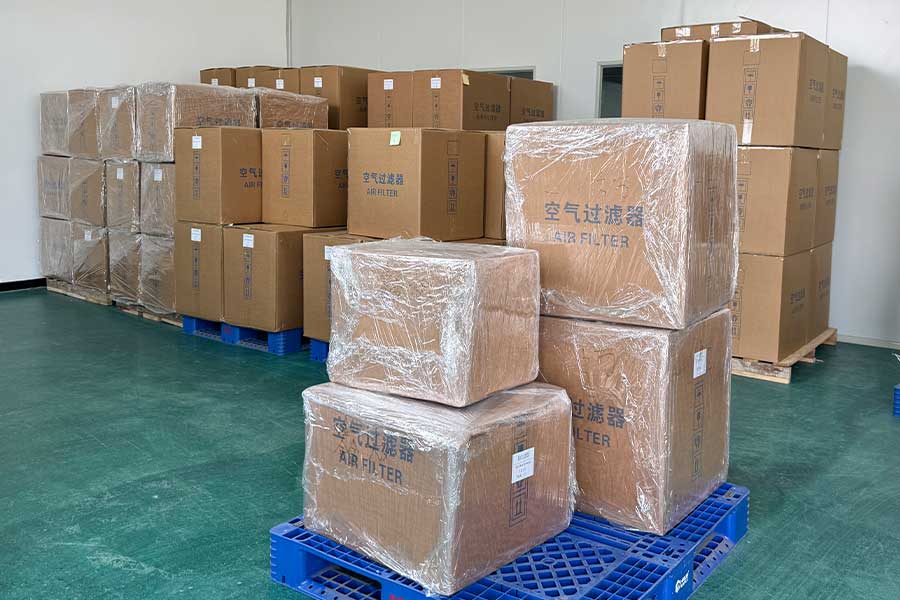

Q: What is the typical lead time for bulk commercial orders and OEM custom projects?
A: As a direct cleanroom filter supplier and source manufacturing facility, we offer significantly shorter lead times than trading intermediaries:
Standard Sizes (Bulk Orders): Typically dispatched within 7 to 15 business days.
Custom Engineering / OEM Orders: Prototype confirmation and full-batch production generally take 10 to 20 business days depending on specs and volume.
Fast-Track Shipping: Express production lines are available for urgent cleanroom maintenance and engineering project deadlines. Contact our technical sales team for an exact turnaround schedule and gel seal HEPA wholesale quote.
