Advanced Cleanroom Fan Filter Unit (FFU) Performance & Features

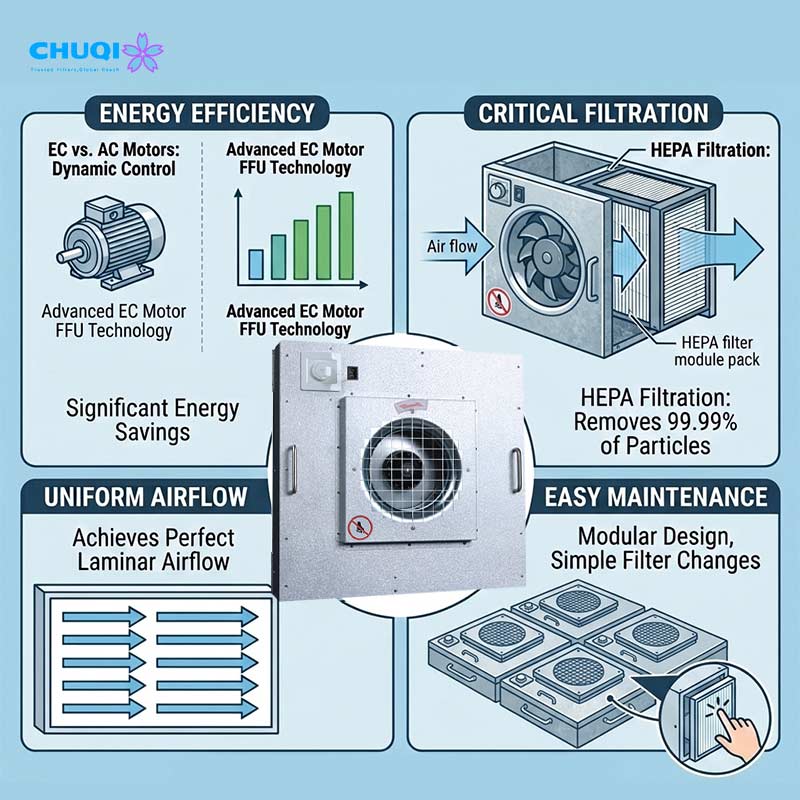

Intelligent Energy Efficiency: Utilizing high-performance EC Fan Filter Unit technology, our smart airflow systems cut power consumption by up to 40% compared to traditional AC Fan Filter Unit setups, offering precise speed control and reduced thermal output.
Precision Air Filtration: Each unit can be integrated with certified H14 HEPA FFU filters (≥99.99% @ 0.3μm) or U15 ULPA FFU modules (≥99.9995% @ 0.12μm), ensuring full compliance with ISO Class 1 through ISO Class 8 cleanroom standards.

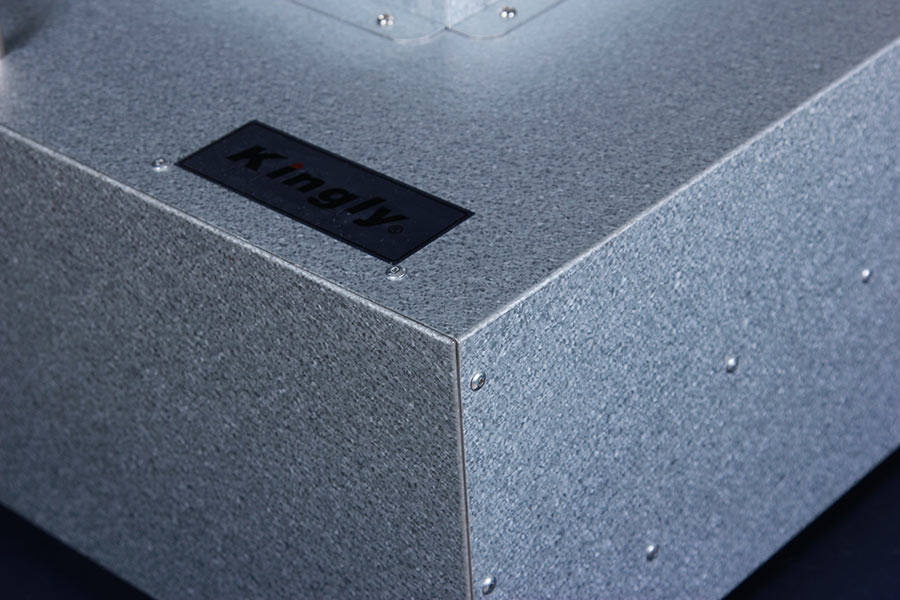

Durable Housing & Compact Form Factor: Built with high-rigidity Galvalume FFU housing (or optional Stainless Steel FFU / Aluminum structures), our units feature low-profile cabinet designs to maximize overhead space in constrained ceiling plenum systems.
Easy Maintenance & Filter Replacement: Designed with a tool-less quick-release mechanism, engineers can quickly swap the pre-filter or replace the primary HEPA Filter for FFU directly from the room side or ceiling side, significantly reducing routine downtime.
Custom Fan Filter Unit (FFU) Materials & OEM Manufacturing
Corrosion-Resistant Housing Options: Engineered for demanding environments, our cabinets come in heavy-duty Stainless Steel FFU (SUS 304/316) for pharma zones, lightweight Aluminum Housing FFU for reduced ceiling loads, or economical Galvalume sheet configurations.
Flexible Customization & Dimension Matching: As a direct FFU Factory, we offer custom fabrication spanning metric 1175×575 FFU sizes, imperial 2x4ft / 2x2ft dimensions, and specialized Low Profile FFU designs for low-clearance ceiling spaces.
Airtight Sealing & Strict Quality Control: Every Custom FFU undergoes PAO/DOP aerosol leak testing and pressure integrity checks to guarantee zero-leakage sealing and seamless fit with T-grid or gel-grid ceiling systems.
Optimized Airflow & System Performance: Our engineers tune fan impeller dynamics and motor torque to deliver steady laminar airflow (0.45 m/s ±20%), lowering long-term Fan Filter Unit Cost while maximizing system efficiency.
Cleanroom Fan Filter Unit Applications & Industry Solutions
Semiconductor & Microelectronics: In the sub-micron world of wafer fabrication and chip assembly, contamination is synonymous with production failure. Our Semiconductor Cleanroom FFU deployments utilize high-precision EC Motor FFU technology to maintain strict laminar flow, eliminating airborne molecular contaminants (AMC) and particles that threaten wafer yields. We provide the vibration-free stability necessary for photolithography and precision etching processes.
Pharmaceutical & Biotech: Maintaining an aseptic environment is non-negotiable in drug synthesis, compounding, and sterile fill-finish operations. Our dedicated GMP Pharma FFU Solution requirements ensure full compliance with international Good Manufacturing Practice (GMP) standards. These units feature easy-to-clean Stainless Steel FFU surfaces and advanced filtration monitoring to guarantee ISO-grade sterile airflow, protecting product integrity and patient safety.
Laboratory Research: From sensitive molecular diagnostics to bio-safety containment, research facilities require consistent, high-purity air delivery. Our Laboratory Ceiling FFU systems provide a flexible, modular airflow architecture that can be adapted to specific biosafety levels. By ensuring stable air exchange rates and particulate control, we create a secure, reliable environment for high-stakes scientific experimentation and long-term research continuity.
Precision Manufacturing: High-stakes production, including aerospace component assembly, optical manufacturing, and Precision Electronics FFU environments, requires an atmosphere that is as refined as the products themselves. Our units prevent the microscopic dust build-up that can compromise circuit board reliability or optical lens clarity. By integrating Modbus Control FFU systems, plant operators can maintain a perfectly balanced micro-environment, ensuring maximum throughput and quality consistency in high-speed, automated production lines.
Why Choose Our Cleanroom FFU? Fan Filter Unit Comparison
| Core Dimension | Our Fan Filter Unit Advantage | General Market Alternatives |
|---|---|---|
| Compliance & Certification | Strictly compliant H13 Cleanroom FFU standards. Each unit undergoes rigorous testing, ensuring seamless validation for international GMP and ISO cleanroom audits. | Often lack comprehensive factory testing or documentation, leading to critical failure during facility inspections and compliance assessments. |
| Filtration Stability | High-density HEPA Filter Module design featuring uniform pleat geometry and advanced seal technology to prevent bypass leakage and ensure consistent laminar airflow. | Prone to uneven media density and substandard potting materials, which frequently cause airflow turbulence and potential particulate contamination. |
| Energy Consumption | Advanced EC Motor FFU technology provides intelligent speed control and peak torque at low speeds, drastically reducing total power consumption and operational expenses. | Typically rely on outdated, power-hungry AC motors that lack precise control, resulting in excessive heat generation and high long-term electricity costs. |
| Build Quality | Precision-engineered Low Vibration FFU framework. Utilizes industrial-grade, zero-shedding materials to maintain structural rigidity and prevent micro-vibrations in sensitive environments. | Low-cost, lightweight structures with poor rigidity, often leading to resonant mechanical vibration and potential particle shedding that compromises precision electronics processes. |
| Supply Capability | Direct FFU Manufacturer with a standardized, high-capacity assembly line. We provide consistent quality control and reliable lead times for large-scale Wholesale FFU Units delivery. | Trading companies with limited oversight over manufacturing, frequently resulting in inconsistent product batches and unreliable delivery schedules for complex projects. |
| Customization | Comprehensive OEM FFU Production services. We specialize in non-standard dimensions, specific voltage requirements, and integrated Modbus Control FFU solutions tailored to your infrastructure. | Generally restricted to standard, off-the-shelf sizes only, forcing engineers to compromise on layout design and site-specific airflow requirements. |
FFU Fan Filter Unit Technical Specifications & Parameters
| Dimension | HEPA filter size | Rated Air Flow | Db(A)Noise | Efficiency | Power | Input power |
|---|---|---|---|---|---|---|
| 1225 × 1225 × 225mm | 1220 × 1220 × 69mm | 2000m³/h | ≤55dB | 99.99% ~ 99.9995% (≤0.3μm) | AC220V,50HZ / DC220V,50HZ | 150W |
| 1175 × 1175 × 225mm | 1170 × 1170 × 69mm | 1800m³/h | ≤55dB | 99.99% ~ 99.9995% (≤0.3μm) | AC220V,50HZ / DC220V,50HZ | 150W |
| 1175 × 575 × 225mm | 1170 × 570 × 69mm | 1000m³/h | ≤55dB | 99.99% ~ 99.9995% (≤0.3μm) | AC220V,50HZ / DC220V,50HZ | 115W |
| 575 × 575 × 225mm | 570 × 570 × 69mm | 500m³/h | ≤55dB | 99.99% ~ 99.9995% (≤0.3μm) | AC220V,50HZ / DC220V,50HZ | 115W |
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Your Direct Cleanroom Fan Filter Unit (FFU) Manufacturer & Supplier
As an experienced Direct FFU Factory, CHUQI provides end-to-end air filtration engineering solutions. Whether you require a specialized Stainless Steel FFU for ultra-corrosive environments, an H13/H14 Cleanroom FFU engineered for critical pharmaceutical zones, or bulk Wholesale FFU Units to support large-scale infrastructure deployment, we guarantee strict adherence to global standards, including ISO 14644 and GMP requirements.
As a trusted Custom FFU Manufacturer, our commitment extends far beyond standard assembly. We offer complete OEM/ODM Fan Filter Unit production, rapid technical consultations for HVAC integration, and factory-direct FFU price benefits for global procurement partners. From custom dimensions and Modbus control configurations to post-installation support, our team acts as a steadfast engineering partner securing your controlled environment.
Q1: What is a Fan Filter Unit (FFU) and where is it integrated into cleanroom HVAC architecture?
A Fan Filter Unit (FFU) is a self-powered ceiling-mounted air filtration module that combines an internal centrifugal fan with a HEPA or ULPA filter assembly. Designed to supply uniform laminar airflow at a face velocity of 0.45 m/s ±20%, FFUs are integrated directly into T-grid or gel-seal ceiling systems across ISO Class 1 to Class 8 cleanrooms, sterile pharmaceutical fill-finish lines, and semiconductor wafer fabrication facilities.
Q2: How does an EC Motor FFU optimize total cost of ownership (TCO) compared to standard AC units?
An EC Motor FFU utilizes brushless DC technology with integrated electronics, achieving up to 40% energy savings over traditional AC Fan Filter Units. EC motors dissipate less thermal energy into the cleanroom, significantly reducing the latent cooling load on central HVAC chillers. Furthermore, they feature continuous, stepless speed regulation and natively support RS485 Modbus / BACnet communication for automated group control systems (GCS) overseeing thousands of units.
Q3: What filtration efficiency criteria distinguish a HEPA FFU from an ULPA FFU?
The selection depends on the target cleanroom classification and particulate size threshold. A HEPA FFU utilizes micro-glass fiber media rated at H13 or H14 (EN1822 standard), achieving ≥99.99% efficiency at the Most Penetrating Particle Size (MPPS, ~0.3μm), making it ideal for GMP pharmaceutical and medical device production. An ULPA FFU employs U15 or U16 media (≥99.9995% efficiency @ 0.12μm MPPS) to eliminate airborne molecular contaminants (AMC) in photolithography and precision microelectronics processing.
Q4: What operational metrics determine when to replace a primary HEPA Filter for FFU modules?
Primary HEPA Filter for FFU module typically maintains a service life of 3 to 5 years. Replacement is dictated by differential pressure monitoring: when the filter’s resistance reaches twice its initial clean pressure drop (typically around 300–400 Pa), or when aerosol challenge testing (PAO/DOP scan per ISO 14644-3) detects unrepairable leaks, the filter element must be replaced.
Q5: Can a direct B2B FFU Manufacturer customize structural dimensions and frame housing for tight ceiling plenums?
Yes. As a direct FFU Manufacturer, CHUQI offers specialized OEM customization including ultra-thin cabinet profiles (low-profile heights down to 220mm) engineered specifically for low-clearance ceiling plenums. We fabricate custom frame sizes for both imperial grids (2x4ft / 2x2ft) and metric layouts (1175x575mm / 1225x1225mm), as well as material options including SUS 304/316 stainless steel, anodized aluminum alloy, and heavy-duty Galvalume sheet with knife-edge or fluid-seal channels.
