Premium Flame Retardant
Paint Booth Ceiling Filter Media Rolls

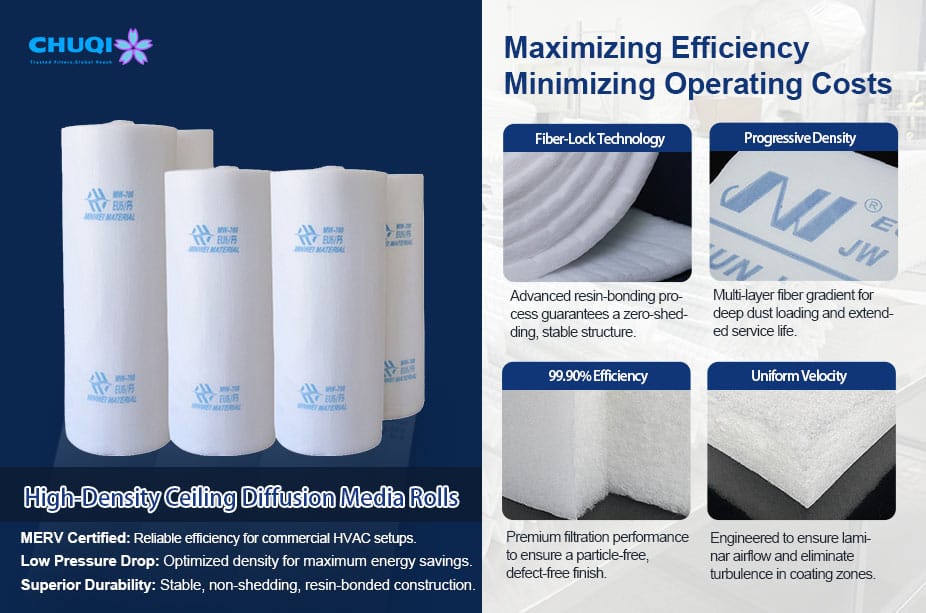

As a trusted 20-year air filter media manufacturer, Chuqi delivers industrial-grade synthetic air filter media rolls specifically optimized for high-standard automotive and industrial spray booths. Our premium paint booth ceiling filter solutions offer the perfect balance of uniform air diffusion, high efficiency, and maximum safety. Whether you operate a high-volume auto body shop or a massive industrial coating line, our factory-direct ceiling filter media ensures unmatched filtration stability. Contact us today for wholesale volume discount prices!
| Filter Category | Nominal Dimension (W x H) | Rated Airflow (CFM) | Initial Resistance | Efficiency Grade (MERV) | Standard Filter Media |
|---|---|---|---|---|---|
| Primary Pleated (G3 / G4 Class) | 12 x 12 Inches | 470 | 0.14 in. w.g. (35 Pa) | MERV 8 | Polyester / Non-Woven Blend |
| 20 x 12 Inches | 765 | ||||
| 20 x 20 Inches | 1,300 | ||||
| 24 x 12 Inches | 940 | ||||
| 24 x 20 Inches | 1,590 | ||||
| 24 x 24 Inches | 1,880 | ||||
| Medium Pleated (F5 – F9 Class) | 12 x 12 Inches | 590 | 0.80 – 1.28 in. w.g. (200 – 320 Pa) | MERV 11 – 16 (45% – 98% Efficiency) | Synthetic Fine Fiber (Meltblown) |
| 20 x 12 Inches | 940 | ||||
| 20 x 20 Inches | 1,650 | ||||
| 24 x 12 Inches | 1,180 | ||||
| 24 x 20 Inches | 1,940 | ||||
| 24 x 24 Inches | 2,350 | ||||
| Available Thickness | 2 Inches (46mm) / 2.75 Inches (69mm) / 3.5 Inches (90mm) | ||||
| Frame Material Options | Anodized Aluminum Profile / Aluminum Plate / Galvanized Steel / Stainless Steel / Heavy-Duty Moisture-Resistant Cardboard | ||||
| Adhesive & Sealant | High-strength, eco-friendly adhesive ensures stable pleat spacing and zero bypass leakage | ||||
| Max. Operating Limits |
Max. Temperature: 176°F (80°C) Max. Relative Humidity: 80% (for Cardboard Frame) | 100% (for Aluminum & Metal Frames) | ||||
Need specific technical specs? As a premier air filter media manufacturer, we support fully custom weights (GSM), thicknesses, and roll widths for our paint booth ceiling filter media. Contact us today to get factory-direct pricing for your precise specs!
Heavy-Duty Paint Booth Floor Filter &
Exhaust Media Rolls
| Grade / Type | Nominal Size (W x H x D) | Pockets | Rated Airflow (CFM) | Initial Resistance | Efficiency (MERV) | Media Color |
|---|---|---|---|---|---|---|
| Coarse Filtration (G3 / G4 Grade) | 20 x 12 x 20 Inches | 5 | 880 | 0.28 in. w.g. (70 Pa) | MERV 6 – 8 | White |
| 20 x 20 x 20 Inches | 5 | 1,470 | ||||
| 24 x 12 x 20 Inches | 6 | 1,180 | ||||
| 24 x 20 x 20 Inches | 6 | 1,880 | ||||
| 24 x 24 x 20 Inches | 8 | 2,240 | ||||
| Medium Efficiency (F5 – F8 Grade) | 20 x 12 x 24 Inches | 5 | 700 | 0.20 in. w.g. (50Pa) | MERV 11 (F5) | White / Light Yellow |
| 20 x 20 x 24 Inches | 5 | 1,300 | 0.22 in. w.g. (55Pa) | MERV 12 (F6) | Green / Orange | |
| 24 x 12 x 24 Inches | 6 | 940 | 0.24 in. w.g. (60Pa) | MERV 13 (F7) | Pink / Purple | |
| 24 x 20 x 24 Inches | 6 | 1,590 | 0.26 in. w.g. (65Pa) | MERV 14 – 15 (F8) | Light Yellow / Deep Yellow | |
| 24 x 24 x 24 Inches | 8 | 1,880 | ||||
| Frame Material | Premium Aluminum Alloy / Heavy-Duty Galvanized Steel Header (Available in 20mm or 25mm thickness) | |||||
| Filter Media | Advanced Multi-Layer Meltblown & Non-Woven Composite Synthetic Fiber (Progressive density structure) | |||||
| Sealing Gasket | High-density EVA foam ensures a 100% airtight and leak-proof installation in HVAC tracks | |||||
| Max. Operating Limits | Maximum Temperature: 176°F (80°C) | Maximum Relative Humidity: 80% | |||||
Need specific technical specs? As a premier air filter media manufacturer, we support fully custom weights (GSM), thicknesses , and roll widths for our fiberglass filter media roll. Contact us today to get factory-direct pricing for your precise specs!

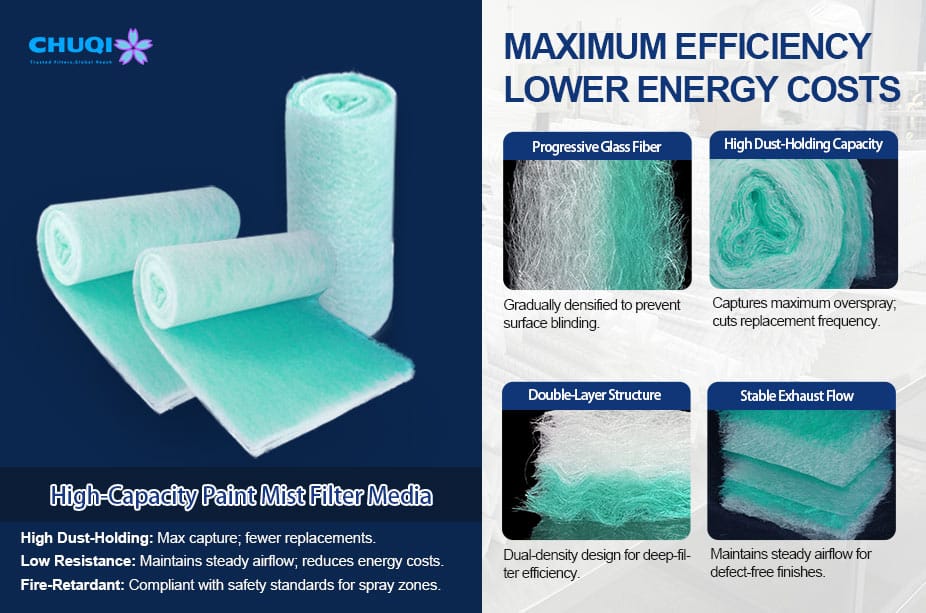

As a 20-year manufacturer, Chuqi delivers high-margin paint arrestor filter media and paint stop roll solutions engineered to maximize profitability for B2B distributors and suppliers. Our heavy-duty spray booth exhaust filter provides exceptional overspray holding capacity for all paint types, effectively reducing replacement costs and maintenance downtime for your clients. Partnering with Chuqi for your commercial paint booth floor filter supply guarantees stable factory-direct pricing, custom specifications, and reliable quality to help you win more repeat orders and grow your market share.
International Standards & Rigorous Quality Certifications
Full EN 779 / ISO 16890 Filtration Testing & DIN 53438 Flame Retardant Reports Provided

why choose chuqi?
FACTORY-DIRECT PAINT BOOTH FILTER MANUFACTURER:
20 Years of Engineered Excellence for Spray Booth Ventilation Systems
20 Years of Manufacturing Excellence
Direct partnership with a 20-year veteran air filter media manufacturer specializing in heavy-duty automotive and industrial surface treatment filtration.
Full Supply Chain Control
As a source factory, we manufacture our own ceiling filter media and floor filter roll products, eliminating middleman markups to secure maximum profit margins for global distributors.
100% Flexible Bulk Customization
We support fully customized weights, thicknesses, and roll widths for paint booth ceiling filter and paint booth exhaust filter roll orders to perfectly match your bidding specs.
Certified Standards & Quality
Fully compliant with EN 779 / ISO 16890 and DIN 53438 flame retardant standards, ensuring zero-risk quality compliance for global commercial spray booth bidding.
Looking for a Complete Spray Booth Filtration Solution?
As a vertically integrated air filter media manufacturer, Chuqi eliminates middleman markups to secure your maximum profit margins. We supply full factory-direct container loads and wholesale bulk rolls, guaranteeing a stable, high-quality supply chain for industrial spray booths and automotive refinishing shops worldwide.
Full-Process Delivery Protection
Reliable Supply & Rapid Delivery:

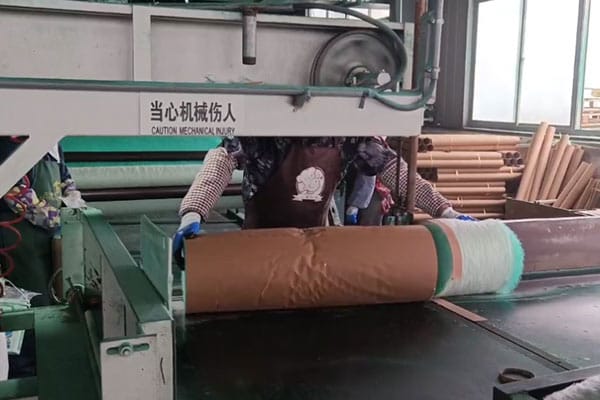

High-speed automated production lines position Chuqi among the leading air filter media manufacturer choices, guaranteeing stable mass production and short lead times for peak-season bulk orders.

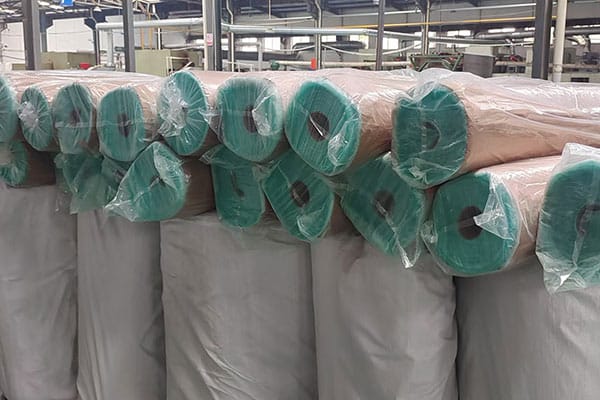

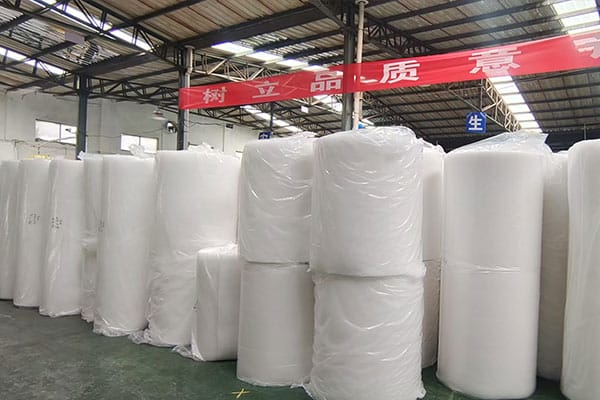

Rugged Export Packaging:
Roll media is securely wrapped in heavy-duty, moisture-proof polybags and protective outer woven bags to withstand maritime humidity, heavy compression, and ensure zero-damage ocean freight.
Expert Global Logistics:
With over two decades of B2B export and customs clearance experience, we optimize container space for bulk roll orders to ensure safe, smooth, and cost-effective port or door-to-door delivery.




Frequently Asked Questions
Are you a trading company or a direct manufacturer?
We are a 20-year veteran source manufacturer owning the entire supply chain. Unlike trading companies, we manage everything from raw air filter media manufacturing to finished HVAC products in our own fully-owned factory, guaranteeing you premium quality and direct factory wholesale pricing.
What efficiency ratings and standards do your air filters meet?
Our products are fully compliant with internationally recognized standards, including ASHRAE 52.2 testing standards and ISO quality management systems. We supply MERV 8 & 13 pleated filters as well as MERV 11 to 15 (F6-F9) pocket and bag filters to meet strict global commercial bidding specs.
What is your standard lead time for bulk wholesale orders?
Thanks to our advanced, high-speed automated production lines, we maintain a reliable capacity and short lead times, even for peak-season bulk orders. Exact delivery times depend on your specific order volume and customization requirements, but we always prioritize on-time delivery to secure your project timeline.
Do you have experience with B2B exports and customs clearance?
Yes. We have over a decade of global shipping and B2B export expertise. We are fully experienced in handling international trade documentation and customs clearance, ensuring a smooth, hassle-free, and fully-insured delivery directly to your designated port or warehouse.
Can you manufacture custom sizes and provide private labels (OEM)?
Yes, absolutely. We offer 100% flexible OEM/ODM custom sizing support. No matter how complex or non-standard your specific commercial project requirements are, our engineering team can customize any odd dimensions and private brand labels to perfectly fit your brand.
How do your pleated and bag filters perform under high airflow conditions?
Engineered for demanding commercial HVAC systems, our pleated filters feature heavy-duty wire-backed synthetic media and moisture-resistant frames for zero-deformation. Our pocket filters use leak-proof galvanized steel headers and internal spacers to ensure uniform airflow and zero bag overlapping under heavy loads.
How do you pack the goods to prevent damage during ocean freight?
We utilize heavy-duty export packaging. All products are securely packed in reinforced, double-wall 5-ply corrugated cartons tightly loaded to prevent shifting. This rugged configuration withstands high pressure and ensures zero-damage maritime shipping without the need for unnecessary palletization space.
What is your Minimum Order Quantity (MOQ)?
As a factory-direct wholesale manufacturer, we generally operate on a bulk order basis to give you the maximum profit margins. However, we understand that new projects or custom OEM labels require flexibility, so we offer adaptable MOQs depending on the specific product category (media rolls, pleated, or bag filters). Please contact our team for a tailored quote.
Need Tech Datasheets or Samples? Let’s Connect.
Get professional air filtration product support and solutions from our expert team.
