Engineering Performance & Features of Open Cell Filter Foam
Controlled 10 PPI to 60 PPI Porosity for Targeted Dust Capture: Utilizes uniform PPI filter foam sponge structures (10 PPI to 60 PPI) to effectively intercept dust, fibers, and airborne particulates ≥15μm, preventing downstream medium and HEPA filter overloading.

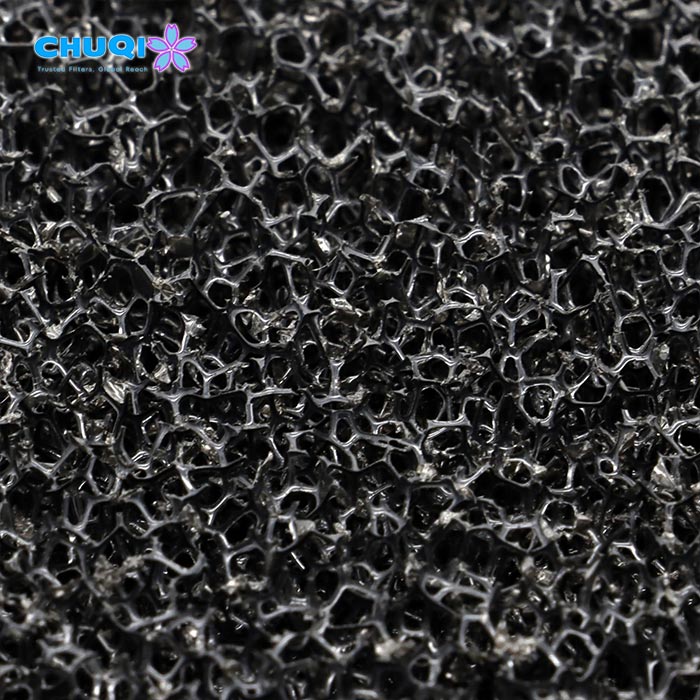

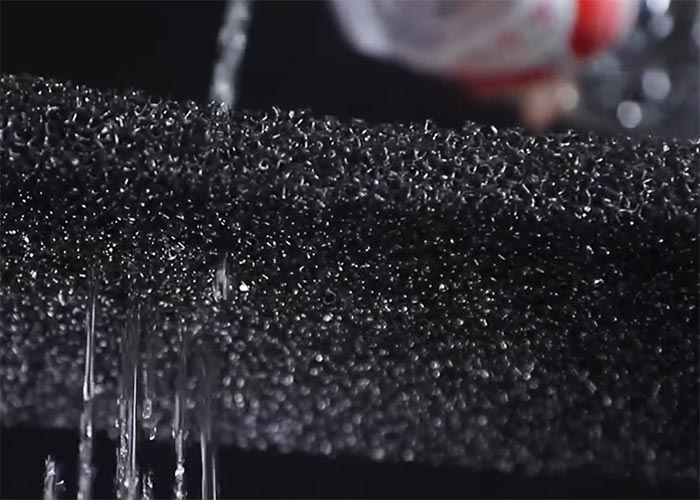

High Air Permeability & Low System Resistance: Features a 97% open-cell PPI filter sponge matrix that eliminates blind pores, keeping initial resistance ≤90 Pa. This high-permeability structure maintains steady airflow while significantly lowering fan energy consumption.
Oil, Solvent & Chemical Endurance: Engineered with premium polyester and polyether resins, providing this PPI sponge filter media with excellent resistance to machine oil mists, organic solvents, and mild acids or alkalis (pH 5.0 – 8.0).
Washable & Reusable Structural Integrity: Boasts a tensile strength of 45 kPa and an elongation rate of 65%. The media tolerates repeated water washing, compressed air blowing, and chemical cleaning without structural collapse or mesh deformation.
Functional Modification Flexibility: The 3D skeletal structure serves as an optimal substrate for functional secondary coatings, including activated carbon impregnation, photocatalysts, or metallic and ceramic matrix processing.
PPI Filter Foam Sponge Material Specifications & Customization Services
We provide full-scope OEM/ODM manufacturing, transitioning raw polyester and polyether formulations into high-performance Polyurethane PPI filter foam sponge rolls and sheet products tailored to exact engineering drawings.

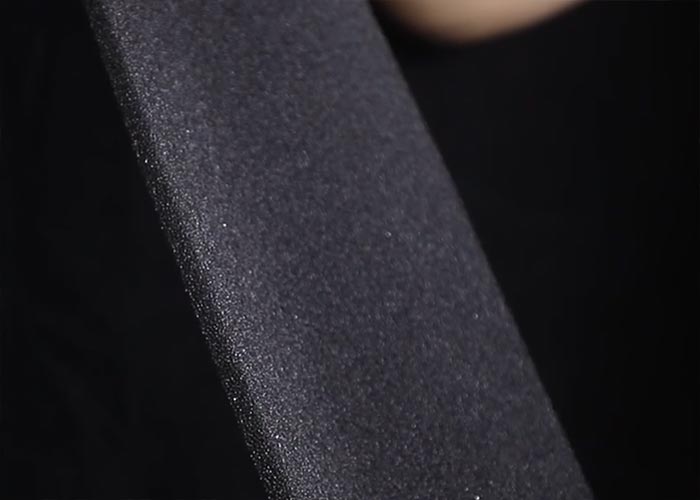

Custom Pore Sizes (PPI Range): Precision manufacturing of custom PPI polyurethane filter foam from 10 PPI (coarse, high-dust-capacity media) to 60 PPI (fine, high-efficiency media).
Flexible Supply Formats: Available in standard 1m × 2m sheets, continuous PPI filter foam sponge rolls, or custom-cut pads ranging from 3mm to 50mm in thickness.
Precision CNC Die-Cutting: Advanced Die Cut Air Filter Sponge processing with tight tolerances (≤1mm), ensuring burr-free edges, clean dimensional fitting, and zero material shedding during installation.
Functional Additives: Optional anti-static modification (2.0*) and UL94 compliant flame-retardant additive treatments for stringent industrial safety compliance.
HVAC & Fresh Air Intake Systems: Serves as high-efficiency washable HVAC air pre filter foam in central air handling units (AHUs), fan coil units (FCUs), and rooftop ventilation systems to effectively intercept coarse particulates, airborne fibers, and organic debris.
Paint Spray Booths & Surface Finishing Lines: Applied as specialized spray booth air filter foam sponge media in automotive refinishing and industrial coating enclosures, delivering uniform airflow diffusion while efficiently capturing oversprayed paint mists.
Machinery Oil Mist & Fluid Separation: Functions as heavy-duty oil mist polyurethane filter foam in CNC machining centers, cold heading equipment, and exhaust extraction ducting to separate droplets, mists, and industrial lubricants.
Electronics Enclosures & Server Racks: Utilized as a reticulated dust filter sponge for server cabinets, telecom enclosures, and power distribution units, offering optimized dust retention without compromising thermal dissipation or airflow velocities.
Exhaust Gas Treatment & Substrate Applications: Serves as a high-surface-area open cell filter foam substrate for functional secondary coatings, including activated carbon impregnation, photocatalysts, and VOC abatement systems.
| Feature | Chuqi Reticulated PPI Filter Foam | Standard Market Competitors | The Chuqi Advantage |
|---|---|---|---|
| Initial Resistance | ≤ 90 Pa (Ultra-Low) | 120 Pa – 180 Pa | Energy Savings: High 97% porosity reduces fan operational load and energy consumption. |
| Pore Structure | 100% Reticulated Open Cell (10-60 PPI) | Inconsistent Pores with Closed Membranes | Airflow Stability: Prevents air bypass, localized pressure surges, and premature clogging. |
| Chemical Resistance | Oil, Solvent & Acid/Alkali Resistant (pH 5.0–8.0) | Rapid Degradation in Oil Mist Environments | Operational Durability: Long-lasting structural stability in harsh industrial conditions. |
| Mechanical Strength | 45 kPa Tensile Strength / 65% Elongation | Low Tensile Strength (Prone to Crumbling) | Zero Fiber Shedding: Maintains integrity during installation and high-velocity airflow. |
| Reusability | Washable & Reusable (3–5 Year Service Life) | Single-Use or Poor Wash Cycle Recovery | Cost Efficiency: Drastically lowers ongoing maintenance and consumable replacement costs. |
| Customization | CNC Die-Cut (≤1mm Tolerance) / Rolls & Sheets | Standard Sizes Only (Rough Manual Cutting) | High Precision Fit: Seamless fitting into complex OEM equipment housings with zero leakage. |
| Safety Compliance | RoHS, REACH & Optional UL94 Flame Retardant | Uncertified or Unstable Chemical Safety | Export Ready: Full compliance documentation for international project bidding and customs. |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | PPI-666 | Apparent Density | 23 kg/m³ |
| Size | 1*2m (Sheet / Roll) | Color | Custom |
| Hole Diameter | 10 PPI – 60 PPI | Rebound Rate | 35% |
| Thickness | 3 – 50mm | Elongation Rate | 65% |
| Tensile Strength | 45 kPa / 1.70 N/cm | Anti-static Property | 2.0* |
| Operating Temperature | -50°C to +50°C | Air Permeability | 97% |
| Initial Resistance | ≤90 Pa | Size Tolerance | ≤1mm |
| Lifespan | 3 – 5 Years | Acid & Alkali Resistance | pH 5.0 – 8.0 |
Note*: Can be custom cut and die-cut according to customer requirements.
Custom PPI Filter Foam Sponge | Direct China Source Factory
As a trusted industrial air filter foam manufacturer and direct source factory, CHUQI offers high-performance PPI filter foam sponge media with full OEM/ODM PPI filter foam customization. As a leading wholesale reticulated polyurethane foam supplier, we deliver factory-direct pricing and stable volume supply for global B2B partners.
Wholesale & Bulk Supply: Premium PPI sponge filter media in rolls and sheets with competitive wholesale pricing and low MOQs.
Precision OEM Customization: Tailored pore sizes (10–60 PPI), custom thicknesses (3–50mm), and CNC die-cutting (<=1mm tolerance) from an experienced China air filter sponge factory.
International Certification: Full compliance with RoHS, REACH, and optional UL94 flame-retardant standards for easy project bidding.
Global Logistics Security: 100% thermal reticulation lines and strict QC ensure zero fiber shedding, fast lead times, and safe shipping.
Q1: What is the difference between 10 PPI and 60 PPI filter foam sponge, and how do I choose the right porosity?
A: PPI (Pores Per Inch) measures the open-cell density of our PPI filter foam sponge. Lower porosity (10–20 PPI) features larger pores for high dust-holding capacity and ultra-low pressure drop, ideal for HVAC pre-filtration and intake cotton replacements. Higher porosity (45–60 PPI) offers finer pore structures to capture smaller particulates (>=15 μm) in sensitive equipment enclosures. We can provide custom porosity samples based on your target filtration efficiency and airflow velocity.
Q2: Can your PPI filter foam sponge sheets and rolls be custom die-cut into non-standard shapes for OEM equipment?
A: Yes. As a direct reticulated PPI filter foam manufacturer, we offer precision CNC die-cutting and custom processing for OEM clients. We can fabricate custom PPI filter foam sponge sheets and continuous rolls in thicknesses ranging from 3mm to 50mm, maintaining tight dimensional tolerances (<=1mm) for a seamless, zero-leakage fit inside complex machinery housings.
Q3: How washable and durable is this reticulated open cell filter sponge in harsh industrial environments?
A: Engineered with 100% thermal reticulation and high-tensile polyether/polyester resins, our washable PPI sponge filter media resists crumbling, oil mists, solvents, and mild acids or alkalis (pH 5.0–8.0). It tolerates repeated water washing, compressed air blowing, and chemical cleaning with a typical operational lifespan of 3 to 5 years, drastically lowering long-term replacement budgets.
Q4: Do you supply fire-retardant or anti-static options for industrial safety compliance?
A: Absolutely. We offer functional additive treatments for our open cell PPI filter foam sponge, including UL94 compliant flame-retardant modifications (HF-1 / V-0 standards) and anti-static coatings. Every export batch meets RoHS and REACH compliance, making our filter media ready for international project bidding and strict safety audits.
Q5: What is the Minimum Order Quantity (MOQ) and lead time for wholesale open-cell polyurethane foam orders?
A: As a China PPI air filter foam supplier, we support global distributors and manufacturers with low MOQs for trial orders and flexible volume pricing for container loads. Standard specification sheets and rolls ship within 7–10 days, while custom die-cut orders typically take 10–15 business days following sample approval.
