High Efficiency Paint Overspray Filtration Engineering

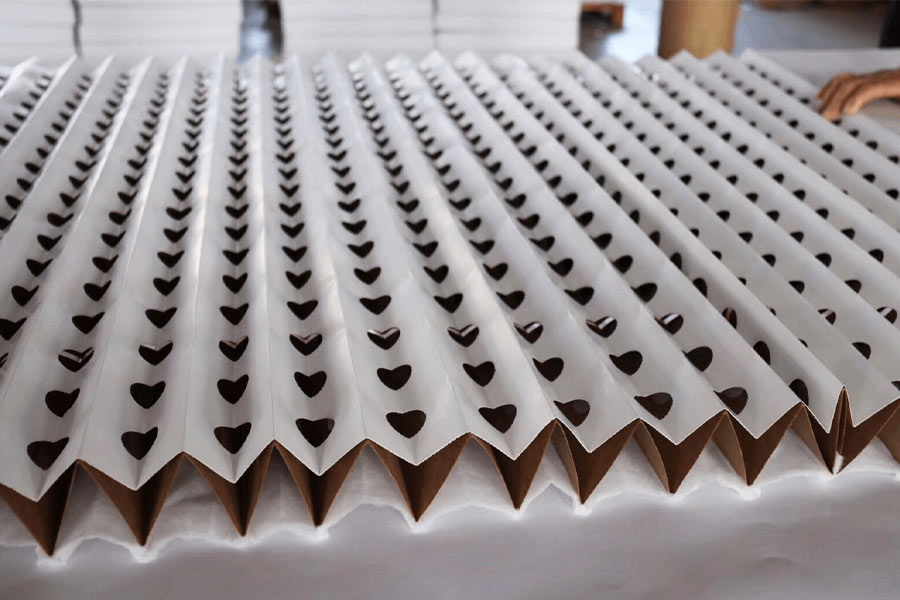

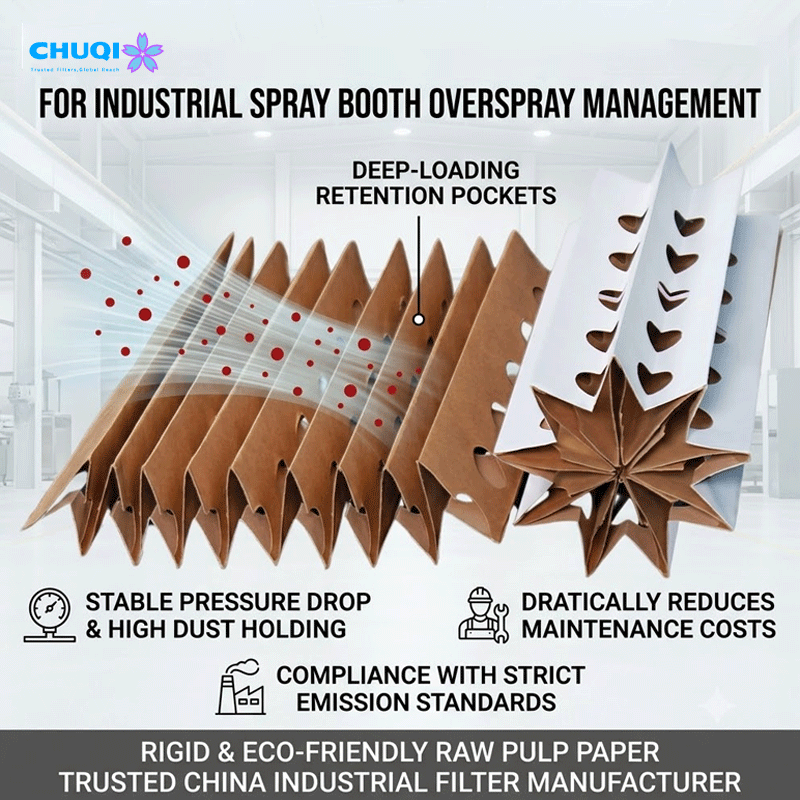

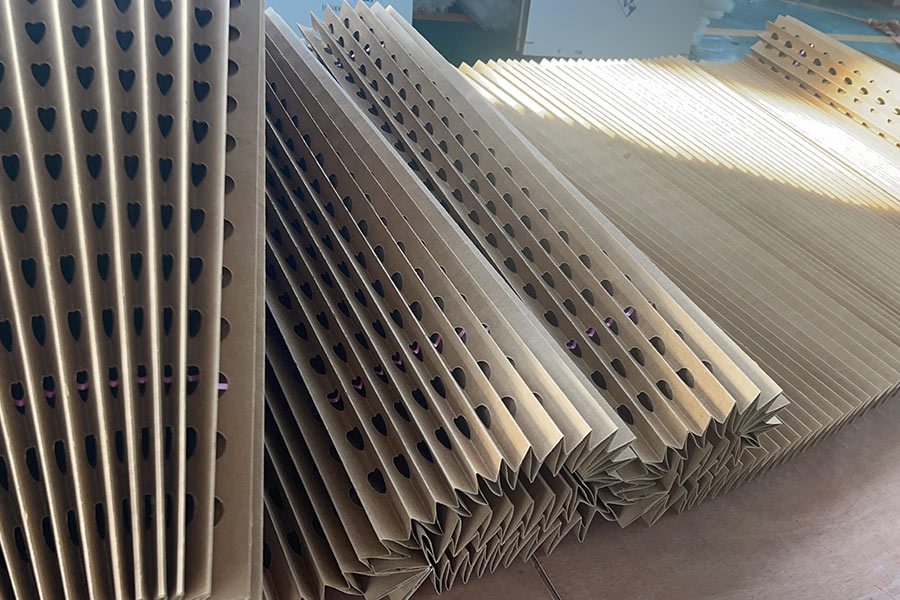

Inertial Separation V-Baffle Design: Our accordion painting filter eliminates reliance on fine fiber density. By forcing air to undergo multiple rapid direction changes within its V-shaped structure, paint overspray particles are thrown outward by inertia and securely trapped inside the deep holding pockets, delivering a paint arrestance efficiency of over 98%.
3D Deep Loading Capacity: Unlike standard media that suffers from superficial blinding, this v-folded filter paper functions via deep-bed storage. It achieves an extraordinary holding capacity exceeding 11.67 kg/m², which is 3 to 5 times greater than traditional filter mats, significantly lowering filter replacement frequencies.
Uniform Airflow & Smooth Exhaust: The structured pleating maintains open exhaust channels even as the paper loads up. This ensures a balanced velocity field across the extraction wall, eliminating turbulent airflow and localized clogging that cause paint finish defects on treated workpieces.
Voc Pre-filtration Protection: By capturing the vast majority of sticky aerosols, these industrial exhaust filters protect downstream activated carbon adsorbers or RTO units from premature fouling, maximizing the service lifespan of complex backend systems.
Premium Materials & Full Customization Engineering
Eco-Friendly High-Substance Kraft Paper: Constructed entirely from heavy-duty, eco-friendly raw pulp filtration paper. This provides high mechanical stiffness and ensures the pleats do not collapse under wet, heavy paint accumulation, maintaining structural integrity up to a load capacity of ≥ 15 kg/m².
Precision-Engineered Air Holes: The placement and geometry of the inertial bypass cutouts are optimized to balance high extraction velocity with maximum particulate retention, preventing bypass leaks.

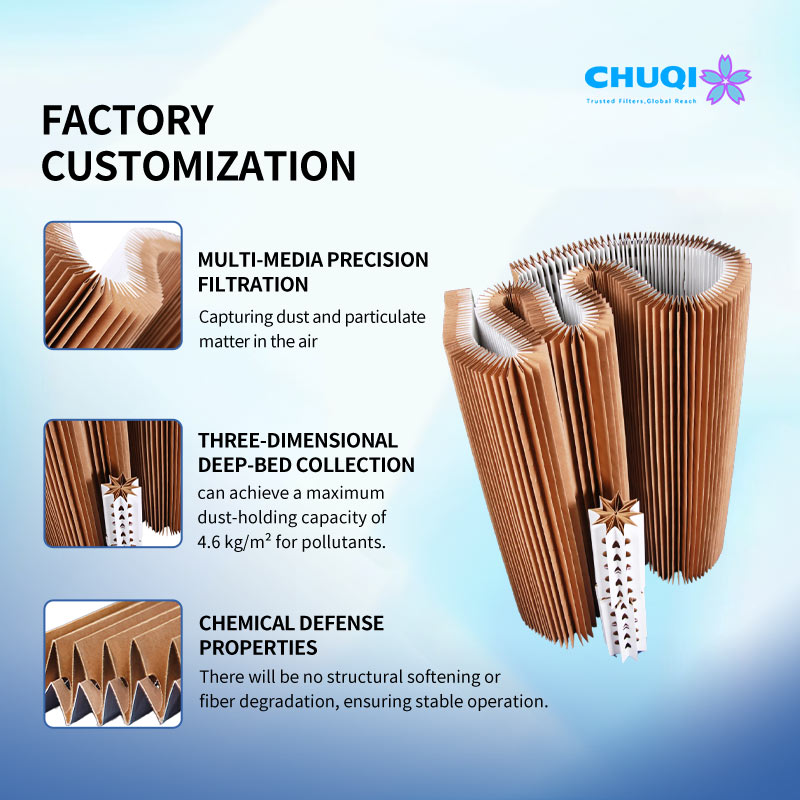

Custom Dimensional Tailoring: We provide full non-standard sizing options for height, length, and depth. Whether you require specific dimensions for a localized dry paint spray booth or complete wall kits for large automated lines, our factory cuts and packages filters for seamless on-site installation.
Industrial Grade Work Environment Adaptability: Designed to withstand diverse industrial coatings, from waterborne paints to high-solid solvent-based lacquers, without degradation or material softening.
Dry Spray Booths & Painting Cabinets: Used as the primary exhaust wall filtration media across automated automotive assembly lines, heavy machinery coating booths, and furniture manufacturing facilities.
Industrial Exhaust Pre-Filtration: Deployed as an essential pre-filter array directly upstream of RTO/RCO systems and active carbon beds to prevent sticky paint aerosols from blinding expensive catalyst matrices.
Precision Component Surface Finishing: Installed in high-end electronic and aerospace component painting rooms to maintain a steady downdraft/crossdraft flow, preventing particulate bounce-back.
Open or Semi-Enclosed Coating Zones: Applied in manual spray zones to maintain clean ambient air levels within manufacturing bays, supporting worker health compliance.
| Evaluation Category | Our Premium V-Folded Filter Paper | Standard Market Alternatives / Trading Workshop Products |
|---|---|---|
| Compliance & Certification Factory Auditing | Full production traceability with factory certificates. Complies with international environmental waste disposal protocols. | Lacks formal material tracking, unverified origin pulp, and struggles with strict environmental compliance audits. |
| Filtration Performance Stability | Guaranteed >98% arrestance. Inertial separation mechanics prevent surface blinding, keeping performance consistent. | Efficiency degrades rapidly as the surface loads up; prone to fiber tearing or paint breakthrough under heavy load. |
| High Volume Supply Capacity | Automated high-speed pleating lines ensure stable lead times and consistent quality for container-load B2B orders. | Manual or semi-automated pleating leads to uneven dimensions, delayed shipping, and poor batch-to-batch consistency. |
| Structural Build Quality | High-grammage eco-friendly raw pulp filtration paper ensures no fiber shedding, no tearing, and no pleat collapse when wet. | Low-weight recycled paper that gets soggy, collapses easily under paint weight, and suffers from structural tearing. |
| Air Resistance & Energy Costs | Ultra-low initial resistance of 12 Pa. Gradual curve rise minimizes fan power consumption and saves plant energy. | Resistance spikes exponentially within hours, forcing extraction fans to work harder and driving up electricity costs. |
| Bespoke Customization Capability | Comprehensive engineering team capable of customizing dimensions, pleat counts, and frame styles for complex configurations. | Only offers basic, fixed standard sizes; cannot accommodate specialized industrial spray booth configurations. |
| Performance Indicator | Value Range | Unit |
|---|---|---|
| Paint Arrestance (Filtering Efficiency) | > 90% – 98% | % |
| Dust / Paint Holding Capacity | > 15 (Standard models reach 11.67 – 18) | kg/m² |
| Initial Airflow Resistance (@ 0.5 m/s) | 12 – 20 | Pa |
| Recommended Final Resistance | 128 – 256 | Pa |
| Recommended Air Velocity | 0.25 – 1.00 | m/s |
| Load Capacity (Pressure / Weight Resistance) | ≥ 15 | kg/m² |
| Standard Roll Dimensions (Height x Length) | 0.75m × 10m / 0.9m × 11.15m / 1m × 10m | Meter (m) |
| Standard Expansion Pleat Depth / Pitch | 50 – 60 / 20 – 25 | mm |
| Temperature Resistance Range | Continuous: ≤ 80°C / Peak: 100°C | Celsius (°C) |
Custom Industrial Filters | Source Factory Direct from China
As a premier Accordion Painting Filter Manufacturer and Bulk V-folded Filter Paper Supplier, we operate a highly specialized production facility dedicated to manufacturing performance-driven air filtration media for global industrial buyers. Our factory features advanced automated pleating, slitting, and structural assembly lines, enabling us to easily handle large-scale volume requirements for international distributors and environmental equipment contractors while maintaining tight engineering tolerances. We exercise strict control over the entire supply chain—from premium raw pulp selection to final performance validation—ensuring every batch delivers an exceptionally High Dust Holding Capacity Paper Filter that complies with international technical standards. By integrating flexible Custom Size Spray Booth Paper Filter capabilities, private-label branding, and reliable global logistics, we supply comprehensive, turnkey filtration products that help engineering firms and distributors streamline their procurement, eliminate bypass leaks, and significantly reduce operations and plant maintenance costs worldwide.
Q: How does an Accordion Painting Filter prevent surface blinding?
A: Traditional fiberglass media traps overspray on the surface, causing rapid clogging and airflow resistance. Our Accordion Painting Filter acts as an Inertial Separation Paint Arrestor. It forces the exhaust stream to change direction rapidly, separating paint particles into retention pockets. This Deep Loading Pleated Filter Paper design keeps air channels open, ensuring a stable velocity across your Dry Spray Booth Extraction Wall.
Q: Can your factory provide customized dimensions for non-standard spray booths?
A: Yes. As an Accordion Painting Filter Manufacturer, we offer a dedicated Custom Size Spray Booth Paper Filter service to match automated painting lines or unique extraction setups. We precision-cut the height and open length to guarantee a perfect perimeter seal inside your holding frames, completely eliminating unfiltered bypass air leaks.
Q: What is the service life and holding capacity of this V-folded filter paper?
A: Engineered as a High Dust Holding Capacity Paper Filter, our V-folded Filter Paper holds over 11.67 kg/m² to 15 kg/m² of overspray—3 to 5 times more than standard synthetic pads. For high-volume environments like an Automotive Painting Line Floor Exhaust or a Furniture Woodworking Spray Booth, it drastically extends maintenance intervals and reduces plant downtime.
Q: How does this organ filter paper reduce energy costs and protect VOC systems?
A: Our media operates as a Low Initial Resistance V-baffle Filter (only 12 Pa), keeping extraction fans running efficiently without energy surges. With its certified 98% Efficiency Paint Arrestance Paper rating, it captures sticky aerosols before they reach backend equipment, serving as a vital Pre Filter for VOCs Treatment System to prevent active carbon or RTO fouling.
Q: What are your wholesale capabilities for international distributors?
A: We support Dry Spray Booth Filter Wholesale channels with stable, high-volume supply. As a Bulk V-folded Filter Paper Supplier, our automated lines produce premium Spray Booth Cardboard Filter and Organ Filter Paper from a High Strength Eco-friendly Filter Board. These saturated filters remain structurally stable, are easy to replace, and comply with international waste disposal audits.
