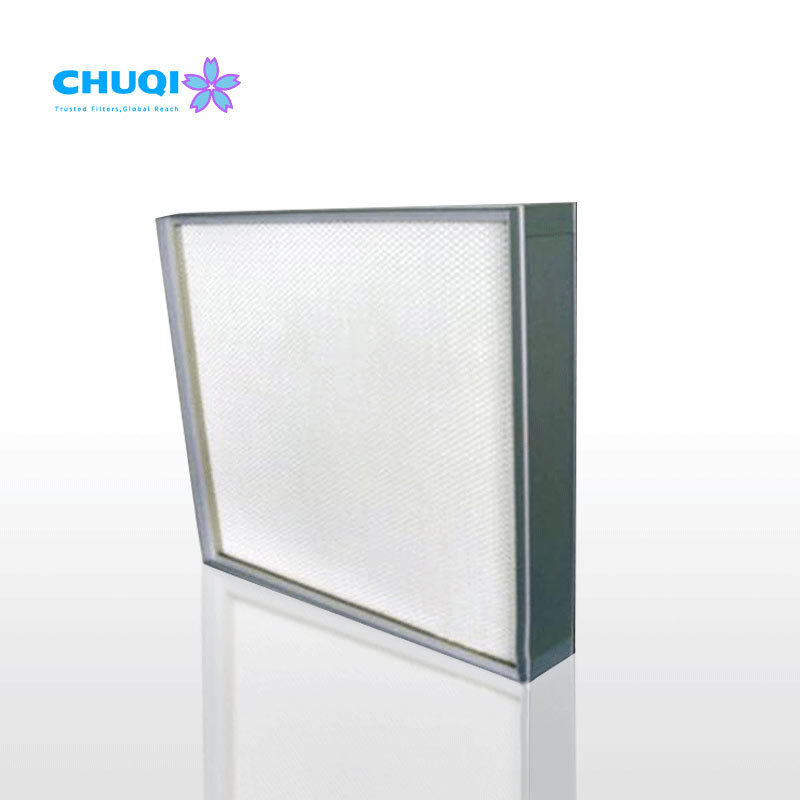

Precision-Engineered Knife Edge HEPA Filters: Leak-Free Terminal Filtration for Sterile Environments
Absolute Leak-Proof Design: Engineered explicitly for high-stakes terminal ventilation where zero bypass-leakage is non-negotiable in environments like a pharmaceutical cleanroom filter.

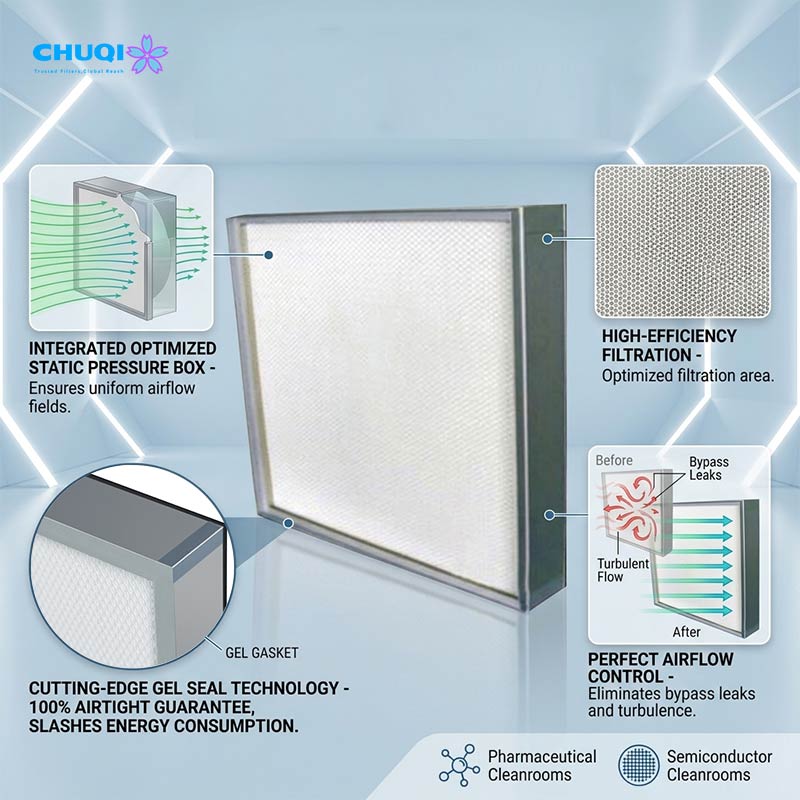

Innovative Knife-Edge Seal: Replaces conventional mechanical compression gaskets with an extended knife edge seal HEPA filter perimeter that perfectly embeds into liquid gel-seal ceiling systems to eliminate air bypass leaks under fluctuating system pressures.
Uniform Airflow Distribution: Utilizes advanced pleating technology with optimized hot-melt separators to maintain exact pleat spacing, ensuring uniform airflow across the entire face area and eradicating velocity dead zones typical in a hospital operating room HEPA setup.
High-Efficiency Interception: Our industrial knife edge HEPA units deliver uncompromised micro-particle interception ranging from H13 up to U15 knife edge HEPA filter efficiency.
Guaranteed Compliance: As a specialized knife edge HEPA manufacturer, we provide a dual-action design ensuring your critical production zones consistently pass stringent air cleanliness audits on the very first try.
Durable Knife Edge HEPA Filters: Robust Construction for High-Precision Cleanroom Applications
Heavy-Duty Structural Frame: Constructed from premium, heavy-duty aluminum knife edge frame profiles featuring integrated blades that offer superior torsional rigidity to withstand rough transit and structural shifting without warping.
Premium Fiberglass Media: Packed with ultra-fine, high-density fiberglass filtration media that effectively traps microscopic contaminants without fiber shedding—an essential feature for maintaining the rigorous air quality standards of a pharmaceutical cleanroom filter.
Hermetic Polyurethane Seal: The entire filter pack of our knife edge seal HEPA filter is hermetically bonded to the frame using high-strength polyurethane, completely eliminating any risk of internal bypass or edge leakage.

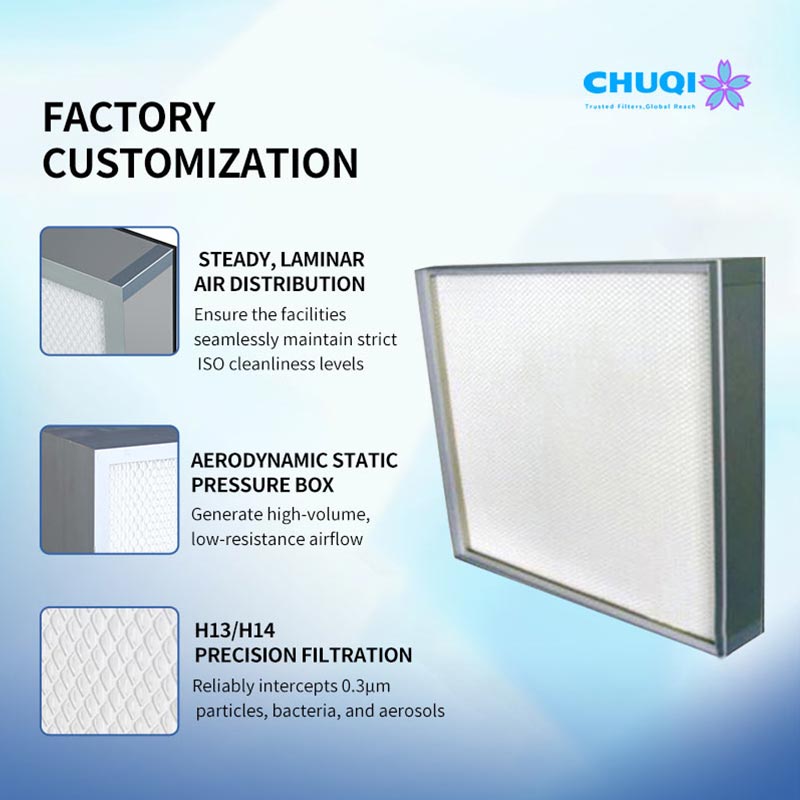

Robust OEM/ODM Customization: As a specialized cleanroom filter factory, we offer full engineering support to match your exact technical blueprints. We provide custom knife edge filter production, including adjustments to physical sizes, frame thicknesses, and specialized media layers to perfectly fit your lab knife edge HEPA filter footprint.
Knife Edge HEPA Filter Industry Applications
Semiconductor & Electronics Fabs: Delivering micro-particle-free, uniform laminar airflow for sensitive wafer fabrication lines and advanced microchip packaging zones. Integrating our semiconductor cleanroom knife edge filter units eliminates frame bypass leaks, drastically reducing yield loss in high-yield silicon processing.
Pharmaceutical GMP Facilities: Assuring a strictly sterile, biologically safe environment for vaccine production, sterile filling, and aseptic processing line HEPA filter systems. Designed for seamless gel-grid insertion, this pharmaceutical cleanroom knife edge gel seal filter solution provides uncompromising reliability to meet EU GMP Grade A/B and US FDA compliance standards.
Healthcare & Isolation Units: Serving as an elite barrier against airborne pathogens and aerosols in critical care zones and isolation units. Installed directly within surgical suite knife edge HEPA ceiling grids, the continuous knife-edge flange establishes a leak-proof physical seal to safeguard sensitive patient environments.
Precision Laboratories: Supplying constant velocity, ultra-clean air for high-containment biosafety enclosures, optical testing rooms, and research facilities. Our laminar flow hood knife edge HEPA solutions maintain peak particulate capture efficiency, ensuring total integrity for high-stakes testing operations.
Knife Edge HEPA Filter Performance & Quality Comparison
| Evaluation Metrics | Our Premium Knife-Edge Filters | Standard Marketplace Alternatives |
|---|---|---|
| Compliance & Certifications | Fully compliant with international ISO standards, featuring 100% factory pressure-leak testing and traceable material batch logs. | Lacks rigorous automated factory scans, leading to unpredictable compliance results during mandatory cleanroom field audits. |
| Filtration Stability | High-density fiberglass provides rock-solid interception efficiency up to 99.9995% with zero structural media shifting over time. | Inconsistent pleat structure can cause uneven dust loading, leading to localized efficiency degradation and media degradation. |

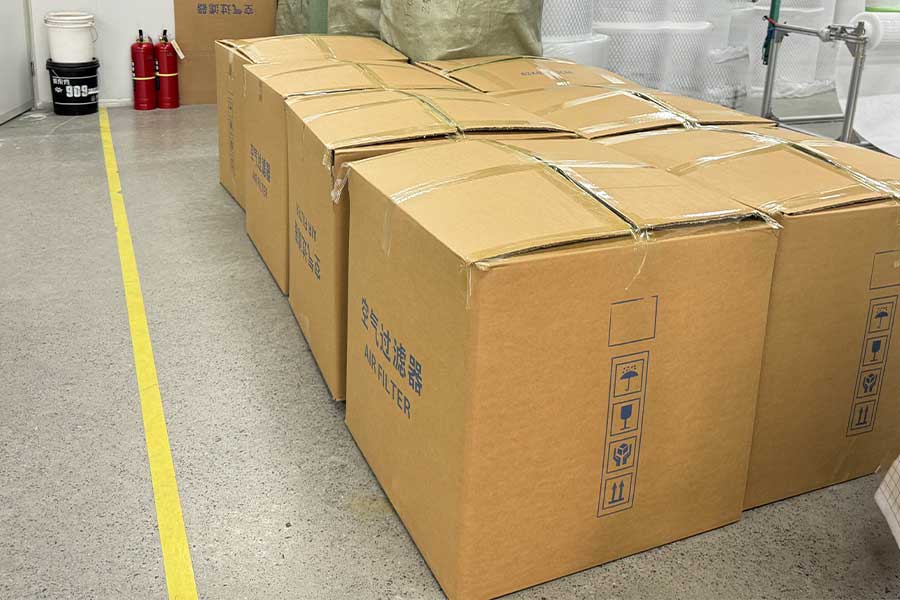

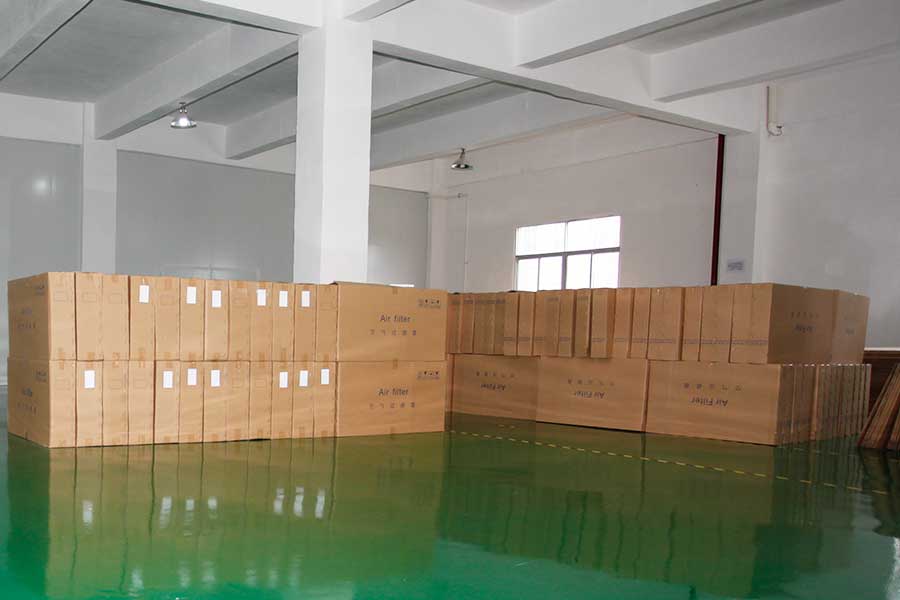

| Supply & Delivery Capacity | Automated mass production and deep raw material stocks guarantee fast turnaround times and secure, export-grade packaging. | Manual low-volume assembly lines trigger chronic project delays, increasing overall construction down-time for EPC contractors. |
| Workmanship & Structural Integrity | Robotic perimeter welding and automated polyurethane injection prevent structural cracking, media shedding, or frame deformation. | Manual frame assembly easily cracks under high airflow pressures, creating minor air gaps and physical defects. |
| Energy Efficiency Performance | Fluid-dynamics optimized inner plenum design provides a highly uniform air velocity with an exceptionally low pressure drop. | Poor aerodynamic configuration triggers excessive static resistance, overloading AHU fans and increasing energy expenditures. |
| Customization Versatility | Comprehensive non-standard engineering support for tailored size, casing depths, and side inlet air diffuser options to fit specific grids. | Strictly limited to a handful of standard catalog dimensions, forcing expensive and time-consuming on-site adjustments. |
Technical Specs for Knife Edge HEPA Filters
| Dimension | Rated Air Flow | Initial resistance | Efficiency (class) | Dust Holding capacity |
|---|---|---|---|---|
| 610 × 305 × 88mm | 500m³/h | ≤220Pa | ≥99.99% | 320g |
| 610 × 610 × 88mm | 1000m³/h | 640g | ||
| 915 × 610 × 88mm | 1500m³/h | 960g | ||
| 1220 × 610 × 88mm | 2000m³/h | 1200g | ||
| 570 × 570 × 88mm | 800m³/h | 510g | ||
| 1170 × 570 × 88mm | 1800m³/h | 1080g | ||
| 1170 × 1170 × 88mm | 3600m³/h | 2160g | ||
| 610 × 610 × 110mm | 1400m³/h | 850g | ||
| 915 × 610 × 110mm | 2100m³/h | 1280g | ||
| 1220 × 610 × 110mm | 2800m³/h | 1700g | ||
| 570 × 570 × 110mm | 1200m³/h | 760g | ||
| 1170 × 570 × 110mm | 2600m³/h | 1560g | ||
| 1170 × 1170 × 110mm | 5200m³/h | 3200g | ||
| 1220 × 1220 × 110mm | 5600m³/h | 3400g |
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】

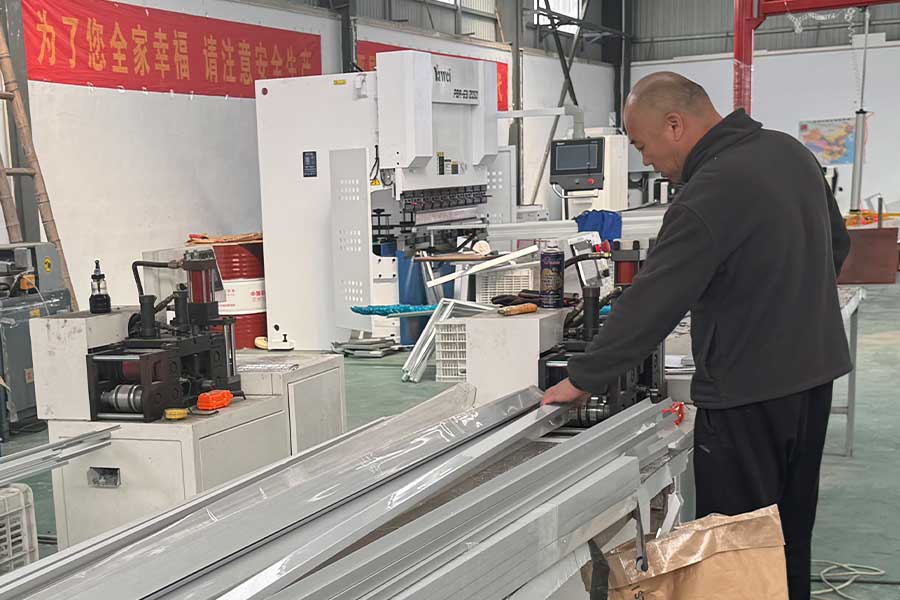

Direct-Source Knife Edge HEPA Filter Manufacturing: Scalable Solutions For Global EPC Projects
As a premier direct-source knife edge HEPA manufacturer, we provide end-to-end B2B supply chain security for ventilation systems worldwide. By eliminating intermediate trading markups, we allow you to maximize your procurement capital while accessing factory-direct pricing.

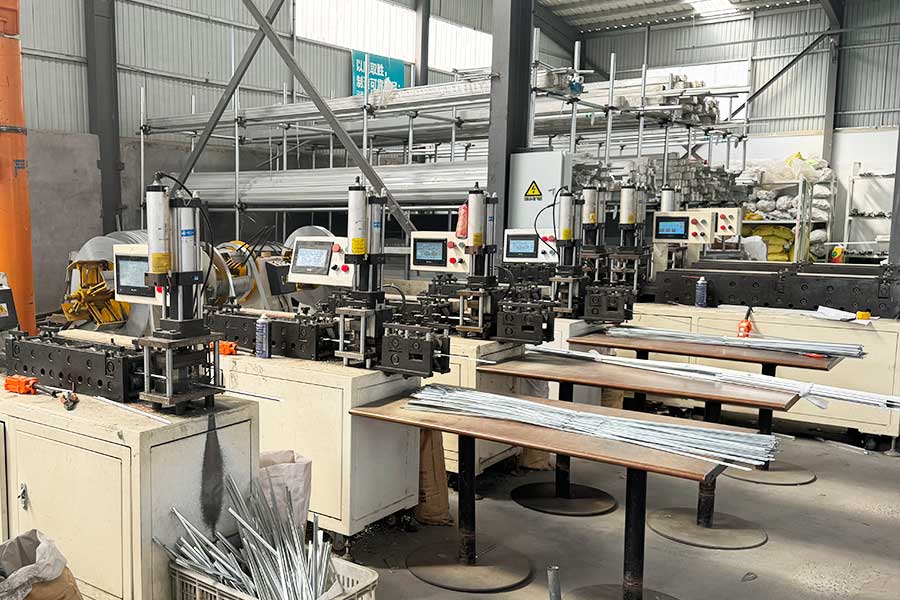

Operating as a comprehensive cleanroom knife edge HEPA filter production facility, we maintain full-spectrum manufacturing capabilities, ensuring seamless sourcing for projects ranging from pharmaceutical GMP cleanroom requirements to critical hospital installations. Our robust production lines allow for rapid scaling to fulfill high-volume EPC project deliveries—including specialized knife edge gel seal HEPA filter variants and custom size knife edge ULPA filter options—on time, every time. With full global technical export qualifications, we are your trusted partner for high-efficiency industrial knife edge HEPA filter solutions that meet the most rigorous international standards.
Frequently Asked Questions For Knife Edge HEPA Filter
Q: What causes bypass leaks in conventional cleanroom air filters, and how does a gel seal design eliminate them?
A: Conventional air filters rely on compressed foam or rubber gaskets that degrade, harden, and suffer from permanent compression set under fluctuating static pressures, leading to micro-gaps and bypass leaks. In contrast, an advanced knife edge HEPA filter utilizes a precision metal flange that embeds directly into a high-density, non-deforming polyurethane gel channel. This continuous fluid barrier self-heals, absorbs structural stress, and maintains an absolute 100% airtight seal even during peak CFM loads and high pressure drops.
Q: How can technicians prevent frame deformation and gel contamination during field installation?
A: Installing a knife edge gel seal HEPA filter requires aligning the precision metal knife-edge flange smoothly into the ceiling grid’s fluid channel without forcing it at an angle. To prevent frame deformation and gel contamination:
Use Alignment Guides: Leverage factory-integrated alignment guides to ensure vertical entry.
Maintain Clearance: Lower the filter evenly to prevent the sharp knife-edge profile from striking the housing sidewalls.
Protect the Seal: Avoid touching the tacky polyurethane gel layer with unglyved hands or tools to prevent particulate introduction.
Q: What is the typical production lead time for custom dimensions required by large EPC cleanroom projects?
A: As a direct-source manufacturer, accommodating non-standard casing depths, custom flange profiles, or specialized configurations for a custom size knife edge ULPA filter typically requires standard engineered production cycles ranging from 2 to 4 weeks, depending on volume. Establishing direct factory partnerships eliminates middleman delays, ensuring consistent supply chains for large-scale microelectronics, semiconductor, and pharmaceutical facility builds.
Q: Why are knife edge gel seal HEPA filters preferred over traditional compressed foam gasket designs in critical cleanroom environments?
A: Traditional closed-cell foam gaskets suffer from permanent compression set, outgassing, and aging degradation over time. In contrast, a specialized pharmaceutical cleanroom knife edge gel seal filter offers a permanent physical fluid barrier with distinct operational advantages:
Elastic Memory: The polyurethane gel self-heals around the knife edge and accommodates continuous thermal expansion and contraction.
Seismic Resilience: Fluid absorption properties isolate the filter media from structural building shifts and vibrations.
Zero Bypass Lifecycle: Maintains reliable containment over years of operation, making it the top global standard for sterile filling lines, isolators, and critical biotechnology containment zones.
Q: How do you troubleshoot PAO scan test failures to determine if the leak stems from the filter media or the grid seal?
A: During third-party ISO 14644 cleanroom validation, perimeter scan test failures are isolated using a systematic troubleshooting workflow:
Check Seating Depth: Verify whether the industrial knife edge HEPA filter is fully and evenly seated into the fluid gel grid.
Scan the Perimeter: Use a photometer or particle counter probe along the knife-edge interface to pinpoint localized bypass.
Inspect Media vs. Seal: If downstream counts spike directly over the media pack, the leak is pinhole media damage; if concentrated at the corners, it indicates incomplete gel penetration. Sourcing factory-certified units that include individual automated scan test reports ensures baseline integrity and simplifies on-site validation.
