Heavy-Duty ASHRAE 52.2 Compliant

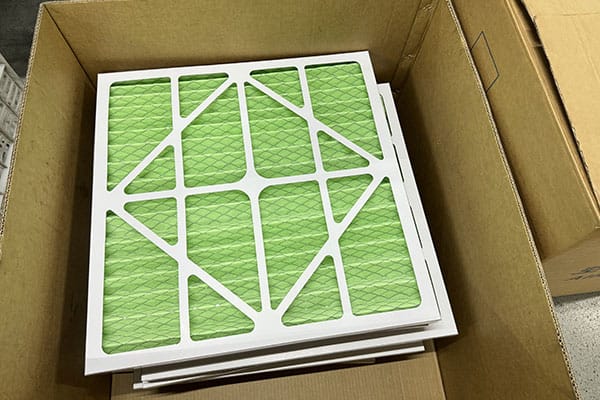

MERV 8 ~MERV 13 Pleated Filters
Maximize your HVAC performance with our commercial-grade MERV 8 & 13 pleated filters. Featuring high-strength moisture-resistant frames and wire-backed media for zero-deformation under high airflow, they offer the perfect balance of low energy consumption and reliable durability.Factory-direct wholesale with full OEM and custom sizing support.
| Filter Category | Nominal Dimension (W x H) | Rated Airflow (CFM) | Initial Resistance | Efficiency Grade (MERV) | Standard Filter Media |
|---|---|---|---|---|---|
| Primary Pleated (G3 / G4 Class) | 12 x 12 Inches | 470 | 0.14 in. w.g. (35 Pa) | MERV 8 | Polyester / Non-Woven Blend |
| 20 x 12 Inches | 765 | ||||
| 20 x 20 Inches | 1,300 | ||||
| 24 x 12 Inches | 940 | ||||
| 24 x 20 Inches | 1,590 | ||||
| 24 x 24 Inches | 1,880 | ||||
| Medium Pleated (F5 – F9 Class) | 12 x 12 Inches | 590 | 0.80 – 1.28 in. w.g. (200 – 320 Pa) | MERV 11 – 16 (45% – 98% Efficiency) | Synthetic Fine Fiber (Meltblown) |
| 20 x 12 Inches | 940 | ||||
| 20 x 20 Inches | 1,650 | ||||
| 24 x 12 Inches | 1,180 | ||||
| 24 x 20 Inches | 1,940 | ||||
| 24 x 24 Inches | 2,350 | ||||
| Available Thickness | 2 Inches (46mm) / 2.75 Inches (69mm) / 3.5 Inches (90mm) | ||||
| Frame Material Options | Anodized Aluminum Profile / Aluminum Plate / Galvanized Steel / Stainless Steel / Heavy-Duty Moisture-Resistant Cardboard | ||||
| Adhesive & Sealant | High-strength, eco-friendly adhesive ensures stable pleat spacing and zero bypass leakage | ||||
| Max. Operating Limits |
Max. Temperature: 176°F (80°C) Max. Relative Humidity: 80% (for Cardboard Frame) | 100% (for Aluminum & Metal Frames) | ||||
Don't see your size? We manufacture ANY custom sizes and odd dimensions. Send us your specs!
High-Efficiency HVAC Pocket & Bag Filters:
Built for Maximum Airflow
| Grade / Type | Nominal Size (W x H x D) | Pockets | Rated Airflow (CFM) | Initial Resistance | Efficiency (MERV) | Media Color |
|---|---|---|---|---|---|---|
| Coarse Filtration (G3 / G4 Grade) | 20 x 12 x 20 Inches | 5 | 880 | 0.28 in. w.g. (70 Pa) | MERV 6 – 8 | White |
| 20 x 20 x 20 Inches | 5 | 1,470 | ||||
| 24 x 12 x 20 Inches | 6 | 1,180 | ||||
| 24 x 20 x 20 Inches | 6 | 1,880 | ||||
| 24 x 24 x 20 Inches | 8 | 2,240 | ||||
| Medium Efficiency (F5 – F8 Grade) | 20 x 12 x 24 Inches | 5 | 700 | 0.20 in. w.g. (50Pa) | MERV 11 (F5) | White / Light Yellow |
| 20 x 20 x 24 Inches | 5 | 1,300 | 0.22 in. w.g. (55Pa) | MERV 12 (F6) | Green / Orange | |
| 24 x 12 x 24 Inches | 6 | 940 | 0.24 in. w.g. (60Pa) | MERV 13 (F7) | Pink / Purple | |
| 24 x 20 x 24 Inches | 6 | 1,590 | 0.26 in. w.g. (65Pa) | MERV 14 – 15 (F8) | Light Yellow / Deep Yellow | |
| 24 x 24 x 24 Inches | 8 | 1,880 | ||||
| Frame Material | Premium Aluminum Alloy / Heavy-Duty Galvanized Steel Header (Available in 20mm or 25mm thickness) | |||||
| Filter Media | Advanced Multi-Layer Meltblown & Non-Woven Composite Synthetic Fiber (Progressive density structure) | |||||
| Sealing Gasket | High-density EVA foam ensures a 100% airtight and leak-proof installation in HVAC tracks | |||||
| Max. Operating Limits | Maximum Temperature: 176°F (80°C) | Maximum Relative Humidity: 80% | |||||
Need full specs? Download our Technical Datasheets for complete HVAC engineering data.
Designed for high-volume ventilation, our pocket and bag filters offer exceptional dust capacity and ultra-low pressure drop. Built with galvanized steel headers and premium media, they ensure uniform airflow and zero bag overlapping under heavy loads. Available in MERV 11 to 15 (F6-F9).
International Standards & Rigorous Quality Certifications
ASHRAE 52.2 Tested & ISO Quality Approved
why choose chuqi？
Your Trusted OEM Partner:
20 Years of Air Filtration Manufacturing Excellence
20 Years of Manufacturing Excellence
Direct partnership with a 20-year veteran manufacturer specializing in commercial and industrial HVAC air filtration.
Full Supply Chain Control
We formulate our own raw filter media and manufacture finished filters, eliminating middleman markups to secure your maximum profit margins.
100% Flexible OEM & Custom Sizing
No matter how complex, we manufacture ANY custom sizes, odd dimensions, and private labels to perfectly fit your brand's specific project needs.
Certified Standards & Quality
Fully compliant with ASHRAE 52.2 testing standards and ISO quality systems, ensuring zero-risk compliance for global commercial bidding.
Looking for our other air filtration products as well?

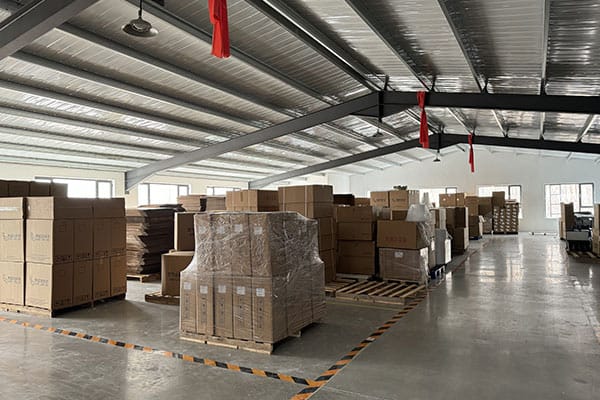

We control the entire process from raw air filter media to finished HVAC filters, all manufactured directly in our own source factory.
Full-Process Delivery Protection
Reliable Supply & Rapid Delivery：
High-speed automated lines guarantee stable mass production and short lead times for peak-season bulk orders.

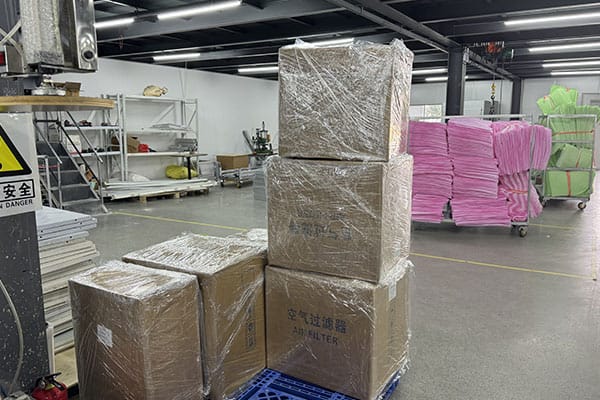

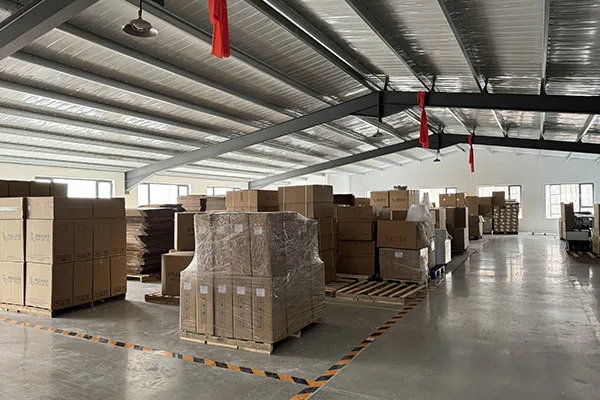

Rugged Export Packaging:
Packed in reinforced 5-ply corrugated cartons to withstand high pressure and ensure zero-damage ocean freight.

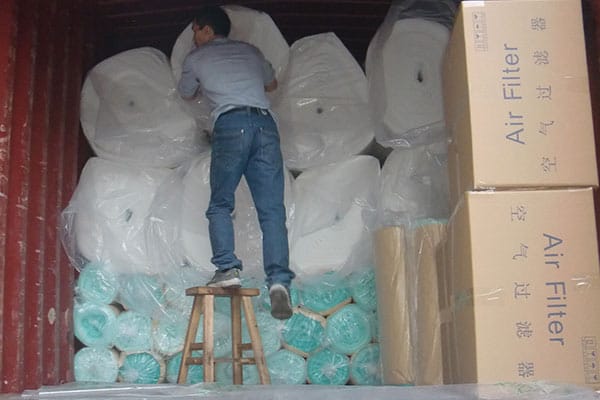

Expert Global Logistics:
Over a decade of B2B export and customs clearance experience to ensure safe, smooth door-to-door or port delivery.
Frequently Asked Questions
Are you a trading company or a direct manufacturer?
We are a 20-year veteran source manufacturer owning the entire supply chain. Unlike trading companies, we manage everything from raw air filter media manufacturing to finished HVAC products in our own fully-owned factory, guaranteeing you premium quality and direct factory wholesale pricing.
What efficiency ratings and standards do your air filters meet?
Our products are fully compliant with internationally recognized standards, including ASHRAE 52.2 testing standards and ISO quality management systems. We supply MERV 8 & 13 pleated filters as well as MERV 11 to 15 (F6-F9) pocket and bag filters to meet strict global commercial bidding specs.
What is your standard lead time for bulk wholesale orders?
Thanks to our advanced, high-speed automated production lines, we maintain a reliable capacity and short lead times, even for peak-season bulk orders. Exact delivery times depend on your specific order volume and customization requirements, but we always prioritize on-time delivery to secure your project timeline.
Do you have experience with B2B exports and customs clearance?
Yes. We have over a decade of global shipping and B2B export expertise. We are fully experienced in handling international trade documentation and customs clearance, ensuring a smooth, hassle-free, and fully-insured delivery directly to your designated port or warehouse.
Can you manufacture custom sizes and provide private labels (OEM)?
Yes, absolutely. We offer 100% flexible OEM/ODM custom sizing support. No matter how complex or non-standard your specific commercial project requirements are, our engineering team can customize any odd dimensions and private brand labels to perfectly fit your brand.
How do your pleated and bag filters perform under high airflow conditions?
Engineered for demanding commercial HVAC systems, our pleated filters feature heavy-duty wire-backed synthetic media and moisture-resistant frames for zero-deformation. Our pocket filters use leak-proof galvanized steel headers and internal spacers to ensure uniform airflow and zero bag overlapping under heavy loads.
How do you pack the goods to prevent damage during ocean freight?
We utilize heavy-duty export packaging. All products are securely packed in reinforced, double-wall 5-ply corrugated cartons tightly loaded to prevent shifting. This rugged configuration withstands high pressure and ensures zero-damage maritime shipping without the need for unnecessary palletization space.
What is your Minimum Order Quantity (MOQ)?
As a factory-direct wholesale manufacturer, we generally operate on a bulk order basis to give you the maximum profit margins. However, we understand that new projects or custom OEM labels require flexibility, so we offer adaptable MOQs depending on the specific product category (media rolls, pleated, or bag filters). Please contact our team for a tailored quote.
Need Tech Datasheets or Samples? Let’s Connect.
Get professional air filtration product support and solutions from our expert team.
