F5 F6 F7 Synthetic Pocket Filter Media Roll for HVAC Air Handling Units & Cleanroom Pre-Filtration
In high-velocity industrial ventilation and cleanroom operations, standard single-density media frequently yields to structural stretching, bag ballooning, and fiber bypass, which compromises terminal HEPA filter protection and cleanroom ratings. Concurrently, uneven media porosity sparks rapid resistance spikes, inflating factory energy costs while forcing recurrent downtime for changeouts.
Chuqi’s premium synthetic pocket filter media resolves these critical operational bottlenecks at the source. Engineered via an advanced thermal-bonding process, our bag filter material integrates a strict progressive density structure with a high-tenacity reinforcement layer. It delivers exceptionally low pressure drop bag filter media performance alongside an optimized high dust holding capacity filter profile. Designed to withstand extreme pressure fluctuations without pocket deformation, this pocket filter roll provides cleanrooms, automotive spray booths, and commercial facilities with a highly stable, energy-saving, and fully compliant pre-filtration barrier.
Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!
Product Key Features
- Engineered for Stable EN 779 F5-F7 Particle Interception
Our precision-formulated synthetic pocket filter media delivers unbroken, consistent particle capture across F5 F6 F7 air filter grades, completely eliminating efficiency fluctuations and trace dust leakage under variable airflows. By acting as a non-yielding defense shield, it reliably intercepts intermediate fine particles and prevents downstream micro-contamination, drastically extending the service life of expensive terminal HEPA filters. - Advanced Low Pressure Drop Matrix for Maximum Energy Savings
Utilizing highly air-permeable, multi-denier fibers, our advanced bag filter material architecture optimizes air passage channels. It completely prevents the sharp, premature surges in initial resistance common in low-end materials, effectively reducing static pressure on fans, cutting HVAC air handler electricity consumption, and providing a verified low pressure drop bag filter media solution to lower operational budgets. - True Progressive Density Architecture for Extended Operating Cycles
Featuring a true gradient density profile—an open-pore structure on the air-inlet side that transitions into a compact filtration layer on the air-outlet side—this progressive density filter media configuration expands dust-holding capacity exponentially. By breaking up the standard surface cake formation that clogs single-density alternatives, this high dust holding capacity filter ensures predictably long replacement intervals and slashes facility maintenance downtime. - Dual-Layer Mechanical Tenacity Against Structural Deflection
Built with high-strength thermal-bonded composite backings, our pocket filter roll goods boast exceptional physical memory and tensile strength. It completely resists pocket stretching, sagging, ballooning, or tearing even under harsh Variable Air Volume (VAV) pressures, guaranteeing zero fiber-shedding, absolute secondary dust bypass prevention, and total process integrity for your pocket bag filter manufacturing line.
Material & Craftsmanship
- 100% Synthetic Polyester Gradient Matrix: Constructed utilizing mixed 3D/4D/7D polyester short fibers and low-melt fibers. Thermal-formed at 195–210°C without chemical adhesives, eliminating risks of chemical outgassing or breakdown in sensitive pharmaceutical or electronics process lines.

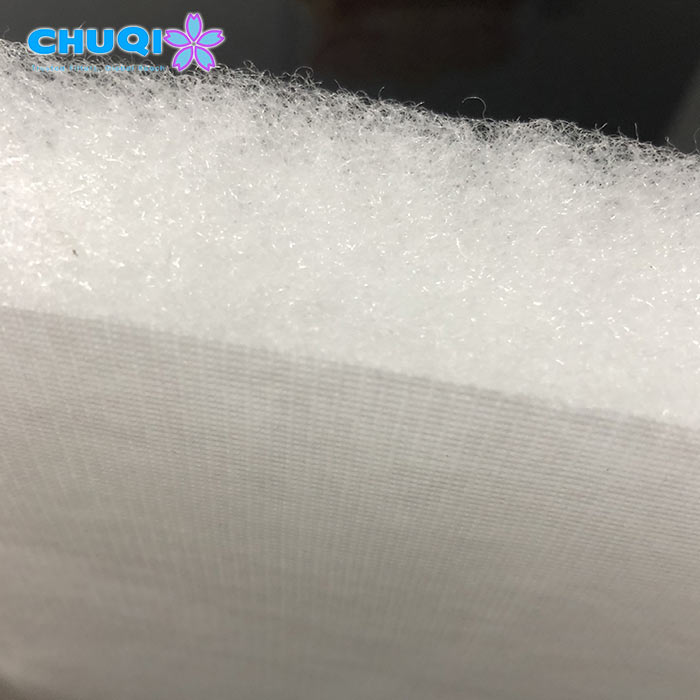

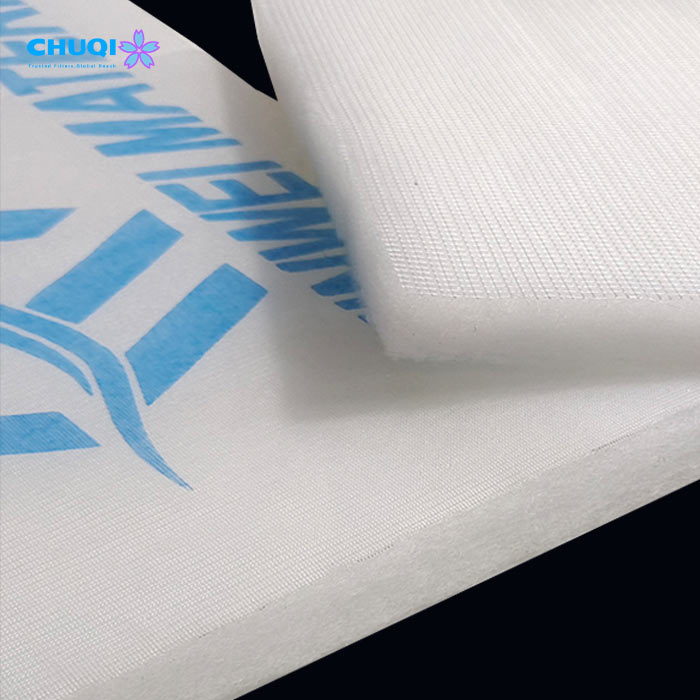

- Dual-Layer Thermal Co-Viscosity Bonding: The core media is seamlessly fused to a high-strength reinforcement net/fabric (such as fiberglass grid or Tricot TC backing) at 220°C via heavy-calender roll heating. This creates a structurally rigid, non-shedding, and genuinely washable pocket filter material.
- Flexible OEM/ODM Engineering Customization:
- Custom Sizes, Thicknesses, and Roll Widths: Slit to match specific automatic pocket-forming machinery and frame slots.
- Custom Media Layers & Weights: Configured precisely to satisfy custom air volume and face velocity requirements.
- Downstream Frame Compatibility: Excellent structural foldability simplifies conversion into finished pocket bags. Fully compatible with lightweight aluminum profiles or cost-effective galvanized steel frames, accommodating continuous edge stitching, ultrasonic welding, high-frequency melting, and specialized EVA perimeter sealing gaskets.
Applications
- HVAC Pocket Filter Media: Integrated seamlessly into secondary filtration banks of commercial, institutional, and industrial central air handling systems.
- Cleanroom Pre Filter Material: Serving as a high-capacity pre-filtration stage protecting terminal HEPA/ULPA systems within Class 10,000 to Class 100,000 electronics, semiconductor, and pharmaceutical manufacturing facilities.
- Spray Booth Pocket Filter: Utilized at the air supply plenum and intake systems of automotive assembly lines, heavy industrial machinery coating bays, and high-end furniture spray lines to arrest airborne dust and protect paint surfaces.
- Commercial Building Ventilation Filter: Positioned inside urban skyscrapers, hospital ventilation corridors, and power plant air intakes to manage massive air volumes reliably.
Competitive Comparison
- Dual-Standard International Color Alignment: Strict compliance with combined domestic and European classification colors (F5: Light Yellow/White; F6: Orange/Green; F7: Purple/Pink) to streamline engineering approval pipelines and ensure a direct, cross-brand replacement drop-in fit.
- High-Tenacity Washable Performance: Enhanced physical memory and fiber crimp properties allow the media to undergo repeated washing and cycling without pore-stretching or efficiency loss, cutting consumables budgets.
- Uncompromising Manufacturing Consistency: Produced on highly automated continuous non-woven lines, guaranteeing uniform weight distribution, constant pore patterns, and verifiable batch-to-batch pressure metrics for bulk container exports.
Specifications
| Efficiency Grade (EN 779) | Common Size (H*W*D mm) | China Std. Color | Euro Std. Color | Pockets | Initial Resistance | Final Resistance | Temp / RH Limit |
|---|---|---|---|---|---|---|---|
| F5 | 595 * 595 * 600 | Light yellow | White | 6 | ≤ 45 Pa | 200 Pa | 80°C / 80% |
| F5 | 595 * 295 * 600 | Light yellow | White | 3 | ≤ 45 Pa | 200 Pa | 80°C / 80% |
| F5 | 495 * 595 * 600 | Light yellow | White | 6 | ≤ 45 Pa | 200 Pa | 80°C / 80% |
| F6 | 595 * 595 * 600 | Orange | Green | 8 | ≤ 55 Pa | 250 Pa | 80°C / 80% |
| F6 | 595 * 595 * 600 | Orange | Green | 6 | ≤ 55 Pa | 250 Pa | 80°C / 80% |
| F6 | 595 * 295 * 600 | Orange | Green | 3 | ≤ 55 Pa | 250 Pa | 80°C / 80% |
| F6 | 495 * 595 * 600 | Orange | Green | 6 | ≤ 55 Pa | 250 Pa | 80°C / 80% |
| F7 | 595 * 595 * 600 | Purple | Pink | 8 | ≤ 65 Pa | 300 Pa | 80°C / 80% |
| F7 | 595 * 595 * 600 | Purple | Pink | 6 | ≤ 65 Pa | 300 Pa | 80°C / 80% |
| F7 | 595 * 295 * 600 | Purple | Pink | 3 | ≤ 65 Pa | 300 Pa | 80°C / 80% |
| F7 | 495 * 595 * 600 | Purple | Pink | 6 | ≤ 65 Pa | 300 Pa | 80°C / 80% |
- Direct Factory Supply Control: Operating a complete processing line from raw fiber preparation to rolled goods. Eliminates trading markups while enforcing consistent quality control across all bulk pocket filter media roll shipments.
- Comprehensive Multi-Category Capability: As a dedicated wholesale bag filter media and materials vendor, we support your full supply-chain needs by offering rolling goods, pre-assembled filter bags, panel lines, and high-end HEPA filters.
- Export-Standard Protective Packaging: All rolls are vacuum-wrapped or heavily wrapped in moisture-impermeable poly-sleeves and protected by heavy woven outer jackets, preventing dust ingress or sea-dampness throughout transit.
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ) for custom roll widths or tailored weights?
A: For standard specification pocket filter media, our MOQ is 10 rolls. For non-standard slitting widths, custom fiber layers, or modified weights, the production MOQ is 500 square meters per specification to support correct machine setup.
Q2: Do you provide laboratory sample rolls for particle efficiency and resistance validation?
A: Yes, we offer complimentary A4 material samples or 1-meter cut swatches for your internal lab assessments. For full-size testing rolls or prototype runs, sample sets can be dispatched quickly with shipping logistics arranged by the buyer.
Q3: What certifications and compliance standards does your pocket filter material satisfy?
A: Our mill functions under strict ISO 9001 governance. The entire line of synthetic pocket filter media is built to comply with EN 779 international classifications (F5/F6/F7 grades) and fully satisfies RoHS/REACH standards required for European municipal and industrial engineering tenders.
Q4: What is the estimated production lead time for bulk container-scale wholesale shipments?
A: Standard catalog sizes are regularly kept in inventory and can dispatch within 7–10 business days. For standard full container orders (20GP/40HQ) or specialized OEM custom runs, production is completed within 15–20 days following formal down payment verification.
Q5: Is this pocket filter material fully compatible with automated ultrasonic bag-making machinery?
A: Absolutely. Our pocket filter material is specifically engineered for excellent thermal melting. It provides superb weldability on automated high-speed ultrasonic welding lines, high-frequency sealing setups, and standard mechanical edge-stitching systems without tearing or fraying.
