High-Strength Media Stability & Custom Fabrication Capabilities
Optimized Multi-Pocket Aerodynamics
Engineered with a progressive density layout, our premium multi pocket filter media maximizes deep-bed dust collection. By preventing surface blinding, it guarantees steady airflow across HVAC grids, maintaining system pressure and protecting downstream filters.
Dual-Layer Hot-Melt Structural Integrity
Thermally fused at 220°C with a high-tenacity scrim, our bag filter material eliminates fiber shedding and bag distortion under high pressure. This prevents seam separation during variable airflow, serving as a reliable cleanroom pre filter material.
Fully Washable Maintenance Design
Constructed from 100% polyester, this durable washable pocket filter material maintains its pore structure through multiple wash cycles. It allows pocket reuse, significantly lowering consumable replacement costs and facility downtime.
Standardized Color Compliance & Global Sourcing Alignment
We manufacture exact color-coded specifications matching dual standards (China Std. / European EN 779). This ensures smooth product substitution and fast customs processing for B2B distributors sourcing pocket filter roll stocks.
Material Craftsmanship & Comprehensive Tailoring Services
100% Progressive Polyester Fiber Matrix: Composed of premium 3D/4D/7D polyester fibers hot-melted between 195°C and 210°C. The progressive density filter media layout structure increases density from the air-entering side to the air-leaving side, preventing surface-crusting and tripling deep-bed loading volume.
High-Temperature Thermal Scrim Bonding: The core bag filter material undergoes an intense 220°C thermal roller process to combine the core filtration layers with a heavy-duty reinforcement scrim. This structural backplate prevents fiber shedding and pocket sagging under continuous high velocity.
Downstream Frame and Processing Adaptability: Features high structural resilience and edge flexibility, making our air filter roll stock compatible with ultrasonic welding, high-frequency melting, and automated stitching. It fits securely into galvanized steel or lightweight aluminum alloy frames.
Tailored Multi-Pocket & Dimensional Configurations: Full structural flexibility supports non-standard pocket lengths, custom widths, specific bag counts (3 to 8 pockets), and tailored thickness profiles to supply customized, high-volume bulk pocket filter media roll stocks to global B2B buyers.
HVAC Systems & Cleanrooms: Acts as the core medium-efficiency pre-filtration stage in industrial central air conditioning loops and commercial building ventilation setups, utilizing our signature HVAC pocket filter media to safeguard high-value terminal grids.
Automotive Coating & Spray Booth Lines: Positioned in high-pressure plenum entries, paint mixing zones, and baking ovens for automotive assembly, machinery fabrication, and premium furniture finishing lines. Our specialized spray booth pocket filter material blocks airborne dust entirely to prevent micro-particle paint defects.
Heavy Machinery Air Intake & Gas Turbines: Deployed in large-scale air compressor stations, power generation gas turbines, and delicate control rooms to protect heavy industrial assets against airborne particulate wear within demanding air intake environments.
Commercial Building Air Infrastructure: Applied as a durable commercial building ventilation filter across public venues, data centers, and corporate facilities to handle heavy volume continuous airflow and variable static load strains.
| Evaluation Dimension | Chuqi Factory-Direct Media | Standard Alternative Grade |
|---|---|---|
| Factory Compliance & Certification | Full batch traceability under international color codes and rigorous test metrics; fully matches European F5 F6 F7 pocket filter media benchmarks. | Inconsistent testing parameters, lack of dual-standard color verification, and high risk of compliance failures during site selection. |
| Filtration Stability Under Pressure | Thermal reinforcement prevents fiber stretching, pocket deformation, or pore expansion under high pressure loads, eliminating bag filter material leaks. | Prone to bag inflation, pocket ballooning, fiber shedding, and dust leaks under high static pressures, disrupting downline filters. |
| Bulk Availability & Delivery | High-capacity factory production lines ensure steady bulk pocket filter media roll supply and fast turnaround times for bulk orders. | Limited scaling potential with irregular lead times, relying on small workshop assembly lines with poor export capabilities. |
| Workmanship & Shedding Resistance | 100% binder-free thermal processing avoids chemical cracking, maintaining structural shape through multiple washable pocket filter material cycles. | Low-tier chemical binders degrade quickly, leading to seam splitting, fiber tearing, and shedding after minimal airflow usage. |
| Airflow Resistance & Energy Use | Progressive structure keeps initial pressure low (≤45Pa for F5), delivering true low pressure drop bag filter media performance to save fan electricity. | Uneven fiber density leads to fast surface blinding, rapid pressure spikes, and high energy costs for the industrial facility. |
| Flexible OEM Customization | Complete engineering control over custom pocket numbers, specialized depth sizes, and specific 595x595mm pocket filter standard configurations. | Fixed dimensional molds only; unable to execute custom pocket configurations or handle non-standard, custom air filter roll specs. |
| Model | Dimensions H*W*D | Media colour (China standard) | Media colour (Euro. standard) | Number of pockets | Frame Material | Filter Media |
|---|---|---|---|---|---|---|
| F5 (45%) | 595*595*600mm | Light yellow | White | 8 | Galvanized aluminum | Non–woven fabric |
| 595*595*600mm | 6 | |||||
| 595*295*600mm | 3 | |||||
| 495*595*600mm | 6 | |||||
| F6 (65%) | 595*595*600mm | Orange | Green | 8 | Galvanized aluminum | Non–woven fabric |
| 595*595*600mm | 6 | |||||
| 595*295*600mm | 3 | |||||
| 495*595*600mm | 6 | |||||
| F7 (85%) | 595*595*600mm | Purple | Pink | 8 | Galvanized aluminum | Non–woven fabric |
| 595*595*600mm | 6 | |||||
| 595*295*600mm | 3 | |||||
| 495*595*600mm | 6 | |||||
| F8 (95%) | 595*595*600mm | Deep yellow | Light yellow | 8 | Galvanized aluminum | Non–woven fabric |
| 595*595*600mm | 6 | |||||
| 595*295*600mm | 3 | |||||
| 495*595*600mm | 6 | |||||
| F9 (98%) | 595*595*600mm | White | White | 8 | Galvanized aluminum | Non–woven fabric |
Custom Industrial Filters | Source Factory Direct from China

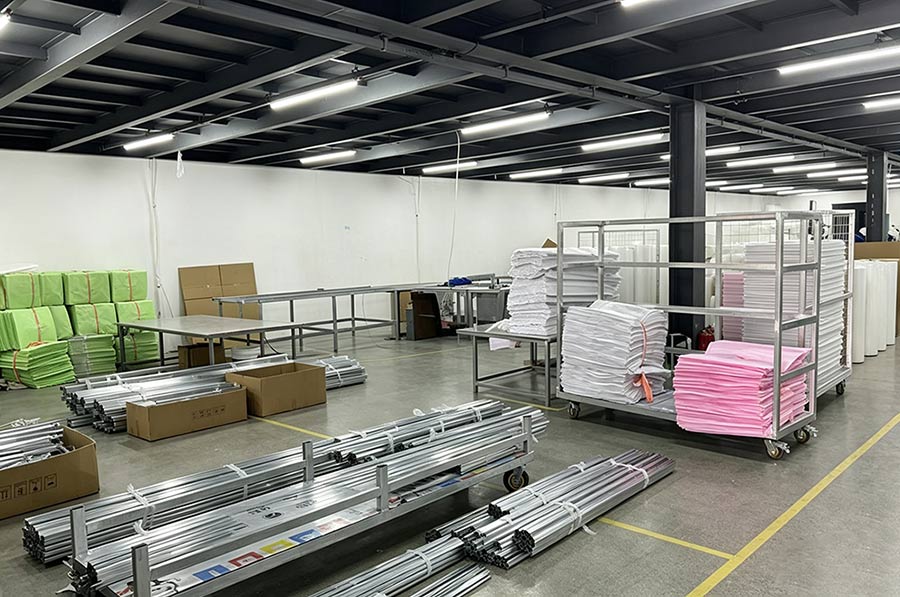

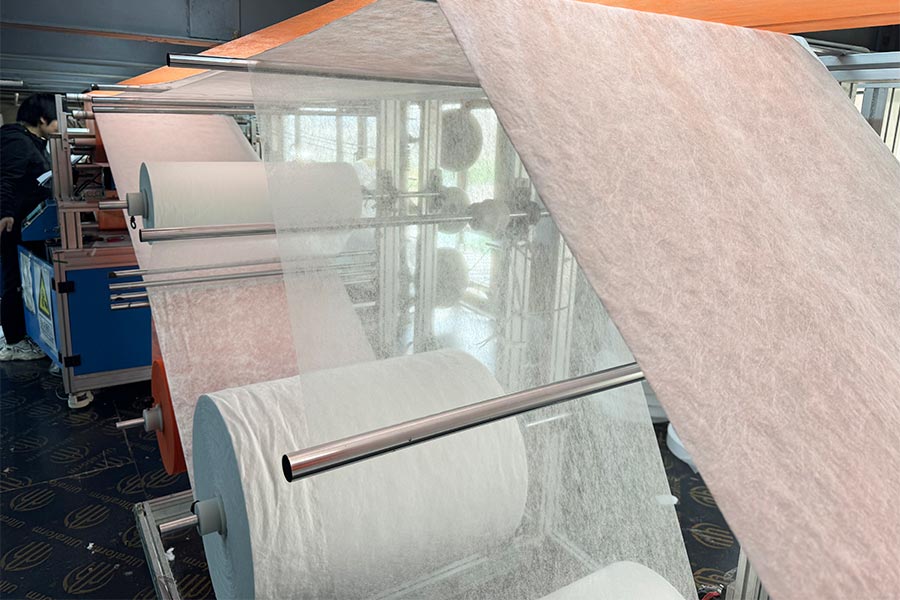

As a leading source pocket filter media manufacturer specializing in high-performance air filtration materials, we operate advanced, high-capacity thermal bonding and progressive web-forming production lines. We provide direct factory pricing, consistent quality controls, and comprehensive engineering services tailored for global engineering firms, industrial distributors, and filtration suppliers looking for premium wholesale bag filter media channels. Our complete synthetic pocket filter media product lines, international standard compliance, and mature export logistics ensure reliable, on-time delivery across major global markets. This enables our partners to streamline their procurement, access steady pocket filter roll inventory, lower their operational costs, and complete large-scale HVAC pocket filter media projects with absolute confidence.
Q: What parameters are required to get a custom quote for your pocket filter media?
A: To provide an accurate quote, please specify your required EN 779 efficiency class (F5, F6, or F7), target pocket dimensions—such as standard 595x595mm pocket filter sizing or custom pocket filter material dimensions (Height x Width x Depth), preferred pocket count (e.g., 3, 6, 8 bags), and total order volume. As a dedicated pocket filter media manufacturer, we provide full customization for bulk pocket filter media roll dimensions to fit any downstream production setup.
Q: How does your pocket filter media minimize energy costs in industrial air handling units?
A: Our premium media features an advanced progressive density filter media structure that functions as a true low pressure drop bag filter media. By capturing dust deeply within the synthetic layers rather than blinding the surface, it keeps the initial resistance low (≤45 Pa for F5, ≤55 Pa for F6, ≤65 Pa for F7), which directly reduces the load on system fans and slashes monthly factory energy costs in any HVAC pocket filter media system.
Q: Can your synthetic pocket media withstand high moisture levels and regular cleaning cycles?
A: Yes, our synthetic pocket filter media is engineered from 100% premium synthetic polyester and reinforced with a thermal backing layer, making it an exceptionally durable washable pocket filter material. It operates efficiently in environments up to 80% relative humidity, resists moisture breakdown, and maintains its uniform pore structure through multiple wash cycles, making it ideal as a cleanroom pre filter material.
Q: How do you ensure your product matches international filtration efficiency specifications?
A: We manufacture our entire F5 F6 F7 pocket filter media lineup in strict accordance with dual-standard color specifications. For example, our F7 grade is styled in purple for Chinese standards and pink for European EN 779 standards. This strict compliance ensures clear high dust holding capacity filter validation, straightforward customs clearance, and easy matching for international tenders for wholesale bag filter media buyers.
Q: What is the maximum temperature threshold for this media in industrial ventilation or exhaust grids?
A: Our standard multi pocket filter media rolls operate reliably up to a continuous maximum temperature of 80°C. This makes them ideal for standard commercial building ventilation filter networks and spray booth pocket filter systems. For higher-temperature industrial applications or specialized manufacturing lines, please consult our engineering team for bag filter material upgrades.
