Advanced Carbon Filtration & High-Efficiency Industrial VOC Adsorption

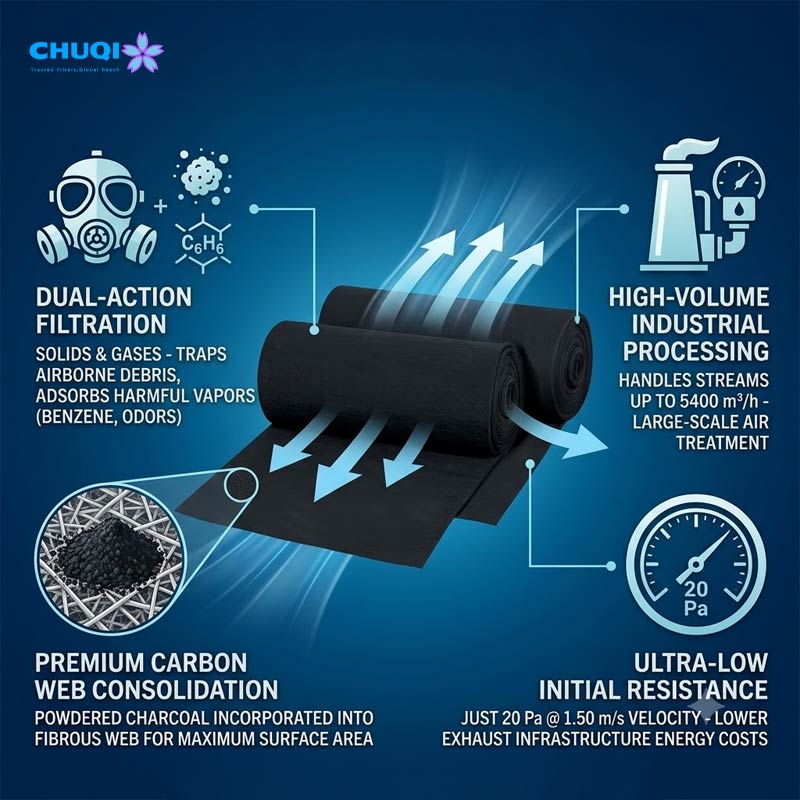

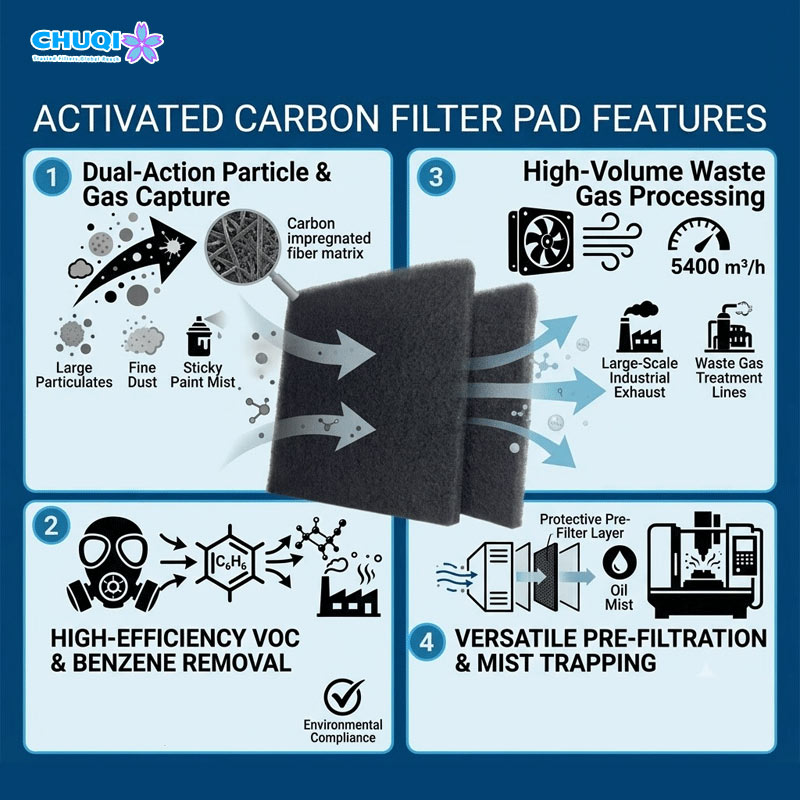

Dual-Action Particle & Gas Capture
Synergistic Matrix: Our advanced carbon impregnated filter media layout bonds high-grade powdered charcoal to a fiber matrix.
Dual Interception: This synergistic structure simultaneously intercepts large particulate matter, fine dust, and sticky paint mist while maintaining smooth, unrestricted airflow pathways.
High-Efficiency VOC & Benzene Adsorption
Molecular Level Target: Formulated with high-capacity media for industrial VOC and benzene capture.
High-Volume Waste Gas Processing
Heavy-Duty Capacity: This heavy-duty activated carbon filter roll material is built to handle massive volumetric air processing streams up to 5,400 m³/h.
Industrial Exhaust Integration: It remains perfectly stable under high aerodynamic loads, making it ideal for large-scale industrial exhaust carbon filter media frameworks and waste gas treatment lines.
Advanced Carbon Matrix Craftsmanship & Custom Roll Optimization
Fiber Anchor (Matrix Integration):

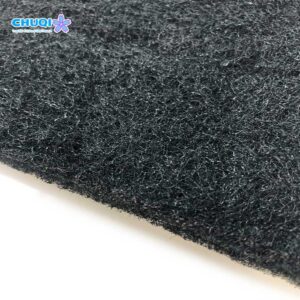

Permanently bonds high-density activated carbon within a high-tensile synthetic fiber network, preventing shedding for stable, long-term performance.
Low Resistance (Aerodynamic Efficiency):
Combines dust trapping and gas adsorption in a single activated carbon air filter media, delivering low pressure drop air filtration and high energy efficiency.
Dual-Certified Industrial Flame Retardancy (Safety Assurance):
Fire Safety: Engineered as a premium flame-retardant carbon filter material that meets international safety standards for continuous industrial operations.
Flexible Roll Cut Optimization (Custom Manufacturing):
Custom Supply: Backed by decades of manufacturing expertise to fit unique equipment footprints and systems.

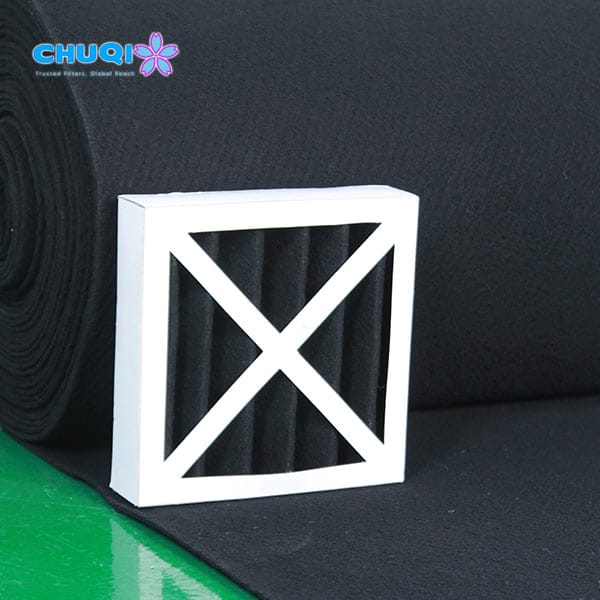

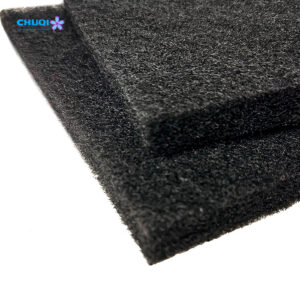

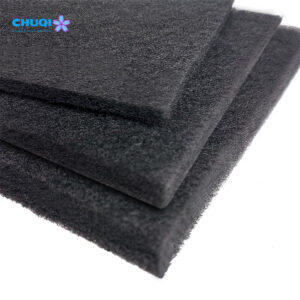

Rolls & Pads: Available as continuous industrial activated carbon filter roll stock or precision die-cut activated carbon pad sheets (G3/G4).
Automotive and Industrial Paint Spray Booths: Configured inside paint booth carbon filter media channels to capture airborne overspray and extract harsh chemical solvent fumes before exhausting air out of the building.
Chemical and Plastics Manufacturing: Deployed as an efficient industrial VOCs removal filter media layer to intercept hazardous benzene, chemical vapors, and processing odors from manufacturing lines.
Heavy Machining and CNC Tool Stations: Positioned inside CNC oil mist carbon filter housings to remove sticky airborne oils, aerosols, and cooling odors generated during high-speed metal cutting operations.
Commercial Air Handling Upgrades: Utilized across large corporate centers, hospitals, and server hubs as a specialized HVAC carbon filter media OEM component to protect secondary elements from building odors and outside dust.
Large-Scale Industrial Plant Exhausts: Installed directly inside heavy industrial exhaust carbon filter media frameworks to process high-volume 5400 m³/h air streams, ensuring facility emissions safely meet local environmental codes.
| Evaluation Dimension | Chuqi Factory-Direct Media | Standard Alternative Grade |
|---|---|---|
| Factory Compliance & Certification | Dual certified as UL900 Class 2 filter media and DIN53438 F1 filter mat; withstands 180°C working temperatures. | Lacks recognized fire-retardant credentials; degrades or melts quickly under high-temperature industrial exhaust loads. |
| Filtration Stability Under Pressure | Maintains consistent G3/G4 structural performance with integrated gas and particle capture efficiency up to ≥85%. | Carbon powders easily detach or settle, leading to uneven air transit pathways and rapid loss of adsorption capacity. |
| Bulk Availability & Delivery | High-volume automated production lines ensure a steady, reliable pre filter media roll supply for large bulk orders. | Limited manufacturing capacity leading to long lead times, uneven roll weights, and unstable delivery. |
| Workmanship & Shedding Resistance | Bound active carbon powder matrix eliminates shedding, keeping downstream airflow clean and free of charcoal debris. | Loose carbon flakes break off under airflow pressure, creating secondary dust that contaminates downstream equipment surfaces. |
| Airflow Resistance & Energy Use | Functions as a true low resistance carbon filter media (20 Pa), minimizing fan resistance to save factory electricity. | High initial resistance causes large pressure drops, forcing exhaust fans to consume excess energy to move air. |
| Flexible OEM Customization | A fully flexible industrial carbon filter media supplier offering customizable roll widths, cut sheets, and target weights. | Only stocks limited standard dimensions; unable to adjust carbon loading percentages or support custom thickness requests. |
| Model | AC-480G | AC-350G | AC-550G | AC-450G | AC-260G | AC-190G |
|---|---|---|---|---|---|---|
| Color | Black | Black | Black | Black | Black | Black |
| Weight | 480G | 350G | 550G | 450G | 260G | 190G |
| Thickness | 10 ± 1mm | 5 ± 1mm | 15 ± 1mm | 10 ± 1mm | 5 ± 1mm | 3 ± 1mm |
| Carbon Content | ≥55% | ≥40% | ≥40% | ≥40% | ≥40% | ≥40% |
| Benzene Adsorption Capacity | ≥24Wt% | ≥18Wt% | ≥24Wt% | ≥24Wt% | ≥18Wt% | ≥18Wt% |
| Max. Airflow | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h |
| Initial resistance | 20pa | 20pa | 25pa | 20pa | 10pa | 8pa |
| Final resistance | 200pa | 200pa | 200pa | 200pa | 200pa | 200pa |
| Efficiency | 85.00% | 85.00% | 85.00% | 85.00% | 85.00% | 85.00% |
| Nominal velocity | 1.50m/s | 1.50m/s | 1.50m/s | 1.50m/s | 1.50m/s | 1.50m/s |
| Dust Trapping Rate | ≥85% | ≥65% | ≥92% | ≥75% | ≥60% | ≥45% |
| Gas Removal rate | ≥85% | ≥65% | ≥92% | ≥75% | ≥60% | ≥45% |
| Max. working Temp. | 180℃ | 180℃ | 180℃ | 180℃ | 180℃ | 180℃ |
| Filtering Grade | G4 | G3 | G4 | G4 | G3 | G3 |
| Flame resistance | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 |
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Discover Other Specifications in Our activated carbon filter media
Custom Industrial activated carbon filter rolls | Source Factory Direct from China

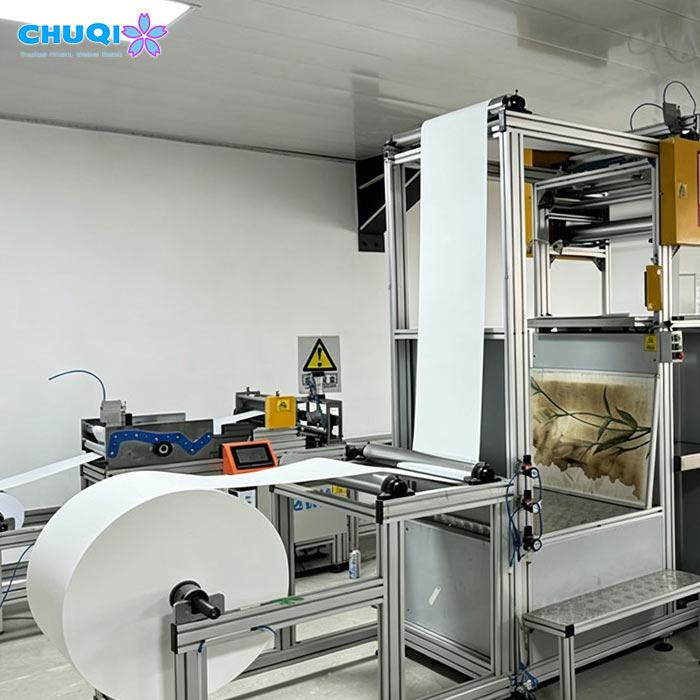

As an established, source-level activated carbon filter manufacturer, we operate advanced in-house manufacturing lines to embed high-grade active charcoal onto durable substrates. Acting as a dedicated industrial carbon filter media supplier, we provide direct factory pricing, strict quality control, and robust HVAC carbon filter media OEM capabilities for global distributors, engineering firms, and procurement partners.

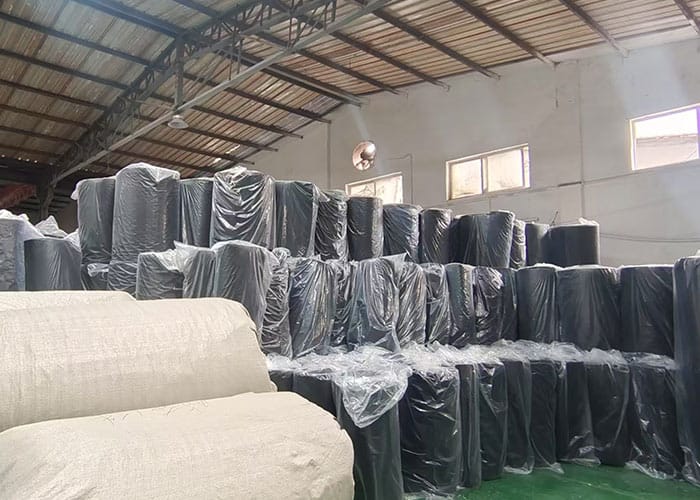

Whether you need bulk container shipments or custom-tailored activated carbon filter media wholesale supplies, our optimized supply chain and export packaging guarantee competitive lead times and reliable global delivery.
Frequently Asked Questions For Industrial Activated Carbon Filter Media
Q1: What makes industrial activated carbon filter media so effective for VOC adsorption?
A1: Our high-performance industrial activated carbon filter media (including granular activated carbon (GAC) media) features an extensive network of micro-pores designed for maximum adsorption capacity. This advanced molecular structure achieves exceptional VOC adsorption efficiency, reliably capturing hazardous volatile organic compounds, chemical fumes, and persistent industrial odors from high-volume exhaust streams through superior adsorption performance.
Q2: How does this air filtration media maintain high efficiency without restricting airflow?
A2: Engineered specifically for heavy-duty industrial systems, this industrial air filtration media is optimized to deliver a low pressure drop while maintaining a high contaminant adsorption rate. Its uniform structure and optimal particle packing ensure smooth airflow dynamics, reducing overall energy consumption for your systems without sacrificing filtration efficiency or gas-phase adsorption capacity.
Q3: What factors influence the lifespan and durability of industrial carbon filters?
A3: The service life of these industrial carbon filters depends on operating parameters such as airflow velocity, humidity levels, and the concentration of pollutants targeting the carbon’s adsorption capacity. Thanks to its superior mechanical strength and high porosity, our media resists crushing, dust generation, and premature breakdown, ensuring sustained adsorption performance over extended replacement cycles.
Q4: Should I choose granular or pelletized industrial activated carbon filter media?
A4:Granular Activated Carbon (GAC) Media: Ideal for general vapor-phase adsorption, odor capture, and broad-spectrum pollutant retention due to its vast surface area and high adsorption efficiency.Pelletized Carbon Media: Recommended for high-velocity applications where enhanced thermal stability, lower pressure drop, and reliable gas-phase adsorption are critical.Our team can help you select the exact grade tailored to your specific purity and adsorption performance requirements.
Q5: Can this activated carbon filter media be regenerated or reused?
A5: While thermal reactivation is commercially viable for large-scale operations, most facilities utilize our cost-effective, disposable industrial activated carbon filter media. Once the media reaches saturation and its adsorption capacity is exhausted, the spent air filtration media should be replaced and disposed of in strict compliance with local environmental regulations.
