High-Capacity Low Pressure Drop Pleated Pre-Filter for Commercial HVAC

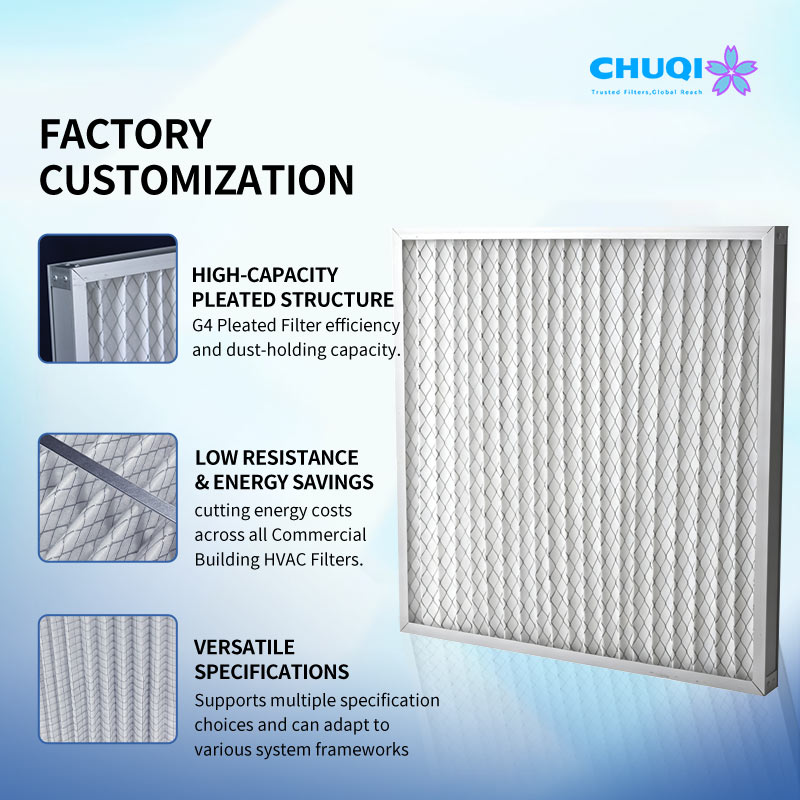

High-Capacity Pleated Structure: Our High Capacity Pleated Filter layout expands effective surface area, delivering superior G3/G4 & MERV 8 Pleated Air Filter efficiency and high dust-holding capacity for demanding air handlers.
Low Resistance & Energy Savings: Engineered as a Low Pressure Drop Pleated Pre-Filter, it optimizes airflow to lower fan motor strain and cut energy costs across all Commercial HVAC Filters and industrial systems.

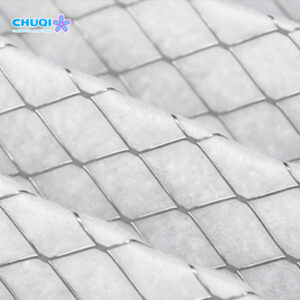

Dual-Sided Mesh Reinforcing: Engineered with robust expanded metal grid backing on both sides (or single-side option), our wire-backed pleated pre-filter design locks pleat geometry in place, preventing media fluttering or deformation under high airflow and heavy dust conditions.

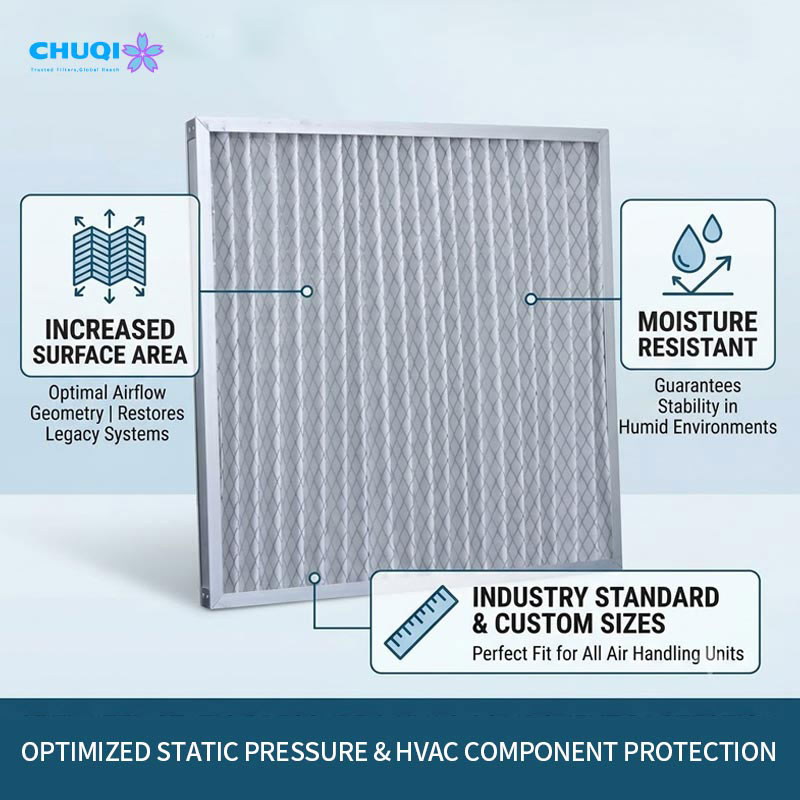

Structural Integrity: Combining Moisture Resistant Synthetic Media with dual-sided wire backing, our Pleated Panel Filter units resist pleat collapse even in high-humidity Industrial AHU Filter Replacement applications.
Versatile Specifications: Available in standard 1-inch, 2-inch, and 4-inch Pleated Filters, including the popular 24x24x2 Pleated Filter size and custom dimensions to ensure a seamless fit for any equipment frame.

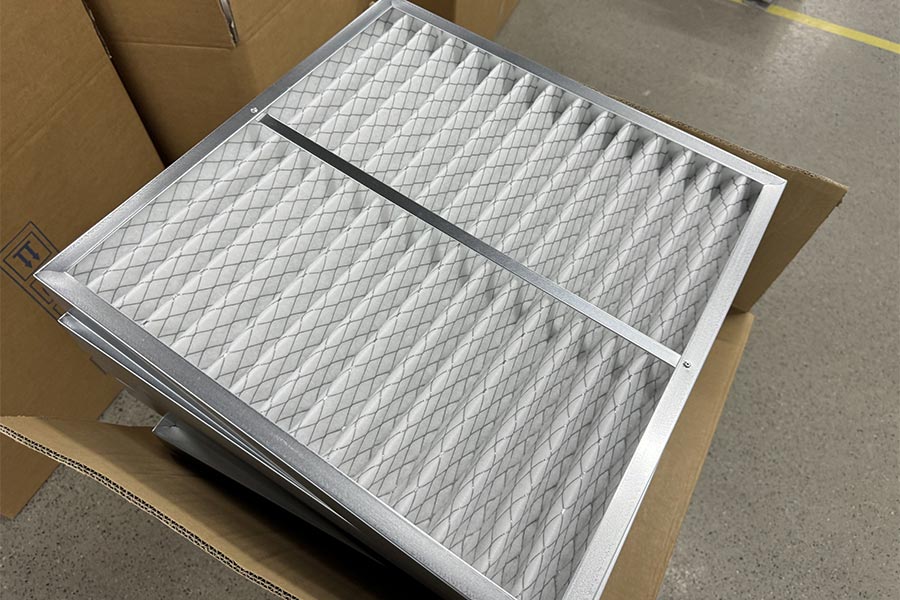

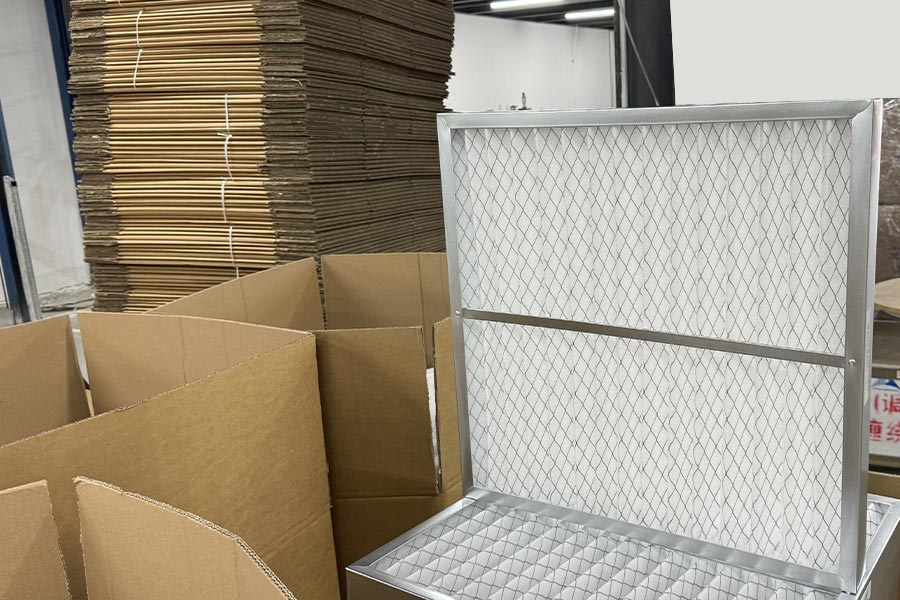

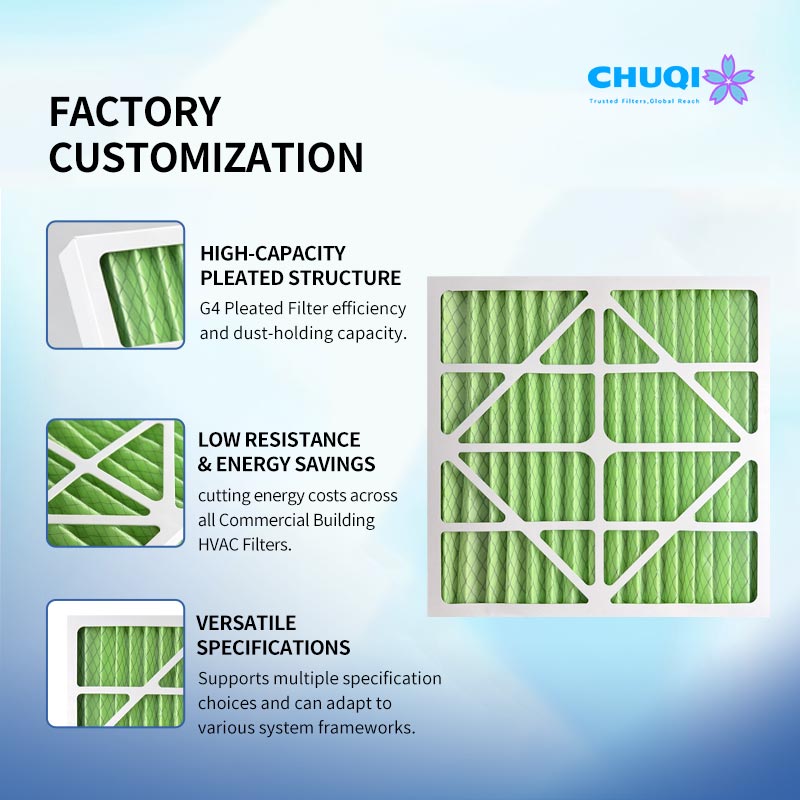

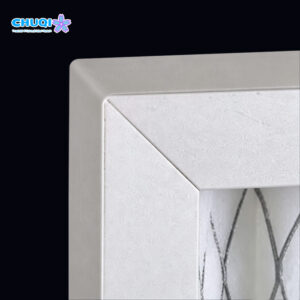

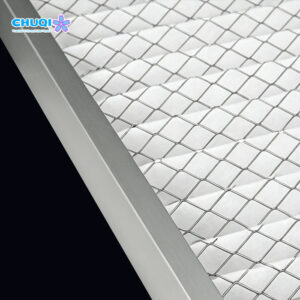

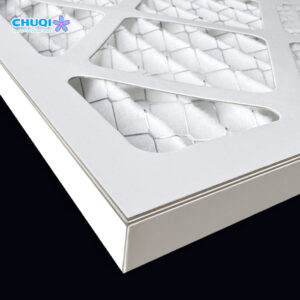

Diverse Frame Options: We supply a versatile range of frame materials tailored to your operational requirements. Choose from moisture-resistant cardboard frame pleated pre-filters for eco-friendly disposal, or heavy-duty galvanized steel pleated pre air filters and extruded aluminum profiles for high-rigidity industrial AHU filter replacement scenarios.
Flexible Dimensions & Thickness: Full production capabilities for standard 1-inch, 2-inch, and 4-inch profiles (21mm, 25mm, 46mm, 96mm) alongside 100% custom-sized non-standard pleated air pre-filters built to exact length, width, and depth specifications.
OEM/ODM Production: As an experienced custom size pleated air filter manufacturer, we offer end-to-end sample-to-production matching, private labeling, and custom branding for HVAC distributors and equipment builders looking to restore aging or legacy systems.

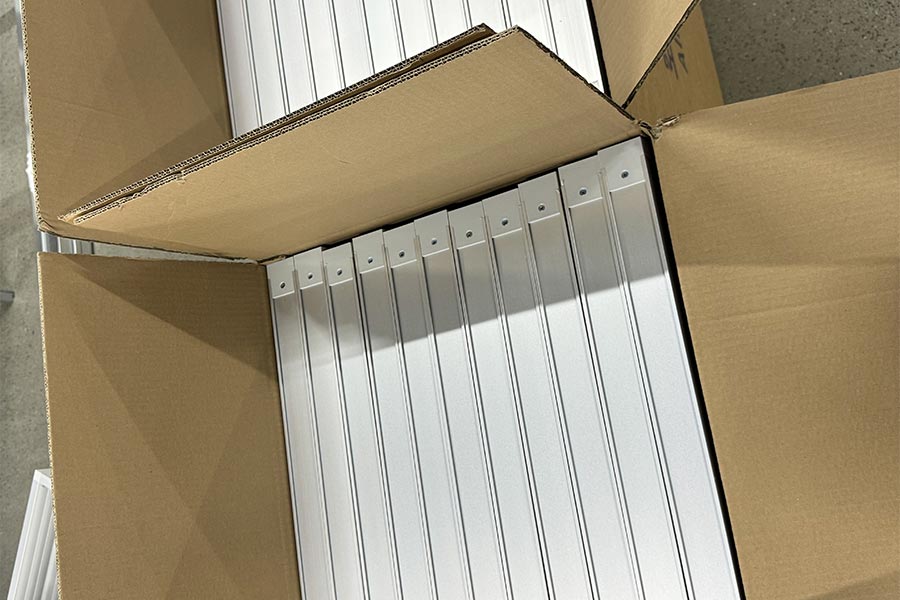

Logistics & Wholesale Efficiency: Our high-density nested packaging and lightweight beverage board options optimize container loading space, lowering international bulk freight costs for global wholesale pleated pre-filter suppliers and importers.
Pleated Air Pre-Filter Applications | Commercial & Industrial HVAC
Commercial HVAC Systems: Essential commercial building HVAC Pre filters for centralized air handling units (AHUs) in office complexes, shopping centers, and hospitals, maintaining indoor air quality while reducing fan motor strain.
Cleanroom Environments: Serving as a primary cleanroom pre-filter barrier, these units protect downstream HEPA filters from heavy dust loading in pharmaceutical, semiconductor, and medical device manufacturing facilities.
Industrial AHUs: Engineered specifically for industrial AHU pre-filter replacement, providing low static pressure and high dust holding capacity in heavy manufacturing plants, workshops, and processing facilities.
Automotive & Spray Booths: Functioning as a high-efficiency spray booth air intake pre-filter, they trap coarse particulate matter before it reaches finishing lines, preventing paint defects and ensuring smooth coatings.
Commercial Kitchens & Food Processing: Designed as an efficient food processing facility air pre-filter, effectively capturing airborne dust, flour, and powders to support strict hygiene standards and protect sensitive HVAC components.
Pleated Pre-Filter Competitive Comparison: Factory Direct vs. Standard Market
| Comparison Dimension | Our Factory Direct Product | Standard Market Alternatives |
|---|---|---|
| Compliance & Quality | Full adherence to EN779/ISO 16890 G3/G4 standards with batch-level quality audits. | Often lacks formal certification, resulting in inconsistent performance and system reliability issues. |
| Filtration Stability | High-density pleated media with rigid support nets prevents pleat collapse under high pressure. | Standard filters lack structural support, causing pleat adhesion and air bypass, drastically lowering efficiency. |
| Bulk Supply Capacity | 20+ years of manufacturing expertise, offering stable, high-volume production for international projects. | Small-scale workshops lack production capacity, causing erratic lead times and quality variances for large orders. |
| Build & Durability | Moisture-resistant frames and high-quality adhesive sealing ensure zero bypass leakage even in wet conditions. | Flimsy frames easily deform or absorb moisture, causing internal frame leakage and contamination. |
| Wind Resistance Performance | Optimized flow design ensures low pressure drop, saving electricity and extending overall filter life. | Poorly designed airflow channels increase system static pressure, causing motor strain and higher energy bills. |
| Customization Ability | Deep R&D capabilities provide rapid turnaround for non-standard sizing and specific OEM branding. | Limited to standard, off-the-shelf items that often fail to fit non-standard legacy or custom equipment. |
Pleated Pre-Filter Technical Specifications & G3/G4 Efficiency Data
| External dimensions (mm) | Rated air volume (m3/h) | Initial resistance (Pa) | Efficiency (Level) (class) | Filter media model | |
|---|---|---|---|---|---|
| 295 × 295 × 21/25/46 mm | 800m³/h | 35 Pa | 40% (Weighing method) | G3 / G4 （Merv 5-8） | Non-woven fabric polyester fiber blended filter media |
| 495 × 295 × 21/25/46mm | 1300m³/h | ||||
| 495 × 495 × 21/25/46mm | 2200m³/h | ||||
| 595 × 295 × 21/25/46mm | 1600m³/h | ||||
| 595 × 495 × 21/25/46mm | 2700m³/h | ||||
| 595 × 595 × 21/25/46mm | 3200m³/h | ||||
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Discover Other Specifications in Our Pleated Pre-Filter Series
Our facility combines heavy-duty automated production with strict batch quality control to deliver high-performance pleated pre filter products built for high-volume commercial and industrial demand.
Factory-Direct Margins & Scalable Supply: Operating our own production lines allows us to offer competitive tier-1 pricing and large-volume capacity for synthetic pleated pre-filter media, giving wholesale distributors and contractors a clear cost advantage on every project.
Extended HEPA Lifespan & Reduced Maintenance: Our high-dust-holding pleated panel filters trap heavy particulate loading at the intake stage, preventing early clogging of downstream secondary filters and significantly cutting system downtime and maintenance costs.
Rigid Quality Assurance & Custom Production: Equipped with dual-sided wire mesh backing and moisture-resistant frames, every MERV 8 pleated air filter batch is tested to prevent pleat collapse or air bypass. We provide fast OEM/ODM sample-matching and precise non-standard sizing to keep your equipment running without delay.
Frequently Asked Questions For Pleated Pre-filter
Q1: Why should I choose your Pleated Pre-filter for my HVAC system?
A: Choosing our pleated pre filter lowers system Total Cost of Ownership (TCO) through reduced static pressure drop and extended dust-holding capacity. Manufactured with high-density synthetic media formed into uniform pleat geometry, our synthetic pleated pre-filter units provide 3 to 5 times the effective filtration surface area of flat panel filters. This design minimizes initial airflow resistance, reduces fan motor energy consumption, and maintains air handler performance in heavy-duty commercial and industrial HVAC installations.
Q2: Can you provide custom sizes for my specific equipment?
A: Yes, as a specialized custom size pleated air filter manufacturer, we provide full OEM and ODM capabilities for precise equipment integration. We produce standard 1-inch, 2-inch, and 4-inch profiles as well as fully customized non-standard dimensions. Whether supplying a standard G3/G4 pleated pre-filter or custom cell-side dimensions for legacy industrial AHU filter replacement, our engineering process ensures exact frame tolerances to eliminate air bypass.
Q3: How do these filters perform in humid industrial environments?
A: Our wire-backed pleated pre-filter line is engineered specifically to prevent structural failure in high-humidity or turbulent airflow conditions. Constructed using hydrophobic synthetic media thermally laminated to a dual-sided galvanized steel wire mesh backing, these filters retain structural integrity without pleat collapse, media sagging, or bypass leakage under high moisture exposure—making them ideal for paint booth air intakes and humid processing facilities.
Q4: Do you offer bulk purchasing for large-scale filtration projects?
A: Yes, we offer factory-direct wholesale pricing and volume supply agreements for international HVAC contractors and regional distributors. As direct wholesale pleated pre-filter suppliers, our high-capacity production facility yields batch-consistent MERV 8 pleated pre-filter shipments certified under ISO 16890 and ASHRAE 52.2 standards, ensuring reliable lead times, lower bulk freight costs, and stable procurement for engineering projects.
Q5: Are these filters suitable for cleanroom environments?
A: Yes, our pleated panel filters serve as an essential primary stage (Stage 1 pre-filtration) in multi-tier cleanroom air handling systems. By capturing large ambient dust particles prior to secondary filtration, they protect downstream HEPA and ULPA filters from premature dust loading. Made from non-shedding synthetic fibers, they uphold strict air cleanliness requirements in pharmaceutical, semiconductor, and medical device manufacturing.
