Engineered for Superior Dust Capture & International Fire Safety
Optimized Multi-Layer Dust Capture
Our gradual density intake filter layout transitions from loose to tight, trapping surface debris and deep particles. This delivers a high dust holding capacity media matrix that extends replacement intervals past a week.
High-Velocity Mechanical Integrity

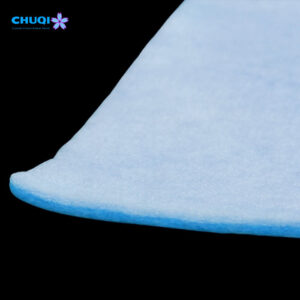

Using continuous fibers, our synthetic pre filter media eliminates shedding under high pressure. It maintains full integrity under 5400 m³/h airflow streams, preventing downstream facility contamination.
Export-Grade Fire Safety Certifications
Engineered for swift facility safety audits, our media holds dual certification as a UL900 Class 2 filter media and a European DIN53438 F1 filter mat line to guarantee strict flame-retardant compliance.
Comprehensive Dimensional Sizing & Roll Supply
We offer flexible weights (100G–250G) and thicknesses (10–20mm). Choose custom-sliced intake filter mat components or bulk pre filter media roll logistics to meet your exact pressure drop needs.
Flexible Roll Supply & Custom Sizing for Demanding Environments
Gradual Density Web Consolidation: Built with premium high-strength synthetic fibers that are thermally bonded to form a true gradual density intake filter matrix. This deep-bed configuration holds up to 588 g/m² of heavy dust, preventing face sealing and reducing overall system resistance.
Certified Flame-Retardant Integration: Built with inherent self-extinguishing fibers that achieve full UL900 Class 2 filter media and DIN53438 F1 filter mat conformity. This ensures complete system protection in spark-heavy paint booths or automated factory lines.

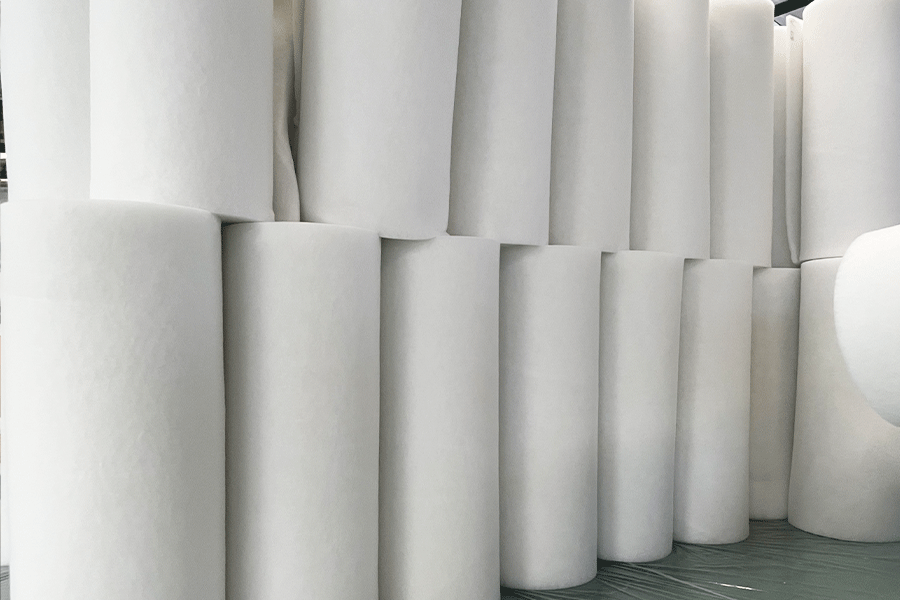

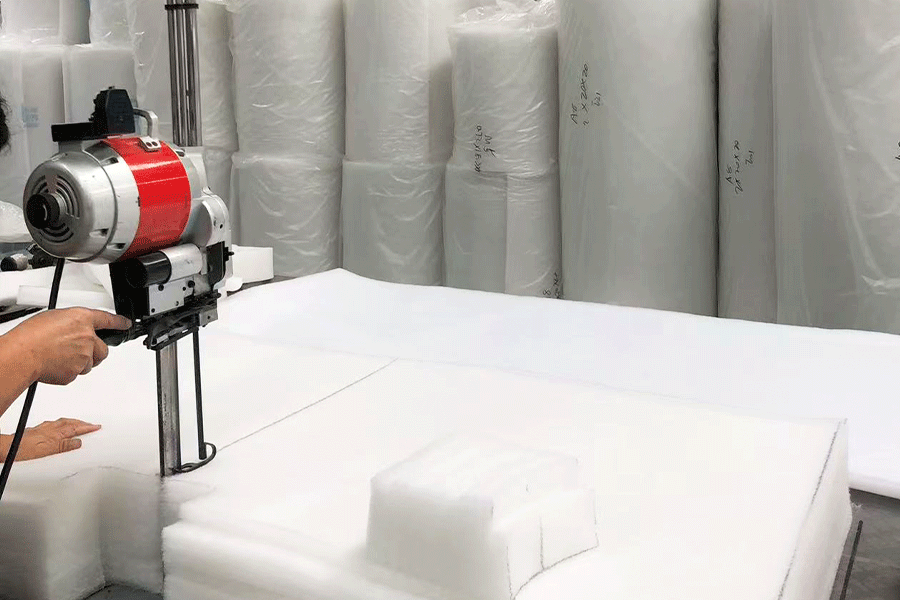

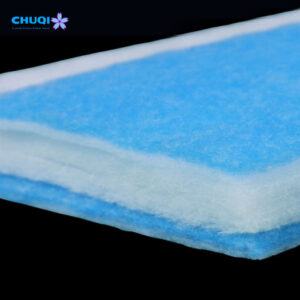

Versatile Non-Standard Cutting Options: Supported by automatic high-speed slitting lines, we provide a 100% customizable custom pre filter roll service. Customers can order exact widths, specify specialized roll lengths, or request pre-cut blue-and-white or all-white panels.
Flexible Weight and Thickness Options: Available in precise product densities ranging from 100G to 250G and thicknesses from 10mm to 20mm. This lets procurement teams match specific airflow specifications and target pressure metrics accurately.

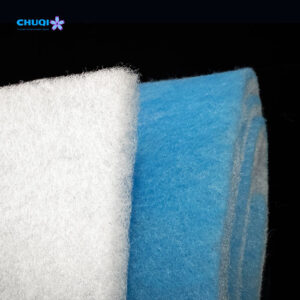

Automotive and Equipment Spray Booths: Positioned at the main air inlets and ceiling plenums of industrial baking ovens and automotive assembly zones. Utilizing a certified spray booth intake filter prevents fiber shedding, keeping raw paint finishes completely free of micro-particle defects.
Air Handling Unit Air Inlets: Deployed as the primary pre-filtration barrier within high-volume ahu pre filter media tracks, shielding interior coils, fans, and finer secondary filters from heavy dust buildup.
Commercial HVAC Air Intakes: Installed in the air entry banks and return pathways of large commercial facilities, data centers, and corporate buildings using durable hvac air intake filter roll stock to manage high volumetric air circulation.
Cleanroom Air Pre-Treatment: Serves as the vital first barrier inside cleanroom pre filter mat tracks for semiconductor fabs, pharmaceutical labs, and medical packaging facilities, keeping the main terminal filtration stages functioning efficiently.
| Evaluation Dimension | Chuqi Factory-Direct Media | Standard Alternative Grade |
|---|---|---|
| Factory Compliance & Certification | Dual certified as UL900 Class 2 filter media and DIN53438 F1 filter mat; full batch traceability. | Lacks recognized fire-retardant credentials, causing high fire risks and compliance failures during facility audits. |
| Filtration Stability Under Pressure | High-strength synthetic pre filter media structure prevents fiber shedding and tearing under a strong 5400 m³/h flow. | Weak fiber bonding results in media compression, face tearing, and fiber migration under standard air velocity. |
| Bulk Availability & Delivery | High-volume automated production lines ensure a steady, reliable pre filter media roll supply for large bulk orders. | Limited manufacturing capacity leading to long lead times, uneven roll weights, and unstable delivery schedules. |
| Workmanship & Shedding Resistance | Continuous fiber matrices completely eliminate shedding, preserving paint quality and keeping cleanroom paths clean. | Short-staple fibers break easily under airflow pressure, shedding debris that ruins automotive paint finishes. |
| Airflow Resistance & Energy Use | Functions as a true low pressure drop pre filter roll (12-25 Pa), minimizing fan resistance to save electricity. | High initial resistance forces ventilation fans to consume more energy, leading to high utility expenses. |
| Flexible OEM Customization | A fully flexible industrial intake filter supplier offering customizable roll configurations, cut sheets, and custom weights. | Only stocks limited standard dimensions; unable to adjust thickness profiles or support custom density requests. |
| Model | AR-210 | AP-250G | AZ-250G | AZ-200G | AZ-150G | AZ-100G | AF-200G | AF-150G |
|---|---|---|---|---|---|---|---|---|
| Color | White | White | White | White | White | White | Blue and White | Blue and White |
| Weight | 210G | 250G | 250G | 200G | 150G | 100G | 200G | 150G |
| Thickness | 10 ± 2mm | 15 ± 2mm | 20 ± 2mm | 18 ± 2mm | 15 ± 2mm | 10 ± 2mm | 18 ± 2mm | 15 ± 2mm |
| Max. Airflow | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h | 5400m³/h | 1900m³/h | 2500m³/h |
| Initial resistance | 20pa | 25pa | 25pa | 20pa | 15pa | 12pa | 20pa | 15pa |
| Final resistance | 250pa | 250pa | 250pa | 250pa | 250pa | 200pa | 250pa | 200pa |
| Efficiency | 85.00% | 91.20% | 91.20% | 91.20% | 79.00% | 75.00% | 91.20% | 79.00% |
| Nominal velocity | 1.50m/s | 1.50m/s | 1.50m/s | 1.50m/s | 1.50m/s | 2.00m/s | 1.50m/s | 1.50m/s |
| Dust Holding Capacity | 497g/㎡ | 588g/㎡ | 588g/㎡ | 526g/㎡ | 468g/㎡ | 400g/㎡ | 307g/㎡ | 276g/㎡ |
| Max. working Temp. | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ |
| Filtering Grade | G3 | G4 | G4 | G3 | G2 | G1 | G4 | G3 |
| Flame resistance | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 | F-1 DIN53438 UL900-Class2 |
Reliable Air Filter Media Manufacturer: Delivering High-Performance Solutions for Global Industrial Partners

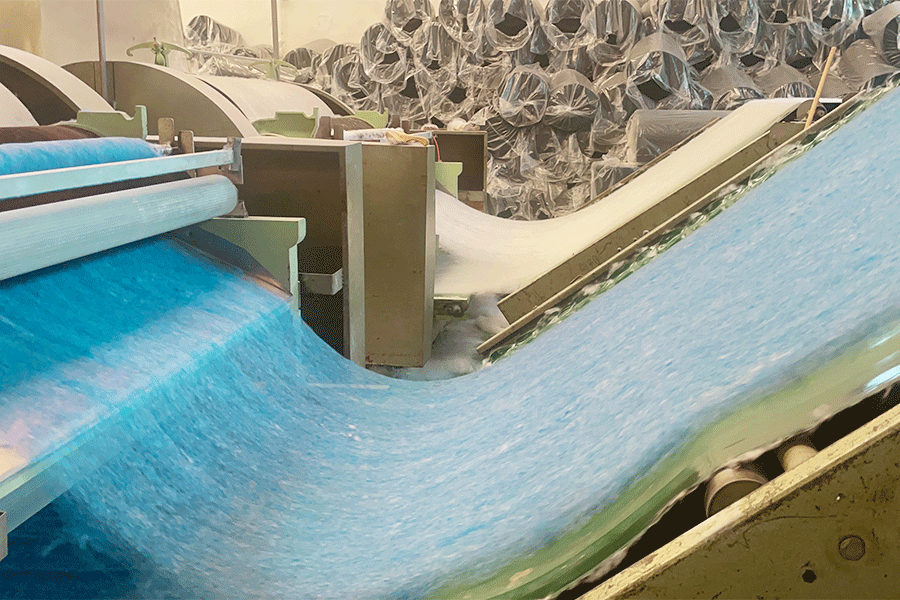

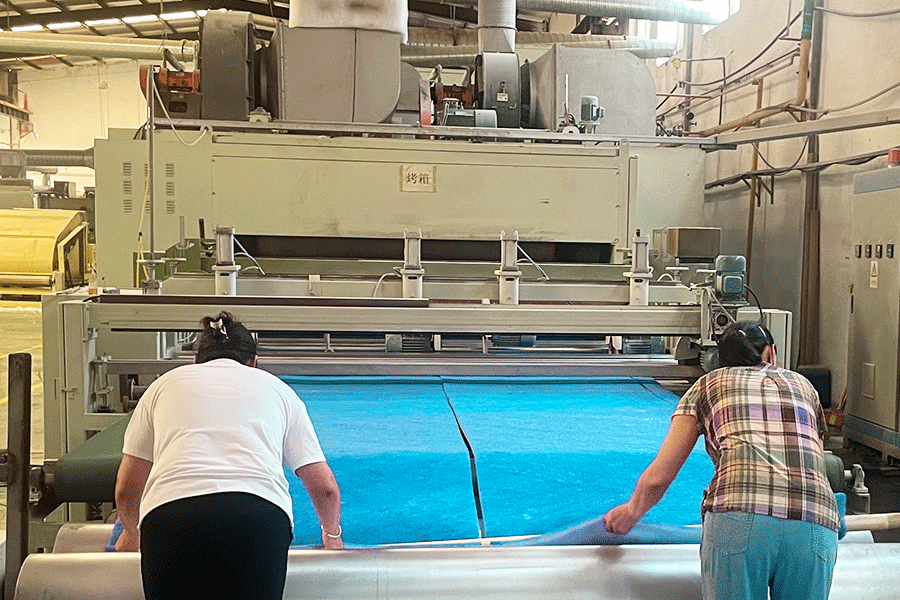

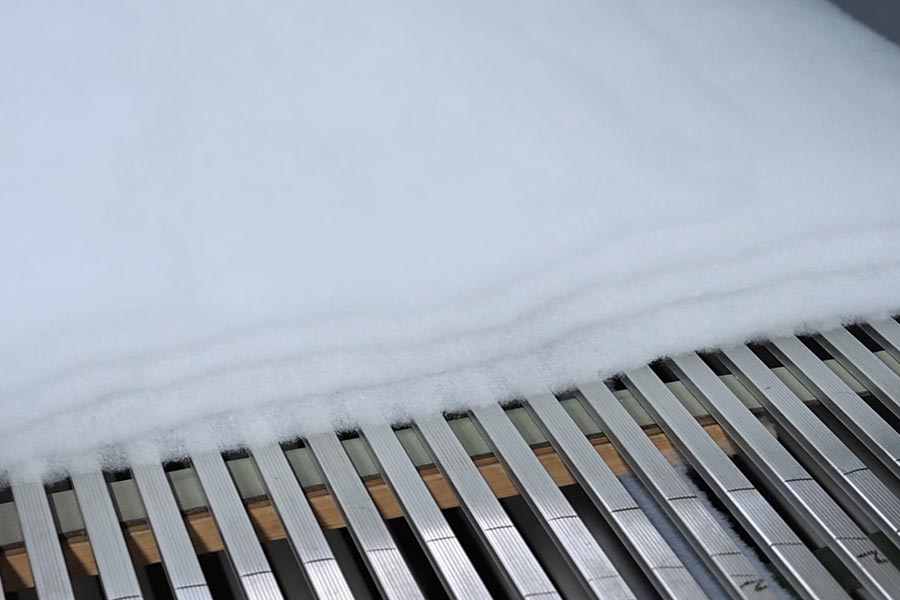

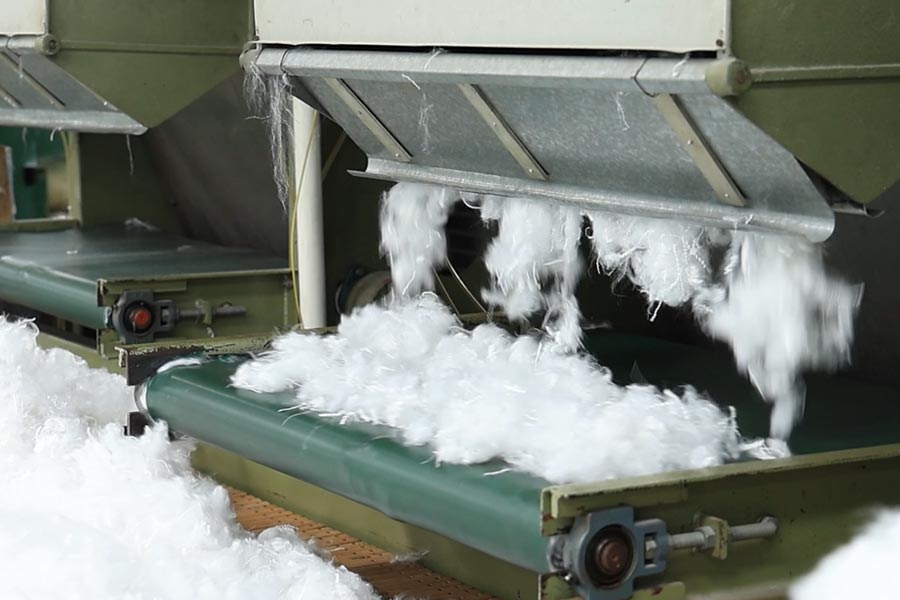

As a premier, source-level air filter media manufacturer, we operate advanced fiber-carding, thermal-bonding, and precision-slitting production setups. We offer direct commercial pricing, stable quality controls, and reliable OEM capabilities for regional distributors, engineering firms, and supply houses looking for a dependable industrial intake filter supplier. Our complete wholesale intake filter media options, verified international safety certifications, and expert export packaging guarantee stable, long-term supply solutions. This allows our global partners to secure their material pipelines, optimize their procurement costs, and support heavy-duty ventilation projects without supply disruptions.
Q: What parameters are required to get a custom quote for your pre-filter media?
A: To receive a precise proposal from our Air Filter Media Manufacturer for your project, please share your required filtration grade (G1 to G4 Pre Filter Media), specific roll dimensions or panel sizes (e.g., Custom Pre Filter Roll formats), required product weight (100G to 250G), and your target order volume. We provide full support for specialized formatting to match any AHU Pre Filter Media assembly method.
Q: How does your air intake filter media reduce overall energy costs for automated factories?
A: Our media is engineered to serve as a Low Pressure Drop Pre Filter Roll, keeping the initial resistance down to 12-25 Pa depending on the specific weight class. This excellent aerodynamic behavior prevents your main intake fans from drawing excessive power, lowering monthly electricity bills while maintaining a high 5400 m³/h delivery rate for your HVAC Air Intake Filter Roll systems.
Q: Can your pre-filter mats prevent fiber shedding from damaging sensitive surface coatings?
A: Yes. Our premium Synthetic Pre Filter Media uses continuous, high-tensile polyester fibers that are thoroughly interlocking. This structural design ensures that no fibers break or shed under strong air pressure, making it highly effective as a Spray Booth Intake Filter that protects fresh automotive or machinery finishes from dust defects.
Q: Do your intake materials carry international flame-retardant certifications for site approvals?
A: Absolutely. Our entire Air Intake Filter Media product line carries certified UL900 Class 2 Filter Media status alongside European DIN53438 F1 Filter Mat verification. These independent safety credentials guarantee that our materials meet strict fire safety regulations, helping B2B buyers pass rigorous environmental and factory safety audits smoothly.
Q: How does a gradual density setup compare to standard, single-density filtration mats?
A: A standard single-density mat quickly develops a dust crust on its outer face, causing pressure drops to spike. Our premium Gradual Density Intake Filter layers fibers progressively to distribute dust storage through the entire material thickness. This creates a superior High Dust Holding Capacity Media structure (up to 588 g/m²) that extends your service life for any Cleanroom Pre Filter Mat application, offering an ideal solution for those seeking Wholesale Intake Filter Media from a reliable Industrial Intake Filter Supplier.
