Industrial Activated Carbon & Charcoal Filter Solutions
To tackle challenging airborne contaminants and optimize HVAC performance, we manufacture a versatile lineup of high-efficiency carbon filters designed for seamless integration and maximum energy savings:

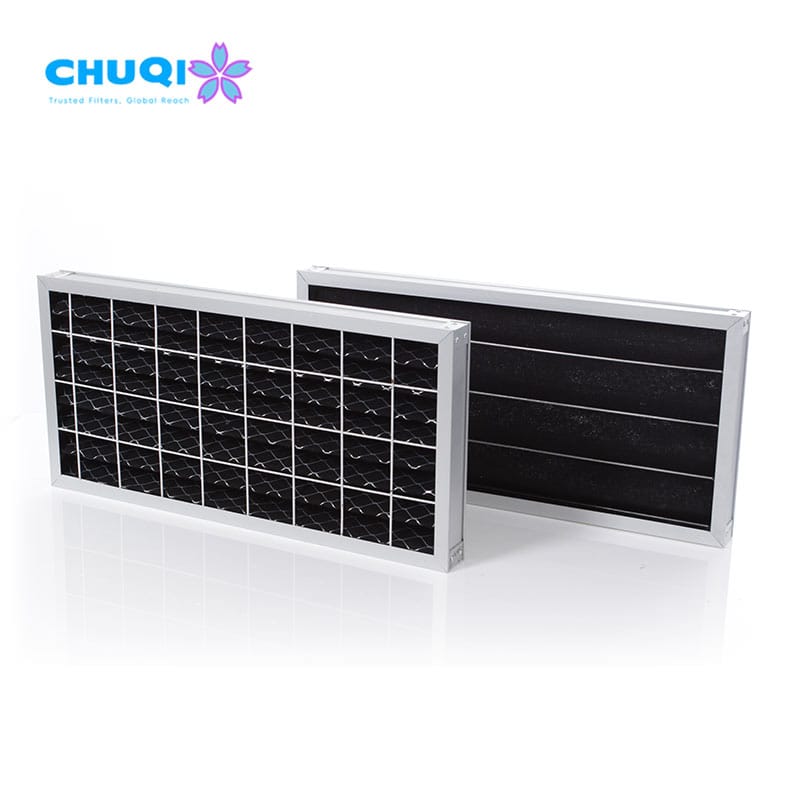

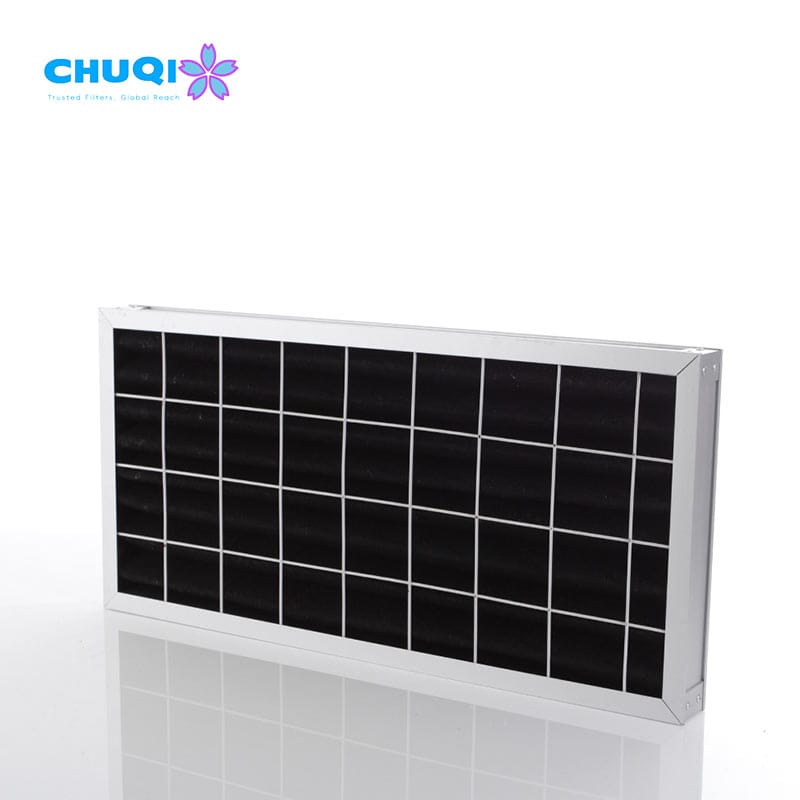

Flat Panel Activated Carbon Filters: Compact, low-profile design ideal for standard air purification in space-constrained systems.

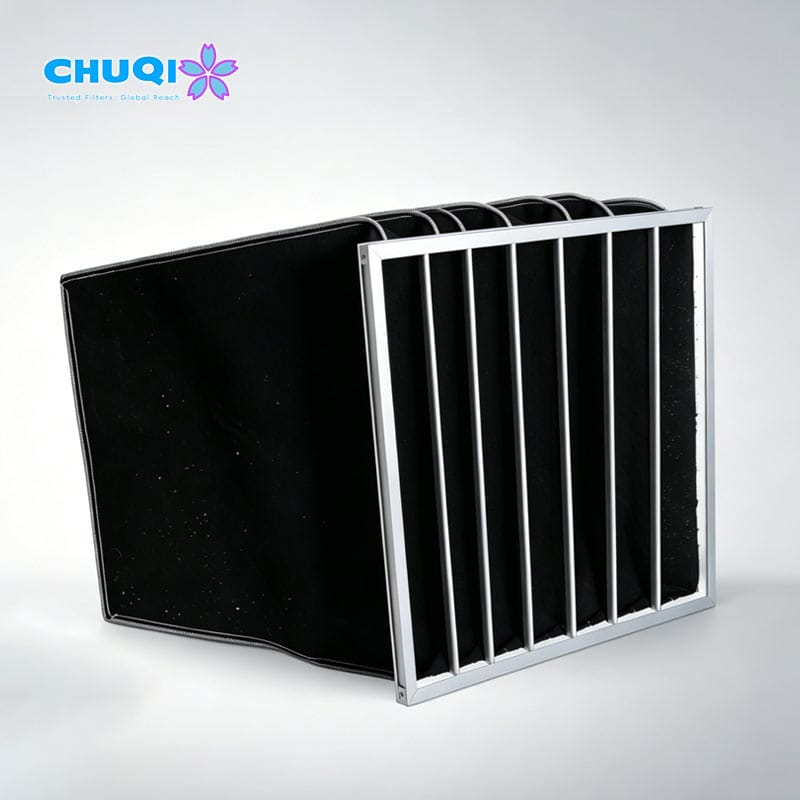

Pocket/Bag Activated Carbon Filters: Superior dust-holding capacity and extended service life for high-volume, heavy-duty applications.

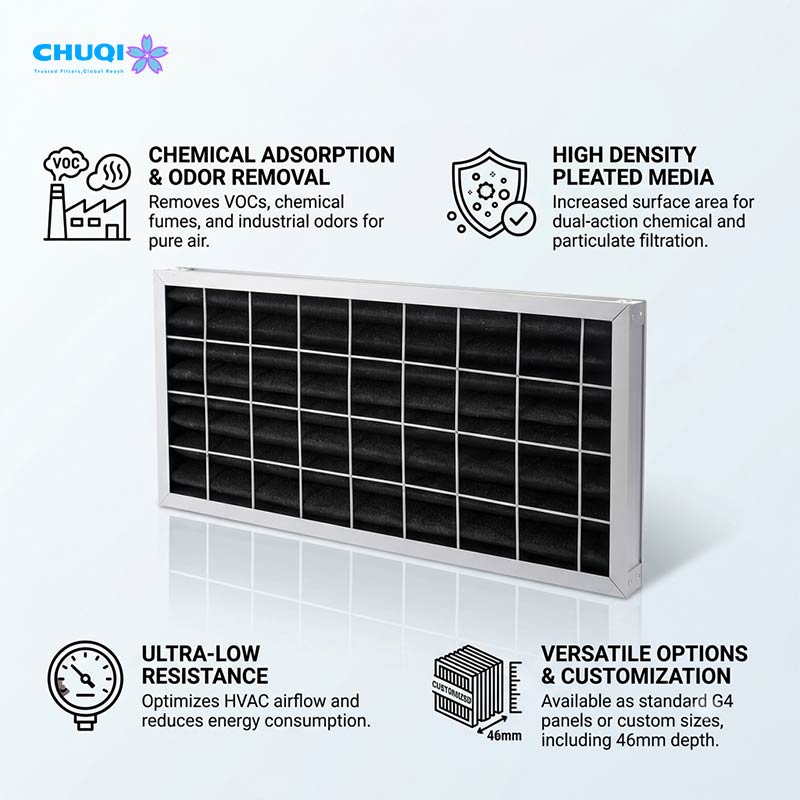

Pleated Activated Carbon Filters: Expanded surface area engineered for high-density chemical adsorption and fine particulate filtration.

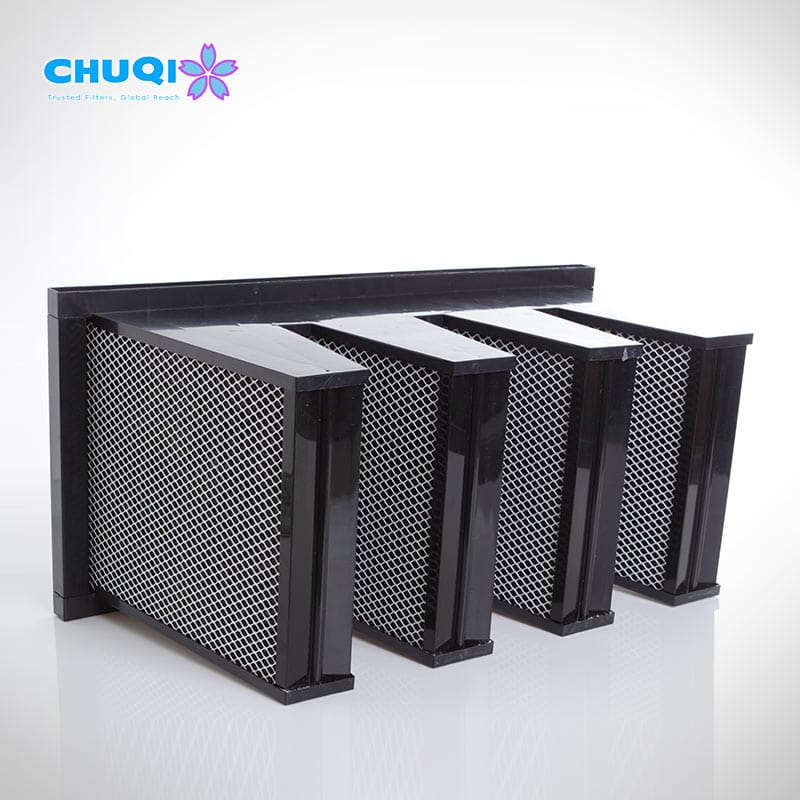

V-Bank Activated Carbon Filters: Aerodynamic V-shape design providing high-airflow capacity with ultra-low static resistance.
Need a Non-Standard Size or Specialized Carbon Media?

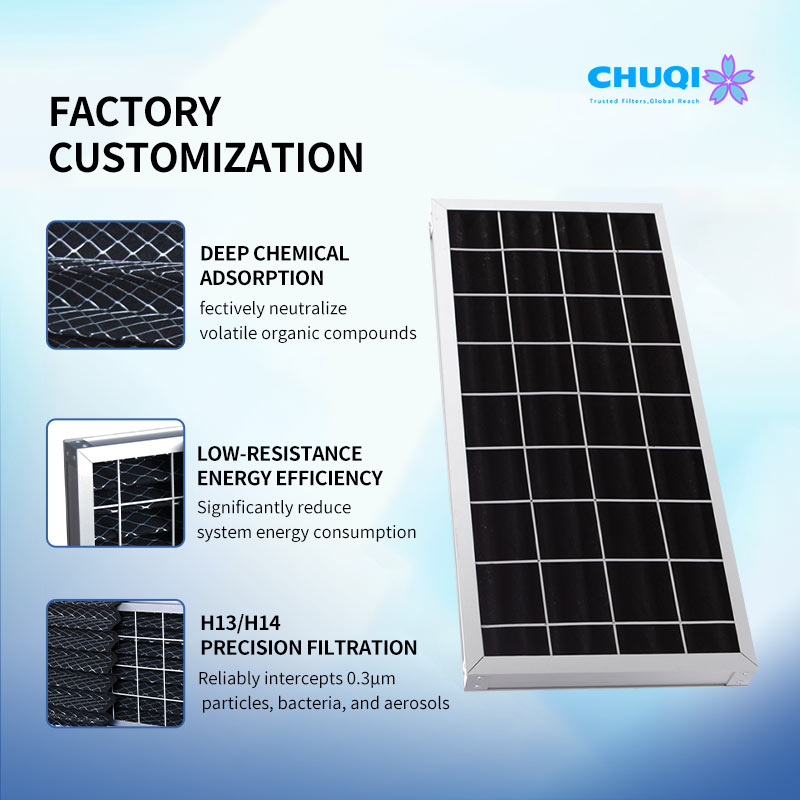

we offer fully custom activated carbon filters—tailoring dimensions, frame materials, and carbon blends to match your exact system requirements.
Activated Carbon Filters Engineered for Lower Energy Costs & Better VOC Control
Deep Chemical Adsorption Engineered with high-capacity activated charcoal filter media, our systems deliver exceptional single-pass efficiency to adsorb complex VOCs, acidic gases, and corrosive industrial fumes—safeguarding sensitive manufacturing environments and maintaining strict air quality compliance.
Low-Resistance Energy Efficiency Designed with optimized aerodynamic flow channels, this high-performance carbon air filter minimizes static pressure drop across the media, enabling high-volume ventilation while significantly reducing HVAC fan power consumption and operational expenditures.
High-Stability Structural Design Constructed with heavy-gauge aluminum alloy or galvanized steel frames and reinforced protective faceguards, our activated carbon panel filter units maintain structural integrity under high-velocity airflow, completely eliminating pleat deformation and bypass risks.
Dual-Stage Filtration Performance Integrating molecular gas-phase adsorption with coarse particulate pre-filtration into a unified design, this activated carbon air filter maximizes equipment space efficiency within Air Handling Units (AHUs) while streamlining maintenance workflows.
We serve as a trusted industrial carbon filter supplier, providing full-spectrum customization to meet the specific requirements of complex engineering projects. Our capabilities include:
Flexible Specifications: We support any required thickness (including standard 21mm and 46mm activated carbon filter designs) and offer custom dimensions to ensure a perfect fit for legacy systems.
Diverse Structural Configurations: From pleated carbon filter designs for high surface area to specific panel styles, we tailor the structure to your system’s airflow requirements.
Professional OEM/ODM Support: As an experienced carbon HVAC filter OEM supplier, we provide batch-level consistency for your branded or project-specific needs.
Bulk Supply: We offer bulk carbon filters for HVAC with stable lead times for large-scale engineering projects.
Industrial Exhaust Systems: Our industrial exhaust carbon filter effectively neutralizes high-concentration VOCs and chemical emissions from printing, coating, and chemical manufacturing, ensuring strict regulatory compliance.
Commercial HVAC: Our commercial HVAC carbon filtration solutions deliver superior odor removal and air purification for large-scale buildings like hospitals, hotels, and office complexes, significantly enhancing indoor comfort.
Laboratory Environments: Designed specifically as a laboratory carbon filter, these units neutralize hazardous fumes and chemical residues, ensuring a safe and stable atmosphere for sensitive research and testing.
Cleanroom Pre-filtration: Acting as a high-performance cleanroom carbon prefilter, this unit captures molecular contaminants to protect downstream HEPA filters from chemical degradation and heavy dust loads, extending system life.
| Comparison Dimension | Our Factory Direct Product | Standard Market Alternatives |
|---|---|---|
| Compliance & Quality | Full adherence to environmental standards with rigorous batch-level quality inspections. | Often lacks professional testing, leading to unpredictable adsorption efficiency and regulatory failure. |
| Filtration Stability | Rigid metallic frames and high-density media ensure zero-collapse performance under high airflow. | Low-end filters suffer from pleat collapse and reduced surface area, causing rapid efficiency loss. |
| Bulk Supply Capacity | Large-scale manufacturing capability with stable lead times for bulk engineering projects. | Small-scale workshops struggle with batch consistency, creating quality risks across large orders. |
| Build & Durability | Corrosion-resistant aluminum/galvanized construction prevents structural aging and frame warping. | Plastic-framed alternatives are brittle, heat-sensitive, and prone to failure in industrial environments. |
| Wind Resistance Performance | Optimized flow engineering ensures low static pressure, directly reducing motor energy consumption. | Poor design forces fan motors to work harder, spiking electricity costs and shortening equipment lifespan. |
| Customization Ability | Direct factory engineering provides rapid, high-precision non-standard sizing for custom equipment. | Limited to off-the-shelf sizes, failing to meet the requirements of non-standard HVAC installations. |
As an integrated industrial air filtration manufacturer, we offer a complete matrix of activated carbon filters—ranging from primary pre-filters (G3–G4) to high-efficiency V-Bank chemical filtration systems (F7–F9 / MERV 13–15) and custom HEPA-carbon combo units (H13–H14).
| Dimension | Rated Air Flow | Initial resistance | Adsorption Efficiency | Efficiency (class) | Media |
|---|---|---|---|---|---|
| 295 × 295 × 46mm | 1000m³/h | 35Pa | ≥80% | G3/G4 | Activated Carbon Felt |
| 495 × 295 × 46mm | 1600m³/h | ||||
| 495 × 495 × 46mm | 2800m³/h | ||||
| 595 × 295 × 46mm | 2000m³/h | ||||
| 595 × 495 × 46mm | 3300m³/h | ||||
| 595 × 595 × 46mm | 4000m³/h |
Note:Since pleated designs are the industry standard, the parameters listed above are based on this configuration. If you need custom styles, feel free to 【Contact our technicians for specific data.】
Certified Activated Carbon Filter Manufacturer: 20+ Years of Industry Expertise
we operate a vertically integrated production line—controlling every stage from raw activated charcoal filter media to finished assemblies. Our expertise in processing premium coconut shell activated carbon filter materials ensures maximum adsorptive capacity, strict quality standards, and highly competitive factory-direct pricing.

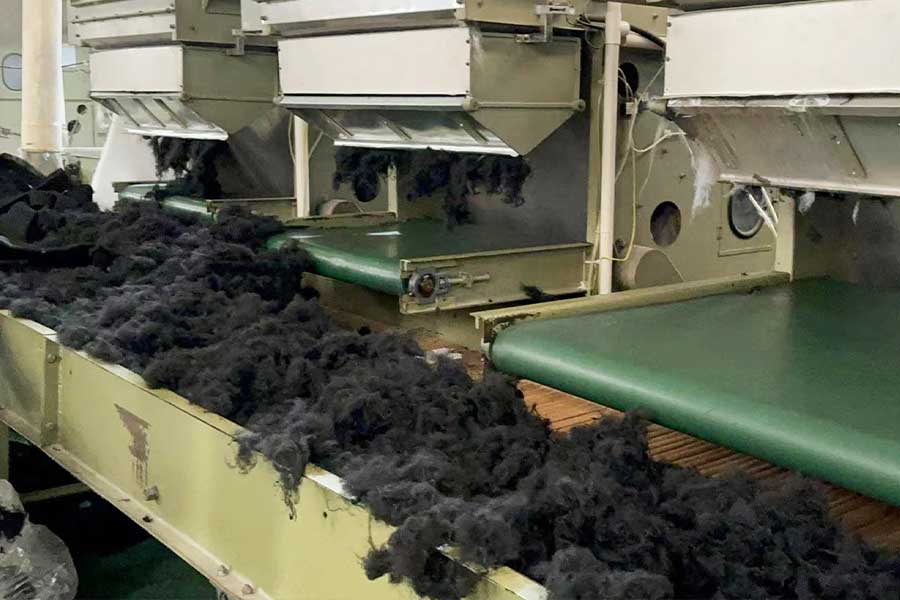

Equipped with automated assembly lines and advanced R&D capabilities, we supply high-performance industrial carbon air filter solutions tailored for global commercial buyers:

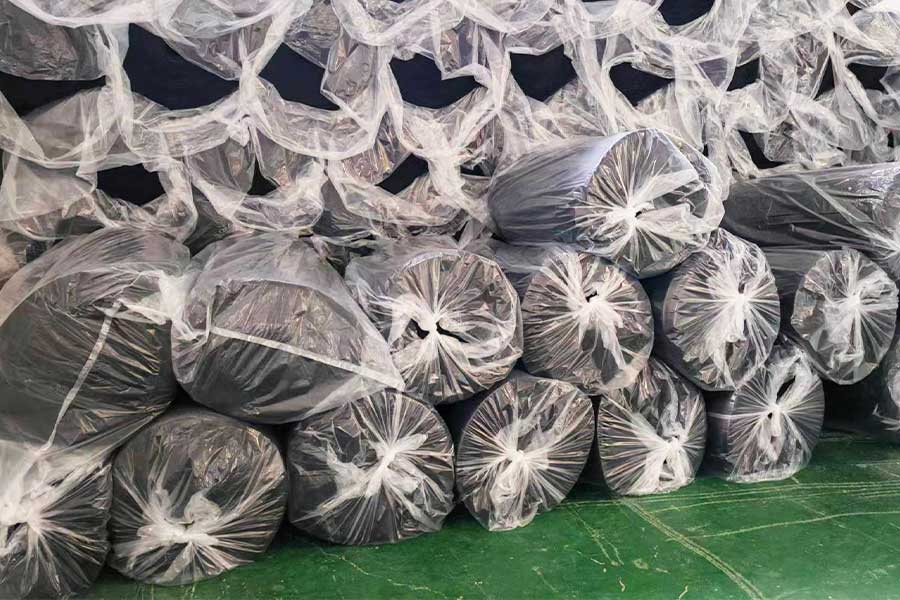

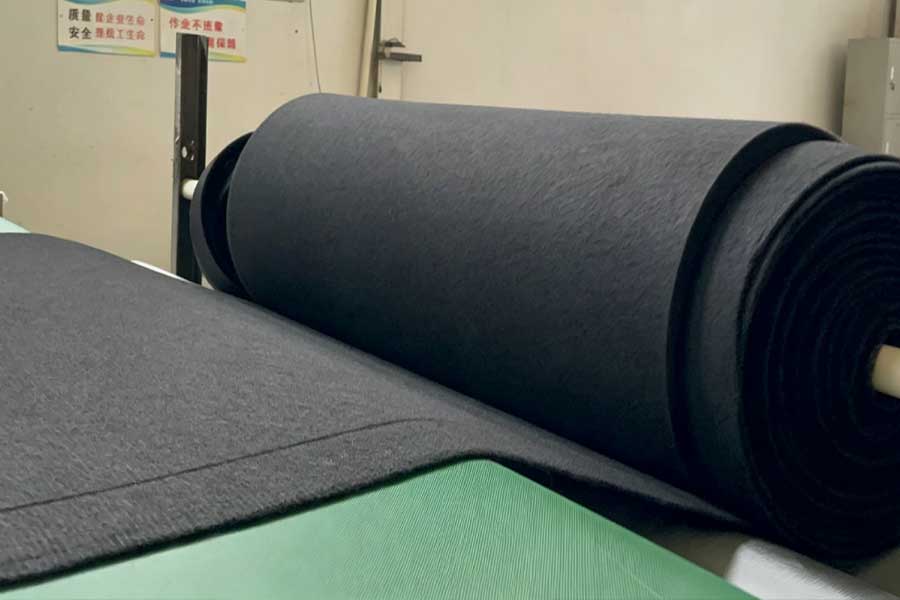

Raw Media & Finished Filters: Full supply chain control from carbon roll media to complete filter frames.
OEM/ODM & Custom Sizing: Customized dimensions, frame configurations, and specialized carbon blends.

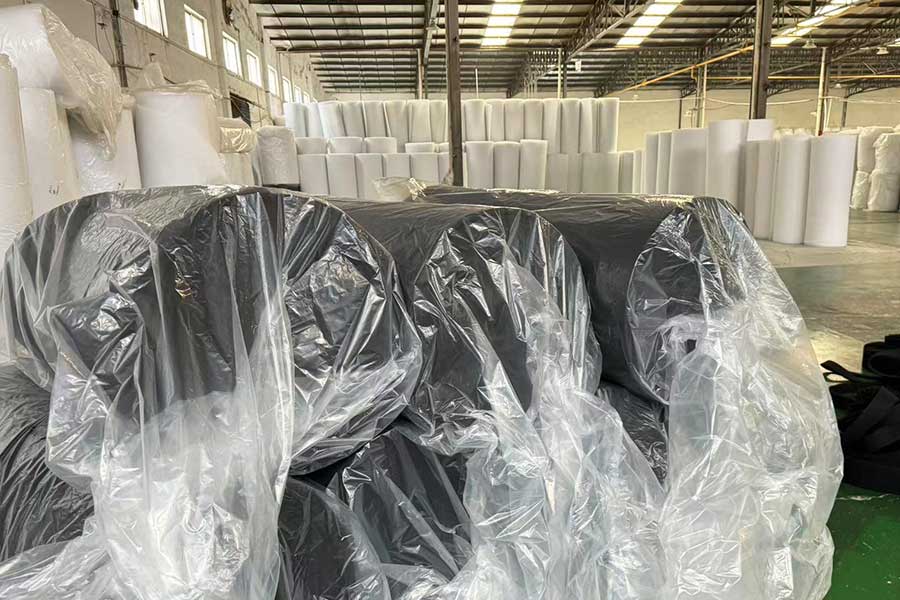

Global Bulk Delivery: Reinforced industrial packaging designed to protect bulk shipments during long-distance transport.
Q1: What are the primary applications of an industrial activated carbon filter?
An industrial activated carbon filter is primarily engineered to capture volatile organic compounds (VOCs), toxic chemical vapors, and persistent odors in commercial facilities. Key applications include paint spray booths, chemical processing plants, commercial HVAC systems, laboratory exhaust hoods, and cleanroom pre-filtration setups where molecular-level air purification is required.
Q2: How does an activated charcoal filter differ from standard HEPA or particulate filters?
While HEPA and particulate filters physically trap solid airborne dust and micro-particles, an activated charcoal filter utilizes gas-phase adsorption to neutralize gaseous pollutants, chemicals, and odor molecules. Combining a pre-filter with a gas-phase carbon filter creates a complete dual-stage system that addresses both particulate dust and airborne gas contaminants.
Q3: Why is a coconut shell activated carbon filter preferred for industrial odor control?
A coconut shell activated carbon filter is widely considered the industry standard due to its superior micropore structure and high surface area. Coconut shell carbon offers higher hardness, lower ash content, and exceptional adsorptive capacity, making it exceptionally effective at trapping small-molecular VOCs and odor compounds compared to traditional coal-based media.
Q4: Can I customize an activated carbon panel filter for non-standard HVAC units?
Yes. As a direct manufacturer, Chuqi produces fully custom activated carbon panel filter units tailored to your equipment specifications. We offer non-standard outer dimensions, customized frame depths (such as 21mm, 46mm, or 95mm), specialized aluminum alloy or galvanized frames, and variable carbon density blends to match your exact static pressure and airflow requirements.
Q5: How often should an industrial carbon air filter be replaced?
The lifespan of an industrial carbon air filter typically ranges from 3 to 12 months, depending on VOC concentration levels, continuous operating hours, temperature, humidity, and the efficiency of upstream particulate pre-filters. Regular monitoring of air pressure drop and sensory odor breakthrough will indicate when the carbon media has reached saturation and requires replacement.
