Industrial coating rooms, automotive spray bays, and chemical mixing facilities deal with aggressive solvent vapors and paint spray booth VOCs on a daily basis. Standard flat filter pads struggle in these demanding environments—they saturate quickly, collapse under airflow, and lead to frequent chemical odor bypass.
As a direct industrial air filter factory supplier, we engineered this pleated activated carbon air filter to solve these operational bottlenecks:
- Extended V-Pleat Geometry: Maximizes active media surface area, ensuring high vapor retention without restricting system airflow.
- Low Energy Drag: Maintains a low initial pressure drop 35Pa to prevent fan motor overload across your AHU pre-filtration system.
- Dual-Action Filtration: Combines coarse particulate trapping with deep gas-phase adsorption in a single compact panel.
- Continuous Vapor Extraction: Eliminates odor complaints and keeps your facility compliant with local environmental emission standards.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

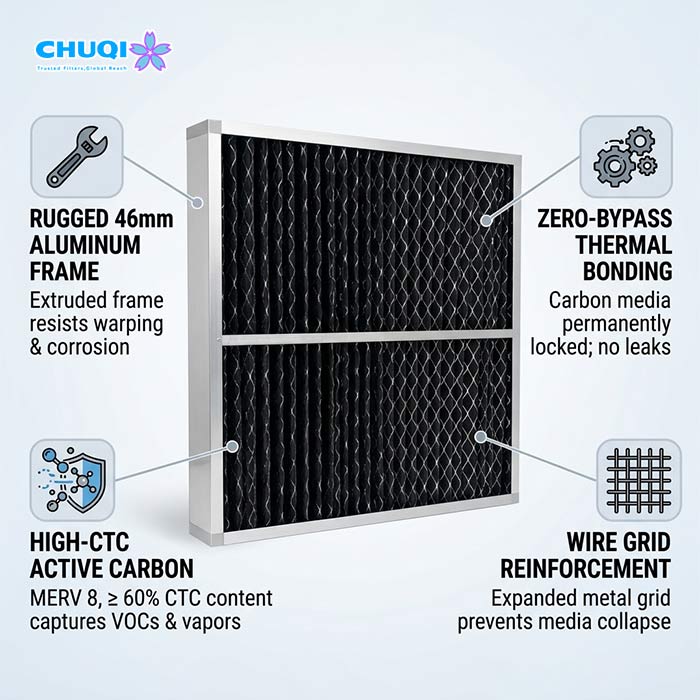

Every component of this pleated carbon panel filter is built to withstand continuous industrial operation without losing structural integrity:

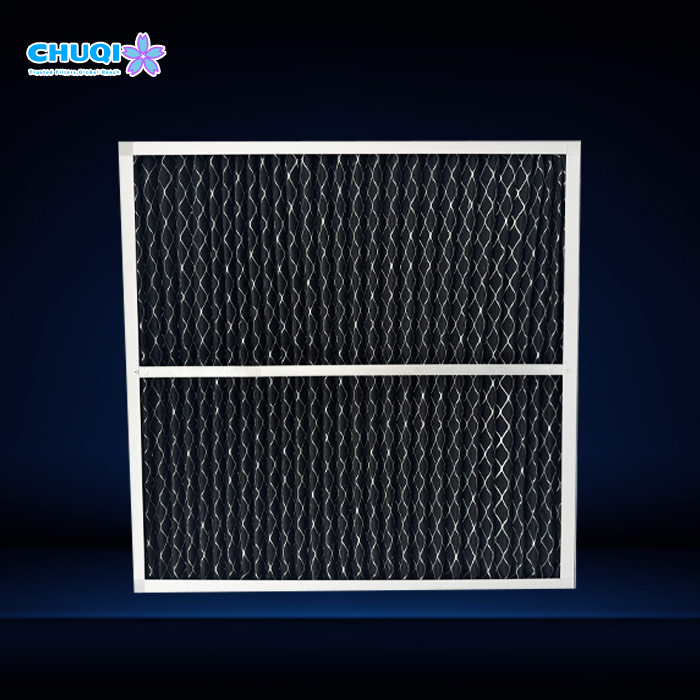

Rugged 46mm Depth Aluminum Frame: Extruded aluminum enclosure (galvanized steel option available) resists warping and corrosion under humid exhaust conditions.
High-CTC Active Carbon Composite: Formulated with MERV 8 carbon media carrying a high CTC carbon content (CTC ≥ 60%) to target toluene, xylene, alcohols, and organic acid vapors.

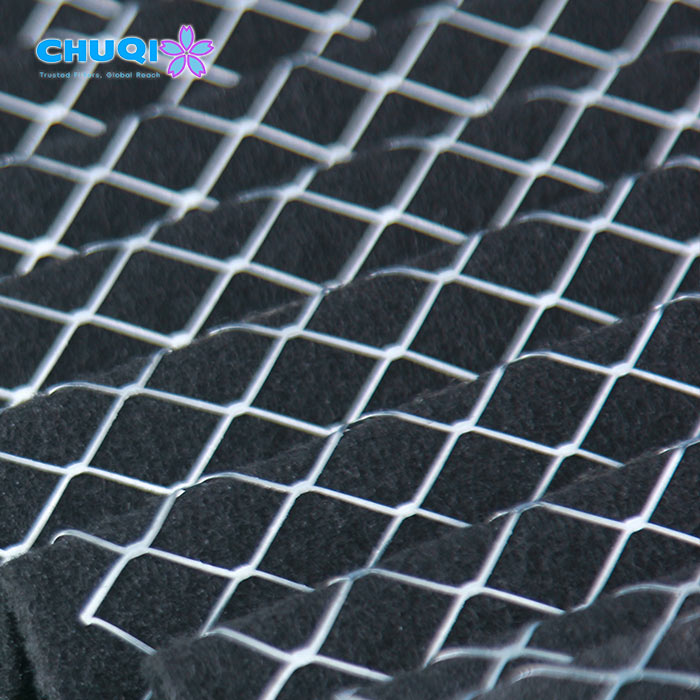

Wire Grid Reinforcement: An expanded metal backing grid supports the pleats, preventing media flutter and channel collapse under high CFM velocities.
Zero-Bypass Thermal Bonding: Unlike loose-fill carbon trays that suffer from media settling and bypass leaks, our thermal-bonded pleated gas phase filter matrix keeps every carbon granule permanently locked in place.
| Parameter | Specification | Value |
| Frame Material | Extruded Aluminum Alloy / Galvanized Steel | Industrial Heavy-Duty Body |
| Carbon CTC Value | CTC Value ≥ 60% (High Porosity Carbon) | Deep Gas Phase Adsorption |
| Gas Removal Efficiency | Initial VOCs & Odor Adsorption Efficiency ≥ 80% | Chemical Odor Removal |
| Dust Removal Rating | MERV 8 (ASHRAE 52.2) / G3-G4 (EN779) | Dual Action Filtration |
| Initial Resistance | 35 Pa @ Nominal Rated Airflow | Low Energy Consumption |
| Recommended Final Resistance | 150 Pa – 200 Pa | Filter Changeout Limit |
| Rated Air Capacity | 4,000 m³/h @ 595x595x46mm | High CFM Air Volume |
| Operating Conditions | Temperature ≤ 70°C (158°F) / Relative Humidity ≤ 80% RH | Industrial Thermal Tolerant |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Designed for seamless integration into industrial exhaust lines and commercial HVAC setups, this high-capacity pleated odor removal filter fits directly into standard 2-inch side-access tracks and filter bank frames.
Target Applications: Automotive coating line air purification, commercial spray painting rooms, pharmaceutical exhaust lines, and general industrial exhaust duct filtration.
Equipment Fit: Directly retrofits into makeup air units (MAUs), rooftop air handling units (RTUs), and commercial HVAC ventilation filter banks.
Global OEM Supply: As a wholesale HVAC filter distributor partner and B2B air filter OEM exporter, we manufacture standard nominal sizes (such as 595x595x46mm) as well as non-standard dimensions meeting ISO16890 compliant filter benchmarks.
Establishing a proactive maintenance routine prevents active carbon saturation and guarantees optimal exhaust treatment efficiency:
Monitoring Metrics: Track both static differential pressure (Pa) and volatile organic compound levels (ppm) at exhaust outlets.
Heavy Industrial Spraying: Replace elements when differential pressure reaches 150 Pa or after 1,200 to 1,500 continuous operating hours.
Commercial HVAC Systems: Conduct bi-monthly inspections with a standard 3-to-6-month replacement interval under your commercial filtration procurement contract.
Procurement Strategy: Partnering with a bulk pleated carbon filter manufacturer allows plant managers to set up buffer stock programs, ensuring uninterrupted replacement during planned service shutdowns.
Frequently Asked Questions: Pleated Activated Carbon Air Filters
Q: What makes a pleated activated carbon air filter more efficient than flat carbon pads for spray booths?
A: The pleated geometry provides up to three times more media surface area within the same 46mm depth aluminum frame. This design reduces face velocity across the media, yielding a low initial pressure drop 35Pa, extending dwell time for gas absorption, and significantly increasing the total adsorption capacity for paint spray booth VOCs.
Q: Can this pleated carbon panel filter handle combined dust and gas-phase contaminants simultaneously?
A: Yes. The engineered non-woven matrix incorporates MERV 8 carbon media, allowing it to capture coarse particulate matter (such as paint overspray dust) while simultaneously adsorbing organic solvent vapors and chemical fumes in automotive coating line air purification systems.
Q: How does your facility ensure consistent quality as a bulk pleated carbon filter manufacturer?
A: As a direct industrial air filter factory supplier, every production batch undergoes automated pleat-spacing control, carbon binder distribution testing, and pressure drop verification to meet ISO16890 compliant filter standards before global dispatch.
Q: Is this pleated odor removal filter suitable for standard commercial HVAC ventilation units?
A: Absolutely. It is manufactured to standard international nominal dimensions (such as 24″x24″x2″), making it a direct slide-in retrofit for standard 2-inch channels in commercial HVAC ventilation setups, air handlers, and AHU pre-filtration system banks.
Q: What OEM customization options are available for B2B air filter OEM exporter orders?
A: We offer customized frame depth variations (e.g., 21mm, 46mm, 96mm), specialized carbon impregnation formulations for specific target gases (acidic, basic, or formaldehyde), custom wire mesh reinforcement, and private label packaging under long-term commercial filtration procurement contract agreements.
