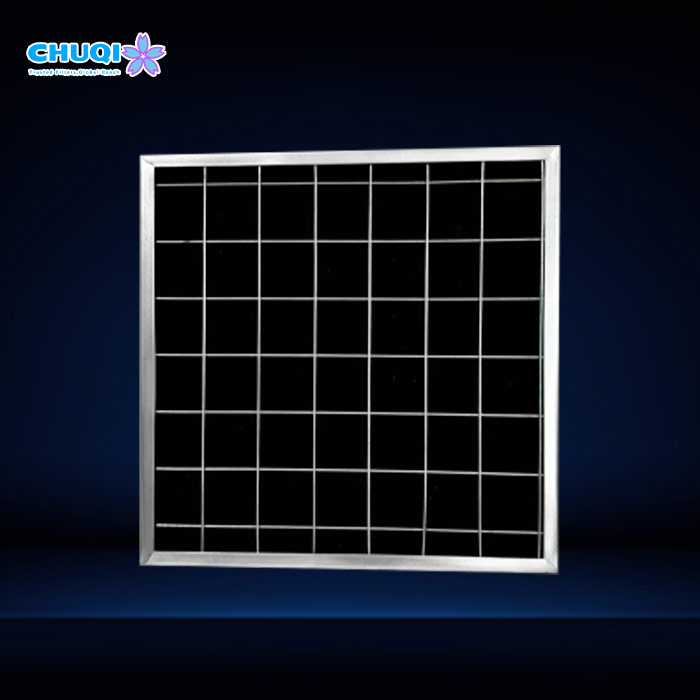

In compact cleanroom housings and shallow equipment slots, standard bulky carbon filters cannot fit, while loose carbon pads sag and shed particles into downstream HEPA filters.To solve this space limitation, our Flat Panel Activated Carbon Air Filter delivers high-efficiency odor and VOC removal in an ultra-thin frame—ensuring rigid support, zero carbon shedding, and reliable pre-filtration for sensitive environments.
Ultra-Compact Profile: Designed as a thin profile activated carbon panel filter that slides seamlessly into restricted filter slots where conventional deep-pleated filters cannot go.
Activated Carbon Fiber (ACF) Media: Features high-porosity fibrous media with a vastly superior specific surface area and faster adsorption kinetics than traditional granular carbon.
Zero-Fiber Shedding Assurance: Functions as an integrated odor adsorption flat panel air filter, eliminating loose carbon particulate drift and protecting downstream HEPA filter banks.
Targeted Vapor Scrubbing: Serves as a high-performance cleanroom pre-filtration carbon panel filter, rapidly neutralizing trace acid fumes, organic vapors, and chemical odors.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

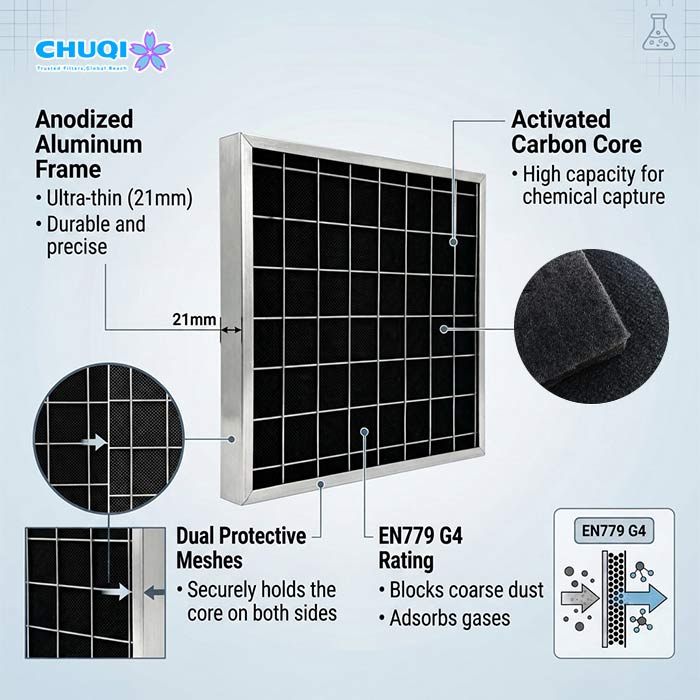

Key Features of 21mm Thin Activated Carbon Panel Filter
Every aspect of this flat panel activated carbon air filter is engineered for high structural rigidity, rapid gas adsorption, and strict cleanroom compliance:
Ultra-Thin Aluminum Frame: Extruded anodized aluminum body resists moisture corrosion and structural warping while maintaining precise dimensional tolerances for shallow mounting tracks.
High-Adsorption ACF Core: Built with nonwoven activated carbon fiber media, serving as a high-performance activated carbon fiber (ACF) panel filter that delivers rapid chemical bonding and exceptional adsorption capacity in restricted depths.

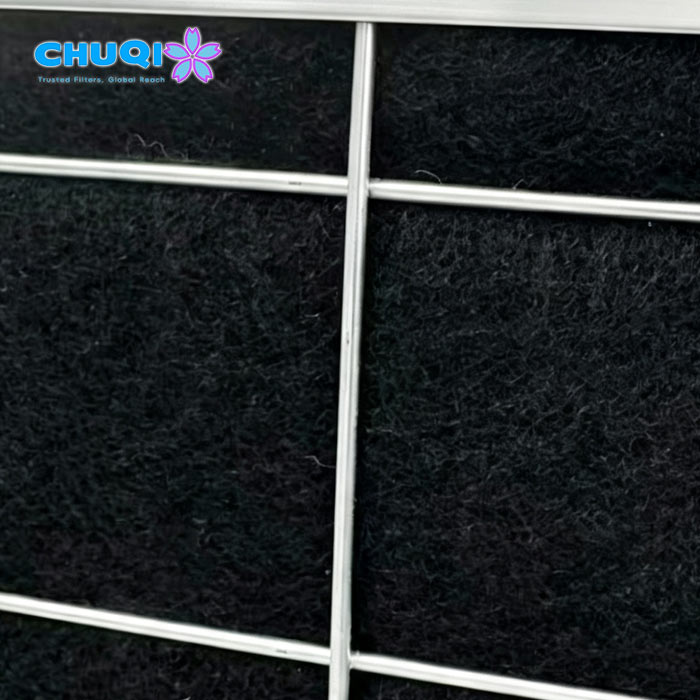

Dual Protective Wire Mesh: High-rigidity face mesh clamps the media securely on both sides, ensuring zero media vibration or sagging under continuous static airflow pressure.
EN779 G4 Efficiency Rating: Functions as a dual-action HVAC activated carbon panel pre-filter, capturing coarse particulates while simultaneously acting as an effective odor & gas control flat carbon filter.
Flat Panel Activated Carbon Air Filter Specifications & Performance
| Parameter | Specification | Value |
| Standard Dimensions | 595 × 595 × 21 mm / 24″ × 24″ × 1″ (Custom sizes available) | Shallow Track Standard Size |
| Internal Core Media | Activated Carbon Fiber (ACF) Media | High Surface Area Fibrous Core |
| Gas Adsorption Efficiency | ≥ 80% (Benzene / CTC Efficiency) | High-Efficiency Chemical Capture |
| Carbon Absorbency Rating | High-Adsorption Activated Carbon Fiber | Rapid Chemical Adsorption |
| Particulate Rating | EN779 G3/G4 Efficiency Filter / MERV 5-8 | Coarse Dust + Odor Scrub |
| Airflow Resistance | Initial Pressure Drop 25 – 35 Pa @ Rated CFM | Low Drag Air Resistance |
| Operating Conditions | Temperature ≤ 70°C / Humidity ≤ 80% RH Non-Condensing | Lab & Medical Grade |
Fully customizable specifications available. For detailed technical data, please【reach out to our technical team】directly.
Engineered for ultra-clean processing environments, compact HVAC equipment, and industrial gas treatment lines, this flat panel activated carbon air filter delivers reliable gas-phase pre-filtration across demanding operational setups:
Cleanroom & Micro-Environment Protection: Functions as a cleanroom pre-filtration carbon panel filter in semiconductor labs, pharmaceutical packaging lines, laminar flow hoods, and FFU systems to neutralize trace acid gases, organic solvents, and chemical vapors before they reach downstream HEPA filters.
Commercial & Healthcare Ventilation: Serves as a thin profile activated carbon panel filter built for space-restricted ceiling cassettes, fan coil units (FCUs), and air handling units (AHUs) in hospitals, isolation wards, and modern commercial complexes to eliminate disinfectant odors, formaldehyde, and indoor VOCs.
Industrial Odor & Gas Control: Operates as an odor & gas control flat carbon filter in paint spray booths, chemical storage areas, and electronics control rooms, capturing corrosive gases and solvent fumes within shallow 1-inch or 21mm mounting tracks.
OEM Equipment Integration: Backed by flexible custom factory manufacturing, we fabricate non-standard sizes, specialized frames, and media densities to integrate seamlessly into compact industrial scrubbers and activated carbon flat panel filter units.
Maintaining strict gas-phase air purity and equipment performance requires a systematic maintenance schedule for your flat panel activated carbon air filter units:
Contaminant Breakthrough Tracking: Monitor downstream TVOC and trace gas concentrations; swap out elements when gas-phase adsorption efficiency drops below targeted operational thresholds.
Preventative Maintenance Interval: Establish a planned 3-to-6-month changeout cycle for each cleanroom pre-filtration carbon panel filter installed in critical processing lines and HVAC cassettes.
Pressure Drop Monitoring: Track static differential pressure across the frame; replace the filter when airflow resistance doubles over its clean initial baseline to maintain energy efficiency.
Supply Chain Continuity: Partnering directly with a certified manufacturer of odor & gas control flat carbon filter products allows facility managers to schedule rolling wholesale deliveries and prevent unscheduled production downtime.
Frequently Asked Questions about Flat Panel Activated Carbon Air Filter
Q1: How often should a flat panel activated carbon air filter be replaced in commercial and cleanroom systems?
A: A flat panel activated carbon air filter should typically be replaced every 3 to 6 months under standard operating conditions. Because gaseous adsorption occurs without visible surface loading, changeout schedules must be determined by downstream TVOC/odor breakthrough monitoring or differential pressure limits. Utilizing a high-capacity activated carbon fiber panel filter ensures sustained gas capture efficiency ($\ge 80\%$ Benzene/CTC) and stable static pressure drop throughout its operating cycle.
Q2: Can a cleanroom pre-filtration carbon panel filter capture both airborne particles and chemical odors?
A: Yes. Modern units feature a dual-action structure combining an EN779 G4 particulate pre-filter with a nonwoven carbon matrix. Functioning as a high-performance cleanroom pre-filtration carbon panel filter, it effectively intercepts coarse airborne dust particles while simultaneously adsorbing organic vapors, trace acid fumes, and process odors before the airflow reaches downstream HEPA or ULPA filter banks.
Q3: How does an ultra-thin flat panel activated carbon air filter differ from traditional deep-pleated carbon filters?
A: The main distinction lies in frame depth and space efficiency. Traditional pleated carbon filters require 2-inch to 4-inch deep mounting tracks, making them unsuitable for shallow housings. In contrast, an ultra-thin flat panel activated carbon air filter utilizes a high-porosity matrix within a slim 21mm (1-inch) frame. This makes it the ideal thin profile activated carbon panel filter for space-restricted ceiling cassettes, fan coil units (FCUs), and laminar flow hoods.
Q4: How do you prevent carbon dust shedding from an odor & gas control flat carbon filter into downstream HEPA filters?
A: Media shedding is prevented through rigid double-sided mesh clamping and bonded synthetic fibers. Our odor & gas control flat carbon filter encapsulates the active carbon core within a heavy-duty anodized aluminum frame reinforced by protective wire meshes on both sides. This rigid sandwich construction locks the fibers in place, ensuring zero media sagging and zero carbon particulate drift under continuous fan static pressure.
Q5: What technical specifications are required when requesting a quote for a custom HVAC activated carbon panel pre-filter?
A: B2B procurement managers should specify four core technical parameters:
Outer Frame Dimensions: Exact Width × Height × Thickness (e.g., 21mm depth).
Frame Material: Anodized aluminum alloy, galvanized steel, or stainless steel.
Airflow Capacity & Resistance: Rated CFM or m³/h alongside acceptable initial pressure drop (e.g., 25–35 Pa).
Target Contaminants: Specific gaseous pollutants (VOCs, formaldehyde, acid fumes) to ensure the HVAC activated carbon panel pre-filter is engineered with the correct carbon loading weight.
