Energy-Efficient Low Pressure Drop Bag Filters | Durable Industrial Pocket Filters

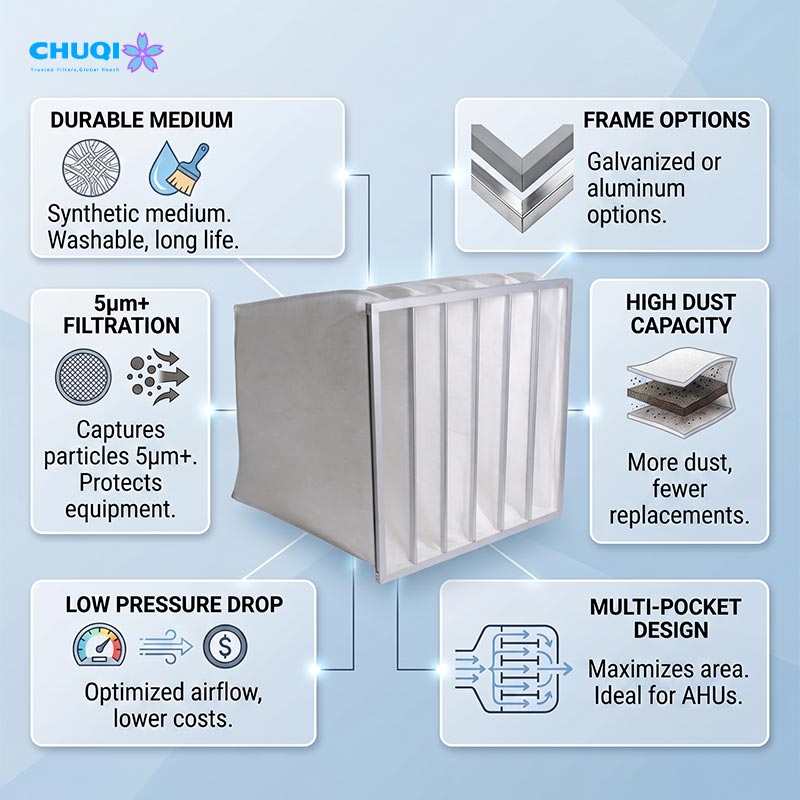

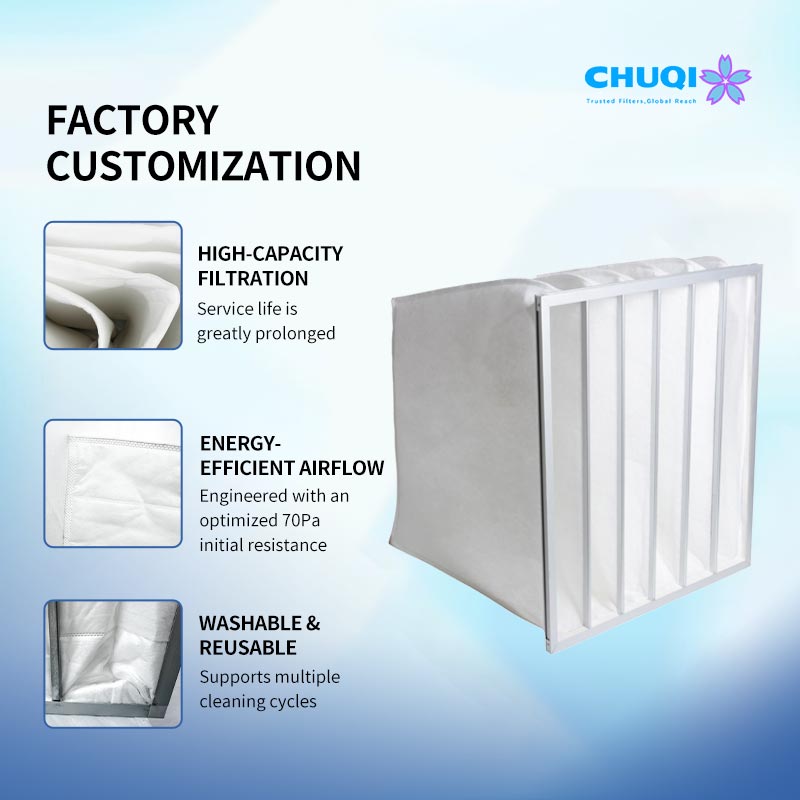

High-Capacity Filtration: The multi-bag pocket filter design provides an expansive surface area for dust collection, ensuring a high dust holding capacity bag filter performance that drastically extends service life compared to standard panel filters.
Energy-Efficient Airflow: Engineered with an optimized 70Pa initial resistance, our low pressure drop bag filter allows for high-volume airflow, effectively reducing the burden on AHU pocket filter fan motors and enhancing the overall performance of your HVAC bag filter system.
Washable & Reusable: Constructed from high-strength synthetic fibers, this washable pocket filter supports multiple cleaning cycles, offering a sustainable, cost-effective alternative for high-volume industrial ventilation bag filter facilities.
Structural Stability: Reinforced with a heavy-duty aluminum header pocket filter or galvanized frame bag filter, the design prevents frame collapse or bag adhesion under the intense pressure typical of a spray booth bag filter or gas turbine pocket filter intake.
Professional Pocket Air Filter Manufacturing & Flexible Customization
Dimensions & Pocket Counts: Comprehensive support for varying pocket counts (5, 6, 8 bags) and lengths (500mm, 600mm) to match specific AHU pocket filter and HVAC bag filter rail dimensions.
Material Adaptation: Selection of high-grade synthetic pocket air filter media (white/green-white/blue-white) tailored for specific humidity and temperature requirements (up to 80°C/80% RH), making them ideal for a cleanroom bag pre filter.
Frame Versatility: Precision-manufactured aluminum header pocket filter or galvanized frame bag filter options, finished with professional sealing using high-performance acetate strips to ensure a bypass-free, reliable bag pre filter installation.
OEM/ODM Production: As a professional pocket air filter manufacturer, we offer full-scale manufacturing capability to support bag filter wholesale procurement, branding, and strict adherence to international industrial ventilation bag filter standards.
Commercial & Industrial HVAC: Serves as the essential pre-filtration stage for centralized AHU pocket filter systems in large commercial buildings, malls, and factories, ensuring that your HVAC bag filter setup operates at peak efficiency.
Cleanroom Environments: Provides reliable cleanroom bag pre filter protection for pharmaceutical, semiconductor, and high-precision manufacturing facilities, acting as a critical barrier in your primary pocket filter system.
Industrial Ventilation: Ensures long-term operational efficiency for factory intake and industrial ventilation bag filter systems, protecting heat exchangers from dust accumulation and reducing the maintenance frequency of your synthetic pocket air filter.
Automotive & Industrial Coating: Functions as a critical intake barrier in a spray booth bag filter configuration, effectively safeguarding high-end paint surfaces from particulate contamination by utilizing a high dust holding capacity bag filter.
| Comparison Dimension | Our Factory Direct Product | Standard Market Alternatives |
|---|---|---|
| Compliance & Quality | Full adherence to EN779/ISO 16890 standards with rigorous batch-level quality control. | Frequently lacks formal filtration certifications, leading to unpredictable system performance and project failure. |
| Filtration Stability | High-density progressive structure prevents fiber shedding and prevents secondary contamination of downstream systems. | Cheap, non-graded media often suffers from fiber breakage under high wind speeds, causing downstream particulate pollution. |
| Bulk Supply Capacity | Large-scale automated production ensures consistent supply and rapid turnaround for massive engineering and wholesale orders. | Smaller workshops lack capacity for large-batch consistency, leading to significant quality variances between shipments. |
| Build & Durability | Rugged industrial frames with multi-point support ribs withstand 120% rated airflow without deformation or leakage. | Flimsy frames prone to sagging, leading to air bypass (leaks) that drastically lowers total system filtration efficiency. |
| Wind Resistance Performance | Ultra-low initial resistance (70Pa) minimizes energy loss, directly addressing high electricity cost concerns for facility owners. | High static pressure design forces AHU fans to operate at higher speeds, leading to excessive energy waste and equipment strain. |
| Customization Ability | Professional R&D team provides deep customization for non-standard bag dimensions, pocket configurations, and frame materials. | Generally limited to off-the-shelf, standard sizes, failing to meet the requirements of non-standard or legacy equipment rails. |
| Size / WxHxD (mm) | Airflow Capacity (m3/h) | Initial Pressure Drop (Pa) | Filter Class (e.g., G4) | Filter Color | Pockets / Bags |
|---|---|---|---|---|---|
| 495×295×500mm | 1500m3/h | 70Pa | 25-35% G3 35-45% G4 | White | 5 |
| 495×495×500mm | 2500m3/h | 5 | |||
| 595×295×500mm | 2000m3/h | 6 | |||
| 595×495×500mm | 3200m3/h | 6 | |||
| 595×595×500mm | 3800m3/h | 8 | |||
| 495×295×600mm | 1800m3/h | 5 | |||
| 495×495×600mm | 3200m3/h | 5 | |||
| 595×295×600mm | 2500m3/h | 6 | |||
| 595×495×600mm | 4000m3/h | 6 | |||
| 595×595×600mm | 4500m3/h | 8 |
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Custom Industrial Filters | Source Factory Direct from China
As a seasoned primary pocket filter manufacturer with 20 years of experience, we have perfected our vertical production capabilities to support bag filter wholesale distribution and large-scale engineering contracts. Our facility integrates automated assembly lines for media compounding and frame reinforcement, ensuring high-consistency output for your AHU pocket filter and HVAC bag filter requirements.
We prioritize compliance with international standards, offering robust, export-ready synthetic pocket air filter products that withstand high-humidity and high-temperature environments. Beyond manufacturing, our dedicated R&D team provides comprehensive support for OEM/ODM and custom size pocket filter project requirements, ensuring that every low pressure drop bag filter we deliver fits seamlessly into your infrastructure while optimizing performance and reducing total cost of ownership. We are your reliable partner for long-term filtration stability, offering high dust holding capacity bag filter solutions that maximize operational energy efficiency
Q1: What are the main advantages of choosing your primary pocket filter for industrial HVAC systems?
A: Our primary pocket filter is designed as a high-performance synthetic pocket air filter that features a high dust holding capacity bag filter architecture. It serves as an essential bag pre filter for any HVAC bag filter system, providing a low pressure drop bag filter profile of 70Pa to maximize energy efficiency while protecting downstream equipment from dust accumulation.
Q2: Are your filters suitable for specialized environments like cleanrooms or spray booths?
A: Absolutely. Our filters function as a reliable cleanroom bag pre filter for high-precision manufacturing, as well as a robust spray booth bag filter intake barrier. As a professional pocket air filter manufacturer, we ensure our products meet strict filtration standards, making them perfect for gas turbine pocket filter protection or demanding industrial ventilation bag filter applications.
Q3: Can I order custom sizes, and do you support wholesale?
A: Yes. We offer comprehensive custom size pocket filter services to match your specific AHU pocket filter rail dimensions. As a dedicated pocket filter supplier, we specialize in bag filter wholesale distribution, providing reliable manufacturing support for large-scale engineering projects and long-term facility maintenance.
Q4: How do the construction materials affect the performance of the bag filter?
A: We prioritize structural integrity by offering a durable galvanized frame bag filter or a precision-manufactured aluminum header pocket filter. These frames, combined with high-strength media, prevent collapse under high pressure, ensuring your G4 pocket filter or ISO coarse pocket filter maintains consistent filtration efficiency even in harsh conditions.
Q5: Are these filters washable and reusable?
A: Yes. Our washable pocket filter is constructed from high-strength synthetic fibers that support multiple cleaning cycles. This reusable design provides a sustainable and cost-effective alternative for high-volume facilities, allowing you to significantly lower your total cost of ownership while maintaining excellent system performance.
