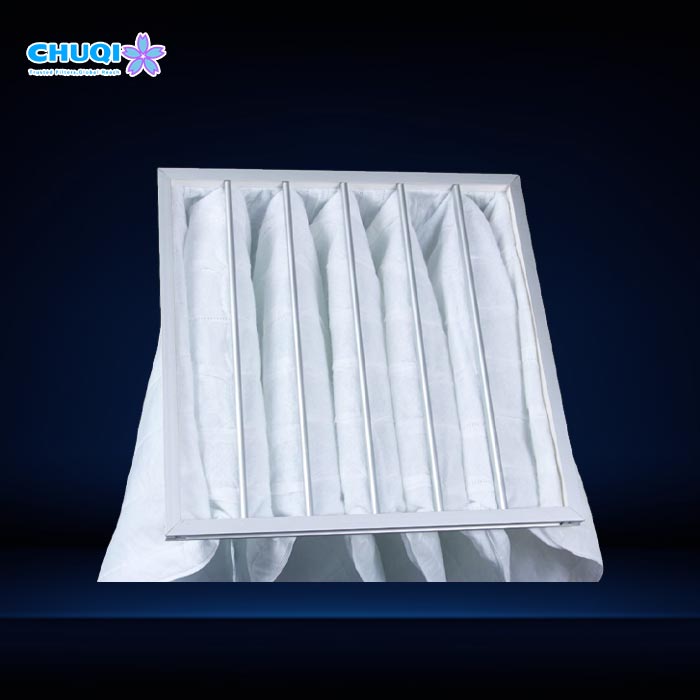

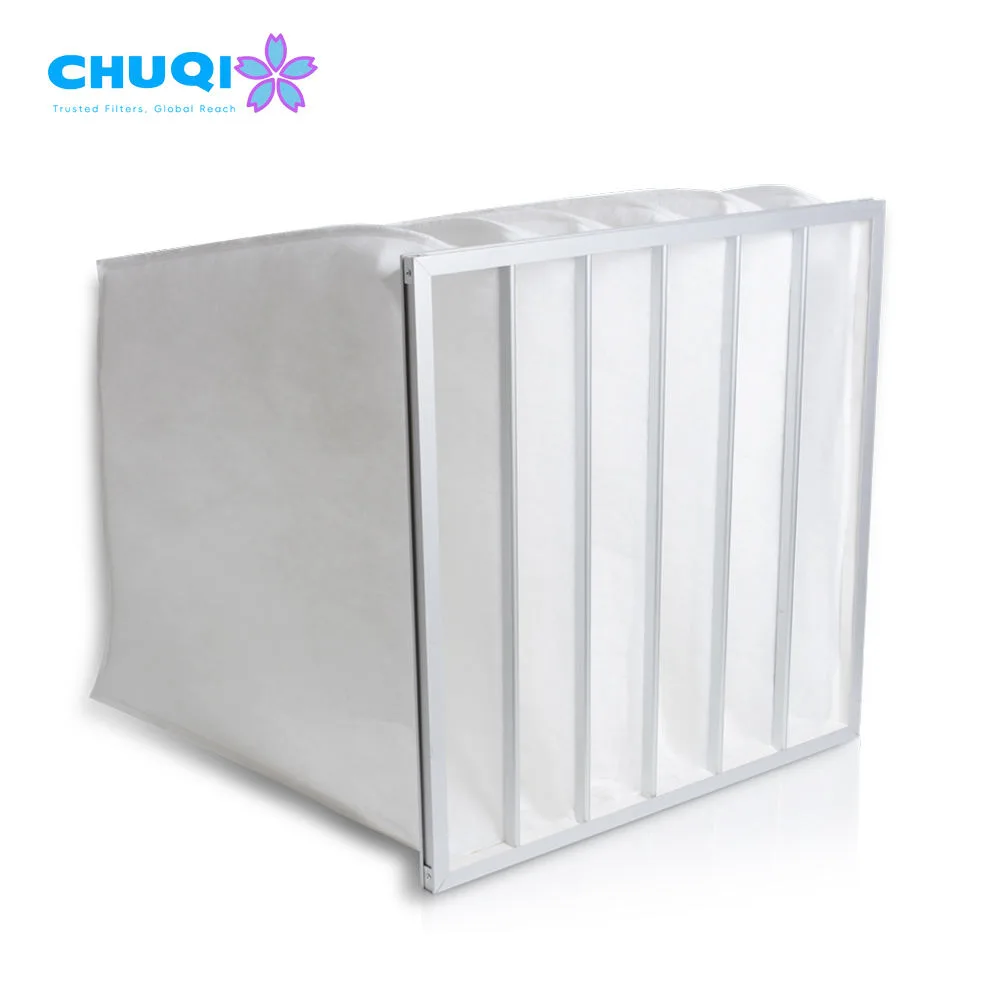

The 595x595x600mm Washable G3 Pocket Filter is an economical, eco-friendly pre-filter designed for industrial exhaust, factory ventilation, and heavy-duty HVAC systems. Made with non-breaking, resilient synthetic media, this reusable G3 pocket filter withstands multiple wash cycles without tearing or efficiency loss. By replacing disposable panel filters, it stabilizes system airflow and significantly cuts operational costs.
ISO 16890 Coarse 50% Capture: Efficiently traps large dust, lint, and industrial debris in high-dust environments.
Deep Dust-Holding Capacity: Multi-pocket design prevents surface blinding, reduces pressure drop, and extends the lifespan of downstream secondary/HEPA filters.
Cost-Saving & Sustainable: Washable and purge-cleanable structure drastically reduces maintenance overhead and filter waste.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

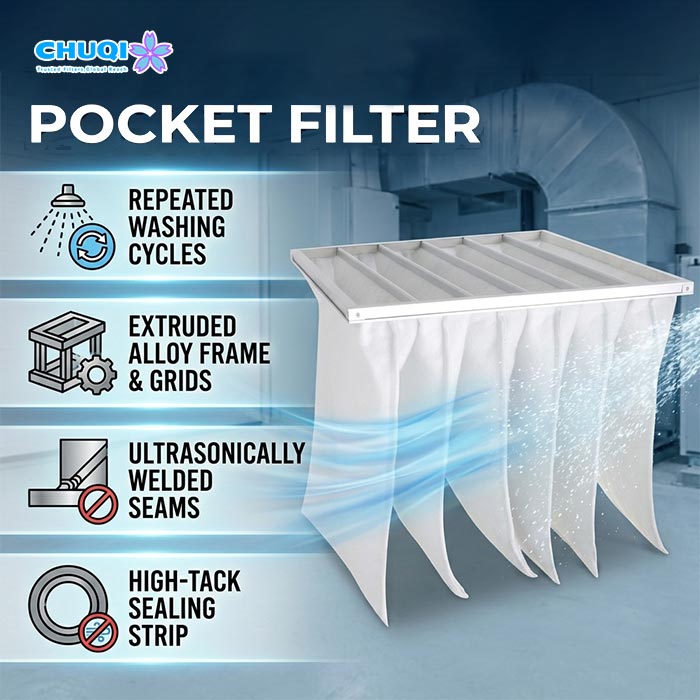

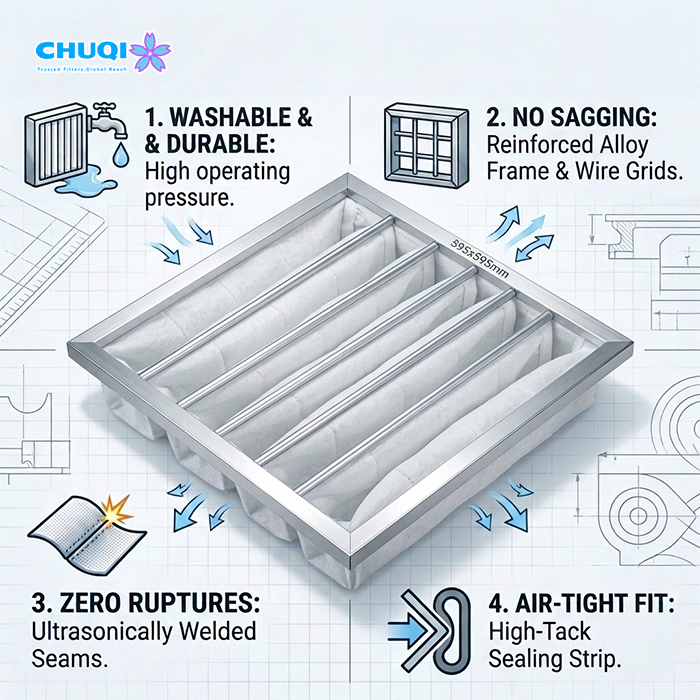

Built to endure high operating air pressures and rigorous, repeated washing cycles, this 595x595x600mm pocket air filter boasts superior structural engineering:

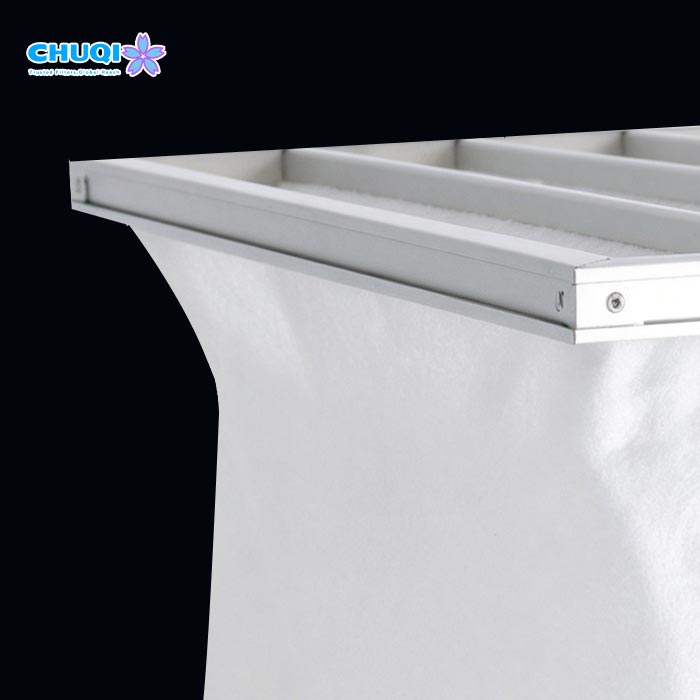

Extruded Alloy Frame & Wire Grids: Constructed with a heavy-duty extruded alloy casing reinforced by internal pocket spacing wire grids to prevent channel sagging and ensure uniform air distribution.
Ultrasonically Welded Seams: Pocket channel edges are ultrasonically welded to eliminate needle holes, preventing media rupture under turbulent airflow or high pressure.
High-Tack Sealing Strip: Integrated with an ethyl acetate high-tack perimeter gasket to guarantee an airtight fit in filter housings, completely eliminating air bypass risks.
| Parameter | Specification |
| Dimensions (WxHxD) | 595 x 595 x 600 mm |
| Filtration Rating | G3 Grade (ISO 16890 Coarse 50%) |
| Media Material | Non-breaking Synthetic Media |
| Frame Material | Heavy-Duty Extruded Alloy |
| Seam Structure | Ultrasonically Welded |
| Gasket Type | High-Tack Ethyl Acetate Perimeter Strip |
| Initial Resistance | 70 Pa |
| Cleaning Method | Compressed Air / Low-Pressure Water |
| Service Lifecycle | 3 – 5 Wash Cycles (Clean every 2-3 months) |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Industrial Air Treatment: Ideal for heavy dust collection, factory exhaust pre-treatment, and general workshop air cleaning.
Low-Maintenance Commercial HVAC: Excellent for commercial shopping complexes and office buildings seeking reusable pre filters to minimize operating costs.
Coarse Dust Collection Pre-Stage: Captures large fly ash, wood shavings, or textile fibers before air reaches secondary g4 bag filter units.
Temporary Ventilation & Construction Units: Provides a versatile, high-capacity solution for temporary field units requiring reusable air management.
Engineered for maximum sustainability, this g3 air filter media can be cleaned via compressed air blowing or low-pressure water rinsing. Operating at a low initial resistance of 70Pa, the 595x595x600mm primary bag filter ensures fan energy consumption remains minimal. Routine inspection and washing every 2-3 months allow plant engineers to extend the filter’s operational lifespan significantly before requiring replacement.
Frequently Asked Questions About Washable Pocket Filters
Q: How many times can this 595x595x600mm G3 pocket filter be washed and reused?
A: Designed for durability, this washable G3 pocket filter typically withstands 3 to 5 cleaning/purge cycles before media replacement is needed. Actual service life depends on dust loading, operating pressure, and cleaning methods in your specific industrial air filtration environment.
Q: What are the advantages of the 595x595x600mm multi-pocket filter design?
A: The extended 600mm depth and multi-pocket airflow configuration significantly maximize media surface area. This engineered depth offers higher dust-holding capacity, lowers initial resistance, and extends operational lifespans between maintenance cycles.
Q: Is this washable G3 bag filter resistant to moisture and high humidity?
A: Yes. Constructed with 100% moisture-resistant synthetic fibers and an extruded alloy frame, this G3 pocket filter operates reliably in high-humidity environments up to 80% relative humidity (RH) without media degradation or sagging.
Q: Does the 595x595x600mm pocket filter fit standard industrial filter housings?
A: Yes, the 595x595x600mm (24″x24″x24″ nominal) dimensions follow international B2B HVAC standards. It integrates seamlessly into standard filter holding frames, air handling units (AHUs), and factory ductwork housing racks.
Q: Why choose this G3 pocket filter over disposable pre-filters?
A: Unlike single-use panels, this reusable G3 model combines high dust-holding capacity with a wash-tolerant synthetic structure. Direct-factory sourcing lowers recurring consumables spending, stabilizes system airflow velocity, and optimizes long-term B2B maintenance budgets.
