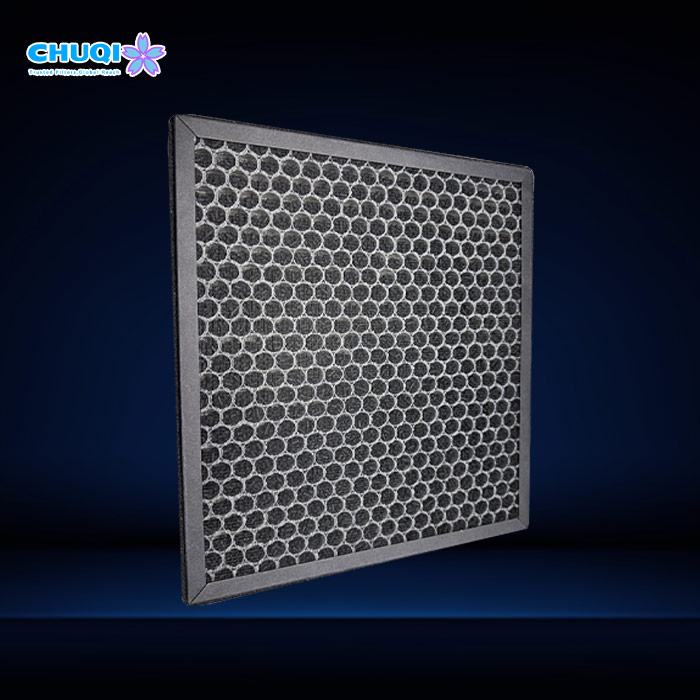

In low-power ventilation systems, printing press exhaust lines, and sensitive electronic assembly enclosures, maintaining high air velocity without increasing fan static load is critical. Standard granular or pleated carbon filters create significant backpressure, leading to energy inefficiency, reduced air volume, and potential motor overheating.we engineered this honeycomb activated carbon filter module to deliver high-capacity gas adsorption with minimal resistance:
- Straight-Through Cellular Geometry: Engineered with thousands of parallel hexagonal channels that allow air to pass freely with near-zero air drag.
- Ultra-Low Energy Impact: Achieves an ultra-low initial resistance 20Pa, drastically lowering energy consumption in continuous exhaust setups.
- High Gas-Solid Contact Zone: Leverages a high geometric surface area to maximize toxic vapor absorption while preserving maximum airflow CFM.
- Targeted VOC & Formaldehyde Scrubbing: Ideal for low resistance VOC extraction, rapidly adsorbing printing solvents, formaldehyde, and organic acids.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

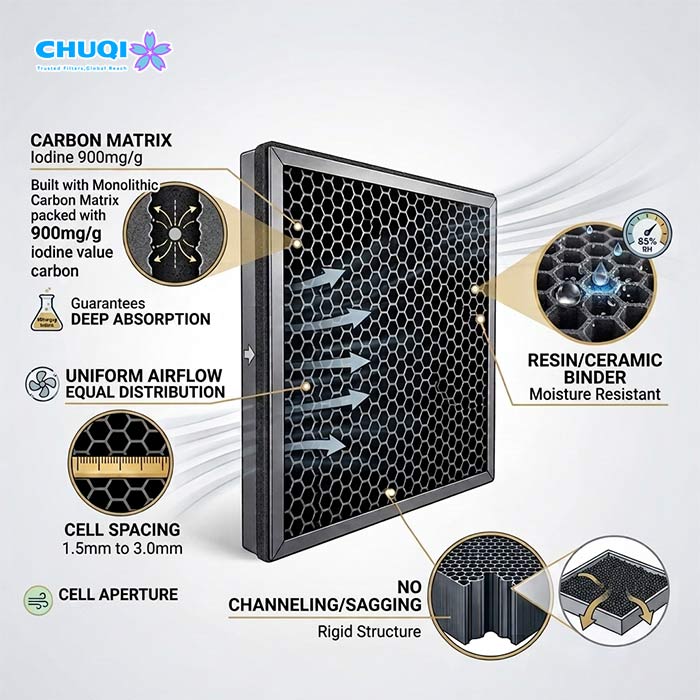

The structural integrity and chemical composition of this cellular carbon block filter ensure long service stability without dust blow-through:
- High-Iodine Monolithic Carbon Matrix: Built using a monolithic carbon matrix filter base packed with 900mg/g iodine value carbon, ensuring deep chemical micropore absorption.

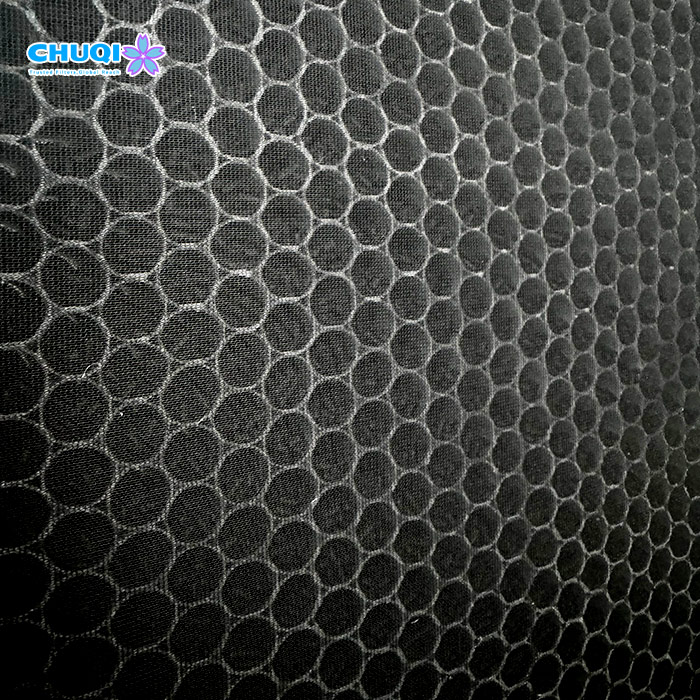

- Uniform Airflow Channel Density: Features precise honeycomb cell spacing (e.g., 1.5mm to 3.0mm cell aperture) that guarantees equal air distribution across the entire filter face.
- Moisture-Resistant Ceramic / Resin Binder: Formulated with a moisture-resistant ceramic honeycomb binder matrix that resists degradation in humid airstreams up to 85% RH.
- Zero Granule Channelling: Unlike loose carbon granule trays that settle over time, the rigid cellular block maintains permanent channel geometry without sagging or gas bypass.
| Parameter | Specification | Value |
| Standard Block Dimensions | 500 × 500 × 50 mm / 100 mm (Custom block sizes available) | Modular Block Profile |
| Cell Aperture Size | 1.5 mm, 2.0 mm, 3.0 mm Hexagonal Channels | Uniform Airflow Channel Density |
| Substrate Binder | Moisture-Resistant Ceramic Honeycomb / Polyurethane Matrix | Water & Humidity Tolerant |
| Carbon Absorption Metric | 900mg/g Iodine Value Carbon (High Micropore Density) | Deep Vapor Adsorption |
| Airflow Resistance | Ultra-Low Initial Resistance 20Pa @ Standard Face Velocity | Minimal Fan Load Drag |
| Surface Area Ratio | High Geometric Surface Area (>1000 m²/g carbon base) | Maximum Gas Contact |
| Operating Conditions | Temperature ≤ 80°C / Relative Humidity ≤ 85% RH | Industrial & Commercial |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Designed for integration into compact purification units and industrial exhaust banks, this comb structure carbon air filter serves a wide range of specialized industries:
Target Industrial Sectors: Printing press solvent air scrub systems, electronics assembly clean bench hoods, commercial museum showcase air purifier modules, and formaldehyde gas removal system lines.
Equipment Fit: Fits into side-access cassette drawers, modular air filter frames, and compact OEM purification chambers.
Global B2B Supply: Operating as a bulk cellular filter module exporter and B2B carbon block supplier, we manufacture custom block dimensions, cell densities, and chemical impregnation formulations.
Tracking gas saturation and maintaining regular module changeouts guarantees compliance with indoor air quality and emission standards:
Gas Saturation Inspection: Measure VOC breakthrough using PID detectors at the exhaust outlet; replace modules when gas removal efficiency drops below 75%.
Simple Modular Replacement: The rigid block structure allows maintenance personnel to slide out spent modules and insert fresh honeycomb blocks in minutes.
Commercial Operating Lifecycle: Under standard continuous industrial operations, replace modules every 6 to 12 months depending on contaminant concentration.
Supply Chain Logistics: Partnering with a wholesale gas phase filter manufacturer and industrial honeycomb media vendor ensures steady, factory-direct shipments to maintain operational readiness.
Frequently Asked Questions About Honeycomb Carbon Filters
Q1: Why is a honeycomb activated carbon filter module preferred for systems requiring ultra-low pressure drop?
A1: The straight-through cellular channels in a honeycomb activated carbon filter module allow air to flow with virtually no obstruction. This delivers an ultra-low initial resistance 20Pa, making it the ideal choice for low resistance VOC extraction where fan horsepower is limited.
Q2: How does this cellular carbon block filter prevent carbon dust shedding?
A2: The active carbon particles are bound into a solid, monolithic carbon matrix filter using specialized ceramic or resin binders. This rigid structure completely eliminates carbon granule friction, settling, and particle carryover into clean areas.
Q3: Can this comb structure carbon air filter be impregnated for target gases like formaldehyde or ammonia?
A3: Yes. As a direct honeycomb carbon filter factory, we offer customized chemical impregnations (such as catalytic formulations for a formaldehyde gas removal system or acid/alkali impregnations) directly into the honeycomb block matrix.
Q4: Is the honeycomb block resistant to high humidity in printing and industrial applications?
A4: Absolutely. We utilize a moisture-resistant ceramic honeycomb binder option that maintains full structural integrity and adsorption capability even in environments up to 85% relative humidity.
Q5: What purchasing options are available for OEMs from your B2B carbon block supplier division?
A5: We work closely with equipment manufacturers as a bulk cellular filter module exporter and wholesale gas phase filter manufacturer, providing custom length, width, thickness, and cell aperture specifications with private-label packaging.
