In high-CFM commercial ventilation and industrial exhaust systems, standard frameless carbon pads or lightweight panel filters often bow, flutter, or completely collapse under heavy air pressure. This structural failure causes raw bypass air, unabsorbed odors, and damage to downstream equipment. To solve high-pressure structural instability, Chuqi engineered the heavy-duty activated carbon skeleton panel filter—a high-performance activated carbon wire frame panel filter built with a rigid internal wire frame to guarantee zero bypass and maximum airflow stability:
Integrated Wire Skeleton Support: Features an internal steel mesh grid that locks the active carbon media flat, providing rigid frame carbon air filter support under turbulent air velocity.
Zero Air Bypass Protection: Eliminates media edge curling and perimeter air leaks, ensuring 100% of incoming exhaust air passes directly through the activated carbon matrix.
Reusable Sub-Frame Economy: Designed with a replaceable carbon pre-filter pad structure, allowing maintenance crews to swap spent carbon pads while retaining the durable outer skeleton frame.
High-Velocity Air Scrubbing: Maintains stable pressure drop curves in high-airflow carbon panel filter applications without flexing, fluttering, or media deformation.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.
Skeleton Frame Activated Carbon Filter with Heavy-Duty Steel Framing & Deep Gas-Phase Adsorption

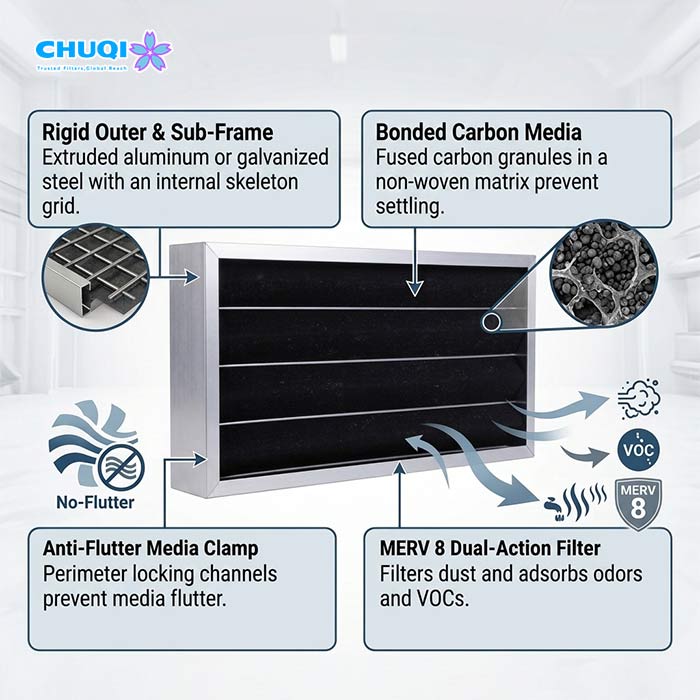

Every precision-engineered component of this skeleton frame activated carbon filter is built to deliver maximum mechanical rigidity, eliminate bypass, and ensure superior gas-phase contaminant removal in high-static pressure systems:

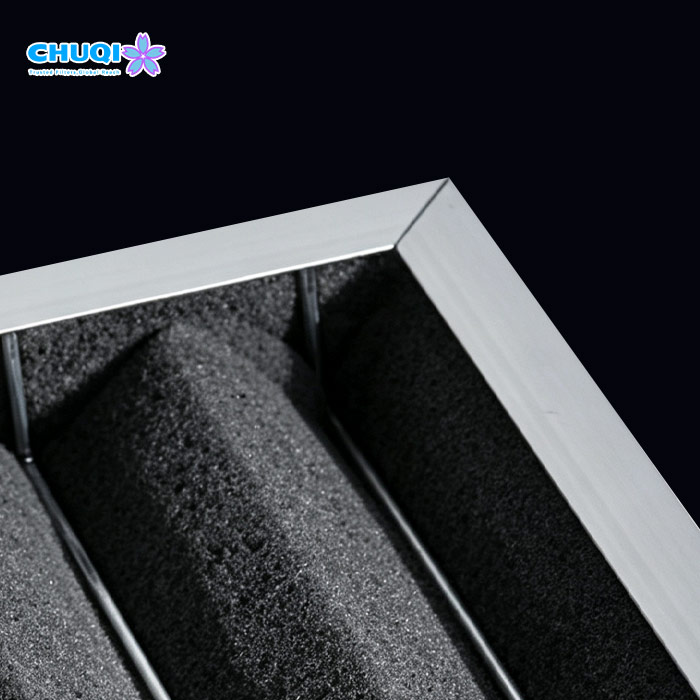

High Rigidity Outer & Sub-Frame: Manufactured using heavy-duty extruded aluminum or galvanized box framing, seamlessly integrated with a cross-welded internal steel skeleton grid to prevent structural bowing under extreme pressure.
Bonded Carbon Web Media: Powered by a high-efficiency wire support carbon panel filter core, featuring high-activity activated carbon granules thermally fused into a robust non-woven matrix to completely prevent carbon settling or dust shedding.
Anti-Flutter Media Clamp: Utilizes precision perimeter locking channels that clamp the media pad tightly against the inner steel cage, eliminating flutter and media fatigue even under sudden fan pressure surges.
MERV5-8 Particulate & Odor Dual Action: Functions as a heavy-duty carbon skeleton pre filter and odor control carbon panel filter, capturing coarse dust, lint, and particulate matter while simultaneously adsorbing VOCs, chemical fumes, and commercial organic odors.
Technical Specifications & Performance Data of Skeleton Carbon Panel Filters
| Parameter | Specification | Value |

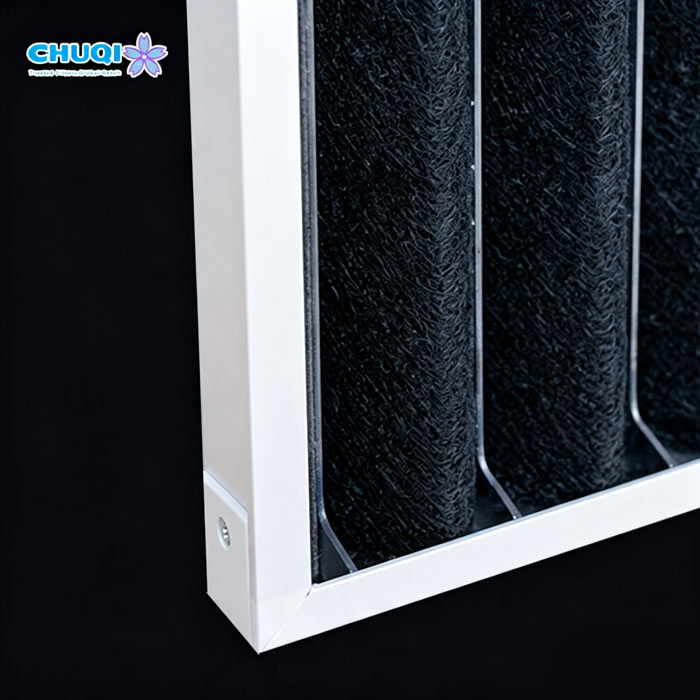

| Standard Dimensions | 595 × 595 × 46 mm / 24″ × 24″ × 2″ (Custom sizes available) | Standard HVAC Track Profile |
| Frame Construction | Galvanized Steel / Aluminum with Internal Steel Skeleton Grid | Heavy-Duty Skeleton Frame |
| Carbon Media Type | Bonded Carbon Web Media (Non-woven composite) | Non-Shedding Carbon Matrix |
| Media Maintenance | Replaceable Media Pad Design (Reusable Skeleton Frame) | Low Consumable Cost (TCO) |
| Structural Integrity | Zero Media Collapse Under Load @ High CFM Velocities | High Rigidity Body |
| Particulate Rating | MERV5-8 (ASHRAE 52.2) /G3/G4 (EN779) | Dual-Action Dust & Gas Capture |
| Airflow Resistance | Initial Pressure Drop 35 – 45 Pa @ Nominal Rated CFM | Low Dynamic Drag & Energy Saving |
| Operating Conditions | Max Temp: 80°C / Max RH: 80%) | Commercial & Industrial Durability |
Fully customizable specifications available. For detailed technical data, please【reach out to our technical team】directly.
Activated Carbon Skeleton Panel Filter: Industrial Applications & HVAC Equipment Compatibility
Designed for seamless drop-in installation into side-access filter tracks and mounting frames, this heavy-duty wire-reinforced carbon panel filter fits a wide variety of high-airflow commercial and industrial ventilation systems:
Airport Terminals & Transit Hubs: Deployed as an airport terminal carbon pre filter in large AHU odor control banks to eliminate jet fuel fumes and ambient exhaust before fresh air enters public spaces.
Industrial Paint & Spray Booths: Serves as a rigid spray booth skeleton carbon filter in exhaust racks, resisting high static pressure surges while efficiently absorbing paint solvent smells and VOCs.
Commercial Kitchens & Hospitality: Functions as an effective commercial kitchen hood carbon panel filter to capture intense cookline smells and organic grease odors in high-velocity exhaust streams.
Data Centers & Tech Infrastructure: Utilized as a data center carbon panel filter within gas-phase purification tracks to protect sensitive electronic servers from corrosive gaseous contaminants.
Make-Up Air Units & Rooftop Systems: Installed as a rooftop air handler carbon panel filter in MAUs and RTUs, preventing media flutter and maintaining flat structural alignment across standard 1-inch, 2-inch, or 4-inch filter slots.
Activated Carbon Skeleton Panel Filter Maintenance & Lifecycle Cost Optimization
Maximizing uptime while minimizing replacement overhead is critical for facility managers. Engineered for rapid, cost-effective maintenance, this activated carbon skeleton panel filter simplifies ongoing operations:
Routine Pressure Drop Inspection: Monitor differential pressure gauges monthly. Replace spent filter pads when final resistance reaches 150 Pa or when trace odors indicate adsorption saturation.
Tool-Free Pad Replacement: Unlatch the perimeter channel, lift out the saturated pad, drop in a fresh replaceable carbon pre-filter pad, and re-secure the locking frame in minutes.
Total Cost of Ownership (TCO) Reduction: By retaining and reusing the heavy-duty outer chassis of your wire frame carbon panel filter, facility operators cut ongoing consumable expenses by up to 50% compared to replacing full disposable metal-framed units.
Recommended Service Life: Under standard commercial HVAC operating conditions, carbon media pads typically deliver optimal VOC and odor removal performance for 3 to 6 months, depending on environmental contaminant loads.
Frequently Asked Questions about Activated Carbon Skeleton Panel Filter
Q1: How does an activated carbon skeleton panel filter prevent bypass air under high static pressure?
An activated carbon skeleton panel filter eliminates air bypass through a cross-welded internal steel wire grid and rigid extruded aluminum/galvanized outer framing. Unlike frameless carbon pads that bow or collapse under high CFM air streams, the internal wire skeleton holds the carbon media flat and rigid. This structural alignment guarantees that 100% of incoming air passes through the active carbon matrix, preventing raw bypass air in high-pressure industrial exhaust and HVAC ducts.
Q2: What is the typical service life and carbon filter replacement frequency in commercial HVAC systems?
The carbon media in an activated carbon skeleton panel filter typically delivers optimal VOC and odor removal for 3 to 6 months under standard commercial operating conditions. Because the outer skeleton frame is permanently reusable, maintenance teams only replace the internal saturated media. A replacement is required when static pressure drop reaches 150 Pa or when odor breakthrough is detected, allowing facility managers to swap in a fresh replaceable carbon pre-filter pad without changing the main chassis.
Q3: Can a wire frame carbon panel filter trap airborne particulate matter as well as odors?
Yes, a wire frame carbon panel filter offers dual-action filtration rated at MERV 8 efficiency. The non-woven composite matrix captures coarse airborne particles—such as dust, lint, and pollen—while the thermally bonded activated carbon granules adsorb volatile organic compounds (VOCs), chemical fumes, and industrial odors simultaneously, serving as a complete pre-filtration stage.
Q4: Is a carbon skeleton pre filter compatible with standard commercial side-access filter tracks?
Yes, a carbon skeleton pre filter is designed to fit standard 1-inch, 2-inch, and 4-inch side-access filter tracks, holding frames, Make-Up Air Units (MAUs), and Rooftop Air Handlers (RTUs). Custom frame dimensions and specialized steel grid configurations can also be custom-manufactured for unique OEM filter racks.
Q5: How does sourcing from a rigid frame carbon air filter supplier reduce total cost of ownership (TCO)?
Sourcing directly from an OEM rigid frame carbon air filter supplier cuts long-term consumable costs by up to 50%. Standard disposable filters require replacing the entire frame and media assembly every cycle. With a skeleton frame design, facility managers retain the durable steel chassis indefinitely and only purchase replacement carbon media pads, significantly lowering freight costs, waste generation, and lifecycle maintenance expenses.
