Industrial-Grade Double Wire Pleated Pre-Filter Performance
Structural Anti-Bypass Design: Featuring a robust double wire pleated pre filter structure, our V-pleated panels maintain tight pleat spacing under high airflow, eliminating media deformation and preventing bypass leakage in heavy-duty AHUs.
Energy-Efficient Airflow: With low initial pressure drop and expanded surface area, this wire skeleton pleated filter optimizes system performance, reducing fan energy consumption and lowers overall HVAC operating costs.
Sustainable Maintenance: Engineered as a washable pleated skeleton filter, the high-density synthetic media withstands repeated pressure washing, offering a long-lasting, eco-friendly alternative to disposable pre-filters.
Corrosion-Resistant Construction: Encased in extruded aluminum or galvanized steel frames, our heavy-duty pleated panels resist high moisture and harsh chemical exposure without frame distortion or degradation.
Custom Size Wire Skeleton Pleated Filter Manufacturing Solutions
We Provide Comprehensive Custom Size Wire Skeleton Pleated Filter Solutions for Standard AHUs and Complex Legacy Equipment.
Custom Specifications: Flexible manufacturing of any required dimensions, depths (such as 46mm and 96mm), and frame options, providing exact-fit custom dimension pleated panel filter units for specialized ventilation systems.

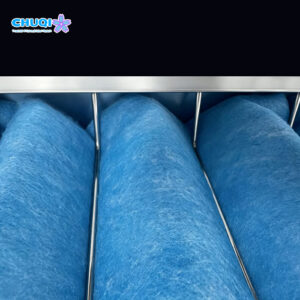

Tailored Media Layers: Options for progressive blue/white synthetic media, engineered for optimal dust-holding capacity and long-term durability in every washable pleated skeleton filter.
Engineered Customization: Full-scale fabrication capabilities for facility maintenance teams and engineering contractors requiring reinforced, heavy-duty wire frame pleated filter units built to withstand demanding airflow.
Precision Frame & Wire Fit: Every double wire pleated pre-filter is custom-assembled with rigid aluminum or galvanized frames and heavy steel wire skeletons to guarantee zero media sagging.
Quick Turnaround: Our automated production lines enable rapid delivery for all custom orders, eliminating facility downtime caused by long lead times.
Applications of Wire Skeleton Pleated Panel Filters
AHU Systems: Serves as a heavy-duty AHU wire skeleton pleated filter for centralized ventilation in commercial buildings, shopping malls, and hospitals. Engineered to maintain structural integrity under high fan static pressure while optimizing system air intake.
Cleanroom Environments: Functions as the vital first stage in a cleanroom pleated pre-filter system, effectively trapping coarse particulates to protect and extend the operational lifespan of expensive downstream HEPA filters.
Industrial Ventilation: Designed for demanding industrial ventilation pleated panel filter applications in manufacturing plants, processing facilities, and power stations. Built with a rigid frame to prevent media blowout under high air volume.
Surface Treatment & Spray Booths: Acts as a specialized spray booth washable skeleton filter for automotive painting and industrial coating lines, preventing overspray contamination while enduring frequent cleaning cycles.
Commercial HVAC Systems: Serves as a high-efficiency commercial HVAC double wire filter for routine facility maintenance, reducing energy consumption and replacement frequency across large-scale air handling units.
Why Choose Our Washable Pleated Skeleton Air Filter
| Comparison Dimension | Our Factory Direct Product | Standard Market Alternatives |
|---|---|---|
| Compliance & Quality | Full adherence to EN779/ISO 16890 G3/G4 standards with rigorous batch-level inspections. | Often lacks formal certification, resulting in inconsistent filtration and premature system failure. |
| Filtration Stability | Double-wire skeleton locks media in place, preventing “blowing through” or structural collapse under high wind. | Cheap panels often collapse under high pressure, leading to air bypass and dust contamination of downstream systems. |
| Bulk Supply Capacity | Large-scale production capacity with consistent quality control, optimized for multi-unit B2B engineering projects. | Small-scale workshops struggle with batch consistency, creating quality variances across large shipments. |
| Build & Durability | Hardened full-metal frames prevent corrosion and ensure long-term, multi-cycle reuse viability. | Flimsy frames easily deform after moisture exposure or single cleaning, shortening the total service life. |
| Wind Resistance Performance | Optimized 50Pa low-resistance architecture significantly lowers fan electricity consumption and system strain. | Poor design leads to high resistance, spiking system energy usage and causing overheating of fan motors. |
| Customization Ability | Direct factory expertise provides rapid, zero-minimum non-standard sizing for legacy HVAC equipment. | Generally limited to off-the-shelf sizes, failing to meet the requirements of non-standard engineering installations. |
Double Wire Pleated Pre-Filter Standard Specifications
| External dimensions (mm) | Rated air volume (m3/h) | Initial resistance (Pa) | Efficiency (Level) (class) | Filter media model | |
|---|---|---|---|---|---|
| 295 × 295 × 46mm | 1000m³/h | 50Pa | 40% (Weighing method) | G3 / G4 | Pre filter media |
| 495 × 295 × 46mm | 1600m³/h | ||||
| 495 × 495 × 46mm | 2800m³/h | ||||
| 595 × 295 × 46mm | 2000m³/h | ||||
| 595 × 495 × 46mm | 3300m³/h | ||||
| 595 × 595 × 46mm | 4000m³/h | ||||
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
With over 20 years of manufacturing experience, Chuqi operates as a leading B2B source factory specializing in heavy-duty air filtration solutions. Our facility integrates automated double-wire welding and high-precision metal frame fabrication to produce high-performance wire skeleton pleated filter units with superior structural integrity. Designed to withstand demanding airflow, each washable pleated skeleton filter features progressive synthetic media that prevents collapse and eliminates air bypass in industrial AHUs.
We support global contractors and engineers with direct bulk supply, offering full OEM/ODM custom sizes for every double wire pleated pre-filter. Whether you require standard HVAC replacements or non-standard dimensions, our end-to-end manufacturing process guarantees competitive factory pricing, strict ISO quality control, and rapid delivery to optimize your operational costs.
