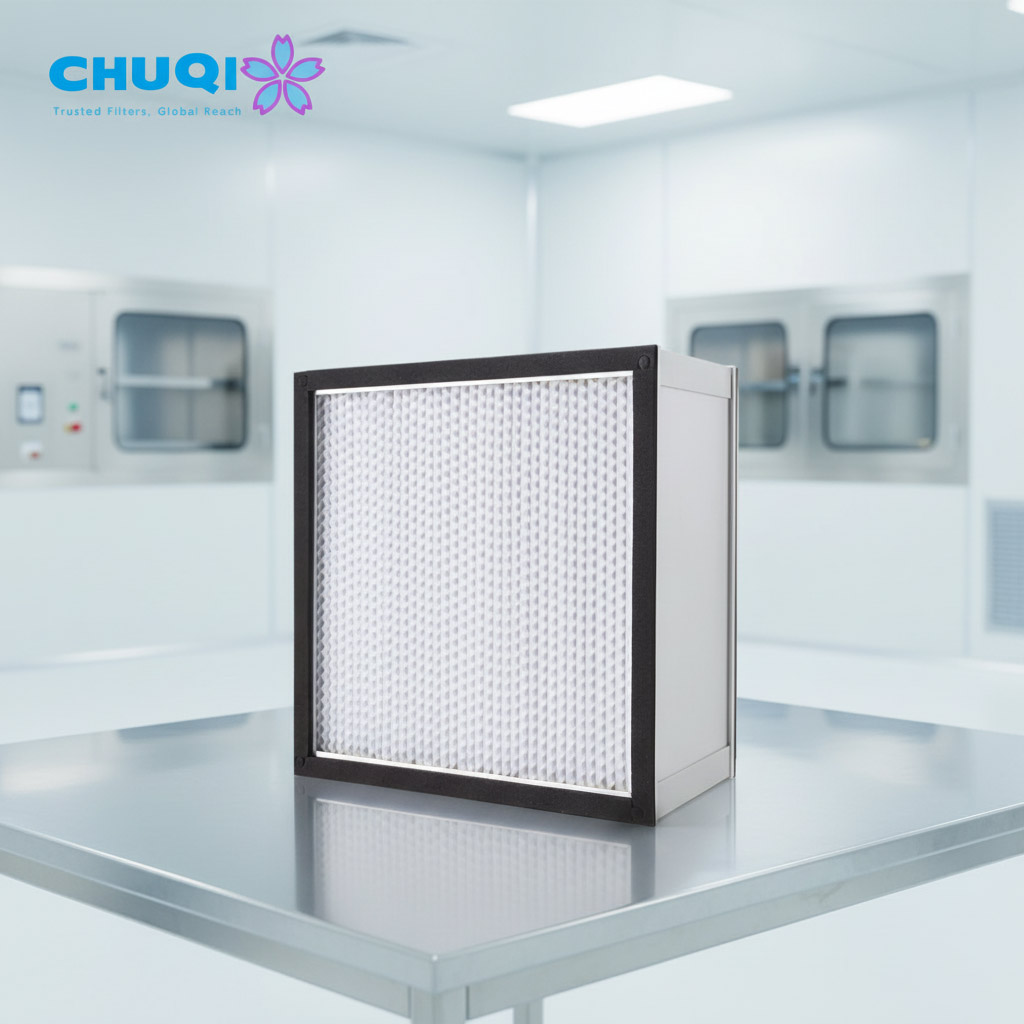

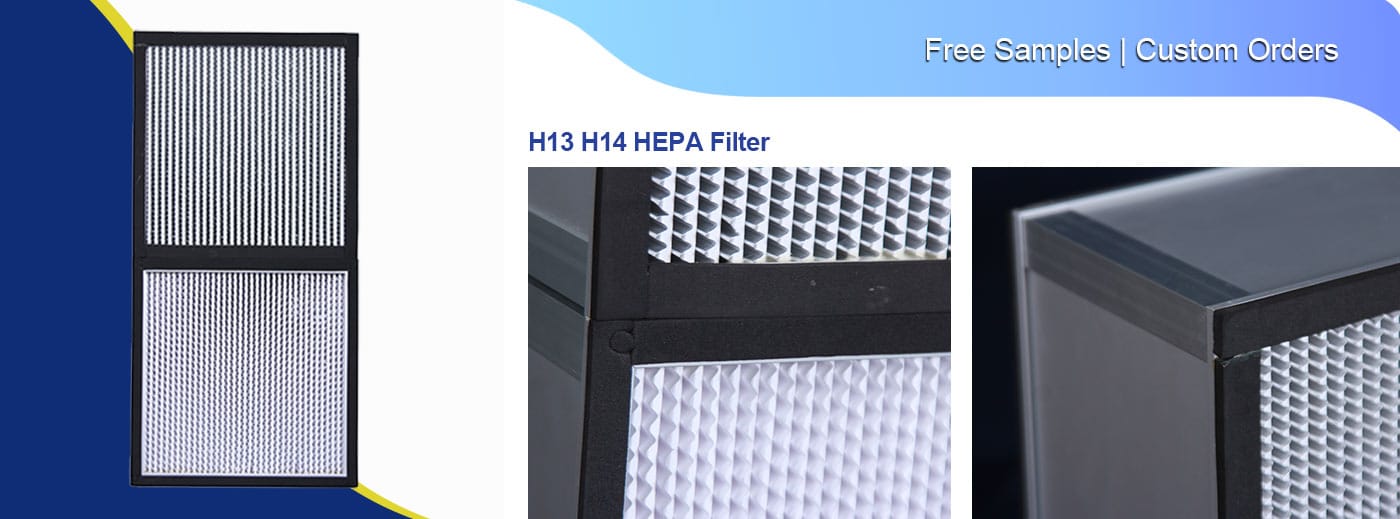

H13 H14 HEPA Filter Aluminum Separator for Terminal Air Filtration
Elevate your cleanroom standards with the Chuqi HEPA filter with separator. Engineered for superior terminal purification, this H13 H14 HEPA filter ensures a sterile environment by capturing 99.97% to 99.99% of particles at 0.3μm. Its precision deep-pleated design provides a massive surface area, making it the premier choice for demanding industrial HVAC systems and critical air supply vents.
Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!
Product Key Features
Efficiency Class: Available in H13, H14, and U15 grades, delivering up to 99.9995% efficiency for ultra-clean air.
Initial Resistance: Professionally engineered for low resistance (≤220Pa), significantly reducing energy costs in ventilation systems.
Operating Limits: Heat resistant up to 80°C and 80% humidity.
Testing Standards: Individually tested to meet 99.99% @ 0.3um and 99.9995% @ 0.12um technical standards.
Material & Craftsmanship
Filter Media: Premium fiber glass paper (H10-U15) for stable filtration.

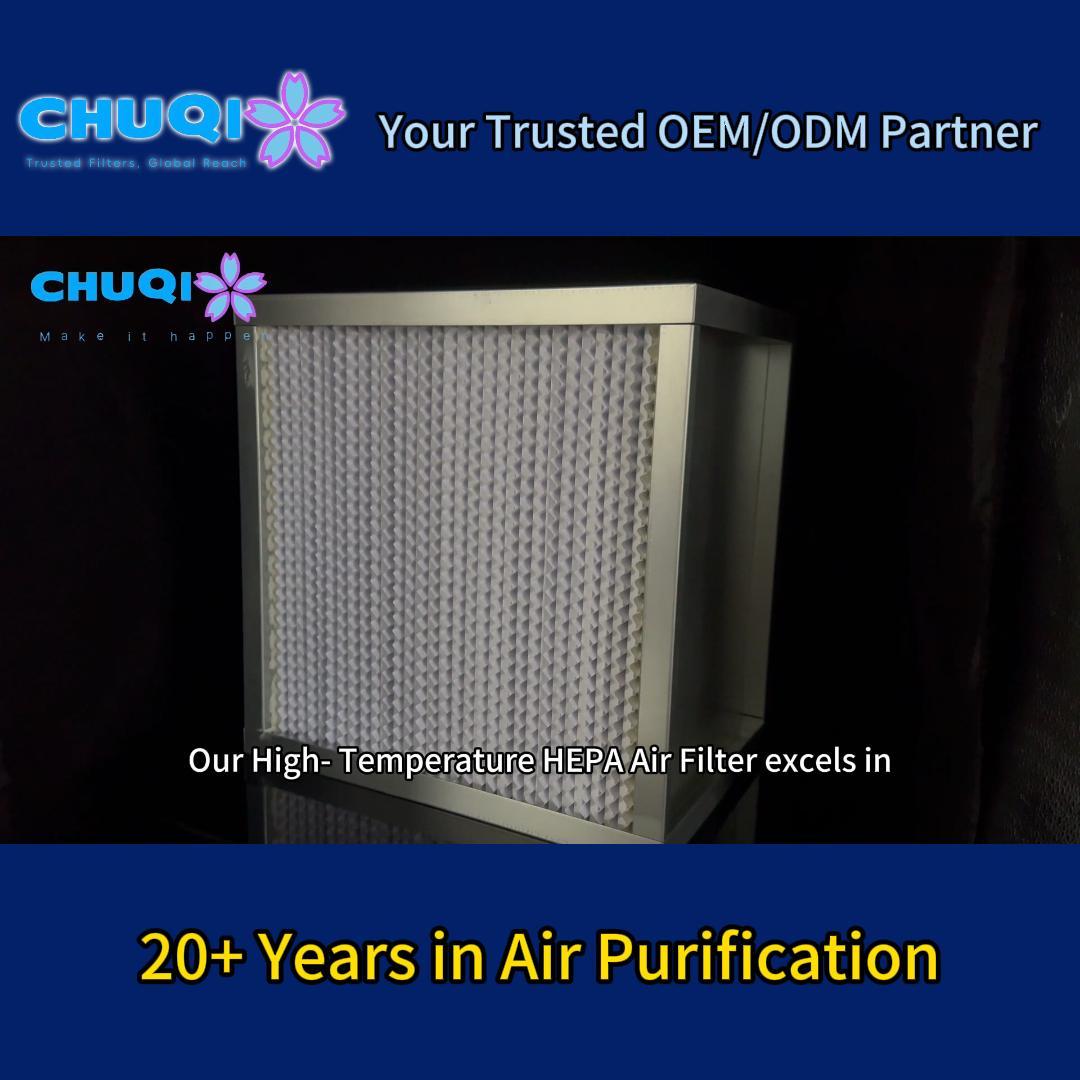

Frame: Corrosion-resistant Aluminum alloy outer frame (125/152mm), Galvanized, or Stainless steel casing.

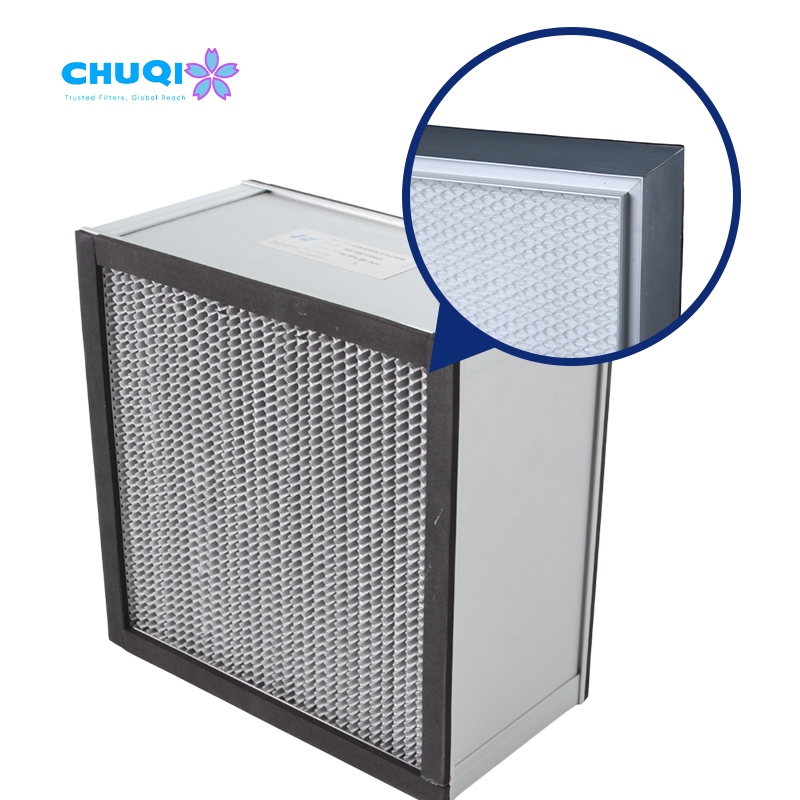

Separator: Precision Hot melt adhesive or corrugated Aluminum foil separators to maintain structural stability.
Sealant: High-performance Polyurethane adhesive ensuring a 100% leak-proof installation.
Gasket: Durable EVA gasket or acetate fiber sealing strips for airtight integrity.
Applications
Pharmaceutical & Biotech Manufacturing: Essential for GMP-certified cleanrooms (Class 100/1000) to ensure sterile drug production.
Medical & Hospital Sterile Zones: Applied in Operating Rooms, negative pressure wards, and dialysis units to prevent cross-infection.
Electronics SMT Lines: Protects Surface Mount Technology lines and wafer fabrication from airborne particles that cause circuit defects.
Precision Optical Laboratories: Ideal for aerospace and optical laboratories requiring ultra-clean air for lenses and fiber optics assembly.
Automotive Paint Spray Booths: Installed in the air supply of spray booths to ensure a flawless, particle-free finish.
Food & Beverage Processing: Used in bottling lines and dairy packaging zones to prevent microbial contamination.
Competitive Comparison
| Feature | Chuqi Separator HEPA Filter | Standard Mini-Pleat Filters | The Chuqi Advantage |
| Structural Integrity | Corrugated Aluminum Separators provide superior rigidity. | May deform under high pressure or high velocity. | Longer Lifespan: Maintains shape in demanding industrial HVAC systems. |
| Dust Capacity | Deep-pleated fiberglass media offers a massive surface area. | Limited pleat depth and lower holding capacity. | Lower Maintenance: Reduces the frequency of filter replacements. |
| Airflow Quality | Delivers good uniformity winds, preventing air turbulence. | Airflow can become turbulent at high velocities. | Better Protection: Essential for laminar flow compatibility. |
| Environment Resistance | Chemical & Oxidation resistant aluminum alloy frames. | Standard frames may corrode in humid zones. | Reliability: Operates efficiently in high humidity (80% RH). |
Specifications
| External dimensions (mm) | Rated air volume (m³ / h) | initial resistance (Pa) | Efficiency (colorimetric method) (%) |
| 305 × 305 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 320 × 320 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 484×484×150/220/292 | 1000/1600/2000 | ≤220 | 95-99.9995 |
| 610×610×150/220/292 | 1600/2500/3200 | ≤220 | 95-99.9995 |
| 630×630×150/220/292 | 1700/2700/3400 | ≤220 | 95-99.9995 |
Chuqi Standard-Pro | High-Efficiency Mass Production HEPA Series
Chuqi maintains a robust and highly efficient supply chain, capable of delivering large-scale orders of H13/H14 HEPA filters with precision-engineered fiber glass paper and aluminum foil separators. We leverage automated production lines to ensure consistent quality and shorter lead times for major GMP-certified cleanroom projects. By optimizing raw material sourcing, we provide clients with a superior cost-performance ratio without compromising the stringent technical standards required for terminal air purification.
Frequently Asked Questions
Q: What is the benefit of using aluminum foil separators?
The precision-corrugated aluminum foil partitions maintain perfect pleat spacing, which ensures structural stability and good uniformity winds even under high-pressure conditions.
Q: Can this filter be used in high-humidity environments?
Yes, it features climate resilience to operate efficiently in high humidity (80% RH) without pleat collapse or efficiency loss.
Q: How do you guarantee the filter is leak-proof?
Each filter features a high-performance Polyurethane adhesive sealant and an airtight EVA gasket for a 100% leak-proof installation.
Q: What efficiency grades are available for this model?
We provide a range of grades including H13, H14, and U15, delivering certified filtration efficiency for ultra-clean air.
Q: Is this filter suitable for large-scale ventilation?
Absolutely. It is designed for large-scale HVAC systems, offering a large air flow capacity up to 3400m³/h.
