Blue And White Paint Spray Booth Intake Filter | Washable Pre-Filter Cotton
Specifically designed for the coating industry, our Blue and White Paint Spray Booth Intake Filter provides superior air purity for finishing lines. This washable pre-filter cotton ensures a steady supply of clean air, preventing contaminants from ruining high-quality paint jobs.
Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!
Product Key Features
- High-Strength Synthetic Fibers: Engineered from premium, break-resistant synthetic fibers to ensure no fiber shedding under continuous high-velocity airflow, preventing secondary contamination of painted surfaces.
- Progressive Density Structure: The media features a specialized progressive structure where density increases toward the air-exit side, allowing particles to be captured through the full depth of the material rather than just on the surface.

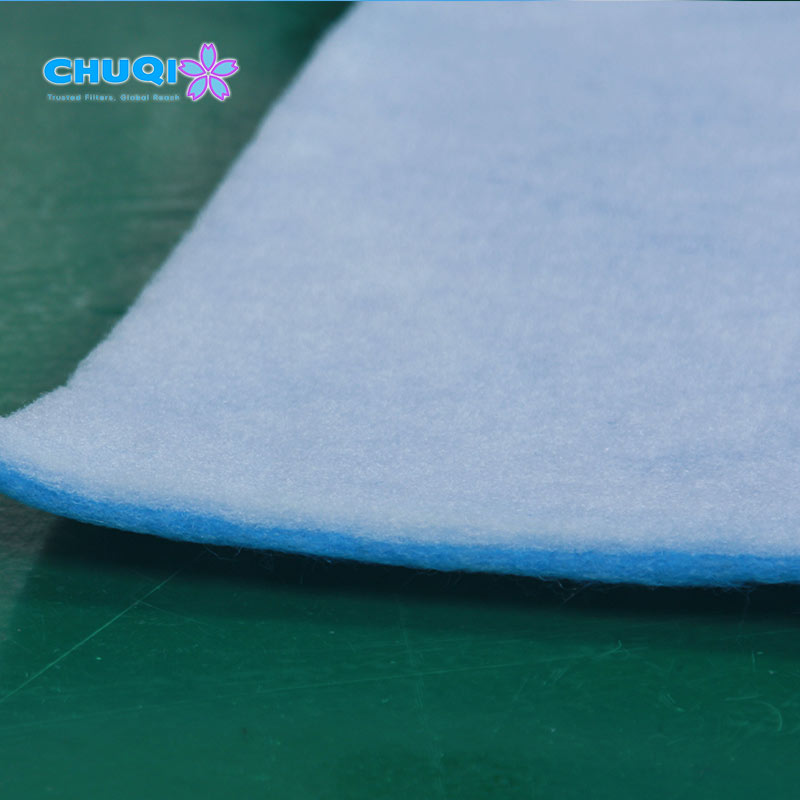

- Blue & White Identification: Designed with a distinct blue and white color coding to help operators immediately identify the air entry and exit sides, ensuring correct installation and maximum filtration efficiency.
- Resin-Bonded Integrity: Fibers are securely bonded using eco-friendly resins to maintain the physical stability of the media even in high-humidity or high-heat coating environments.
Material & Craftsmanship
- Broad Thermal Stability: Operates effectively at temperatures between 50-100°C, making it suitable for rigorous industrial baking and painting environments.
- Superior Resilience: Features excellent high resilience and elasticity, allowing for vacuum-packed shipping to significantly reduce logistical volume and storage costs.
- Optimized Airflow & Low Resistance: Engineered for low air resistance, ensuring that air remains highly circulated for consistent spray booth pressure and uniform paint application.
- Maintenance Efficiency: Designed for convenient installation and removal, allowing for quick maintenance cycles and reduced system downtime.
Applications

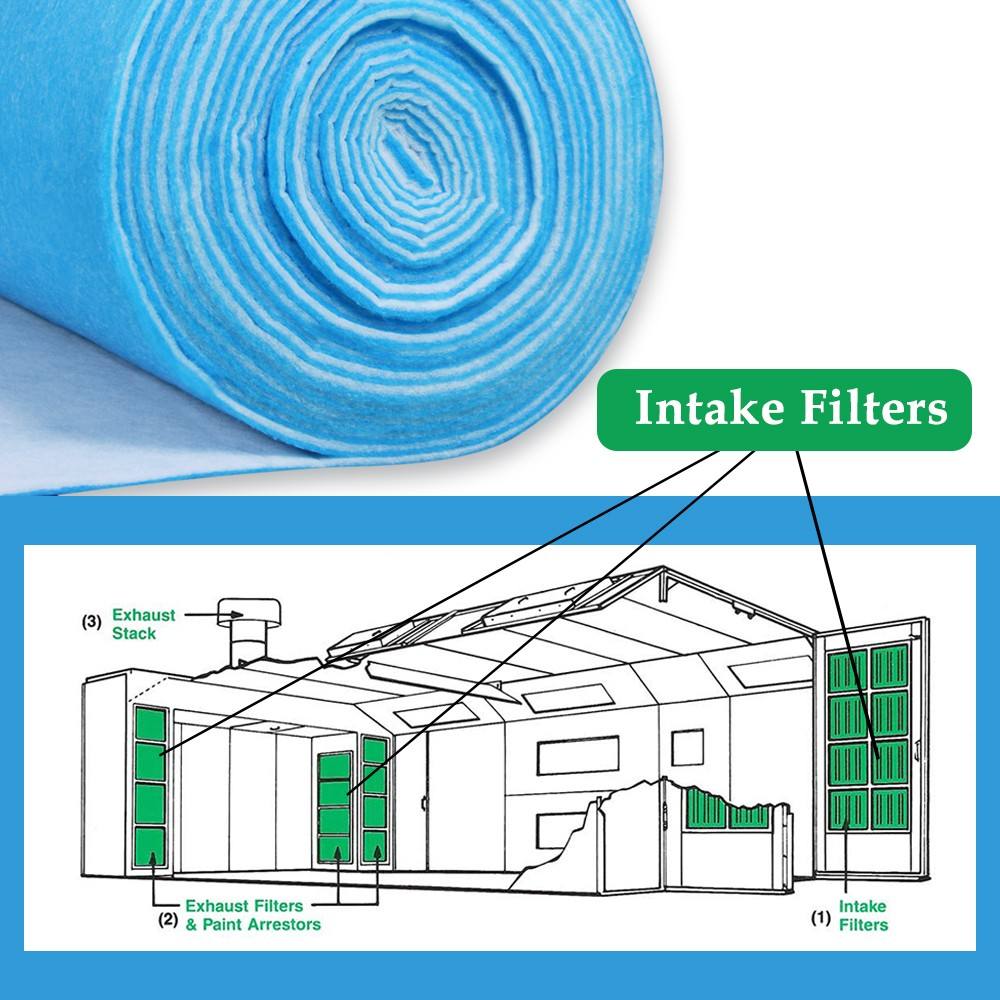

- Automotive Refinishing: Critical for intake filtration in automotive spray booths and refinishing shops to intercept large particles that cause paint defects.
- Industrial Surface Coating: Essential for ventilation systems in machinery, hardware, and plastic parts coating lines.
- Furniture & Wood Finishing: Captures wood dust and paint mist to ensure a high-quality, clean finish for high-end furniture manufacturing.
- Air Purification Workshops: Acts as the primary defense in air purification systems for the electronics and pharmaceutical industries, extending the life of downstream filters.
Competitive Comparison
| Feature | Chuqi Professional Intake Filter | Common Primary Filters | The Chuqi Advantage |
| Filtration Efficiency | G3-G4 grade; high precision. | Often G1-G2; limited protection. | Better Finish Quality: Minimizes repainting costs by ensuring a dust-free environment for finishing lines. |
| Dust Loading | Progressive structure for deep-loading. | Surface-only capture; prone to clogging. | Reduced Downtime: Longer filter life means fewer replacements and more continuous production time. |
| Installation | Blue & White color coding for accuracy. | Single-color; easy to install backwards. | Error-Free Maintenance: Prevents system inefficiency caused by incorrect installation by inexperienced staff. |
| Logistics | High resilience; supports vacuum-packing. | Poor elasticity; bulky to ship. | Lower Overhead: Cuts shipping and storage costs by up to 50% without compromising product quality. |
| System Impact | Low air resistance design. | Higher resistance; strains fans. | Energy Savings: Reduces fan power consumption while extending the life of expensive downstream HEPA filters. |
Specifications
| model | AZ-100G | AZ-130G | AZ-150G | AZ-180G | AZ-200G | AZ-250G | AF-150G | AF-200G | AP-250G | AR-210G |
| color | White | White | White | White | White | White | blue | blue | White | White |
| gram | 100G | 130G | 150G | 180G | 200G | 250G | 150G | 200G | 250G | 210G |
| Thickness (mm) | 10 | 13 | 15 | 18 | 18 | 20 | 15 | 18 | 15 | 10 |
| Filtering levels | G1 | G2 | G3 | G3 | G4 | G4 | G3 | G4 | G4 | G4 |
| highest job Temperature (°C) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Cotton production number | 1000# | 1300# | 1500# | 1800# | 2000# | 2500# | 1500# | 2000# | 2500# | 1500# |

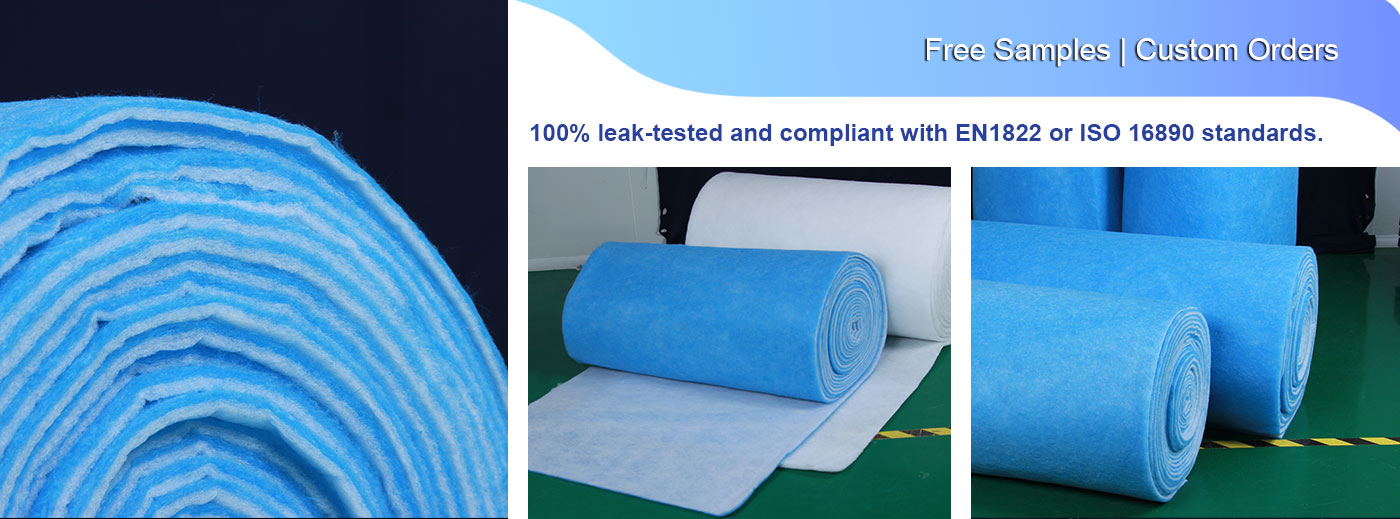

For the specialized coating and painting industry, Chuqi provides high-performance Blue and White Filter Rolls designed to eliminate contaminants that compromise surface quality. Our strength is in delivering media with a wide thermal stability range of 50-100°C, making it perfect for rigorous spray booth environments. We ensure that air remains highly circulated through a low-resistance design, which is critical for maintaining stable pressure within painting lines. With a long replacement cycle and customizable specifications (150G-250G), we help our clients achieve superior finishing results while reducing overall consumable costs.
Frequently Asked Questions
Q1: What is the benefit of the blue and white dual-color design?
A: The blue and white color coding is a functional design that helps operators easily distinguish between the air entry and exit sides. The blue side is typically the air intake side, ensuring the progressive density structure filters particles from coarse to fine.
Q2: Can this filter be used in high-temperature spray booths?
A: Yes, absolutely. Our media is engineered for High Temperature Resistance, operating effectively at temperatures between 50-100°C. This makes it ideal for industrial baking and painting environments.
Q3: How does the “progressive structure” extend the life of my HEPA filters?
A: By utilizing a progressive density (from sparse to dense), our media captures large contaminants throughout its entire thickness rather than just on the surface. This significantly reduces the dust load on downstream medium and high-efficiency filters.
Q4: Is the material washable or reusable?
A: This specific Blue and White Paint Spray Booth Intake Filter is designed as a washable pre-filter cotton. Depending on the concentration of contaminants, it can be cleaned to maintain low resistance and steady airflow.
Q5: How is the product shipped to save costs?
A: Thanks to the high resilience and elasticity of the synthetic fibers, our rolls can be vacuum-packed for shipping. This reduces shipping volume significantly, and the material returns to its original thickness once unpacked.
