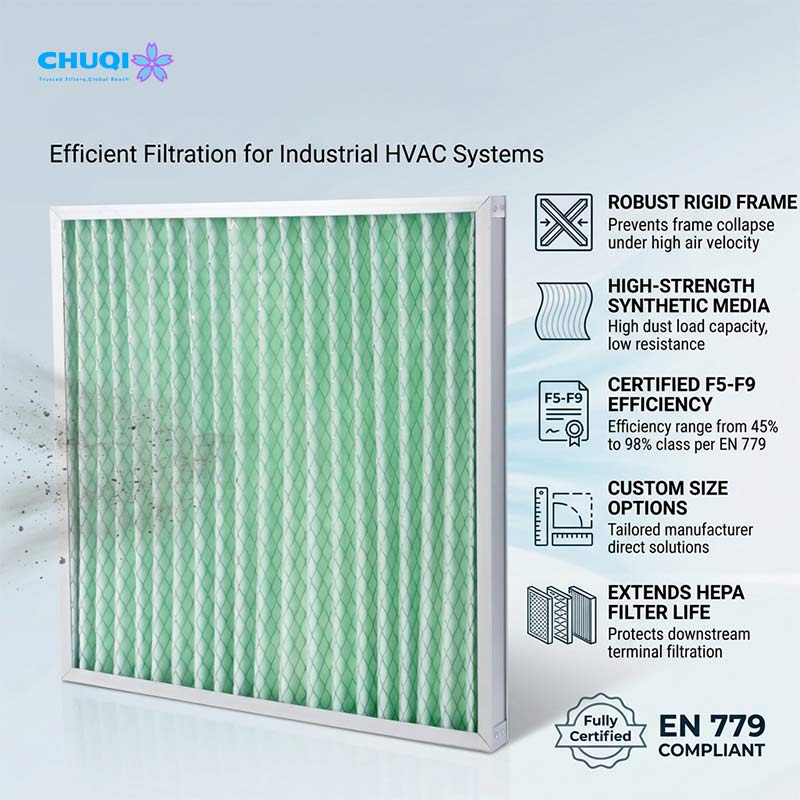

High-Performance Pleated Medium Filters: Precision Protection for Industrial HVAC & Cleanrooms
Engineered to meet the exact standards of overseas cleanroom integration and industrial HVAC maintenance, our medium efficiency pleated filter overcomes the core technical flaws of conventional filtration products:

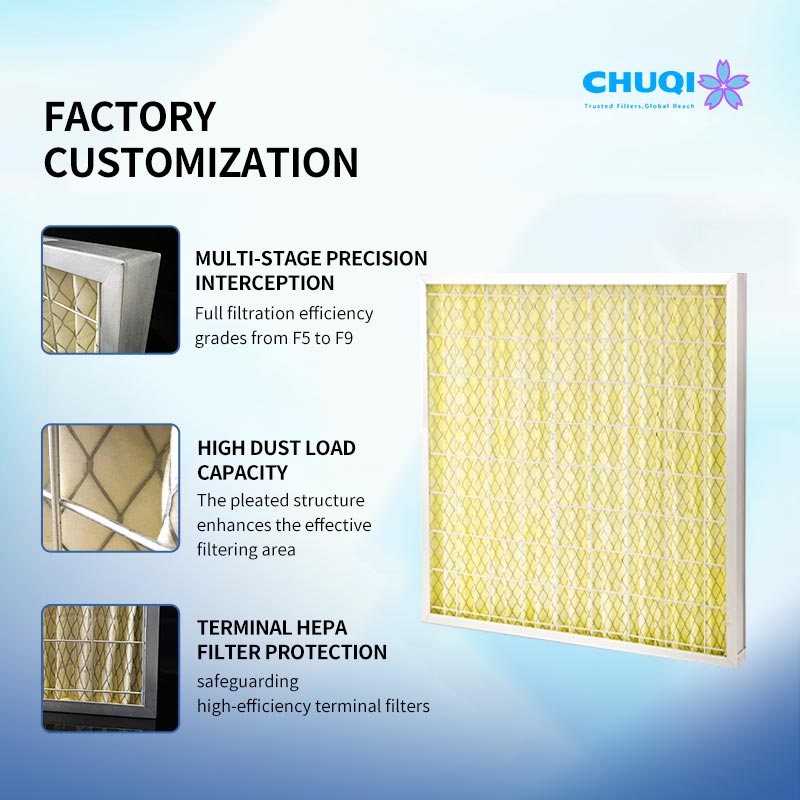

Multi-Stage Precision Interception: Covering the F5 F6 F7 F8 F9 filter efficiency classes to capture sub-micron particulate matter, eliminating filtration accuracy fluctuations and protecting secondary terminal systems.
High Dust Load Capacity: Advanced pleated topology drastically expands the effective filtration surface area of our synthetic pleated panel filter, allowing high rated airflows from 1000 to 4000 m³/h while preventing premature clogging.
Terminal HEPA Filter Protection: Positioned perfectly as an AHU pleated medium filter in the medium purification stage of central air handling units to block downstream dust leakage, safeguarding high-efficiency terminal filters.
Extreme Environment Stability: Rigid metal frames maintain flawless physical structures, making this a reliable 80c high temperature pleated filter that performs perfectly under temperatures up to 80°C and 100% RH conditions, eliminating sagging and structural degradation.
Robust Construction & Custom Size Pleated Air Filter Manufacturing Solutions
Synthetic Nonwoven Media: Features a tough, interconnected fiber matrix within our industrial dust control panel filter that resists high-pressure blow-throughs and eliminates fiber shedding, guaranteeing clean air delivery.
Heavy-Duty Rigid Frames: Available in Aluminum Profile, Aluminum Plate, Galvanized Iron, and as a stainless steel frame pleated filter to resist high lateral system pressures without structural twisting.
Universal Leak-Proof Sealing: The media edge is completely sealed within a standard 46mm thickness pleated filter or custom housing utilizing a specialized adhesive gasket bond, creating a solid air barrier that eliminates dangerous air bypass.
Full-Dimension Customization Service: Engineered specifically to fulfill B2B procurement specifications, we support comprehensive non-standard requests: custom sizes, thicknesses, media layers, frame types, and OEM/ODM production are fully supported.
Electronics & Semiconductors: Essential for a cleanroom HVAC compact filter system and wafer fabs to capture sub-micron particles and reduce product defects.
Pharmaceuticals & Biotech: Provides a reliable pharmaceutical ventilation pleated filter barrier in GMP factories to prevent microbe contamination.
Machinery & Instrumentation: Functions as a waterproof medium air filter to safeguard automotive spray booths and optical lines from fine dust, moisture, and paint overspray.
Heavy Industry & Petrochemicals: As a leading industrial pleated filter supplier, we protect control rooms with metal frame filters designed to withstand heavy industrial dust loads.
Modern Light Industry & Textiles: Maintains high-capacity filtration to protect sensitive automated packaging machinery with our high airflow compact filter design.
Food & Beverage Processing: Removes airborne mold in bottling clean zones using F5 F6 F7 F8 F9 filter media to extend product shelf-life.
Commercial HVAC & Public Buildings: Fits seamlessly into complex ventilation systems, making it the top choice for wholesale compact pleated filter procurement to ensure optimal Indoor Air Quality and lower HVAC energy costs.
| Comparison Dimension | Our Premium Pleated Medium Filter | Standard Market Alternatives |
|---|---|---|
| Factory Compliance | Fully certified manufacturing tracking matching strict international export and environmental regulations for smooth engineering approvals. | Lacks consistent international traceability, leading to compliance rejections during rigorous global procurement audits. |
| Filtration Stability | Stable F5 to F9 precision rating with zero efficiency drop-offs under continuous high velocity, protecting terminal HEPA units. | Fluctuating efficiency with high micro-particle penetration, leading to fast downstream clogging and premature equipment failures. |
| Bulk Supply Delivery | High-capacity automated lines guarantee large-volume manufacturing outputs on time, ensuring uninterrupted supply chain logistics. | Small workshop limitations cause long lead delays, leading to project timeline overruns and costly engineering holdups. |
| Structural Integrity | Flawless fiber binding with uniform pleat spacing and zero shedding, backed by robust frame choices up to 100% RH. | Prone to frame splitting, loose media pleating, fiber shedding, and structural distortion under high airflow or humidity. |
| Aerodynamic Efficiency | Optimized geometry ensures low initial resistance (200-320 Pa) and smooth airflow, lowering continuous system energy draw. | Uneven pleating restricts airflow, resulting in rapid pressure jumps and substantial increases in blower power costs. |
| Customization Versatility | Full flexible engineering support for custom shapes, specific thicknesses, alternative metal casings, and bespoke media configurations. | Strictly limited to a few standard sizes; unequipped to handle non-standard specifications or tailored industrial applications. |
| Outside Dimensions (mm) | Optional Thickness (mm) | Rated Air Flow (m³/h) | Initial Resistance (Pa) | Efficiency Class (EN 779) | Media Material Type |
|---|---|---|---|---|---|
| 295 × 295 × 46 | 46 / 69 / 90 | 1000 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
| 495 × 295 × 46 | 46 / 69 / 90 | 1600 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
| 495 × 495 × 46 | 46 / 69 / 90 | 2800 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
| 595 × 295 × 46 | 46 / 69 / 90 | 2000 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
| 595 × 495 × 46 | 46 / 69 / 90 | 3300 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
| 595 × 595 × 46 | 46 / 69 / 90 | 4000 | 200 – 320 | F5 – F9 (45% – 98%) | Nonwoven/Synthetic Media |
Environmental Parameters Note: Maximum operating temperature limit is 80°C. If selecting standard Fiber Paperboard casing, the maximum operational humidity is 80% RH. For environments requiring up to 100% RH continuous operation, please specify metal casing types (Aluminum Profile, Aluminum Plate, Galvanized Iron, or Stainless Steel). Non-standard dimensions can be custom manufactured to precise tolerances.
Note: These are standard specifications. For custom sizes or technical inquiries, 【please contact our engineering team.】
Factory-Direct Filtration Manufacturing: Tailored Solutions & OEM Expertise

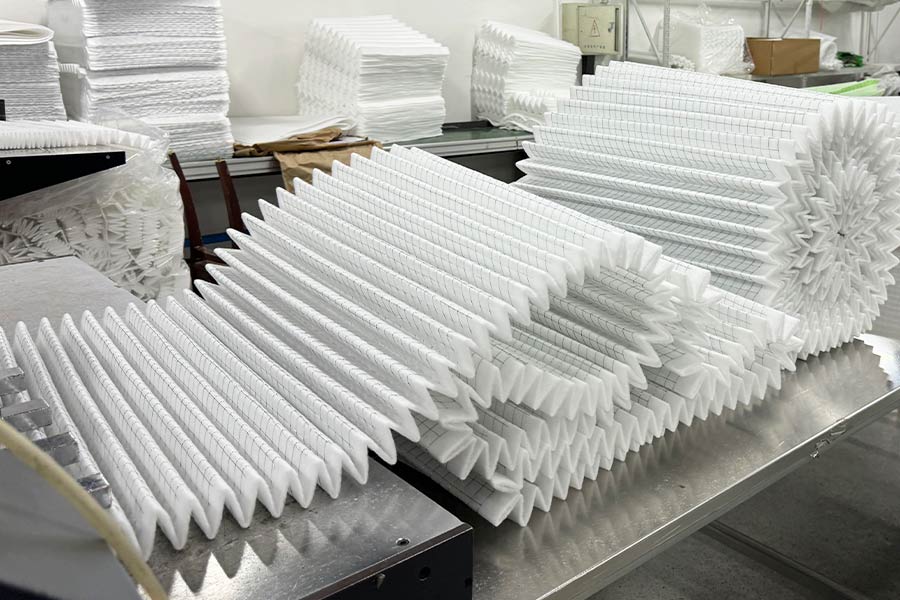

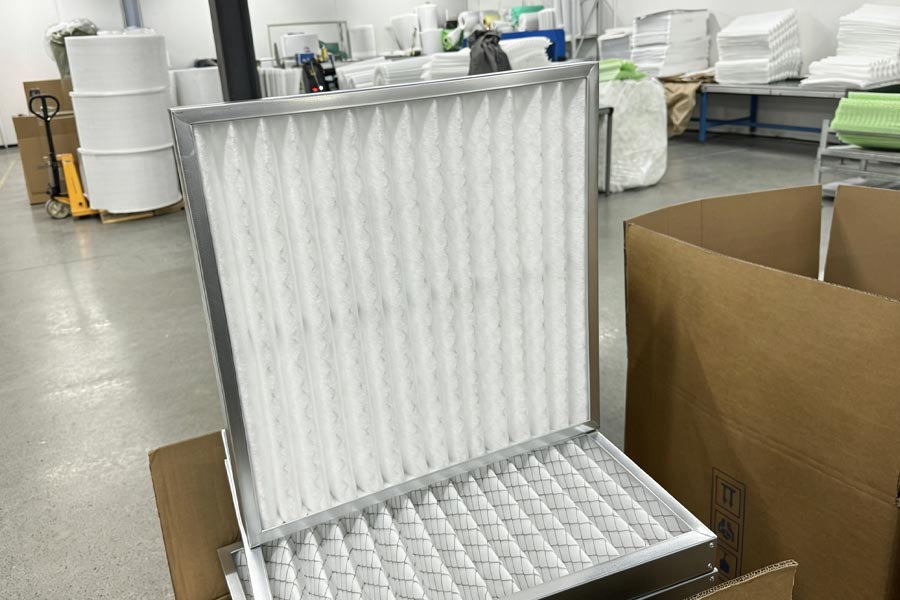

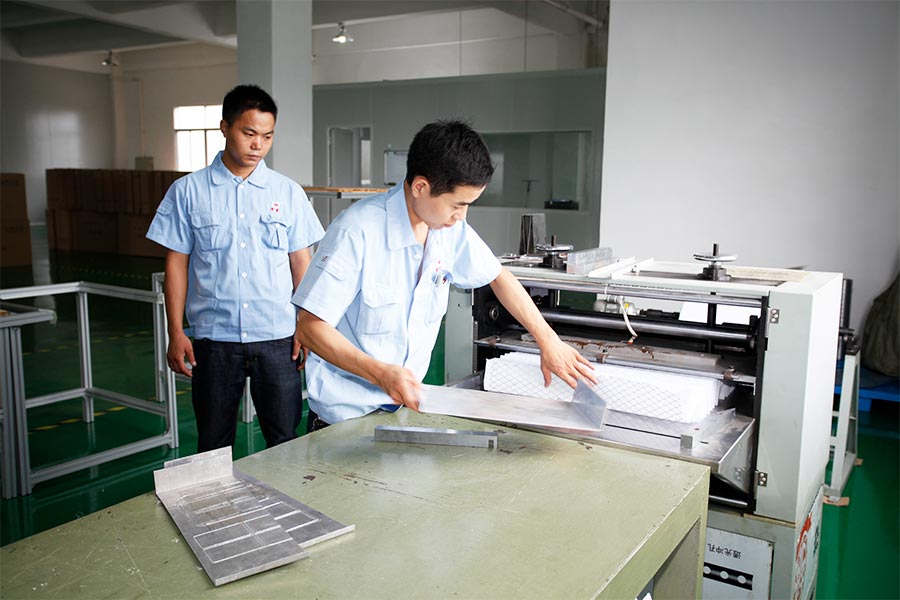

As a China factory-direct manufacturer with decades of expertise in industrial air filtration, we deliver tailored solutions that bridge the gap between rigorous engineering standards and cost efficiency. Our robust OEM/ODM capabilities enable us to provide full-range efficiency configurations from F5 to F9, along with flexible non-standard customization in framing materials and ultra-thin profiles to match any complex AHU project requirement. By controlling the entire manufacturing process—from high-capacity synthetic media pleating to proprietary edge-sealing craftsmanship—we eliminate air bypass under extreme industrial environments (up to 80°C and 100% RH). Partnering with us means securing reliable, certified air quality, responsive lead times, and global supply chain stability directly from the source.
Q1: What frame options should be chosen for highly humid industrial ventilation applications?
A: For environments with high humidity (up to 100% RH), we recommend specifying Aluminum Profile, Aluminum Plate, Galvanized Iron, or our stainless steel frame pleated filter. These robust configurations completely eliminate the moisture-absorbing warping, softening, and mold issues typical of traditional paperboard components, making them the ideal waterproof medium air filter for demanding facilities.
Q2: Can your factory handle non-standard dimensions for older or customized AHU systems?
A: Yes, as a leading pleated medium filter manufacturer, we specialize in flexible B2B manufacturing. We provide a comprehensive custom size pleated air filter service, adjusting outer dimensions, depth parameters—such as our standard 46mm thickness pleated filter—and casing styles to fulfill your specific AHU pleated medium filter engineering specifications.
Q3: How does the pleated topology design reduce total operational energy consumption?
A: By geometry-folding the synthetic nonwoven media, this compact pleated air filter expands the effective surface area multi-fold. This results in a much lower initial resistance across high volumes, making it a highly effective high airflow compact filter that reduces back-pressure on system blowers and cuts electricity draw.
Q4: Do you offer discounts or support for large-scale wholesale procurement?
A: Yes, we specialize in wholesale compact pleated filter distribution. As an established industrial pleated filter supplier, we support large-volume projects with competitive pricing and predictable manufacturing schedules, utilizing automated machinery to fulfill any industrial dust control panel filter requirements efficiently.
Q5: How does this product protect terminal HEPA filters in cleanroom installations?
A: Serving as a robust intermediate filter stage, our F5 F6 F7 F8 F9 filter range captures sub-micron dust particles with high efficiency. This cleanroom HVAC compact filter prevents heavy particle loads from overwhelming downstream terminal filters, maximizing their operational life and significantly reducing maintenance costs within your pharmaceutical ventilation pleated filter systems.
