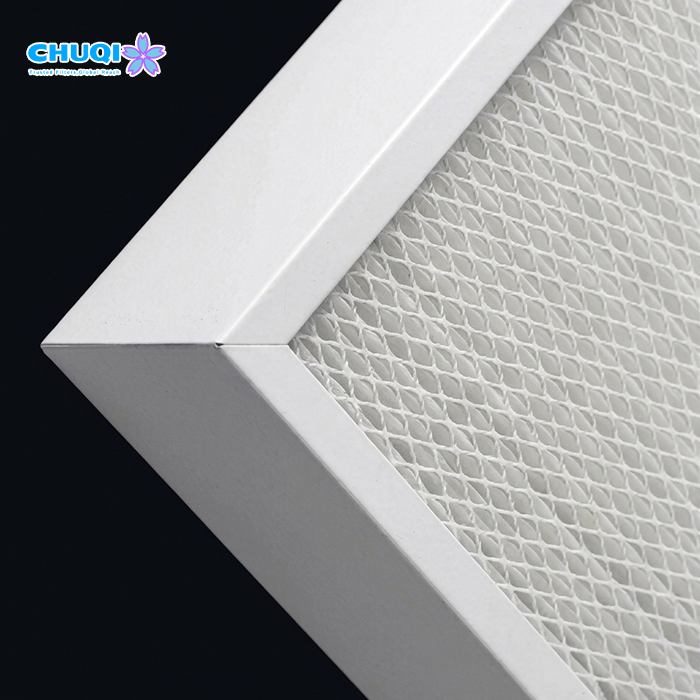

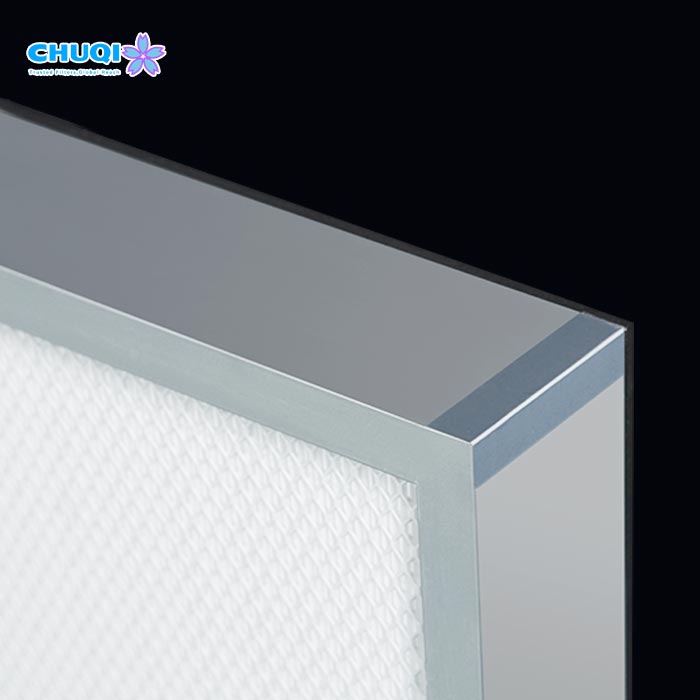

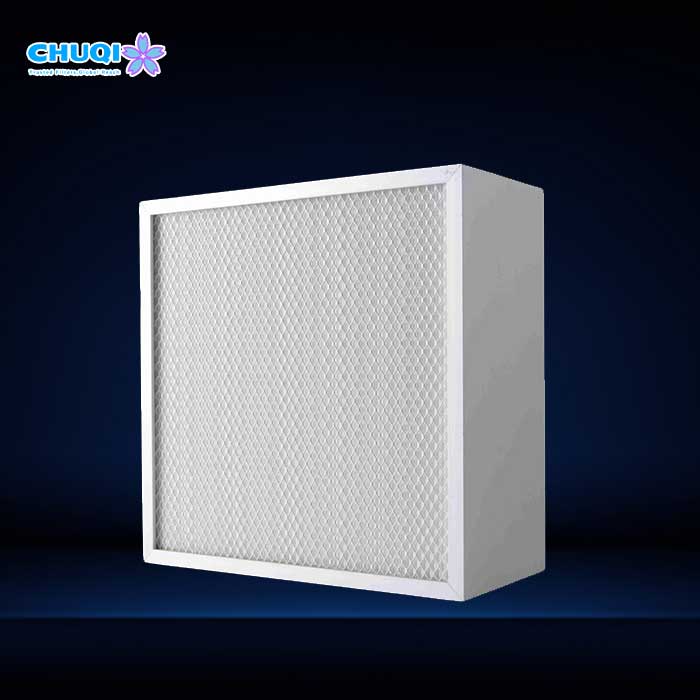

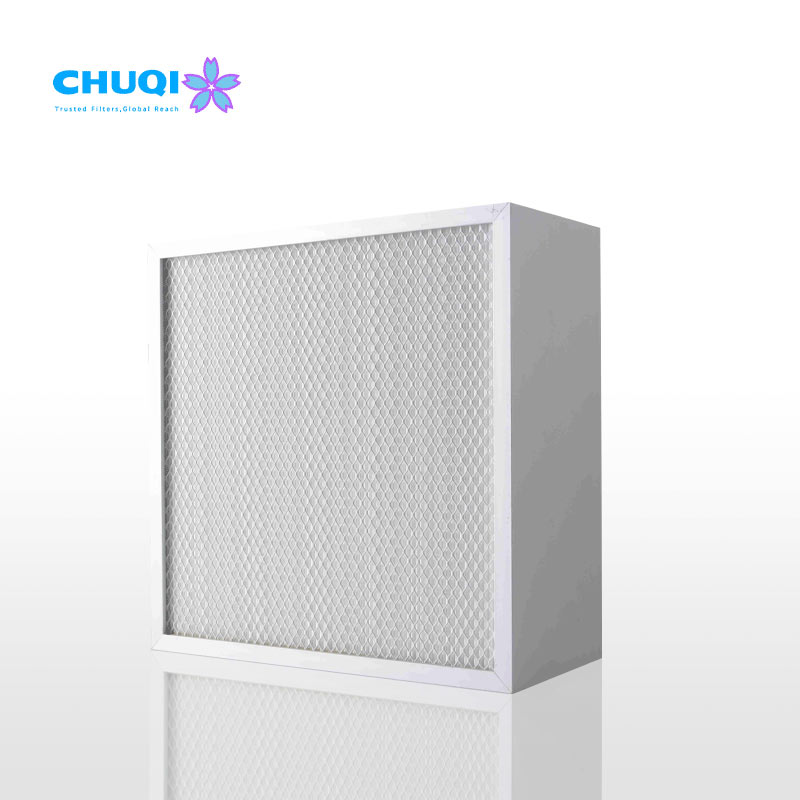

Operating compact cleanrooms or ceiling-integrated fan filter units often creates severe spatial bottlenecks where traditional deep-pleat units simply cannot fit. Our 50mm hepa filter solves this structural constraint by utilizing an ultra-thin anodized frame without compromising filtration surface area. Unlike older aluminum foil separator models that suffer from turbulence and excessive weight, this mini pleat hepa filter leverages precision hot melt separator filter technology to maintain optimal pleat spacing. Combined with high-density fiberglass hepa filter media, it ensures an h13 hepa filter efficiency rating of 99.99% at 0.3 microns. The fluid polyurethane sealant hepa potting eliminates peripheral bypass leakage, giving engineering contractors complete confidence during particulate audit certifications.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

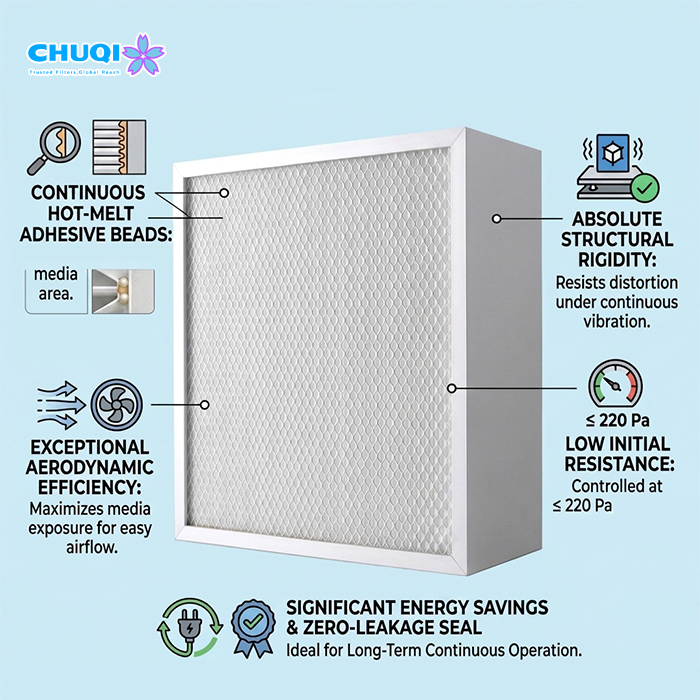

Engineered specifically for low-clearance airflow systems, this ultra-slim aluminum frame hepa filter delivers exceptional aerodynamic efficiency. By replacing bulky separators with continuous hot-melt adhesive beads, the mini pleater air filter structure maximizes usable media exposure while maintaining absolute structural rigidity under continuous vibration. The result is a low pressure drop hepa design with initial resistance controlled at ≤220 Pa, drastically reducing HVAC fan power consumption. As an established hepa filter manufacturer, we ensure every unit provides a zero leakage air filter seal, making it an ideal energy-saving component for long-term continuous operation.
| Parameter | Specification Details | Standards & Notes |
Filter Rating Class | H13 (EN 1822) | High-Efficiency Particulate Air (HEPA)Precision micro-particle retention |
Filtration Efficiency | ＞99.99% @ 0.3 um | Zero Leakage Air FilterPasses strict particulate audit certifications |
Media Construction | High-Density Fiberglass HEPA Filter Media | Mini Pleater Air Filter design with precision hot melt separator filter beads |
Frame Depth Profile | 50 mm Ultra-Slim Profile | Designed specifically for low-clearance ceiling plenums and standard FFU grids |
Initial Pressure Drop | ≤220pa | Low Pressure Drop HEPA design; minimizes HVAC / FFU motor power consumption |
Expected Operational Life | 12 to 36 Months | Standard Cleanroom (Class 1,000+): 24–36 Months High-Throughput / Heavy Load: 12–18 Months |
This 50mm hepa filter specification is tailor-made for high-density cleanroom ceiling filter grids, modular laminar flow hood filter setups, and portable clean bench air filter equipment. It serves as the primary terminal filtration barrier in semiconductor cleanroom filter layouts, Class 100 to Class 10,000 microelectronics manufacturing lines, and optical instrument assembly zones. For system integrators seeking a reliable bulk hepa filter supplier, our automated production lines yield uniform dimensions that drop seamlessly into standard grid channels. Whether you need standard sizes or a custom mini pleat filter configuration, our b2b air filter wholesale team supports turnkey cleanroom projects worldwide.
To maintain peak system energy efficiency and safeguard sensitive process environments, differential pressure should be continuously monitored. Under standard recirculating cleanroom conditions (Class 1,000 or cleaner), this h13 hepa filter offers an operational service life of 24 to 36 months before reaching terminal pressure drop limits. In high-throughput manufacturing facilities with elevated ambient particulate loading, routine replacement every 12 to 18 months is recommended. Partnering directly with our industrial filter factory ensures quick lead times for routine maintenance shipments.
Frequently Asked Questions
Q1: What are the main dimensional advantages of a 50mm mini pleat hepa filter in FFU applications?
A1: A 50mm hepa filter significantly reduces the overall height profile of Ceiling Fan Filter Units, making it ideal for cleanrooms with restricted plenum space. Manufactured by a leading hepa filter manufacturer, it delivers an h13 hepa filter rating while maintaining a low pressure drop hepa performance profile.
Q2: How does the hot-melt separator construction improve airflow over traditional aluminum separators?
A2: Our mini pleater air filter utilizes a hot melt separator filter mechanism instead of heavy metal separators. This eliminates metallic shedding risk, optimizes airflow distribution across the fiberglass hepa filter surface, and lowers energy consumption across cleanroom ceiling filter installations.
Q3: Is this aluminum frame hepa filter certified to prevent perimeter air leakage?
A3: Yes, every aluminum frame hepa filter features a continuous polyurethane sealant hepa channel that completely encapsulates the media pack within the frame, ensuring a zero leakage air filter boundary required for strict semiconductor cleanroom filter audits.
Q4: Can I order custom sizes through your B2B wholesale program?
A4: Absolutely. As an industrial filter factory providing b2b air filter wholesale services, we manufacture both standard dimensions and custom mini pleat filter units tailored for specific laminar flow hood filter or clean bench air filter housings.
Q5: What is the typical lead time when purchasing from a bulk hepa filter supplier?
A5: As a direct bulk hepa filter supplier, we maintain flexible production capacity. Standard size orders ship within 10–15 business days, ensuring seamless procurement schedules for large-scale engineering contractors.
