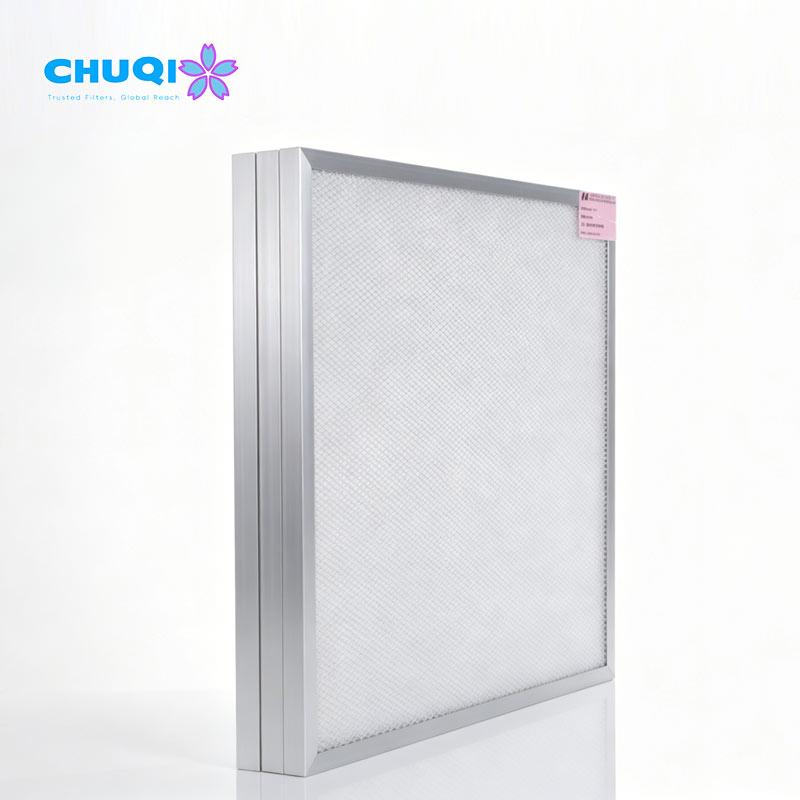

High Air Flow Heat Resistant Filter | Flat Panel G3 Filter for Hot Air Tunnels
Engineered for high-capacity systems, our Heat Resistant Pre Filter handles a rated air flow of up to 4200m³/h while resisting temperatures up to 300°C. The flat panel available design ensures uniform air distribution across the fiber glass media, making it an essential pre-filter for tunnel ovens and high-velocity hot air systems. With an initial resistance of only 40Pa, it delivers consistent G3 efficiency without taxing your fan motors.
Product Key Features
- Superior Airflow: Supports a high rated air flow (4200m³/h) for large-scale industrial ventilation.
- Efficient Filtration: G3 class efficiency tailored for capturing primary pollutants in heat-intensive zones.

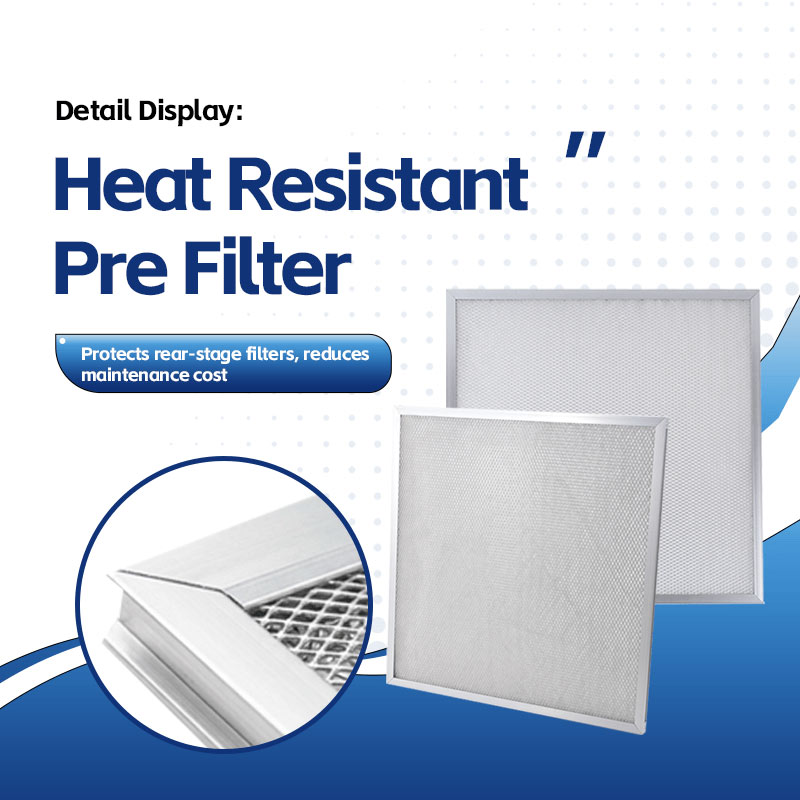

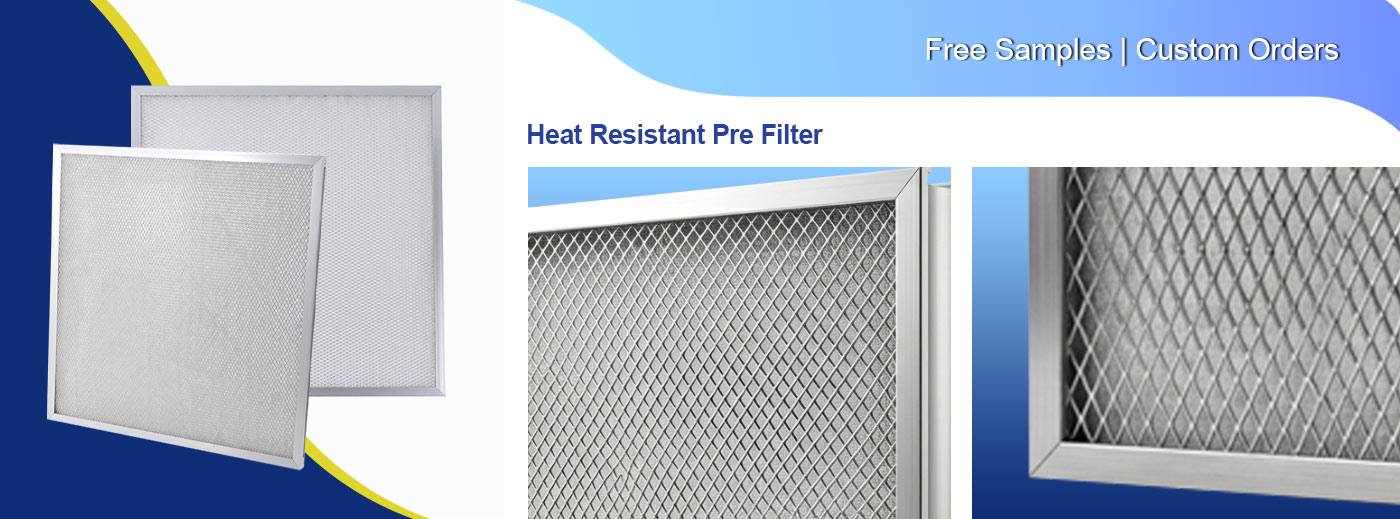

- Rigid Face Guard: Reinforced with an aluminum net to withstand high-velocity air pressure.
- Versatile Sizing: Offered in standard 595x595x21mm or customized specifications.
Material & Craftsmanship
- Media: Pre Filter Media (Fiberglass or Synthetic).
- Frame: Lightweight Aluminum frame for easy installation and maintenance.
Applications
Automotive Painting Drying Tunnels: The ideal heat resistant pre-filter for car body drying tunnels, handling large-scale hot air circulation at temperatures up to 300°C.
Semiconductor Drying Ovens: Provides reliable protection for high-velocity clean air systems in semiconductor manufacturing, ensuring sensitive components remain uncontaminated during heat treatment.
Large-scale Industrial Hot Air Systems: Engineered specifically for high-capacity ventilation requiring a rated air flow of up to 4200m³/h.
Textile & Film Heat Setting: Ensures uniform air distribution across the fiber glass media in high-velocity drying and setting processes.
Food Processing Dehydration: A robust oven air filter solution for large-scale food or chemical processing lines that demand consistent G3 efficiency.
Competitive Comparison
| Feature | Chuqi High-Velocity Precision Shield | Standard High-Temp Filters | The Chuqi Advantage |
| Airflow Capacity | Up to 4200m³/h rated flow. | Typically limited to 3000m³/h. | High Productivity: Handles large-scale industrial heat exchange easily. |
| Initial Resistance | Ultra-low 40Pa. | Usually 80Pa or higher. | Energy Savings: Reduces fan motor load and electricity costs. |
| Structural Integrity | Reinforced Aluminum net face guard. | No or weak internal support. | Stability: Prevents media migration under high-velocity air pressure. |
| Air Distribution | Optimized flat panel design. | Prone to turbulent airflow. | Process Quality: Ensures uniform temperature and airflow in tunnels. |
| Customization | Customized specifications available. | Restricted to standard sizes. | Perfect Fit: Tailored to fit specialized OEM equipment slots. |
Specifications
| External dimensions (mm) | Rated air volume (m3/h) | initial resistance (Pa) | Efficiency (Level) (class) | Filter media model
| highest temperature
|
| 500 × 250 × 2 1 mm | 1500m³ / h | 40 Pa | G3 | Fiberglass wool Imported synthetic fiber cotton
| 300 ℃ |
| 500 × 500 × 2 1 mm | 3000m3/h | ||||
| 595×595×21mm | 4200m3/h |
Balanced Low Resistance & High Airflow Efficiency
Our technical expertise allows for superior filtration without compromising energy efficiency. The High air flow heat resistant filter is engineered to handle a rated air flow up to 4200m³/h, making it ideal for heavy-duty industrial ventilation. This Low pressure drop G3 filter maintains a stable initial resistance of only 40Pa, which consistently delivers G3 High Temperature Filter efficiency while significantly reducing fan motor load and operational electricity costs in Industrial tunnel ovens.
Frequently Asked Questions
Q1: Can this filter handle high-velocity air without the media shedding?
Yes. This model is reinforced with a rigid aluminum net face guard designed to withstand high-velocity air pressure. This prevents media migration and ensures the filter remains stable even at its maximum rated air flow of 4200m³/h.
Q2: Will the resistance increase significantly when operating at 300°C?
The filter is designed with a very low initial resistance of 40Pa. Because it uses high-quality fiber glass or synthetic media rated for 300°C, its structure remains stable under heat, maintaining efficient airflow throughout its service life.
Q3: Why is the “Flat Panel” design important for tunnel ovens?
The flat panel design ensures uniform air distribution across the entire surface of the media. For hot air tunnels, this uniformity is critical for maintaining consistent drying temperatures and high-quality production results.
Q4: Is the filter easy to install in large-scale industrial setups?
Absolutely. It features a lightweight Aluminum frame, making it easy to handle and install even in large-scale ventilation arrays or high-altitude maintenance points.
Q5: Are custom dimensions available for non-standard equipment?
Yes. While we offer standard sizes like 595x595x21mm, we specialize in providing customized specifications to meet unique system requirements, ensuring a perfect, airtight fit for any industrial oven.
