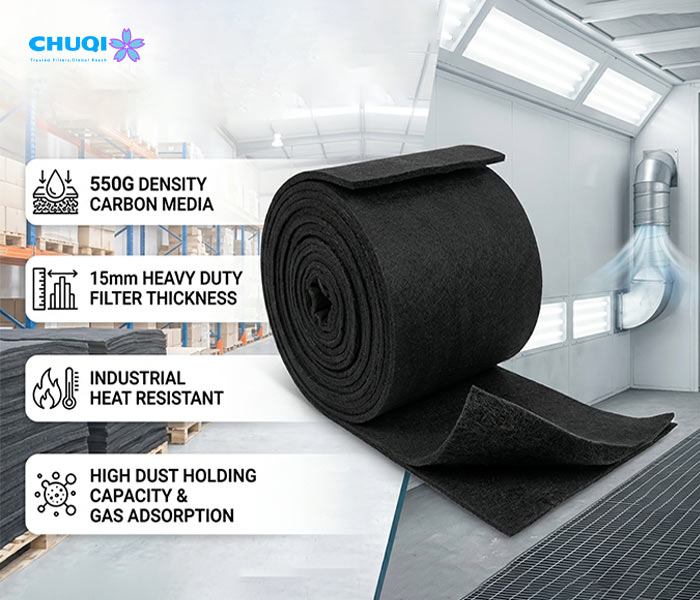

In high-output automotive painting facilities, balancing the capture of sticky paint mist with the adsorption of volatile solvents is a significant engineering challenge. Standard filters often saturate prematurely, leading to increased pressure drop and frequent, costly downtime. Our Heavy duty carbon spray filter features a specialized 15mm heavy duty filter architecture that provides an expanded physical space for both particulate and gas entrapment. By deploying this 550G density carbon media, your spray booth exhaust treatment system maintains consistent airflow while effectively mitigating the automotive painting VOC capture challenges inherent in high-production paint lines, ensuring your paint booth supply procurement remains optimized and your facility remains operational and compliant.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

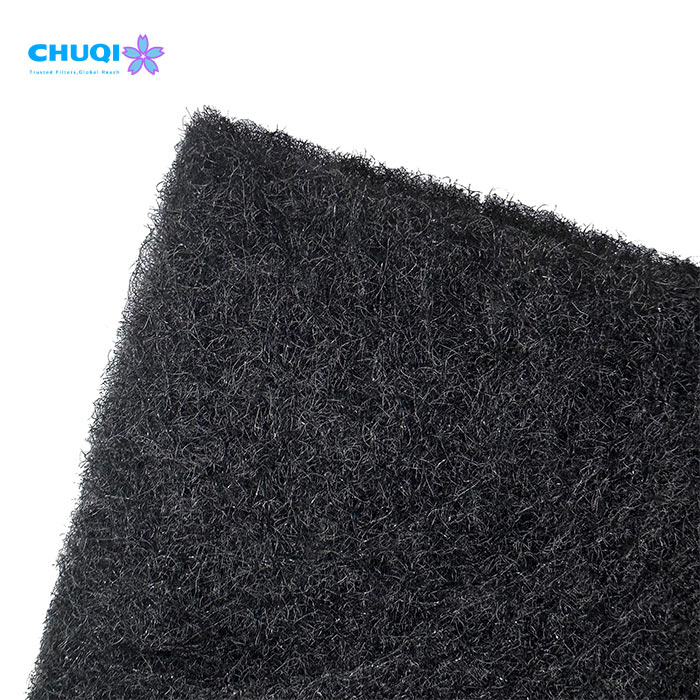

The Heavy duty carbon spray filter is engineered for endurance in demanding industrial paint mist and odor control environments. This 550G density carbon media utilizes a high-performance powdered carbon infusion that delivers high dust holding capacity and enhanced gas adsorption compared to standard thin-layer filters. Its robust 15mm heavy duty filter thickness provides the structural integrity needed to withstand the high-velocity air streams common in automotive paint shop ventilation. Furthermore, the material is an industrial heat resistant carbon media, ensuring stable performance even during high-temperature curing cycles, providing a reliable safety margin for your facility’s automotive painting VOC capture operations.
| Parameter | Specification Details |
|---|---|
| Product Grade | G4 |
| Media Weight | 550G / m² |
| Total Thickness | 15 ± 1mm |
| Color | Black |
| Carbon Content | ≥ 40% |
| Benzene Adsorption | ≥ 24 Wt% |
| Initial Resistance | 25 Pa (@ 1.50 m/s) |
| Max. Working Temp. | 180°C |
| Flame Resistance | F-1 DIN53438 / UL900-Class2 |
| Max. Airflow | 5400 m³/h |
| Gas Removal Rate | ≥ 92% |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Designed specifically for the rigors of automotive painting, this G4 automotive grade filter is the ideal solution for large-scale spray booth exhaust treatment. It excels in high-dust applications, such as basecoat and clearcoat application lines where overspray is prevalent. This Heavy duty carbon spray filter is fully compatible with multi-stage industrial air handling units (AHU) and can be precision-cut for modular paint booth supply procurement requirements. Its unique construction allows it to serve as a primary or secondary barrier in complex industrial paint mist and odor control setups, ensuring total environmental compliance and cleaner air discharge through paint mist and VOC combined filtration.
Given the high-load nature of automotive painting, we advise a proactive replacement schedule for the Heavy duty carbon spray filter. In continuous operation spray lines, the 550G density carbon media should be evaluated monthly to ensure the high dust holding capacity and enhanced gas adsorption are not compromised by heavy pigment loading. For intermittent use, this 15mm heavy duty filter can last up to 6 months. Implementing a rigorous tracking system for your industrial spray booth maintenance parts helps optimize equipment uptime and prevents sudden pressure spikes in your exhaust stacks, protecting your blower motors and maintaining consistent finish quality.
Frequently Asked Questions
Q1: Why is the 15mm thickness better for automotive spray booth applications?
A: The 15mm heavy duty filter thickness of our Heavy duty carbon spray filter provides an enlarged matrix area, which significantly increases the high dust holding capacity and gas adsorption necessary to capture complex paint particulates and VOCs simultaneously.
Q2: Does the 550G carbon media affect the paint finish quality?
A: By effectively managing the automotive painting VOC capture and stabilizing airflow, this G4 automotive grade filter prevents back-pressure issues, ensuring a cleaner air environment and a smoother, defect-free paint finish.
Q3: Is this SKU suitable for both water-based and solvent-based paints?
A: Yes, our Heavy duty carbon spray filter is engineered to handle the broad spectrum of organic pollutants and fine mist generated in both water-based and solvent-based automotive painting operations through advanced paint mist and VOC combined filtration.
Q4: How does the heat resistance benefit my paint shop?
A: The industrial heat resistant carbon media nature of this product allows it to remain functional during short-term thermal fluctuations or high-temperature drying stages in the spray booth exhaust treatment process.
Q5: Can I request specific roll sizes for my paint booth?

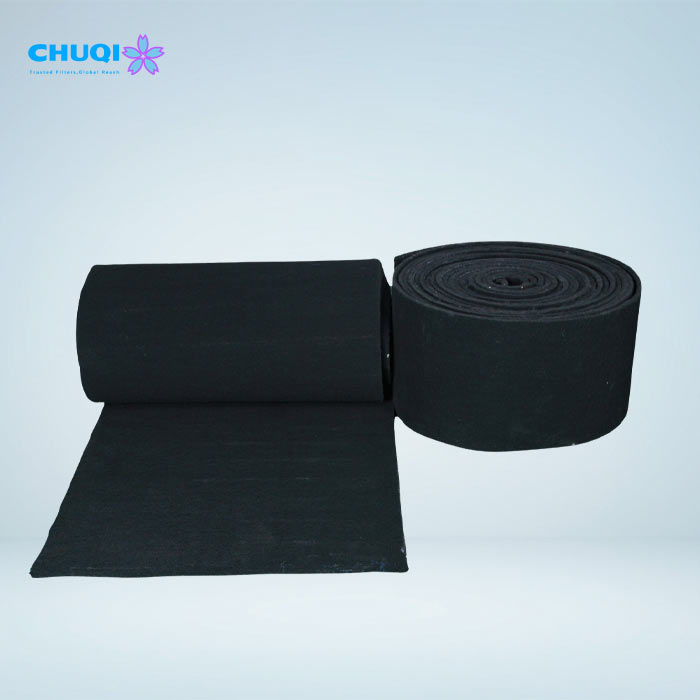

A: We provide flexible sizing for our heavy duty filter rolls, catering to the specific dimensions required by automotive paint shop ventilation systems to reduce waste and optimize paint booth supply procurement costs.
