In industrial liquid coating and automotive refinishing, paint defects like dust nibs, cratering, and roughness directly result in costly re-spray operations. Achieving a high-gloss, defect-free surface finish depends heavily on air filtration performance inside the painting chamber.
Installing F5 ceiling diffusion filters (also known as Class M5 spray booth ceiling media) is the most effective engineering solution to eliminate micro-particulate contamination and stabilize booth airflow.

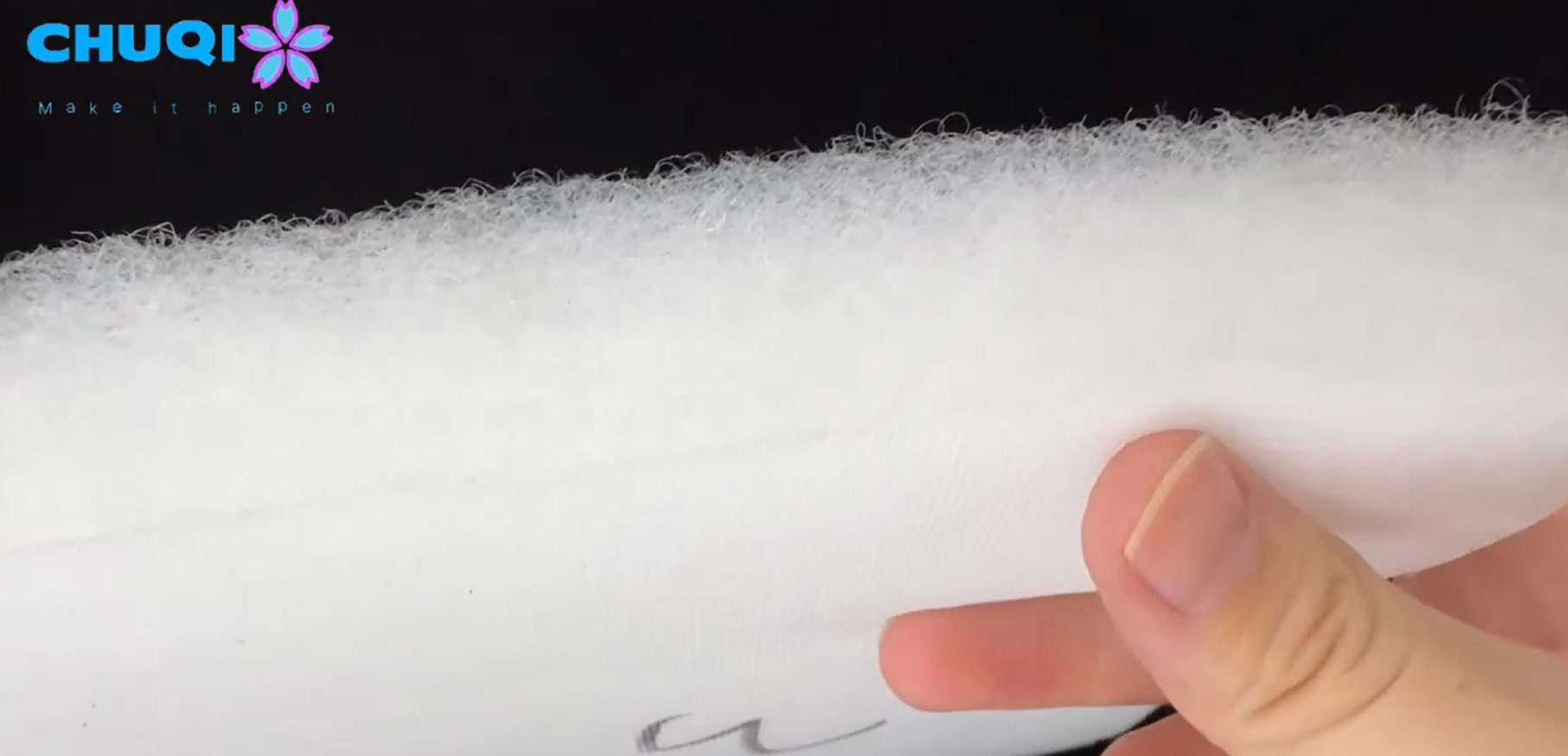

An F5 ceiling filter is a high-efficiency diffusion media installed in the roof plenum of downdraft and cross-draft spray booths. Manufactured from non-woven synthetic micro-glass or polyester fibers, it acts as the final filtration barrier before air enters the painting zone.
Core Technical Parameters:
Filter Class: EN 779: F5 / Class M5 (ISO 16890 ePM10 compliant)
Average Efficiency: 95%+ on particles down to 10 microns; high capture rates for 1–5 micron dust.
Structure: Progressive density media (denser toward the air-exit side) for maximum dust-holding capacity.
Tackifier Treatment: Full-depth adhesive sticky gel impregnation to permanently entrap airborne contaminants.
Downstream Mesh: Reinforced polyester scrim or mesh backing to prevent fiber shedding and media deformation.
Flame Retardancy: Self-extinguishing media certified to DIN 53438 / F1 standards.
1. Converts Turbulent Intake Air into Uniform Laminar Airflow Unfiltered or poorly diffused intake air causes turbulent eddies inside the booth, stirring up ground dust onto wet paint. F5 diffusion filters equalize plenum pressure, delivering smooth, vertical laminar airflow that carries overspray away from the workpiece.
2. Traps Contaminants Down to 1–10 Microns While G3 and G4 pre-filters capture bulk dust, fine particulates between 1 and 10 microns cause visible flaws in clearcoats. High-efficiency F5 filter media stops micro-particulates before they hit the vehicle or coated component.
3. Zero Fiber Migration (Shedding Protection) Inferior media sheds loose synthetic fibers under air pressure fluctuations, contaminating wet surfaces. Premium F5 ceiling rolls feature a dense downstream net reinforcement that locks fibers tightly in place.
4. Reduces Rework Costs and Improves First-Time Yield Fixing a contaminated paint job requires sanding, re-priming, clearcoating, and re-baking—wasting paint materials, technician hours, and energy. Installing reliable F5 media ensures a first-time yield rate above 95%, delivering direct operational savings.
| Feature | G3 / G4 Intake Pre-Filters | F5 / M5 Ceiling Diffusion Filters |
| Primary Placement | Fresh air intake / AHU | Spray booth ceiling plenum |
| Primary Role | Captures large ambient dust/debris | Provides fine filtration & laminar air distribution |
| Particle Size Focus | > 10 microns | 1 to 10 microns |
| Media Feature | Dry or light oil synthetic roll | Fully sticky/tackified with scrim backing |
Maintenance Guidelines & Replacement Signs
To maintain cleanroom-level air quality inside your coating line:
Pressure Drop Monitoring: Replace ceiling media when differential pressure reaches 250–300 Pa above initial resistance.
Pre-Filter Protection: Always pair F5 ceiling rolls with high-capacity G3 or G4 intake pre-filters to prolong ceiling filter service life.
Visual Inspection: Check for media sagging, dark dust accumulation patches, or perimeter air leakage along clamping frames.
As a direct OEM factory and global exporter of air filtration media, we supply premium F5 / M5 ceiling diffusion filter rolls and pre-cut pad dimensions tailored to standard and custom spray booth systems.
