Custom V-bank Air Filter Manufacturer | 20+ Years Factory
As a leading China source factory, we offer professional-grade V-bank filters customized to your specific industrial needs. Whether you require F7-F9 medium efficiency or H13-H14 high efficiency, our 20 years of technical expertise ensures reliable performance and competitive factory-direct pricing.
Product Key Features
Customized Dimensions: Tailored widths, heights, and depths to fit any existing HVAC housing.
High Dust Holding Capacity: Multi-pleat structure extends the maintenance interval.
High Airflow Capacity: Ideal for systems handling up to 4500m3/h per cell.
Moisture Resistant: Media is specially treated to maintain performance in high-humidity conditions (≤ 100% RH).
Material & Craftsmanship

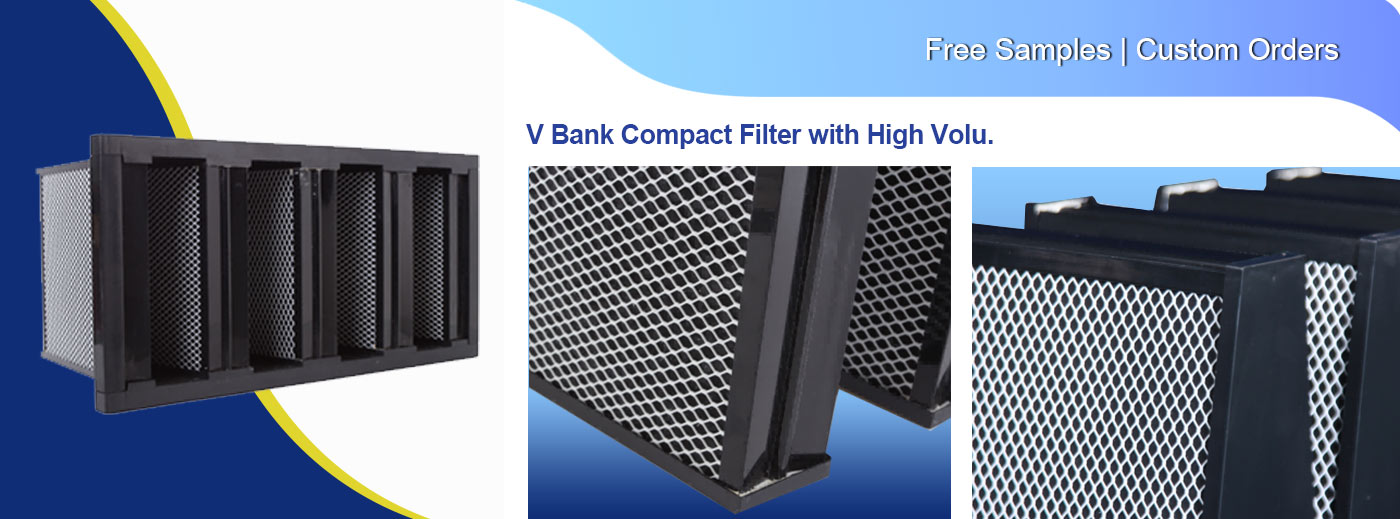

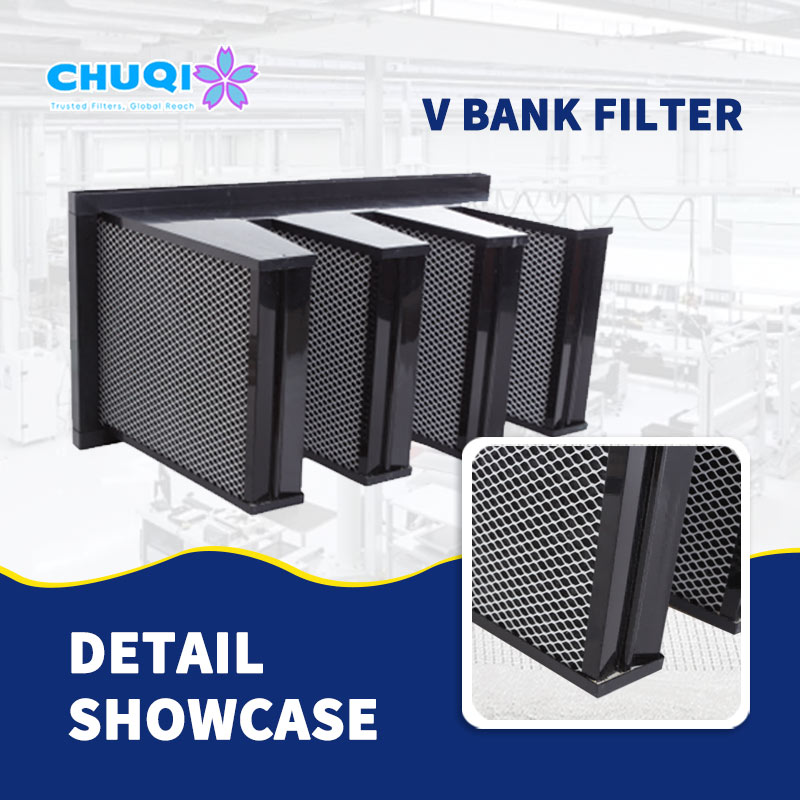

Structure: Precision mini-pleat technology with high-quality hot-melt separators for uniform pleat spacing.
Protective Grids: Optional aluminum or stainless steel faceguards for extra media protection.
Durability: 100% factory inspected and ISO 9001:2015 quality-managed production process.
Applications
Energy & Power Generation: Final stage filtration for gas turbine air intake systems to prevent blade erosion.
Large-Scale Public Infrastructure: High-capacity ventilation for airports, metro stations, and mega-malls.
Food & Beverage Production: Clean zone air supply for aseptic packaging and dairy processing.
Industrial Manufacturing: Heavy-duty air intake for automotive spray booths and chemical processing plants.
Marine & Offshore: Durable filtration for offshore platforms requiring high moisture resistance.
Competitive Comparison
| Feature / Performance | Chuqi Customizable V-bank | Standard Catalog Filter |
| Dimension Flexibility | Fully Bespoke (Width/Height/Depth) | Fixed Standard Sizes |
| Airflow Handling | Ultra-High (Up to 4500m3/h) | Standard Flow Only |
| Frame Options | ABS / Galvanized / Stainless Steel | Usually Plastic Only |
| Media Type | Glass Fiber / Synthetic / Carbon | Single Media Option |
| Production Speed | Fast-track OEM Available | Long Lead Times for Non-stock |
| Pricing | Competitive Factory-Direct | High Retail/Distributor Markups |
Specifications
| Dimensions (mm) | Rated Airflow (m3/h) | Initial Resistance (Pa) – Medium (F7-F9) | Initial Resistance (Pa) – Sub-HEPA (E10-E12) | Initial Resistance (Pa) – HEPA (H13-H14) | Filter Media | Dust Holding Capacity (g) |
| 592 × 287 × 292 | 1500 | ≤200 | ≤250 | ≤400 | Fiberglass | 400 |
| 592 × 490 × 292 | 2400 | ≤ 200 | ≤250 | ≤ 400 | Fiberglass | 700 |
| 592 × 592 × 292 | 3000 | ≤ 200 | ≤250 | ≤400 | Fiberglass | 800 |
| 610 × 305 × 292 | 1700 | ≤200 | ≤250 | ≤400 | Fiberglass | 450 |
| 610 × 610 × 292 | 3400 | ≤200 | ≤ 250 | ≤ 400 | Fiberglass | 900 |
| 592 × 287 × 292 | 1500 | ≤120 | ≤200 | ≤300 | Polyester(PP) | 400 |
| 592 × 490 × 292 | 2400 | ≤120 | ≤200 | ≤300 | Polyester(PP) | 700 |
| 592 × 592 × 292 | 3000 | ≤120 | ≤200≤ | 300 | Polyester(PP) | 800 |
| 610 × 305 × 292 | 1700 | ≤120 | ≤200 | ≤300 | Polyester(PP) | 450 |
| 610 × 610 × 292 | 3400 | ≤120 | ≤ 200 | ≤300 | Polyester(PP) | 900 |
As a specialized source factory with 20 years of experience, Chuqi excels in delivering customized air filtration solutions. We bridge the gap between complex engineering requirements and production, offering B2B clients flexible OEM/ODM services backed by ISO 9001:2015 and RoHS certifications. By choosing Chuqi, you benefit from factory-direct pricing, precision craftsmanship, and the reliability of a manufacturer that understands the technical nuances of global HVAC and industrial filtration markets.
Frequently Asked Questions
Q1: Can you manufacture V-bank filters in non-standard sizes for my specific equipment?
A: Yes, we specialize in custom dimensions. As a source factory with 20 years of experience, we can tailor the width, height, and depth of the V-compact filter to fit your existing HVAC housing or industrial intake system perfectly, ensuring no air bypass without the need for expensive system modifications.
Q2: What is the maximum airflow capacity your V-bank filters can handle?
A: Our high airflow design is optimized for high-velocity systems, handling up to 4500 m3/h per standard cell. This is achieved through our precision mini-pleat technology, which provides a massive filtration surface area while maintaining a low pressure drop, making it ideal for gas turbine intake and large AHU systems.
Q3: Which frame materials do you offer for harsh industrial environments?
A: We offer a variety of robust frame options to suit different applications. For general commercial use, our high-impact ABS plastic frames are lightweight and durable. For heavy-duty industrial or chemical environments, we provide galvanized steel or stainless steel frames to ensure maximum structural integrity and corrosion resistance.
Q4: How does your filter perform in high-humidity conditions?
A: Our filter media is specially treated to be moisture resistant, maintaining stable filtration performance in environments with up to 100% relative humidity (RH). This makes our W-type filters highly reliable for marine applications, offshore platforms, and food processing zones where humidity levels are consistently high.
Q5: Do you provide OEM or private labeling services for international distributors?
A: Absolutely. We offer comprehensive OEM/ODM services backed by our ISO 9001:2015 quality-managed production process. We can provide customized labeling, specialized packaging, and optional protective grids (aluminum or stainless steel) to meet your brand’s specific quality standards and market requirements.
