Modern pharmaceutical production, sterile filling suites, and high-containment biosafety laboratories demand the absolute highest tier of airborne particulate containment. Because microscopic biological carriers and fine aerosols can compromise batch integrity and trigger regulatory failures, our high-performance 69mm ulpa filter provides an uncompromised contamination barrier. Operating as a precision-engineered ultra low penetration air filter rated at U15, this mini pleat ulpa filter utilizes premium microfiber glass filter paper to achieve a certified 99.9995% efficiency filter rating at MPPS (0.12um). Integrated with a knife-edge gel seal ulpa filter frame connection, it delivers a guaranteed leak free ulpa filter interface that easily passes rigorous gmp compliant filter validation protocols.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

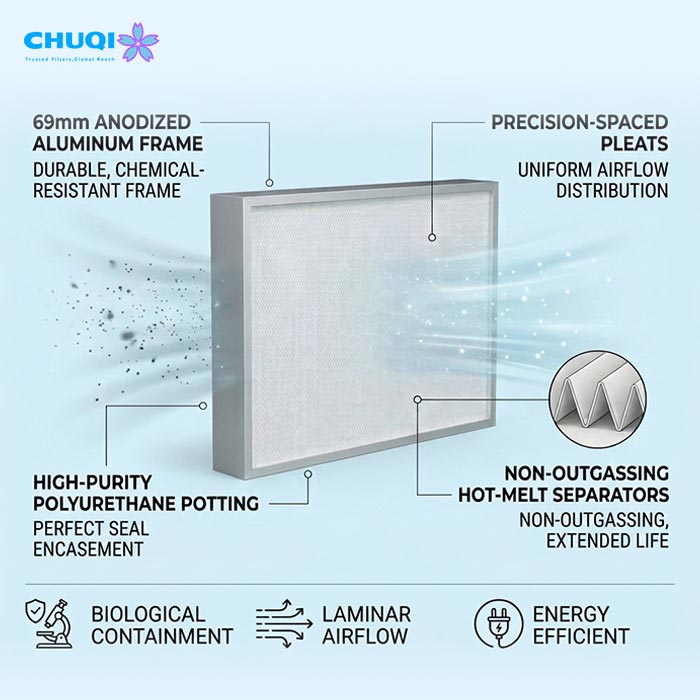

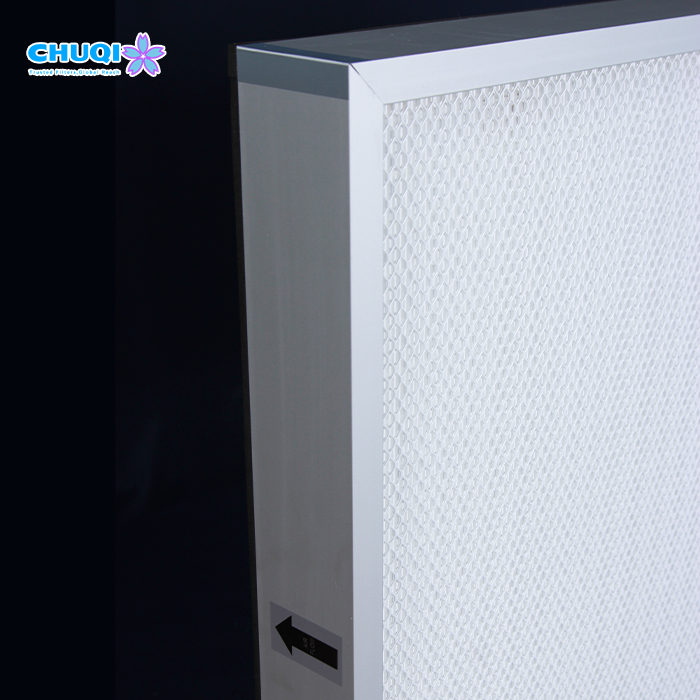

Engineered specifically for critical biological containment, this high-performance ULPA air filter features precision-spaced pleats maintained in perfect uniform alignment by non-outgassing hot-melt separators. The ultra-slim 69mm anodized aluminum frame delivers exceptional structural rigidity while exhibiting superior resistance against aggressive chemical sanitization agents and automated Vaporized Hydrogen Peroxide (VHP) washdown protocols.As an established ULPA filter manufacturer, we utilize a seamless, high-purity polyurethane potting sealant to fully encapsulate the fiberglass ULPA media pack within the frame boundary. This leak-free architecture optimizes laminar airflow distribution, lowers operating pressure drop to reduce HVAC power costs, and extends overall operational service life in continuous cleanroom applications.
| Parameter | Specification Details | Standards & Notes |
| Filter Rating Class | U15 (EN 1822) | Ultra Low Penetration Air Filter |
| Filtration Efficiency | ≥ 99.9995% @ MPPS (0.12um) | Certified 99.9995% Efficiency Filter |
| Frame Depth Profile | 69 mm | Compact Low-Profile Construction |
| Frame Material | Anodized Aluminum Alloy | Corrosion-Resistant & VHP/Chemical Proof |
| Cleanroom Application | Class A / B Sterile Zones (ISO Class 3–5) | GMP Compliant Filter Standards |
| Expected Operational Life | 24 to 36 Months | Subject to Controlled Pre-Filtration & Load |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Designed for mission-critical pharmaceutical manufacturing, this premium U15 mini pleat ULPA filter provides absolute particle retention to eliminate airborne micro-contaminants in sensitive processing areas. It seamlessly integrates into terminal ceiling structures across aseptic filling lines, sterile drug manufacturing suites, and biotech research laboratories, ensuring total compliance in Class A and Class B cleanrooms under international GMP standards.As an experienced pharmaceutical filter supplier and international air filter exporter, we partner with global cleanroom engineering firms to deliver bespoke frame configurations, specialized gasketing, and bulk cleanroom filter solutions tailored for seamless site installation and zero-defect validation.
Engineered to satisfy stringent regulatory mandates in GMP-certified pharmaceutical manufacturing facilities, this high-efficiency mini pleat ULPA filter delivers exceptional operational stability. When integrated into multi-stage HVAC systems with multi-tier pre-filtration, it typically maintains optimal performance over an extended 24 to 36 months service life.To guarantee continuous compliance, real-time differential pressure monitoring and scheduled PAO/DOP integrity testing should be conducted to establish precise filter replacement schedules. By partnering directly with our bulk ULPA filter program, pharmaceutical engineering teams secure factory-direct scheduled deliveries, eliminating the risk of unplanned downtime during critical batch production cycles.
Frequently Asked Questions
Q1: What is the main difference between an H14 HEPA filter and a U15 ULPA air filter?
A1: A u15 ulpa filter functions as an ultra low penetration air filter, achieving a 99.9995% efficiency filter rate at 0.12 microns, whereas an H14 HEPA filter captures 99.995% at 0.3 microns, making ULPA essential for sterile pharmaceutical lines.
Q2: How does the gel seal mechanism ensure a leak free ulpa filter connection?
A2: The gel seal ulpa filter design features a channel filled with fluid gel that engages with a ceiling grid knife-edge, forming a continuous, flexible leak free ulpa filter seal ideal for pharmaceutical hepa filter applications.
Q3: Is this filter fully certified for GMP cleanroom filter audits?
A3: Yes. As a specialized ulpa filter manufacturer, every unit is individually scan-tested to confirm it is a gmp compliant filter before shipment, complete with traceable test certificates.
Q4: Can we order these filters in bulk for large-scale biopharma expansion projects?
A4: Yes, our pharmaceutical filter supplier network specializes in bulk ulpa filter supply contracts, ensuring consistent quality and schedule alignment for international b2b cleanroom filter projects.
Q5: Why is microfiber glass paper used in this mini pleat ulpa filter?

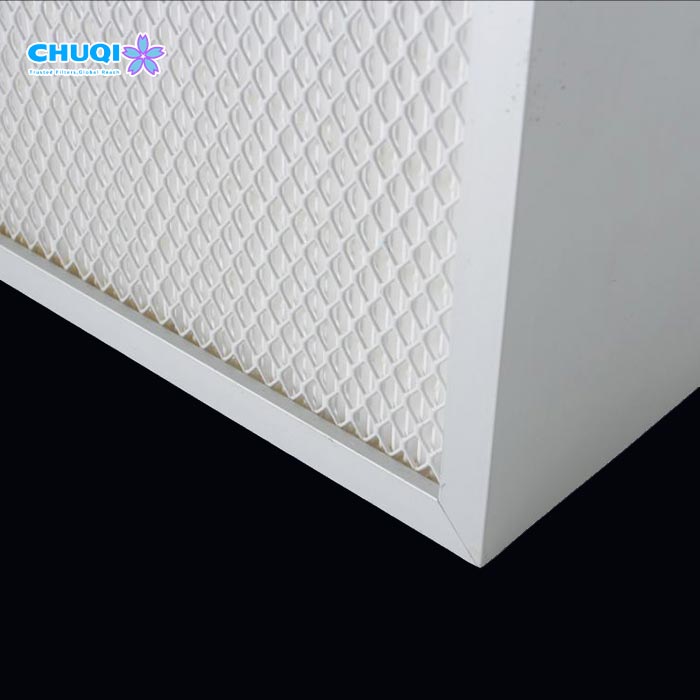

A5: Ultra-fine microfiber glass filter media provides the dense fiber network required to trap 0.12-micron particles while maintaining lower airflow resistance compared to synthetic alternatives.
