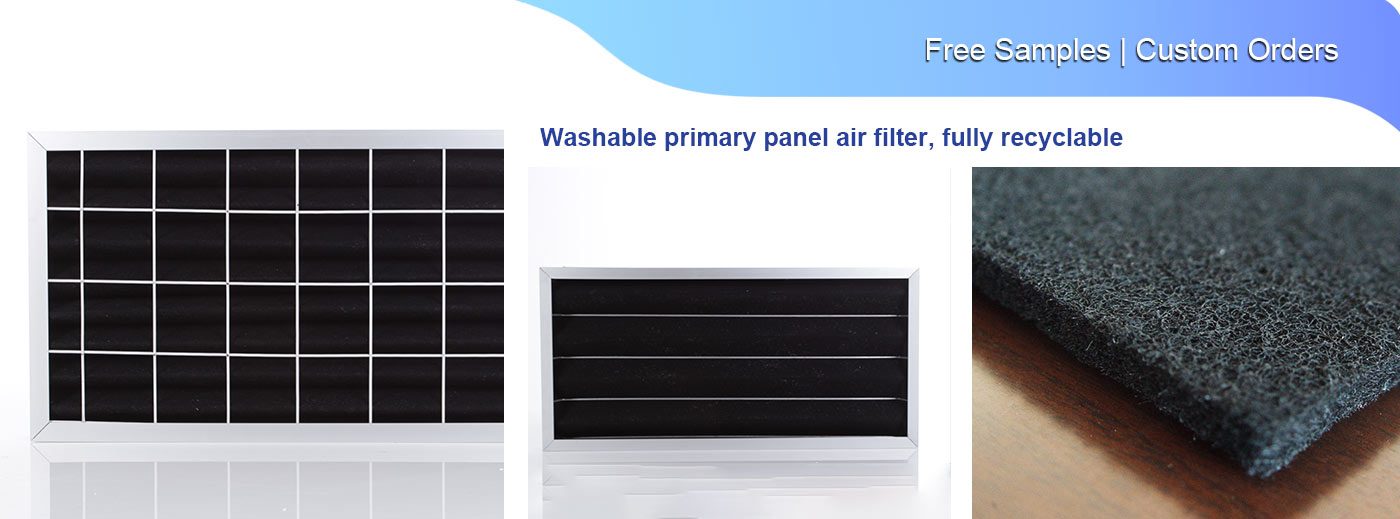

Washable Primary Panel Air Filter | G3 Efficiency Recyclable Pre-filter
Optimize your ventilation costs with our Washable Primary Panel Air Filter. Engineered with premium Polycotton and Synthetic Fiber media, this filter captures 0.5microns suspended particles while remaining fully recyclable for application. Designed for high-performance air conditioning systems, it provides a sustainable alternative to disposable filters, ensuring low resistance and consistent high air flow across its extended lifespan.
Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!
Product Key Features
- Sustainable & Washable: Could be washable and recycled, significantly reducing replacement costs.
- High Particle Capture: Effectively filters 0.5microns less suspended particles in the air.
- Slim Profile: Features a thin thickness (21mm/46mm) for easy installation in tight spaces.
- Optimal Airflow: Engineered for low resistance and high air flow (up to 3200m³/h).
Material & Craftsmanship
- Media: Polycotton and polyester synthetic blend in white or blue and white colors.

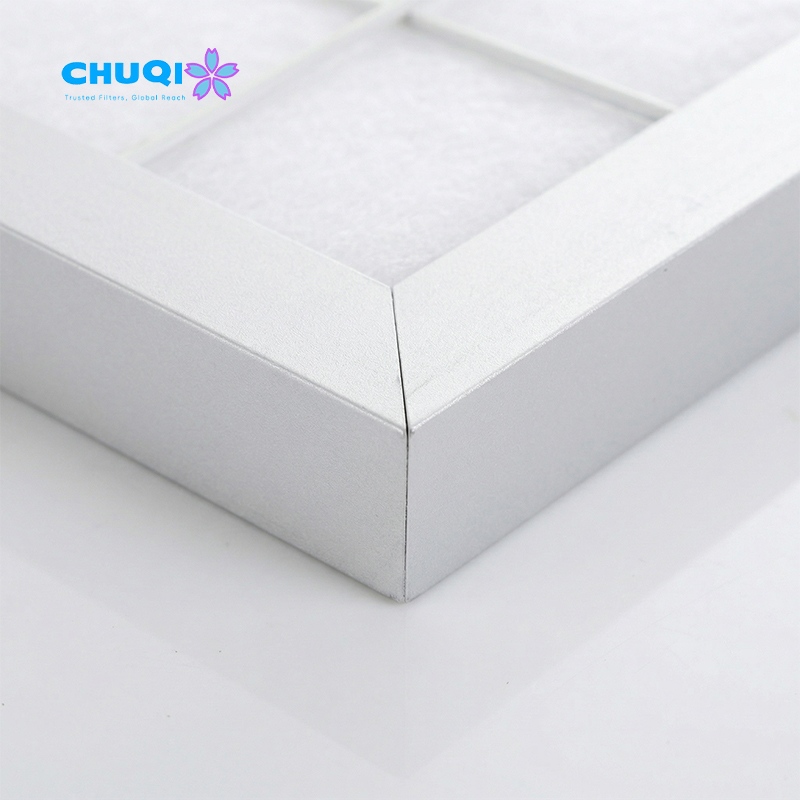

- Frame: High-strength Aluminum Frame, Galvanized Frame, or Cardboard.
- Face Net: Paint-sided square care net or durable Aluminum net.

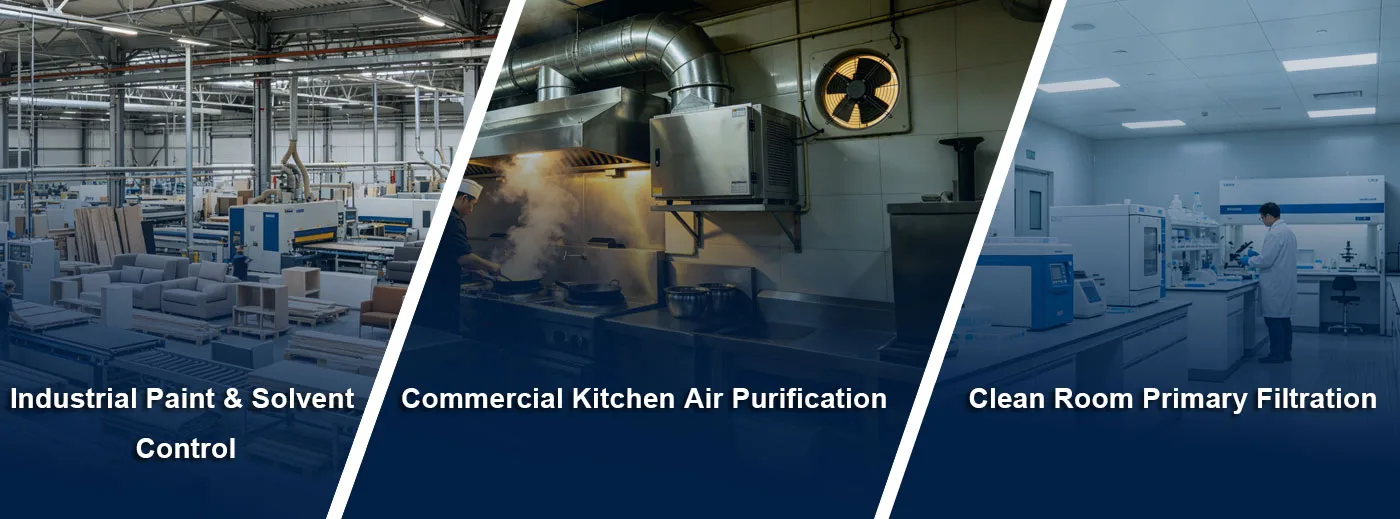

Applications
Green Building HVAC Systems: Perfect for LEED-certified buildings requiring recyclable air filters to minimize industrial waste and support sustainability goals.
Commercial AHU Maintenance: An ideal HVAC return air filter for shopping malls and office towers where regular cleaning is preferred over constant disposal.
Hospitality & Public Facilities: Provides a cost-effective solution for schools, hotels, and hospitals by utilizing washable media to reduce long-term operational expenses.
General Factory Ventilation: Delivers consistent high air flow (up to 3200m³/h) for industrial workshops, protecting sensitive equipment from 0.5 microns suspended particles.
Compact Air Conditioning Units: The slim profile (21mm/46mm thickness) allows for easy installation in tight spaces within various industrial air handling units.
Competitive Comparison
| Feature | Chuqi Washable Panel Filter | Standard Disposable Filters | The Chuqi Advantage |
| Sustainability | Washable and recyclable. | Single-use only; leads to high waste. | Eco-Friendly: Reduces industrial waste and supports green initiatives. |
| Operational Cost | Low long-term cost due to reuse. | High recurring replacement costs. | Cost Savings: Significantly lowers the total cost of ownership. |
| Filtration Precision | Captures particles down to 0.5 microns. | Often limited to larger particles. | Cleaner Air: Protects air quality and sensitive downstream equipment. |
| Construction | High-strength Aluminum or Galvanized frame. | Often uses flimsy cardboard or thin plastic. | Durability: Maintains structural integrity during repeated wash cycles. |
| Airflow Efficiency | Engineered for low resistance and steady flow. | Resistance increases rapidly as dust builds. | Energy Efficiency: Reduces the load on HVAC fans to save energy. |
Specifications
| External dimensions mm | Rated air volume (m3/h) | initial resistance (Pa) | Efficiency (Level) (class) | Filter media model
| |||
| 295 × 295 × 21 mm | 800m³ / h | 25Pa | 40% ( Weighing method )
| G3
| Primary filter cotton
| ||
| 495×295×21mm | 1300m3/h | ||||||
| 495×495×21mm | 2200m3/h | ||||||
| 595×295×21mm | 1600m3/h | ||||||
| 595×495×21mm | 2700m3/h | ||||||
| 595×595×21mm | 3200m3/h | ||||||
High-Precision Filtration & Superior Airflow Efficiency
Our products are engineered for high-performance environments, capable of capturing suspended particles as small as 0.5 microns. By utilizing advanced G3 efficiency synthetic media, we ensure peak air purity while maintaining an ultra-low initial resistance of only 35Pa. This precision allows for a consistent high air flow of up to 3200m³/h, protecting sensitive downstream equipment without overtaxing your ventilation fans.
Frequently Asked Questions
Q1: How does the “washable” feature benefit my facility’s budget?
By choosing a washable primary panel air filter, you can clean and recycle the media multiple times, which significantly reduces the frequency and expense of purchasing new replacements.
Q2: Can this filter handle fine dust particles in high-performance systems?
Yes. It is engineered with premium Polycotton and Synthetic Fiber media to effectively capture 0.5 microns less suspended particles, making it ideal for high-performance air conditioning systems.
Q3: Is the filter frame durable enough for industrial environments?
Absolutely. We offer a high-strength Aluminum Frame or Galvanized Frame combined with a durable paint-sided square care net or Aluminum net to ensure the filter survives rigorous industrial use.
Q4: Will this filter fit into systems with limited installation space?
Yes. Our filters feature a thin thickness (available in 21mm and 46mm) specifically designed for easy installation in tight spaces within general AHUs.
Q5: What is the maximum air flow capacity for this eco-friendly option?
This filter is optimized for high air flow, supporting a rated capacity of up to 3200m³/h while maintaining low resistance to ensure peak ventilation performance.
