When specifying air filtration media for large commercial buildings, industrial facilities, or centralized Air Handling Units (AHUs), facility engineers often face a foundational architectural choice: pleated cardboard frame filters versus flat panel filters. While both utilize moisture-resistant paperboard frames, their internal media geometry dictates drastically different performance metrics, dust-holding capacities (DHC), and total cost of ownership (TCO).
For global B2B procurement teams and facility managers, understanding the structural and aerodynamic trade-offs between pleated and flat designs is essential for optimizing MERV 5 to MERV 15 filtration efficiency and protecting downstream assets without triggering excessive energy penalties.
Flat Cardboard Panel Filters: Anatomy, Pros, and Limitations
Flat panel filters represent the traditional, low-profile approach to primary air filtration.

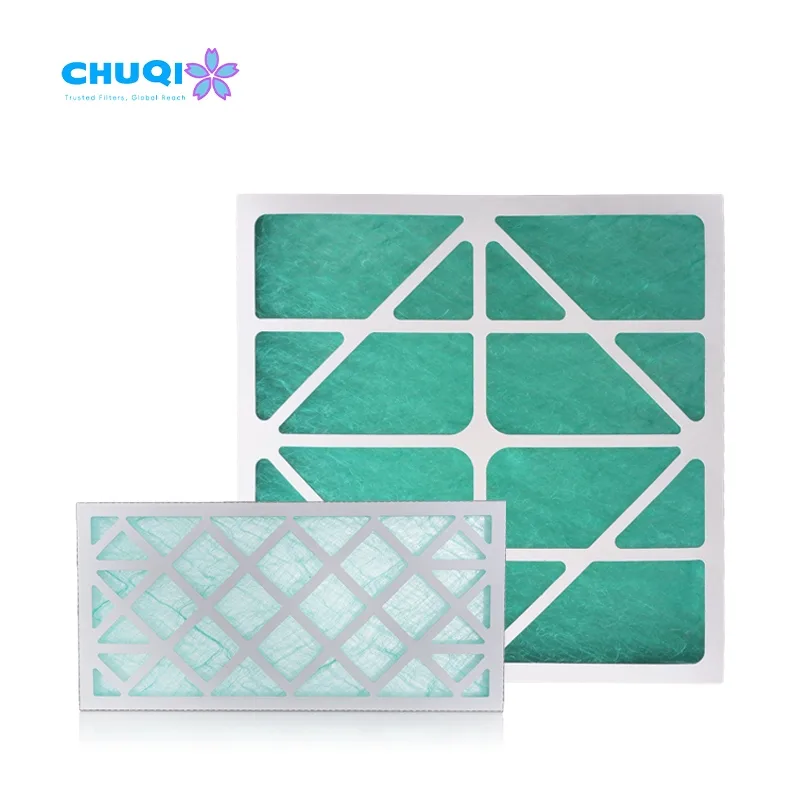

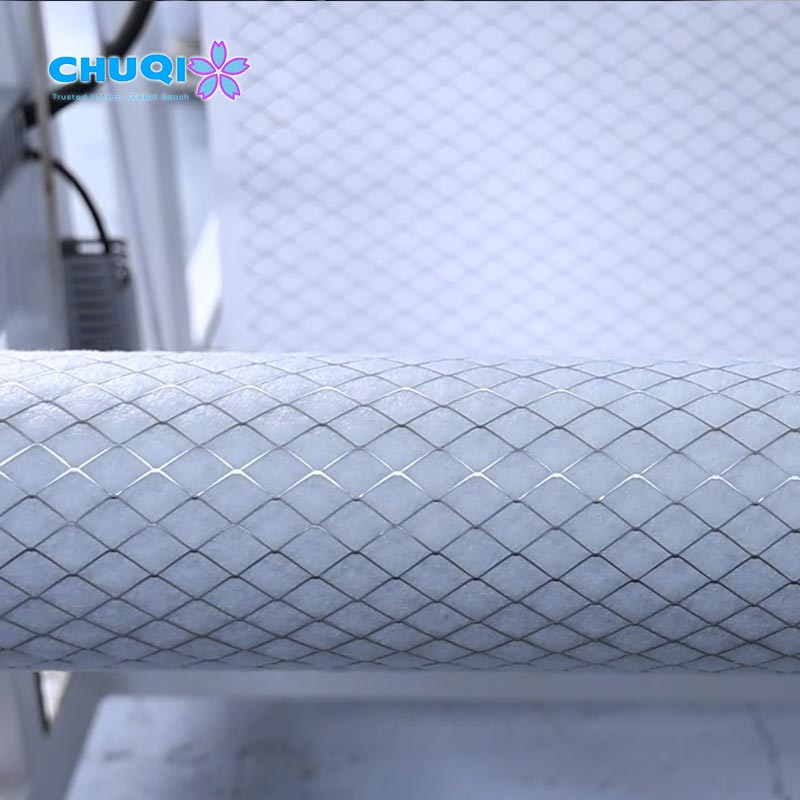

Structural Profile: Constructed with a single sheet of synthetic, cotton, or fiberglass media stretched flush across a rigid cardboard frame, typically reinforced by an internal wire or expanded metal grid.
Ideal Operational Context: Best suited for light-duty commercial environments, residential multi-family complexes, or specialized low-velocity fan systems where coarse lint and large debris are the primary targets (typically lower MERV brackets).
Performance Trade-offs: Because the surface area is completely flat, the active media area equals the face area of the filter. Consequently, flat panels fill up and blind over rapidly under heavy particulate loads, resulting in frequent maintenance cycles and higher labor replacement costs.
Pleated Cardboard Frame Filters: Maximizing Surface Area and DHC
Pleated filters are engineered to overcome the physical limitations of flat panels through advanced mechanical folding.
Expanded Surface Geometry: By folding the media into uniform wedges or radials supported by a rigid frame, pleated cardboard filters expand the active filtration surface area by 200% to 300% compared to flat panels of identical face dimensions.
Enhanced Dust-Holding Capacity (DHC): The massive increase in surface area allows the filter to trap significantly larger volumes of particulate matter—spanning MERV 5 to MERV 15 efficiencies—before reaching terminal pressure drop.
Stable Airflow Dynamics: Despite higher particle arrestance, the expanded pleat matrix maintains low initial resistance, preventing sudden pressure spikes and keeping HVAC fan motor power consumption within stable engineering curves.
Comparative Evaluation: Key Performance Benchmarks
To assist engineering procurement teams in making data-driven sourcing decisions, consider the following comparative breakdown:
| Performance Metric | Flat Cardboard Panel Filters | Pleated Cardboard Frame Filters |
|---|---|---|
| Active Surface Area | Baseline (1x face area) | Expanded (2x to 3x face area) |
| Efficiency Range | Typically lower (MERV 1 to MERV 4) | Broad commercial/industrial span (MERV 5 to MERV 15) |
| Dust-Holding Capacity | Low; rapid surface blinding | High; deep-loading media matrix |
| Replacement Frequency | High (requires frequent monthly swaps) | Extended (longer service intervals, lower labor cost) |
| Initial Pressure Drop (ΔP) | Low initial, but spikes rapidly | Low to moderate, stable over service lifecycle |
How to Select the Right Design for Your Facility
When deciding between pleated and flat cardboard configurations for your procurement portfolio, evaluate your specific operating conditions:
Opt for Pleated Filters If: Your facility operates high-speed AHUs with heavy daily dust loads, requires strict MERV 8–15 efficiency to protect expensive downstream HEPA/bag filters, and aims to minimize ongoing maintenance and labor overhead.
Opt for Flat Panels If: You are managing low-airflow pre-filtration tracks, tight space constraints where deep pleats cannot fit, or low-contaminant environments where basic coarse debris (like heavy lint) is the sole target.
(To review complete dimensional drawings, material grades, and specifications for our full product lineup, explore our comprehensive guide and product catalog on How to Choose and Source Cardboard Frame Air Filters.)
Conclusion & Strategic Sourcing Summary
Neither design is universally superior; rather, matching the panel architecture to your HVAC system’s aerodynamic profile dictates long-term operational success. Whether you require high-capacity pleated options or standard flat configurations, sourcing factory-certified components ensures structural integrity under high relative humidity.
