Low Resistance Pleated Medium Filter F6-F8 for HVAC Energy Saving

Optimize your building’s ventilation performance with our Low Resistance Pleated Medium Filter. Specifically engineered for modern HVAC systems, this F6-F8 medium efficiency panel filter utilizes a high-surface-area pleat design to handle high air flow while maintaining a minimal pressure drop. It is the perfect choice for general air purification in commercial environments seeking to lower fan motor energy consumption.

Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!

Request a Free Quote & Sample Today!
Back to Main Product
Product Key Features
  • Energy Efficient Profile: Engineered for low initial resistance (typically ≤120-200Pa), optimizing total system efficiency.
  • High Dust Holding Capacity: The deep pleat structure provides a massive surface area to capture up to 1120g of dust, extending the service life between replacements.
  • Rigid Construction: Built with a reinforced aluminum alloy frame or galvanized steel to withstand high-velocity airflow.

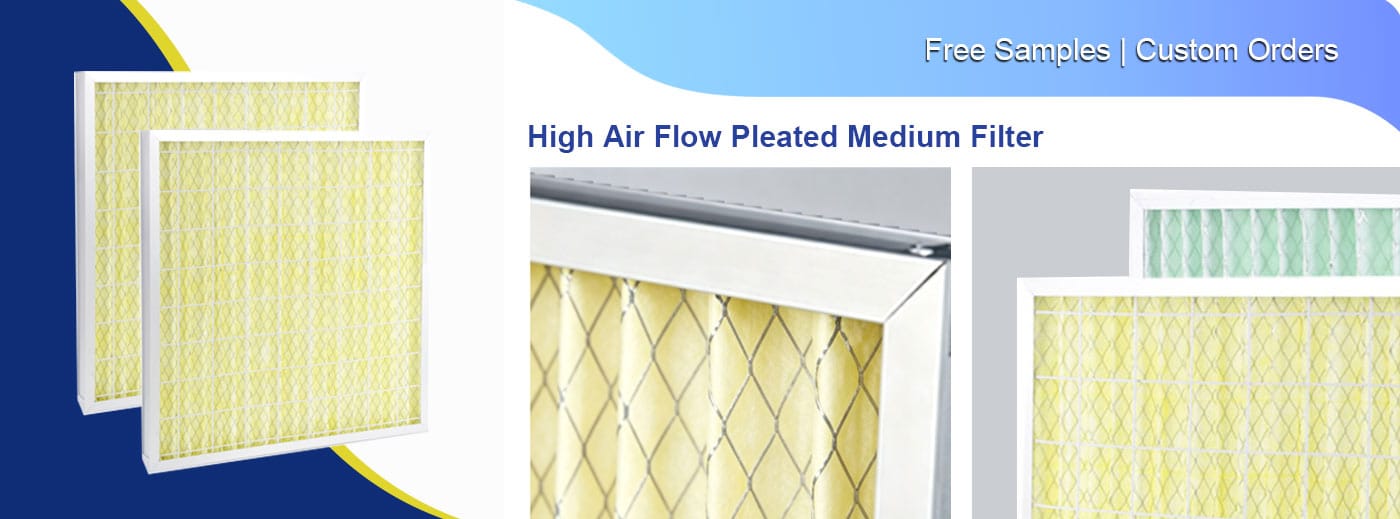

high airflow pleated medium filter yellow

Material & Craftsmanship
  • Filter Media: Premium synthetic fiber or fiber glass paper media with gradient density for layered filtration.
  • Frame Build: Durable Aluminum alloy (Anodized) for corrosion resistance and lightweight handling.
  • Sealant: Secured with professional polyurethane sealant to ensure zero air bypass.
Applications

  • Commercial Ventilation Systems: Ideal for applied in air conditioning systems of airports, premium office towers, and large-scale shopping malls where high air quality and energy efficiency are paramount.

  • Industrial Air Intake: Acts as a reliable secondary filtration stage for centralized AHU units and general factory air purification, protecting sensitive downstream components.

  • Public Infrastructure: Optimized for high-traffic environments requiring general air purification to handle a high air flow without excessive energy draw.

  • Pre-filtration for HEPA Filters: Specifically engineered to serve as an efficient pre-filter, capturing larger particles to extend the service life of terminal HEPA filters in controlled environments.

  • Data Centers: Provides stable filtration with low initial resistance, ensuring critical server cooling systems remain dust-free while minimizing cooling-related power costs.

industrial filter applications manufacturing and spray booth

Competitive Comparison
Feature Chuqi Energy-Efficient ShieldStandard Pleated FiltersThe Chuqi Advantage
Initial ResistanceUltra-low (≤120-200Pa).Often exceeds 250Pa at same flow.
Energy Saving: Drastically reduces fan motor power consumption.
Dust CapacityMassive (Up to 1120g).Typically 400g – 600g.
Longer Life: Fewer replacements and reduced maintenance labor.
Airtight IntegrityPolyurethane sealant (100% bond).+1Basic mechanical clamping.
Zero Bypass: Ensures all air is filtered for superior purity.
Frame QualityAnodized Aluminum alloy.Standard galvanized or plastic.
Durability: Corrosion-resistant and lightweight for easy handling.
Airflow HandlingOptimized for high air flow.Prone to pleat deformation.
Stability: Maintains shape and efficiency in high-velocity streams.
Specifications
External dimensions

(mm)

Rated air volume

(m3/h)

initial resistance

(Pa)

Efficiency (Level)

(class)

Filter media model



295 × 295 × 46 mm1000m³ / h200-320F5-F945-98% Non-woven fabrics and synthetic fibers
495 × 295 × 46m1600m³ / h
495 × 495 × 46mm2800m3/h
595×295×46mm2000m3/h
595×495×46mm3300m3/h
595×595×46mm4000m3/h

Exceptional Energy Efficiency with Low Resistance Design



Chuqi specializes in Central air conditioning medium filtration, offering a Low resistance F6 nonwoven bag filter for energy saving and high-performance pleated solutions. Our Pleated Medium Filter is specifically engineered for modern HVAC systems, maintaining an ultra-low initial resistance (typically ≤120-200Pa) even under high air flow conditions. This precision engineering optimizes total system efficiency and significantly reduces fan motor power consumption.

air filter manufacturer 20 years experience 1

Frequently Asked Questions

Q1: How does the “Low Resistance” design translate to actual energy savings?

  • Our Pleated Medium Filter is engineered for an initial resistance of typically ≤120-200Pa. By maintaining a minimal pressure drop, your HVAC fan motors don’t have to work as hard to push air through, leading to a significant reduction in total system energy consumption.

Q2: Will the filter media remain stable under high-velocity airflow?

  • Yes. The filter is built with a reinforced aluminum alloy frame or galvanized steel and secured with professional polyurethane sealant. This rigid construction is specifically designed to withstand high-velocity airflow without media bypass or deformation.

Q3: What is the benefit of the “Deep Pleat” structure?

  • The deep pleat design provides a massive surface area that can capture up to 1120g of dust. This high dust holding capacity significantly extends the interval between filter changes, offering an industry-leading long service life.

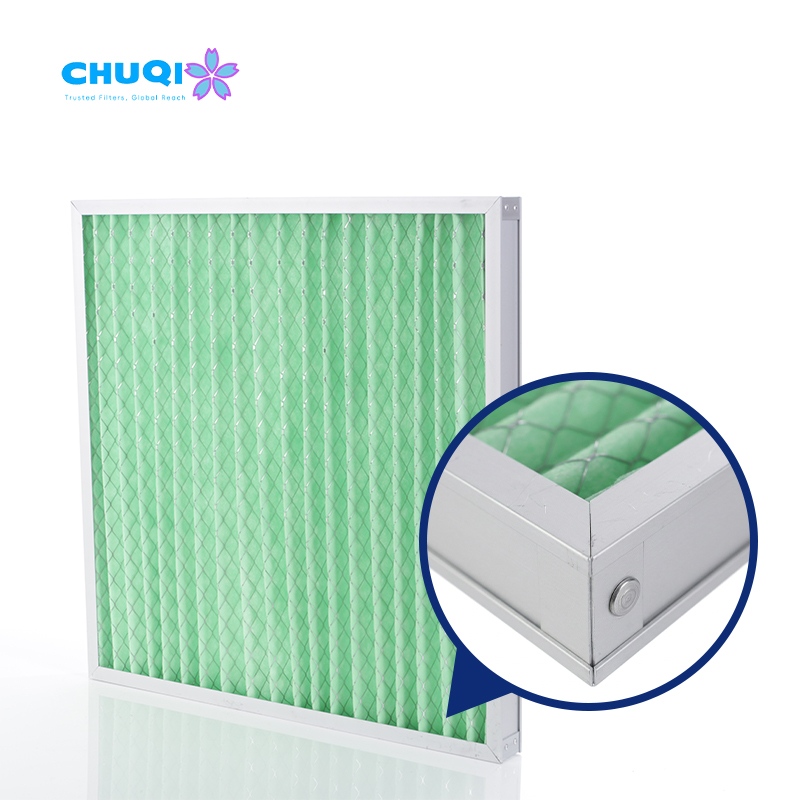

Q4: Can this filter be used in humid environments?

  • Absolutely. We use premium synthetic fiber or gradient density fiber glass paper media and durable anodized aluminum frames, which provide excellent resistance to moisture and corrosion.

Q5: Is this filter suitable for protecting terminal HEPA filters?

  • Yes, it is a perfect choice for secondary filtration. By efficiently capturing sub-micron and larger particles, it acts as a high-performance shield that extends the lifespan of expensive terminal HEPA filters in pharmaceutical or electronics sectors.
