High Efficiency Spray Booth Ceiling Filter for Automotive Painting

Achieve a flawless finish with the Chuqi High Efficiency Spray Booth Ceiling Filter. Specially developed for the automotive painting industry, this premium diffusion media utilizes a unique 3D glue dipping process to ensure maximum adhesion to even the smallest dust particles. By providing a stable laminar flow, it creates the perfect micro-environment for surface coating and hull painting, effectively preventing defects and ensuring uniform air distribution across the entire workspace.

Need a Custom Quote or Free Material Samples?
CHUQI delivers high-performance, custom OEM/ODM solutions tailored to your specifications. Contact us today to access factory-direct pricing, custom dimensions/efficiencies, and free sample support!

Request a Free Quote & Sample Today!
Back to Main Product
Product Key Features
  • Filtration Grade: Rated at F5 grade with an initial filtration efficiency of up to 99.9%.
  • Airflow Balance: Specifically engineered to balance air flow, maintaining consistent wind speeds of 0.25m/s – 0.30m/s.
  • Dust Retention: Features a multi-layered, progressive density structure with a dust holding capacity of up to 512g/m².
  • Anti-Migration: Equipped with a high-density cloth on the air outgoing side to prevent fiber migration into the paint zone.

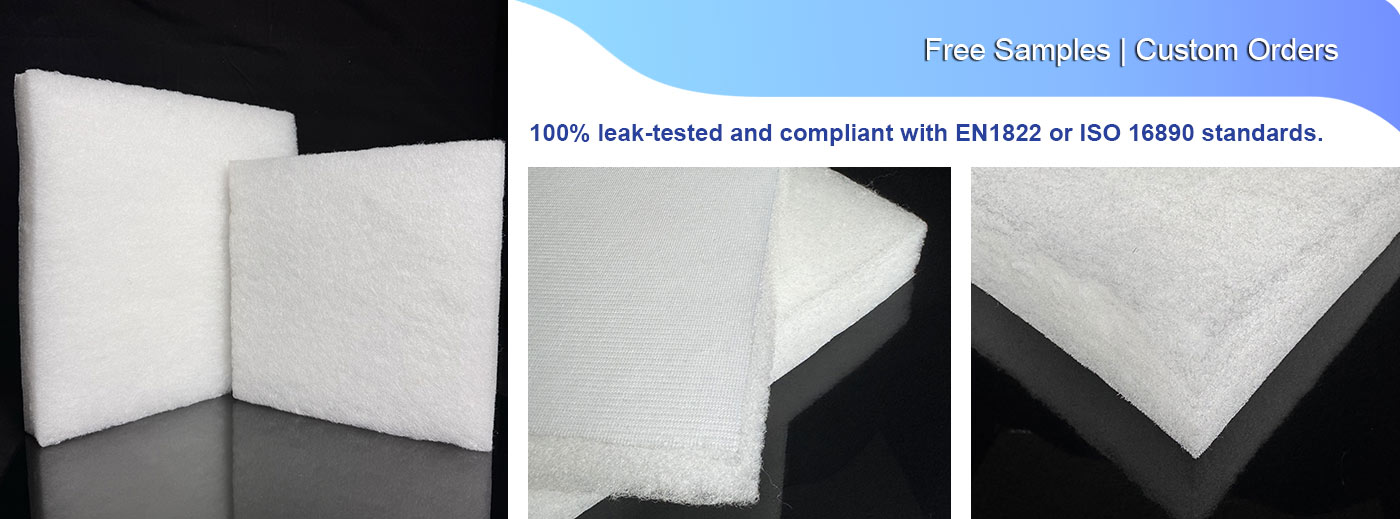

chuqi ceiling filter cotton for automotive spray booth

Material & Craftsmanship
  • Core Fiber: Super-long, anti-breaking synthetic fiber with specialized heat-welding treatment.
  • Adhesive Technology: Full-depth impregnation using high-quality water-soluble resin (3D Glue Dipping).
  • Surface Finish: Heat-welded fibers paired with a protective net or cloth to ensure zero fiber shedding.



Applications
  • OEM Automobile Manufacturing: The standard choice for high-end paint spray booths in vehicle production lines to ensure a mirror-like finish.
  • Luxury Furniture Coating: Ideal for dust-free coating lines used for premium wood, piano finishes, and high-gloss metal furniture.
  • Aerospace Component Painting: Provides critical air purification for the precision painting of aircraft parts and composite materials.
  • Automotive Aftermarket Refinishing: High-performance filtration for professional vehicle repair workshops and custom spray booths.
  • Marine & Hull Painting: Critical for large-scale industrial surface coating of ship hulls and luxury yachts where wind uniformity is essential.z
  • Consumer Electronics Casing: Ensures a particle-free environment for the coating of laptop, smartphone, and camera housings.

  • High-Speed Train Refurbishment: Used in large-scale industrial coating machinery for the maintenance of rail transport exteriors.

ceiling filter cotton spray booth installation

Competitive Comparison
FeatureChuqi 3D Glue Dipping Filter Standard Surface-Tacky FiltersThe Chuqi Advantage
Adhesive Coverage

3D Full-Depth Glue Dipping. Every fiber is coated.

Only the surface or part of the media is sticky.Extreme Dust Capture: Stops even the smallest sub-micron particles from falling onto the paint.
Airflow Stability

Laminar Flow Diffusion (0.25-0.30m/s).

Prone to turbulence or uneven air distribution.Flawless Finish: Prevents “orange peel” and other surface defects caused by uneven air.
Fiber Integrity

Anti-breaking synthetic fiber with high-density cloth.

Loose fibers that may shed over time.Zero Contamination: No fiber migration into the fresh paint layer.
Service Life

Progressive Density (512g/m² capacity).

Uniform density that clogs quickly at the surface.Reduced Downtime: Longer intervals between filter changes, lowering operational costs.
Specifications
modelM W-450GM W-500GM W-540GM W-560GM W-600GLW-600GLW-650GM WB-400GM WB-450GM WB- 500G
colorWhiteWhiteWhiteWhiteWhiteWhiteWhiteWhiteWhiteWhite
gram450G500G540G560G600G600G650G400G450G500G
Thickness (mm)20twenty twotwenty twotwenty threetwenty threetwenty three2520twenty twotwenty three
Filtering levelsF5F5F5F5F5F5F5F5F5F5
Maximum operating temperature (degrees)100100100100100100100100100100
Cotton production number2800#3200#3500#3700#3900#4000#4500#2800#3200#3500#

Industry-Leading 3D Glue Dipping Technology for Flawless Surface Quality

At the core of our manufacturing process is a specialized 3D Glue Dipping technology that sets us apart from standard suppliers. Unlike surface-tacky filters, Chuqi ensures every single fiber within the diffusion media is fully impregnated with high-quality resin. This deep-bed adhesive coverage provides extreme dust capture throughout the entire 24mm thickness, effectively trapping sub-micron particles and preventing “orange peel” or surface defects in high-end automotive and industrial painting applications.

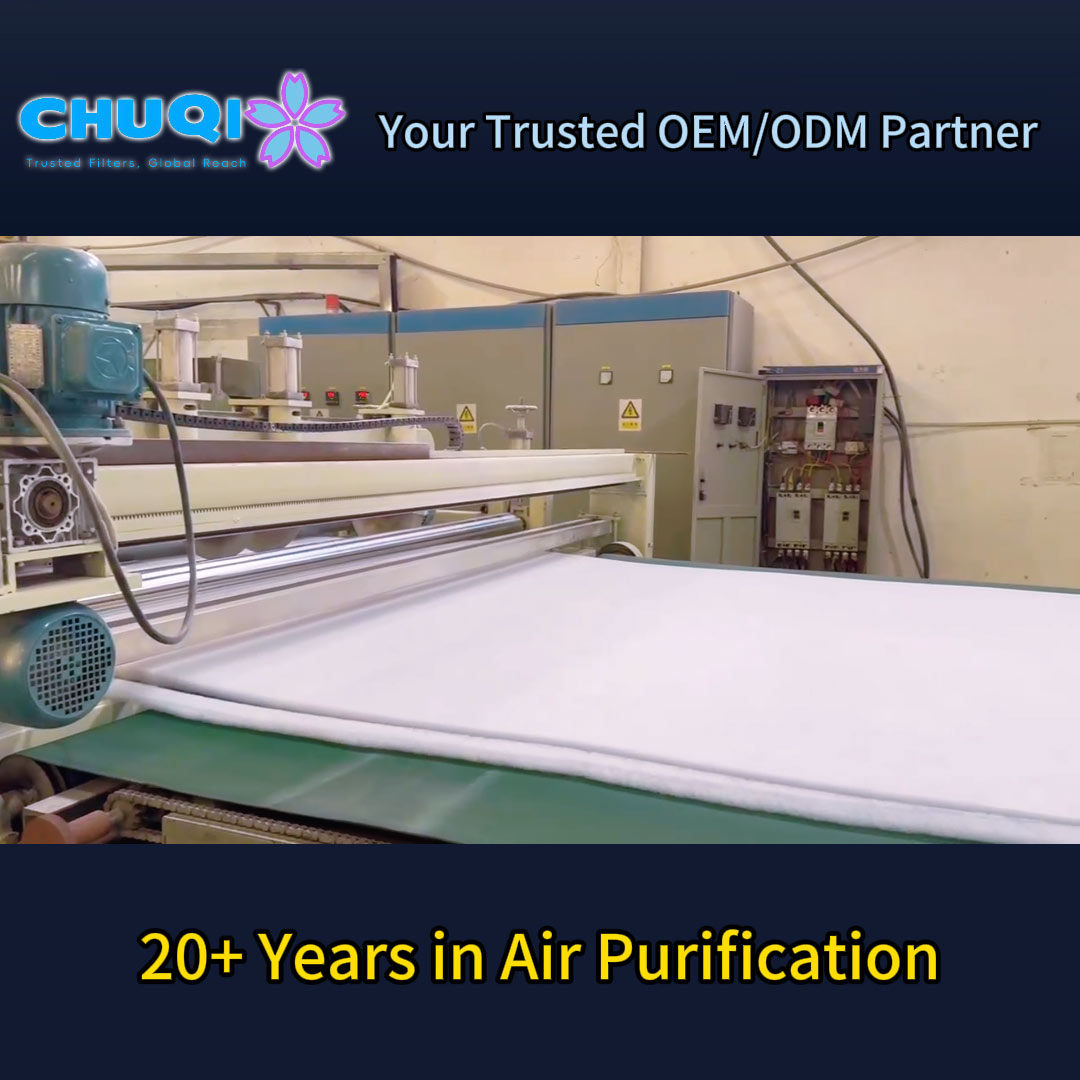

industrial air filter supplier china

Frequently Asked Questions

Q1: What makes “3D Glue Dipping” better than standard tacky filters?

 Our 3D glue dipping technology ensures that every single fiber is fully impregnated with adhesive resin, not just the surface. This provides extreme dust capture throughout the entire thickness of the filter.

Q2: Will this filter shed fibers onto my fresh paint job?

No. We use anti-breaking synthetic fiber and a reinforced high-density cloth on the air-exit side to ensure absolutely zero fiber migration.

Q3: How does this filter help achieve a uniform “mirror finish”?

It is engineered to balance air flow across the entire spray booth, delivering a stable wind speed of 0.25m/s – 0.30m/s, which is critical for an even paint application.

Q4: Is the filter media fire-resistant for safety in the paint booth?

 Yes, our synthetic fiber is heat-welded and treated to meet professional industrial safety standards, ensuring reliable performance in the presence of paint vapors.

Q5: What is the typical service life for the Chuqi F5 Ceiling Filter?

Thanks to its progressive density structure, it has a high dust holding capacity (up to 512g/m²), which generally allows for longer operation cycles compared to standard filters.
