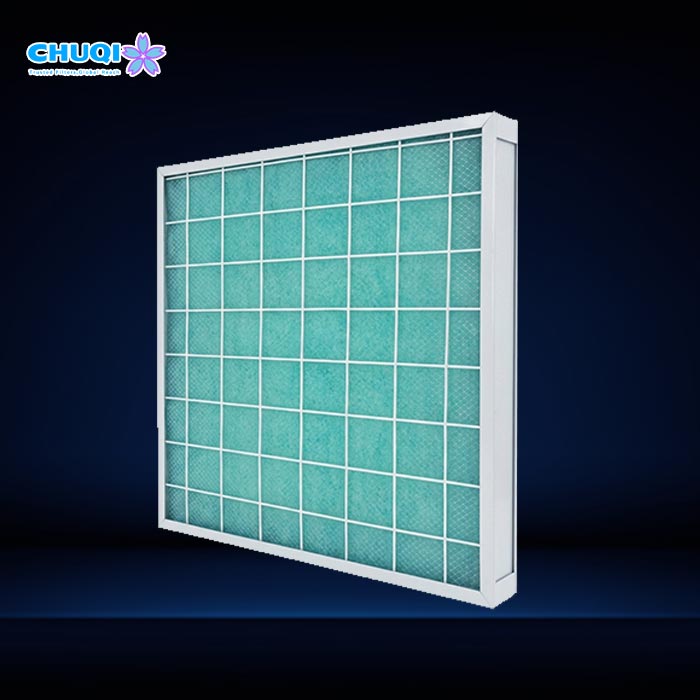

Engineered for demanding industrial coating environments, this 595x595x25mm G2 fiberglass air filter serves as an essential primary stage filter in spray booth ventilation systems. High overspray and aggressive chemical fumes often cause conventional pre-filters to clog prematurely, leading to sudden pressure drops and system downtime.
Built with a progressive-density glass fiber matrix and a corrosion-resistant aluminum alloy frame, our G2 panel filter captures heavy paint particles deep within the media. This depth-loading design prevents surface blinding, ensures continuous airflow, and protects downstream secondary HEPA and pocket filter systems.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

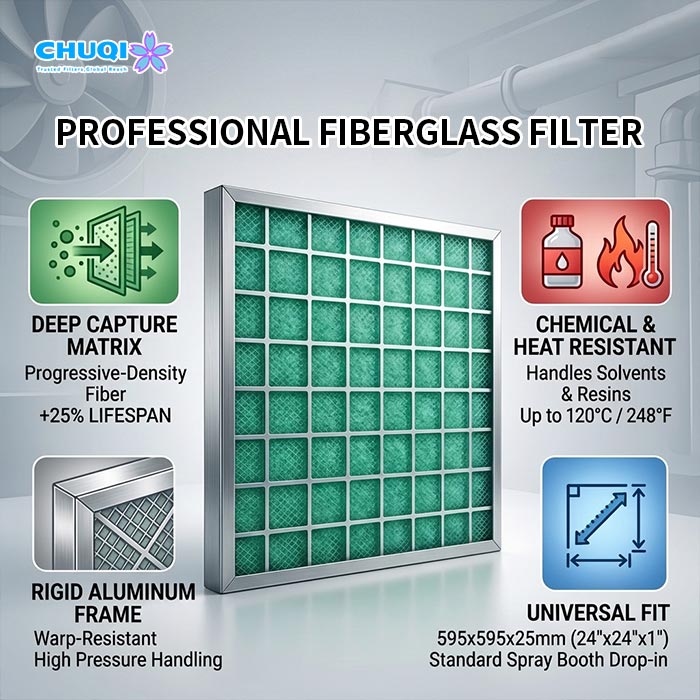

High Dust-Holding Capacity: Featuring a progressive-density glass fiber matrix, this paint stop filter captures overspray depth-wise without surface blinding, extending operational service life by up to 25% and reducing filter change-out frequency.

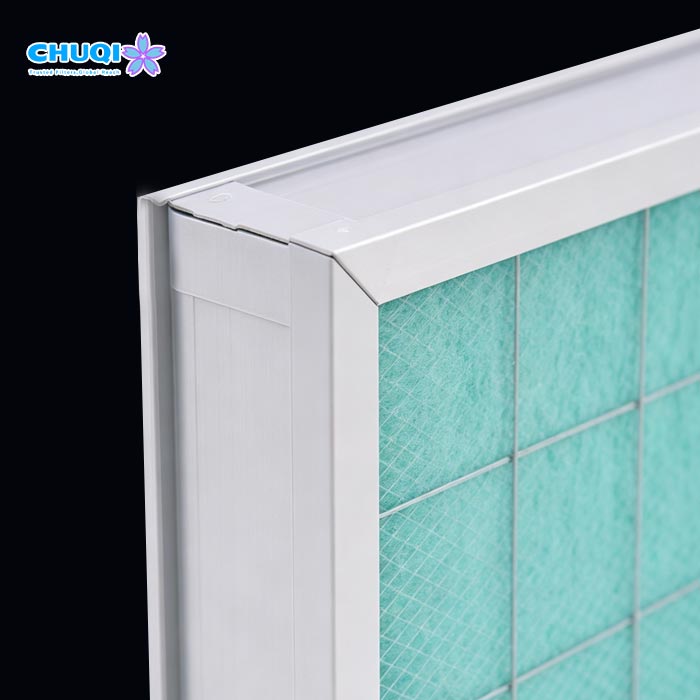

Rigid Anodized Aluminum Frame: Constructed with a solid extruded aluminum channel and reinforced backing grid, it eliminates frame warping, edge curling, and perimeter air bypass even under elevated static pressures and high air velocities.
Chemical & Thermal Resistance: Engineered with non-flammable, heat-set fiberglass air filter filaments, it effortlessly withstands aggressive solvent vapors, sticky resin mists, and continuous operating temperatures up to 120°C (248°F) for safe, reliable filtration.
Universal 595x595x25mm Fit: Precision-manufactured to match standard global 24″x24″x1″ spray booth filter tracks, side-access mounting frames, and industrial AHU housings for seamless, drop-in replacement without installation retrofits.
| Parameter | Specification |
| Filter Class | G2 (EN779) / MERV 4-5 |
| Standard Dimensions | 595 x 595 x 25 mm (Custom sizes available) |
| Frame Material | Extruded Aluminum Alloy / Galvanized Steel |
| Filter Media | Progressive Density Fiberglass |
| Initial Resistance | ~25 Pa |
| Recommended Final Resistance | 150 Pa |
| Temperature Resistance | Up to 120°C (248°F) |
| Arrestance Efficiency | 65% – 75% |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.
Specially tailored as a paint booth exhaust filter and intake pre filter, this model integrates seamlessly into commercial air filtration system units, Air Handling Units (AHUs), and auto refinishing down-draft booths. It captures heavy particulates before air stream enters secondary HEPA banks, directly protecting high-efficiency units and exhaust motor impellers from overspray buildup. Facility managers relying on factory direct air filter solutions can easily standardize on this unit across metal fabrication, furniture finishing, and aerospace coating bays.
In continuous multi-shift production lines with severe overspray exposure, we advise tracking airflow resistance via differential pressure gauges and swapping the unit upon reaching terminal delta-P. Under moderate paint spraying booth workloads, its layered fiberglass matrix extends operational intervals by up to 25% compared to synthetic pads, lowering overall facility maintenance overhead.
Frequently Asked Questions
Q: Is this 595x595x25mm filter compatible with standard spray booth tracks?
A: Yes. The exact 595x595x25mm (1-inch) dimensions align with standard global spray booth holding channels, side-access AHU frames, and filter banks without requiring modifications.
Q: How does progressive density fiberglass handle paint overspray?
A: Unlike synthetic media that rapidly surface-clogs, progressive density fiberglass features open fibers on the air-entry side to trap large droplets and denser fibers on the air-exit side. This 3D depth-loading structure allows the media to hold significantly more paint mass before airflow resistance rises.
Q: Can this filter protect downstream secondary and HEPA filters?
A: Absolutely. As a primary G2 pre-filter, it captures up to 75% of coarse paint mist and debris. By taking the heavy loading burden off secondary bag filters or HEPA units, it can extend the lifespan of expensive downstream filters by up to 300%.
Q: Do you support custom sizes and OEM manufacturing?
A: Yes, as a direct-from-factory air filter supplier, we provide custom sizes, custom framing materials, and OEM private labeling for equipment manufacturers worldwide.
