For automotive body shops and industrial paint line managers, finding the sweet spot between operating budget and flawless clearcoat finish is a constant challenge. High-end filter media can be cost-prohibitive for high-frequency replacement, while low-grade alternatives lead to particle blow-through, paint defects, and costly labor rework.
Our 600g F5 Paint Booth Ceiling Filter Rolls are engineered to bridge this gap—delivering premium 95%+ particle retention and maximum dust holding capacity at an accessible factory-direct cost.
Superior Dust Retention via Progressive Density: Manufactured with a gradient matrix (coarser inlet fibers transitioning to dense outlet fibers), this 600g paint booth ceiling filter media traps micro-particulates through its full depth rather than clogging on the surface, dramatically extending operational service life.
3D Tackifier Gel Eliminates Rework Costs: Impregnated throughout with non-drying thermal tackifier glue, our 600g F5 ceiling filter rolls lock in micro-contaminants down to 5 microns. By eliminating particle blow-through and paint nibs, it saves thousands in labor polishing and recoating.
Lower Total Cost of Ownership (TCO): Compliant with EN779 F5 and ISO 16890 M5 standards, the 600g matrix maintains an optimal low initial pressure drop to reduce fan energy usage while keeping routine media replacement costs significantly lower than heavy-density alternatives.
The Global Benchmark for Body Shops: Designed as the universal standard SKU for commercial spray booths, sourcing 600g F5 ceiling filter rolls factory direct gives wholesale distributors and booth operators maximum return on investment with guaranteed batch-to-batch consistency.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.
The performance of our 600g paint booth ceiling filter media lies in its heavy-duty structural matrix and deep-bed filtration technology. Engineered specifically for demanding automotive refinishing environments, these 600g F5 ceiling filter rolls deliver unmatched particle retention and airflow stability across busy spray bays.

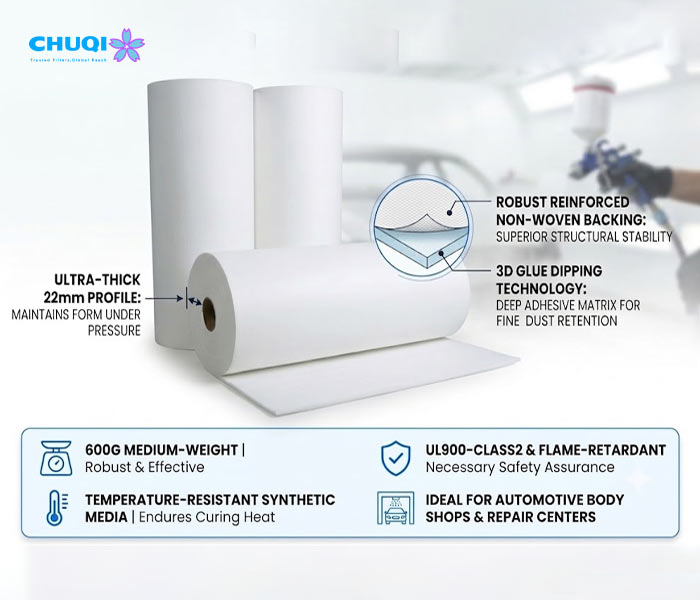

Ultra-Thick 22mm Profile: Our 600g 22mm ceiling filter rolls for spray booth applications are manufactured with dense synthetic fibers to maintain structural loft under fluctuating plenum pressures, preventing media sagging and edge air bypass.
Full-Depth 3D Glue Dipping Technology: The viscous tackifier gel is deeply embedded throughout the entire 22mm media thickness, permanently locking in micro-dust particulates down to 5 microns to eliminate costly clearcoat nibs.

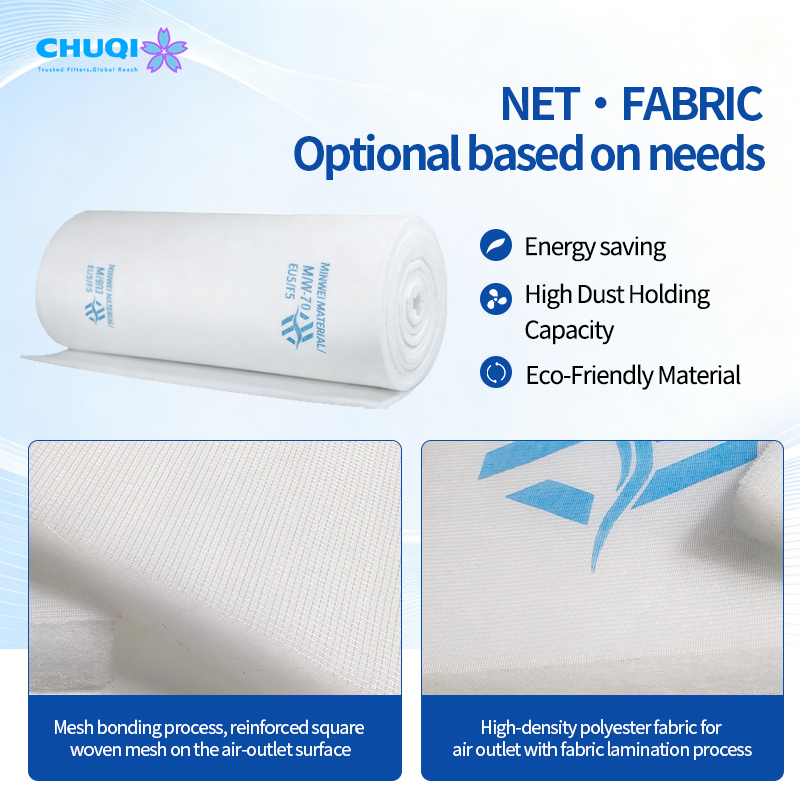

Robust Reinforced Backing: Laminated with a high-tensile non-woven mesh backing on the air-exit face, ensuring zero fiber migration or shedding into fresh paint coats during continuous baking cycles.
Certified Flame-Retardant & Heat Resistant: Compliant with UL900 Class 2 and DIN 53438-F1 fire safety standards, withstanding continuous spray booth temperatures up to 100°C–130°C without shrinking or degradation.
| Parameter | Specification |
|---|---|
| Color | White |
| Gram Weight (GSM) | 600 g/m² |
| Thickness | 25 ± 2 mm |
| Air Velocity | 0.26 m/s |
| Air Flow Rate | 910 m³/h |
| Initial Resistance | 35 Pa |
| Final Resistance | 450 Pa |
| Average Filtration Efficiency | 99.80% |
| Dust Holding Capacity | 477 g/m² |
| Max Thermal Resistance | 130°C |
| Efficiency Grade | F5 (EN779) / M5 (ISO 16890) |
| Flame Retardancy Standard | DIN 53438-F1 / UL900 Class 2 |
Engineered specifically for high-precision finishing operations, our 600g F5 paint booth ceiling filter rolls deliver uniform airflow diffusion and deep-bed particulate trapping across key commercial and industrial painting environments:
Automotive Collision Repair & Body Shops: Ideal for auto body refinishing bays and independent repair shops requiring mirror-like clearcoat finishes with zero particle contamination.
Downdraft & Semi-Downdraft Spray Booths: Perfectly matches standard ceiling plenum grids in downdraft and cross-draft booths, maintaining steady static pressure and eliminating turbulence over target spray zones.
Commercial 4S Dealerships & Franchise Centers: Serves high-throughput dealership paint facilities needing durable 600g 22mm ceiling filter rolls for spray booth setups to handle continuous daily baking cycles.
Industrial Equipment & Parts Coating Lines: Provides reliable final-stage air diffusion for high-volume machinery parts, metal enclosures, and custom industrial painting chambers.
To ensure maximum operating efficiency and flawless finish quality, proper maintenance of your 600g F5 paint booth ceiling filter rolls is essential across professional automotive and industrial painting environments:
Automotive Collision & Refinishing Centers: Inspect pressure differential daily. In high-volume body shops, replacing the 600g ceiling filter rolls every 300 to 600 operating hours prevents particulate overload and maintains pristine clearcoat finishes.
Commercial Downdraft Spray Booth Bays: Monitor initial vs. final pressure drop (recommended changeout threshold at 450 Pa). Regular replacement schedules prevent air turbulence, keeping air diffusion perfectly uniform over active spraying zones.
Industrial Parts Coating Lines: Timely media replacement prevents fan motor strain in continuous-duty air handling units, ensuring optimal airflow speed without unexpected downtime or high energy costs.
Frequently Asked Questions about 600g F5 Paint Booth Ceiling Filter Rolls
Q1: What is 600g F5 Paint Booth Ceiling Filter Rolls?
A: 600g F5 paint booth ceiling filter rolls refer to heavy-duty, 25mm synthetic air diffusion media weighing exactly 600 grams per square meter, engineered to EN779 F5 (ISO M5) standards with an exceptional 99.80% average filtration efficiency. Featuring an initial resistance of just 35 Pa, a high dust holding capacity of 477 g/m², and heat resistance up to 130°C, this exact 600g specification is installed in spray booth ceiling plenums to deliver uniform, turbulence-free air distribution while holding significantly more overspray particulates than lighter 500g or 560g media.
Q2: Why is 600g/m² considered the sweet spot compared to lighter 500g or heavier 650g media?
A: Lighter 500g media lacks sufficient thickness to prevent sagging under plenum air pressure and clogs quickly. Conversely, heavier 650g media often increases static resistance and fan power consumption. Our 600g 22mm ceiling filter rolls for spray booth systems hit the precise structural balance—delivering low initial pressure drop (~26 Pa) and high dust holding capacity without over-stressing booth ventilation fans.
Q3: How does the 600g fiber density extend the service life of spray booth ceiling filters?
A: Gram weight directly dictates total fiber volume. The substantial gradient matrix of our 600g paint booth ceiling filter media enables deep-bed particulate trapping rather than surface-only clogging. This extra fiber mass allows the media to absorb high volumes of overspray and micro-dust before reaching terminal resistance, extending operating service life up to 500–600 hours in active body shops.
Q4: Does the 600g weight profile prevent micro-particle blow-through during paint baking cycles?
A: Yes. Combined with full-depth 3D tackifier glue dipping and reinforced backing, our F5 M5 ceiling filter rolls 600g/m² keep micro-contaminants permanently locked within the 22mm matrix. The dense 600g loft withstands heat up to 100°C–120°C without shrinking, off-gassing, or releasing synthetic fibers onto fresh clearcoats.
Q5: Can custom roll widths be ordered when buying wholesale 600g F5 paint booth ceiling filters factory direct?
A: Absolutely. When sourcing wholesale 600g F5 paint booth ceiling filters directly from our manufacturing facility, we produce custom roll widths (from 0.8m up to 2.4m) precisely matched to the weight-bearing framework of your ceiling plenum grid, ensuring easy installation without air bypass.
