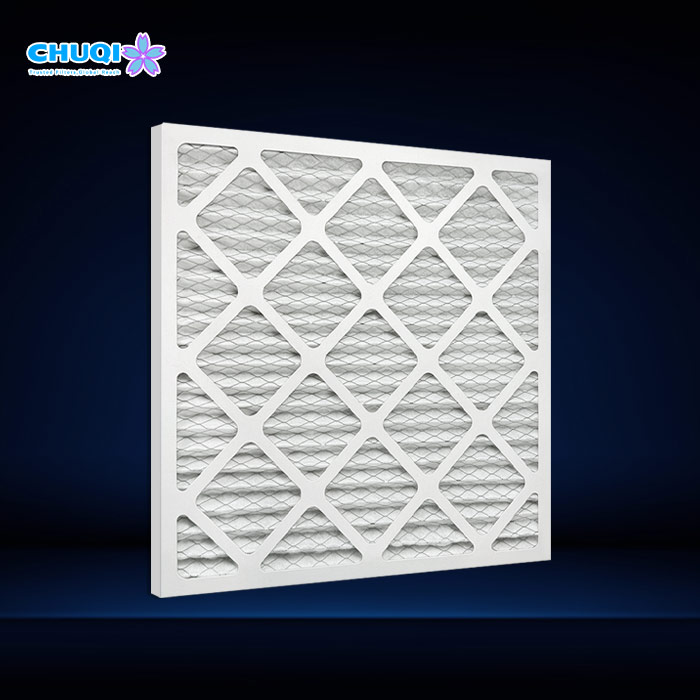

Humid ambient air intake and sudden moisture exposure cause conventional paper frame filters to warp, lose tension, and collapse under fan suction. The 20x20x1 MERV 8 cardboard Frame Pleated Filter solves humidity-induced failure through a heavy-duty moisture-impervious beverage board frame, delivering high-capacity dust capture while maintaining frame rigidity.
- Moisture-Resistant Frame Shield: Specialized beverage board resists water absorption, warping, and perimeter seal degradation in high-humidity intake conditions.
- Protects Downstream Components: Intercepts coarse dust, lint, and airborne debris (5 microns and larger) to prevent premature loading of expensive secondary filter banks.
- Eliminates Filter Bypass: Die-cut diagonal grid supports and double-wall perimeter keep the filter pack square and sealed inside AHU tracks.
- Lower Facility Operating Costs: High dust-holding pleat geometry extends operational lifespan, reducing frequency of maintenance service cycles.
Need This Specification in Bulk?
We offer flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements. Contact our team for a fast quote or to verify compatibility with a free test sample.

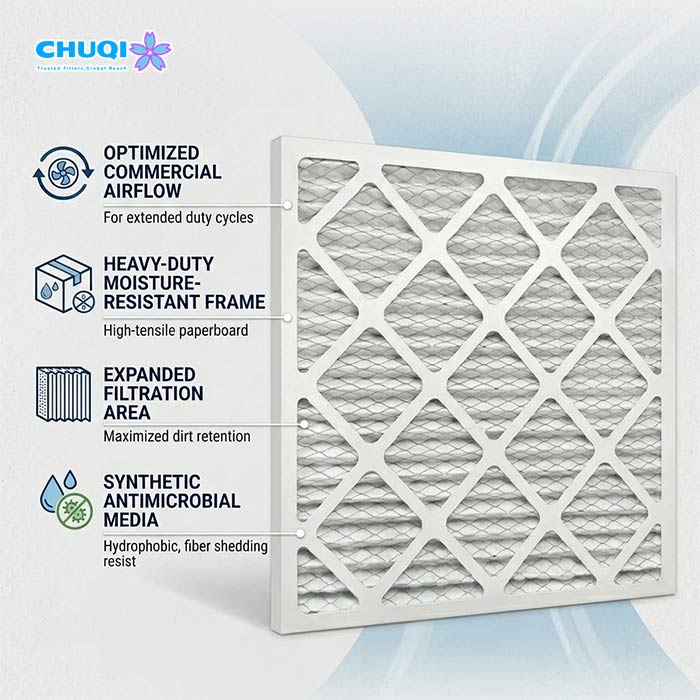

Optimized for continuous commercial airflow, this 20x20x1 pleated filter delivers high dirt retention with minimal fan power draw across extended duty cycles.

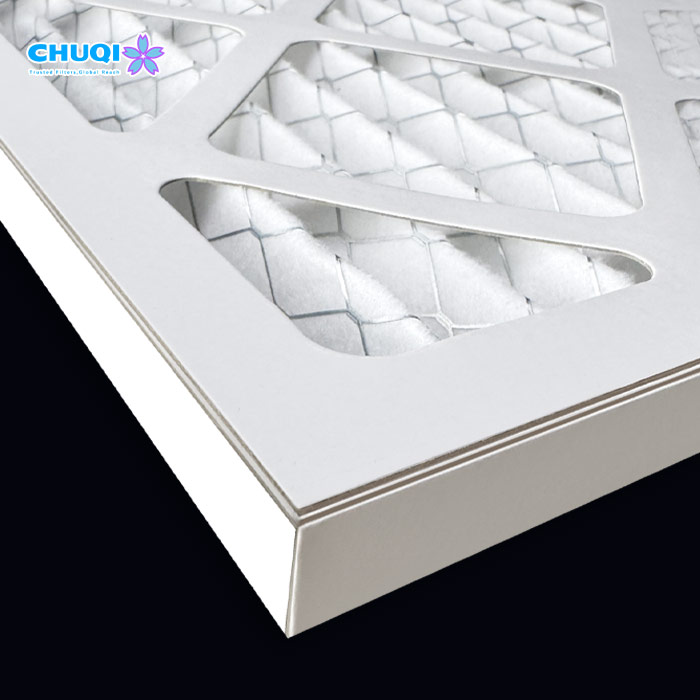

- Heavy-Duty Beverage Board Housing: High-tensile paperboard treated with moisture-repellent resins withstands mechanical stress and ambient dampness.

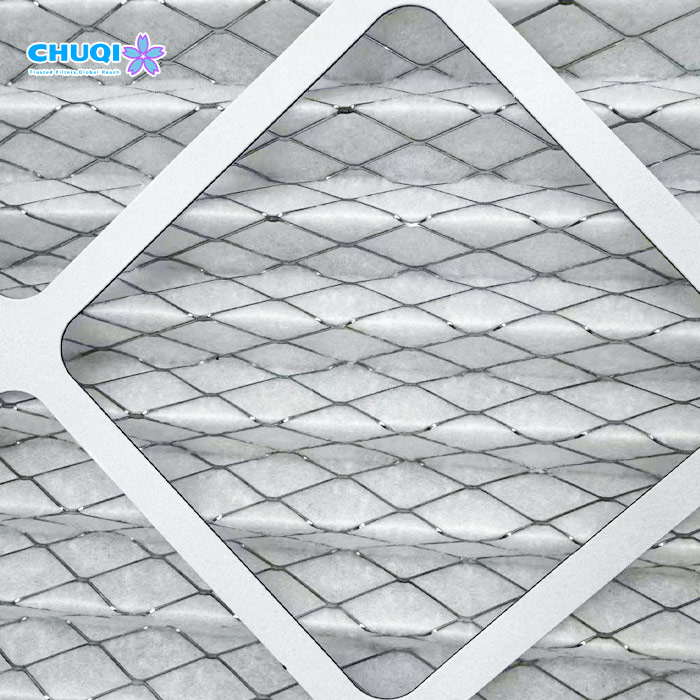

- Expanded Pleat Surface Geometry: Uniform pleat count maximizes active media filtration area, maintaining low initial static pressure drop.

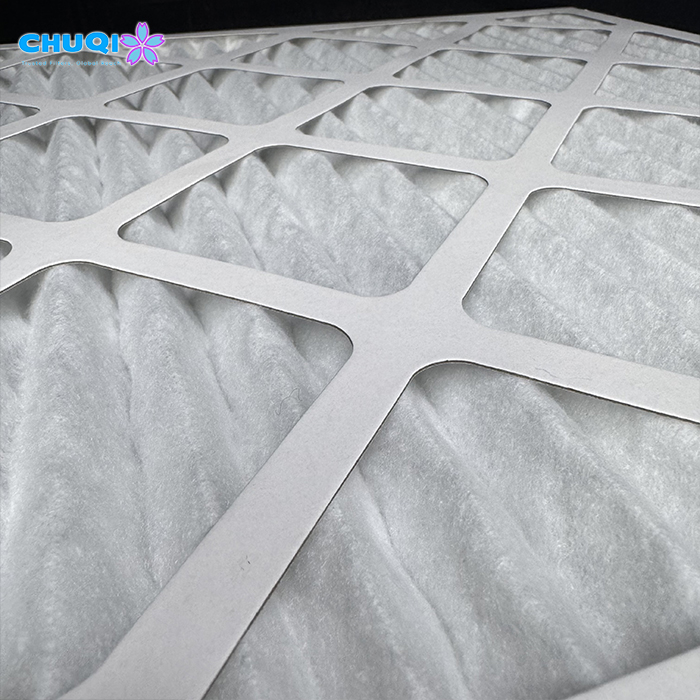

- Synthetic Non-Woven Media Blend: Hydrophobic polyester fibers resist moisture pooling, fiber shedding, and microbial growth under humid airflow.
- Convenient Disposable Design: Lightweight 1-inch profile allows rapid, tool-free installation and safe disposal for commercial maintenance crews.
| Specification | Value |
| Filter Rating (ASHRAE 52.2 / EN779) | MERV 8 / G4 equivalent |
| Nominal Dimensions | 20″ x 20″ x 1″ (Actual: Approx. 495 x 495 x 22 mm) |
| Depth Profile | Nominal 1-Inch (22mm / 25mm profile) |
| Filter Media Type | 100% Non-woven hydrophobic synthetic polyester pleats |
| Frame Construction | Moisture-resistant die-cut Beverage Board |
| Initial Pressure Drop | ~45 Pa at standard nominal velocity |
| Recommended Final Pressure | 180 – 200 Pa |
| Max Operating Temperature | Continuous 70°C (158°F) |
| Relative Humidity Resistance | Up to 100% RH (Moisture resistant) |
Fully customizable specifications available. For detailed technical data, please 【visit the product page】 or 【reach out to our technical team】directly.

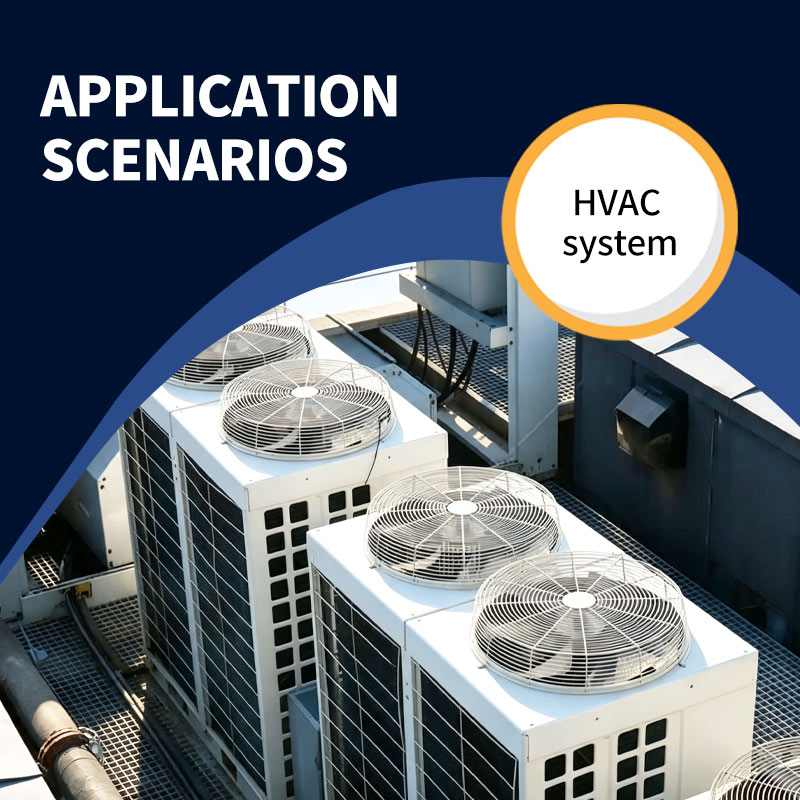

Engineered to standard 20x20x1 commercial dimensions, this filter integrates seamlessly across diverse HVAC equipment configurations:
Equipment Compatibility: Standard drop-in replacement for commercial Air Handling Units (AHUs), rooftop units (RTUs), fan coil units (FCUs), and split intake grilles.
Commercial Real Estate: Ideal for office towers, retail centers, hotel complexes, and schools requiring reliable baseline air quality.
Light Industrial Air Handling: Effective as a primary intake pre-filter for assembly plants, warehouses, and clean room makeup air systems.
Facilities management teams should align replacement cycles with seasonal ambient dust and humidity conditions:
Standard Commercial Operations: In typical office or institutional environments, replace filters every 60 to 90 days during scheduled HVAC servicing.
High-Traffic / Humid Applications: In heavy occupancy zones or coastal intake setups, inspect monthly; replace every 30 to 45 days when pressure drop peaks.
Maintenance Best Practices: Monitor differential pressure gauges to replace filters at optimum dust loading limits, protecting fan motors from excessive drag.
Frequently Asked Questions About 20x20x1 MERV 8 Filters
Q1: What makes a beverage board frame better than standard kraft cardboard for 20x20x1 filters?
A1: Beverage board is manufactured with moisture-resistant resins and wet-strength fibers. Unlike regular cardboard, it will not absorb humidity, soften, or buckle under high-moisture air conditions, ensuring full structural integrity throughout its service life.
Q2: How does MERV 8 rating benefit commercial HVAC systems compared to lower-efficiency fiberglass filters?
A2: A MERV 8 rating captures up to 70-85% of particles sized 3.0 to 10.0 microns, including dust, pollen, and synthetic fibers. This provides significantly better air cleaning than basic fiberglass throwaways while maintaining low airflow resistance.
Q3: Are these 20x20x1 MERV 8 filters available for private labeling or custom packaging for distributors?
A3: Yes. As a direct factory manufacturer, we offer full B2B OEM services, including custom box printing, branded filter frame labeling, barcode packaging, and custom pallet configurations for bulk wholesale orders.
Q4: How does the pleated synthetic media help lower system energy costs?
A4: The pleated design provides up to three times more surface area than flat panel filters. This larger surface area lowers initial pressure drop and allows air to flow easily, reducing electric motor load on AHU fans.
Q5: What is the packaging standard for ocean shipping to prevent moisture damage to bulk order cartons?
A5: Filters are master-carton packed, wrapped in protective plastic shrink-wrap, and stacked on export-grade wooden pallets with edge guards to guarantee dry, undamaged delivery during long-distance transit
