Deep Pleat Separator HEPA Filter 3400m³/H for Industrial Cleanrooms
The Chuqi separator type HEPA filter is specifically designed for high-volume air purification. Utilizing precision aluminum foil separators, this deep pleat HEPA filter maintains its structural integrity under high-pressure conditions. If you need a large airflow HEPA filter (rated up to 3400m³/h) with a robust box-type frame, our solution offers the perfect balance of durability and extreme filtration performance.
Product Key Features
- Enhanced Dust Holding: The deep-pleated fiberglass media extends the filter’s service life, reducing overall maintenance frequency.
- High Air Capacity: Engineered for rated air flow volumes from 400m³/h to a powerful 3400m³/h per unit.
- Heavy-Duty Construction: The external frame is available in thick-gauge galvanized or stainless steel for maximum rigidity.
- Precise Filtration: Individually tested to meet 99.99% @ 0.3um and 99.9995% @ 0.12um technical standards.
Material & Craftsmanship
- Frame Materials: Extruded Aluminum alloy or stainless steel steel casing outside.
- Sealing: Specialized gel-glue and polyurethane sealant for high-pressure durability.

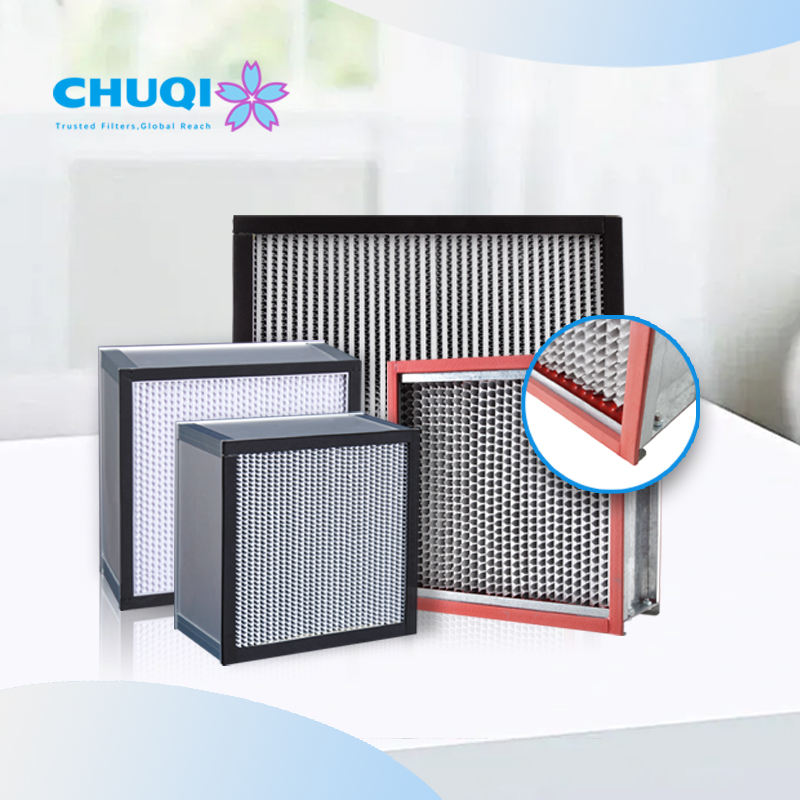

- Internal Media: Fine fiberglass filter paper with H13/H14/U15 ratings.
- Operating Limits: Heat resistant up to 80°C and 80% humidity.
Applications
-
Semiconductor Wafer Fabrication: Critical for Wafer Fabrication lines and FFU (Fan Filter Units) to protect yields from sub-micron particulates.
-
Data Center Cooling Systems: Acts as a high-efficiency filtration stage for Data Centers to prevent dust accumulation on sensitive IT infrastructure.
-
LCD/OLED Display Manufacturing: Ideal for industrial dust-free workshops in the electronics industry where air quality directly impacts screen clarity.
-
Optoelectronics & Lens Assembly: Prevents microscopic dust adhesion during the assembly of lenses and fiber optics.
-
Large-scale Commercial HVAC: Provides a robust air purification solution for commercial hubs and high-rise office ventilation systems.
-
Precision Mechanical Machining: Maintains air purity in plants where micro-machining requires a strictly controlled environment.
-
Nuclear & Exhaust Filtration: Suitable for specialized industrial exhaust systems requiring a heavy-duty HEPA filter that can withstand high pressure.
Competitive Comparison
| Feature | Chuqi Deep Pleat Separator Filter | Standard Mini-Pleat Filters | The Chuqi Advantage |
| Airflow Capacity | Large airflow up to 3400m³/h per unit. | Usually limited to 1000-1200m³/h. |
Fewer Filters Needed: Lowering total system costs.
|
| Dust Holding | Enhanced dust holding capacity via deep-pleated media. | Smaller surface area, clogs faster. |
Extended Service Life: Less frequent filter replacements.
|
| Structural Rigidity | Heavy-duty box-type frame (Alu/Stainless Steel). | Thinner, lightweight frames. |
High Pressure Stability: No deformation under high wind loads.
|
| Sealing Security | High-pressure gel-glue sealant. | Standard mechanical gaskets. |
Zero Leakage: Absolute airtightness in high-velocity systems.
|
Specifications
| External dimensions
(mm) |
Rated air volume
(m³ / h) |
initial resistance
(Pa) |
Efficiency (colorimetric method)
(%) |
| 305 × 305 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 320 × 320 × 150/220/292 | 400/700/900 | ≤ 220 | 95-99.9995 |
| 484×484×150/220/292 | 1000/1600/2000 | ≤220 | 95-99.9995 |
| 610×610×150/220/292 | 1600/2500/3200 | ≤220 | 95-99.9995 |
| 630×630×150/220/292 | 1700/2700/3400 | ≤220 | 95-99.9995 |
Chuqi MaxFlow-Ultra | Heavy-Duty Large Airflow Deep-Pleat Series
Our expertise in advanced airflow engineering allows Chuqi to manufacture deep pleat HEPA filters capable of handling massive air volumes up to 3400m³/h per unit. We specialize in high-durability construction, using thick-gauge aluminum alloy or stainless steel casing and specialized polyurethane sealant to ensure structural integrity under extreme high-pressure industrial conditions. This technical capability makes us a trusted partner for semiconductor wafer fabrication and large-scale data center ventilation systems where reliability is paramount.
Frequently Asked Questions
Q: Why is the “Deep Pleat” design better for high-volume airflow?

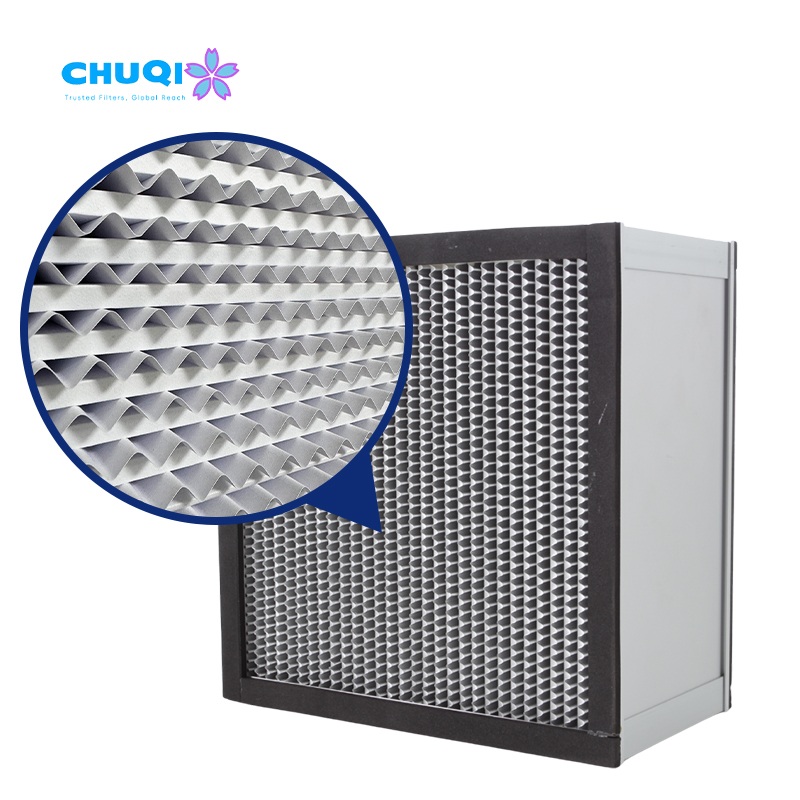

The deep pleat HEPA filter design utilizes aluminum foil separators to maintain pleat stability, providing a much larger surface area which allows for a rated air flow of up to 3400m³/h without increasing resistance.
Q: Can this filter withstand high-pressure conditions in large HVAC systems?
Yes. The external frame is built from thick-gauge galvanized or stainless steel, and the media is secured with specialized polyurethane sealant to prevent any structural failure under pressure.
Q: What is the benefit of the separator style for industrial dust-free workshops?
The separator-style design ensures the media remains perfectly spaced, providing high-efficiency protection and a high dust holding capacity, which significantly reduces maintenance downtime in OLED/LCD manufacturing.
Q: Is every unit tested for sub-micron efficiency?
Absolutely. We provide filters that are individually tested to meet technical standards such as 99.99% @ 0.3um and 99.9995% @ 0.12um
